16 mm Bore Double Acting
Double-acting pneumatic gripper with a 16 mm bore for parallel gripping in automation handling tasks.
SMC
SMC MHZ2-16D Pneumatic Gripper 16mm Bore Double Acting
$12.52
Available
PRODUCT GALLERY
01 / 2

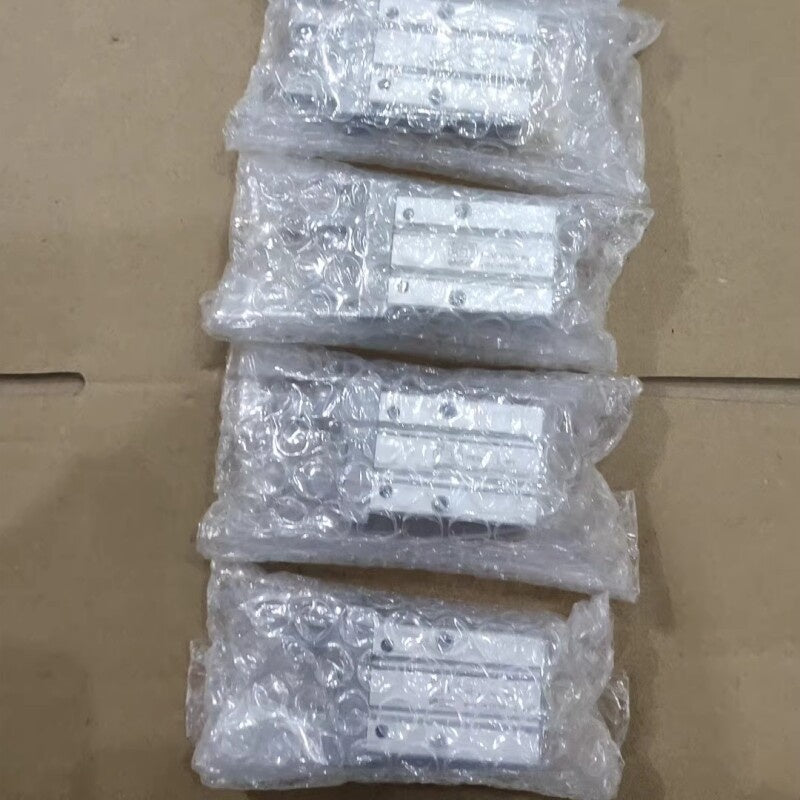

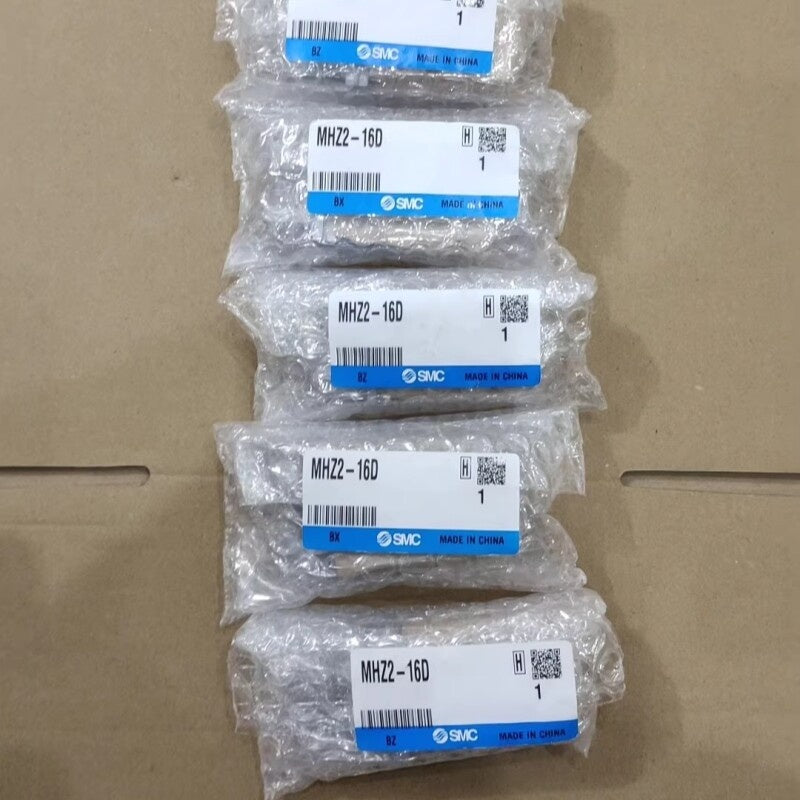

Product images for part identification
SMC
SMC MHZ2-16D Pneumatic Gripper 16mm Bore Double Acting
PRODUCT PRICE
USD
$12.52
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | MHZ2-16D |
| Product Category | Pneumatic Gripper |
| Product Family | MHZ2 |
| Type | 2-finger parallel gripper |
| Bore Size | 16 mm |
| Action | Double acting |
| Operating Pressure Range | 0.1 to 0.7 MPa |
| Gripping Force (External, Effective) | 34 N per finger at 0.5 MPa |
| Gripping Force (Internal, Effective) | 45 N per finger at 0.5 MPa |
| Opening/Closing Stroke | 6 mm (both sides) |
| Operating Temperature | -10°C to +60°C |
| Operating Frequency | Max. 180 cycles/min |
| Body Material | Aluminium |
| Weight | 115 g |
Key Features
34 N External Gripping Force
Provides an effective external gripping force of 34 N per finger at 0.5 MPa for secure part handling.
0.1 to 0.7 MPa Operating Pressure
Operates across a pressure range of 0.1 to 0.7 MPa for flexibility in pneumatic system design.
6 mm Total Stroke
Offers 6 mm opening and closing stroke (both sides) for gripping a range of part sizes.
Aluminium Body
Constructed with an aluminium body for a balance of strength and lightweight design at 115 g.
Applications
- Pick-and-place automation
- Assembly line part handling
- Machine tending and loading
- Packaging machinery gripping
- Robotics end-of-arm tooling
- Material transfer systems
- Quality inspection fixtures
Purchase Information
We support online purchase of the SMC MHZ2-16D Pneumatic Gripper. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC MHZ2-16D? The MHZ2-16D is a 2-finger parallel pneumatic gripper with a 16 mm bore and double-acting operation.
What is the bore size? The bore size is 16 mm.
What is the action type? The gripper is double acting.
What is the operating pressure range? The operating pressure range is 0.1 to 0.7 MPa.
What is the external gripping force? The effective external gripping force is 34 N per finger at 0.5 MPa.
What is the opening/closing stroke? The opening/closing stroke is 6 mm (both sides).
What is the operating temperature range? The operating temperature range is -10°C to +60°C.
What is the weight? The gripper weight is 115 g.
What should be checked before ordering? Verify the required gripping force, part size range, operating pressure available, mounting interface, and whether auto switch compatibility is needed for the application.
Need help confirming a model?
Send us your part number and technical requirements.
