0.75 kW Rated Power
The SINAMICS V20 6SL3210-5BE17-5UV1 is specified with a rated power of 0.75 kW.

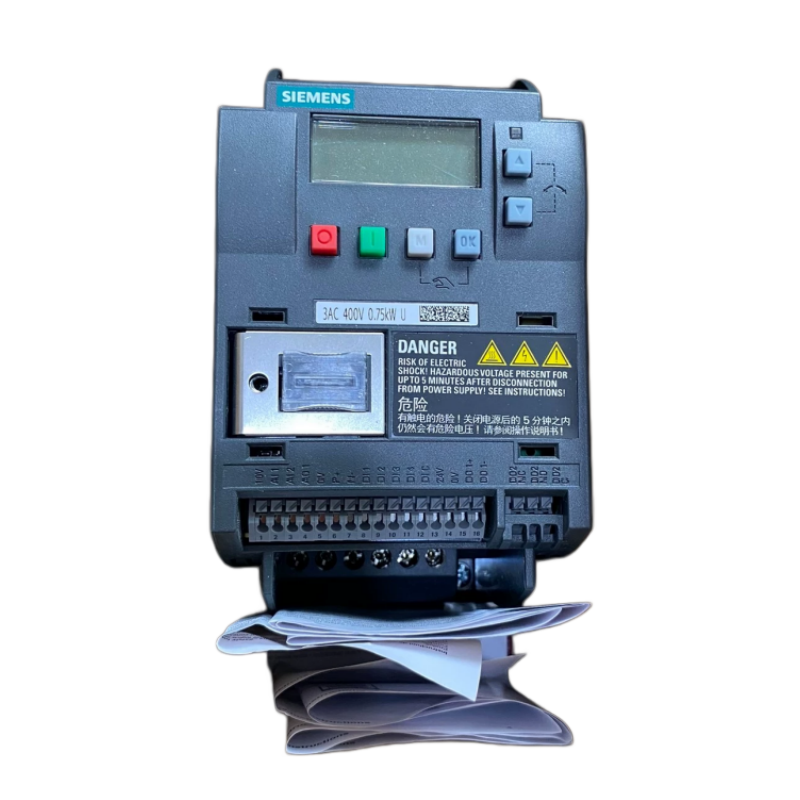

SIEMENS 6SL3210-5BE17-5UV1 Frequency Converter 0.75kW 380-480VAC
Available in stock (400)
Regular price
$132.86
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3210-5BE17-5UV1 |
| Product Category | Frequency Converter |
| Product Family | SINAMICS V20 |
| Input | 3-Phase AC |
| Line Voltage | 380-480 VAC -15%/+10% |
| Line Frequency | 47-63 Hz |
| Rated Power | 0.75 kW |
| Overload | 150% for 60 s |
| Digital Inputs | 4 |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| Analog Output | 1 |
| Fieldbus | USS / MODBUS RTU |
| Operator Panel | Built-In BOP |
| Degree of Protection | IP20 / UL Open Type |
| Frame Size | FSA |
| Dimensions | 90 x 150 x 145.5 mm |
| Cooling | Convection Cooling |
| Braking Unit | Integrated |
Key Features
380-480 VAC Input
The converter supports a three-phase AC line voltage range of 380-480 VAC with a documented tolerance of -15%/+10%.
Integrated I/O
The converter provides four digital inputs, two digital outputs, two analog inputs and one analog output.
USS / MODBUS RTU
The documented fieldbus communication options include USS and MODBUS RTU.
Built-In BOP
A Basic Operator Panel is integrated into the converter for local operator interaction and parameter access.
Integrated Braking Unit
Model 6SL3210-5BE17-5UV1 includes an integrated braking unit and is specified in frame size FSA.
Applications
- Industrial motor speed control
- Variable-frequency motor control
- Industrial machine drives
- Conveyor drive systems
- Pump control systems
- Fan drive systems
- Factory automation equipment
- OEM machine drive applications
Purchase Information
We support online purchase of the SIEMENS 6SL3210-5BE17-5UV1 Frequency Converter. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3210-5BE17-5UV1?
SIEMENS 6SL3210-5BE17-5UV1 is a SINAMICS V20 frequency converter rated at 0.75 kW.
What input voltage does 6SL3210-5BE17-5UV1 support?
The documented input is three-phase 380-480 VAC with a tolerance of -15%/+10%.
What line frequency does the converter support?
The documented line frequency range is 47-63 Hz.
What is the rated power of 6SL3210-5BE17-5UV1?
The documented rated power is 0.75 kW.
What overload capability is specified?
Siemens specifies 150% overload for 60 seconds.
What integrated I/O does the converter provide?
It provides four digital inputs, two digital outputs, two analog inputs and one analog output.
What fieldbus interfaces are documented?
The documented fieldbus options are USS and MODBUS RTU.
Does 6SL3210-5BE17-5UV1 include an operator panel?
Yes. Siemens specifies a built-in Basic Operator Panel.
What degree of protection is specified?
The documented degree of protection is IP20 / UL open type.
Does the converter include a braking unit?
Yes. Siemens specifies an integrated braking unit for this model.
What applications can 6SL3210-5BE17-5UV1 be considered for?
It can be considered for industrial motor speed control, machine drives, conveyors, pumps and fans after the motor and system requirements have been checked.
What should be checked before ordering 6SL3210-5BE17-5UV1?
Check the complete model number, three-phase input supply, motor power and current requirements, communication requirements, I/O requirements and installation conditions against the existing system documentation.
