1.50 kW Rated Power
The SINAMICS V20 6SL3210-5BB21-5UV1 has a documented rated output power of 1.50 kW.

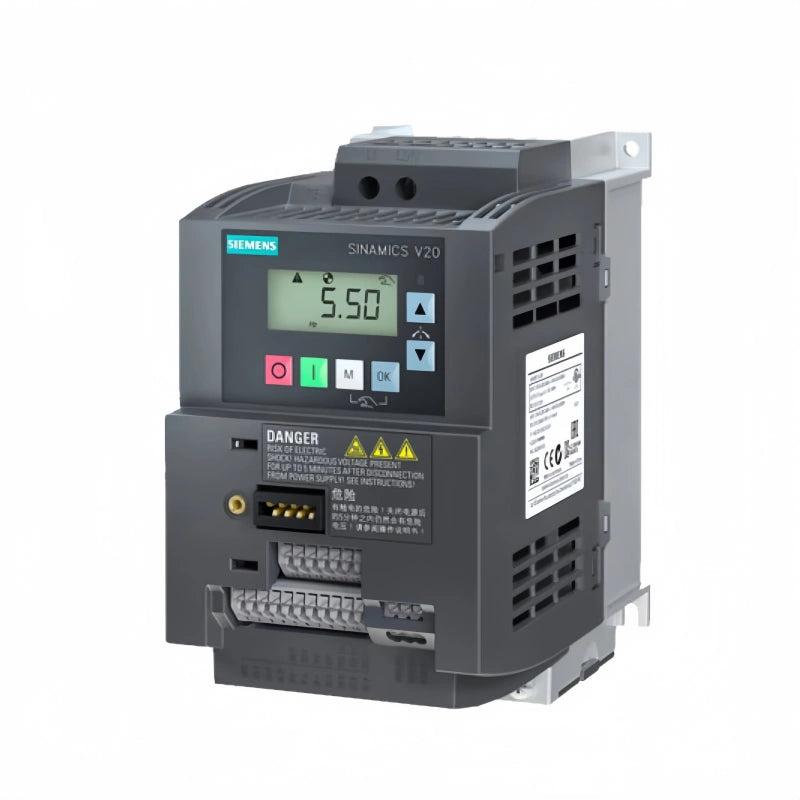

SIEMENS 6SL3210-5BB21-5UV1 Variable Frequency Drive 1.5kW 200-240V
Available in stock (400)
Regular price
$145.23
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3210-5BB21-5UV1 |
| Product Category | Variable Frequency Drive |
| Product Family | SINAMICS V20 |
| Input | 1 AC |
| Line Voltage | 200-240 VAC -15%/+10% |
| Line Frequency | 47-63 Hz |
| Output | 3 AC |
| Rated Output Voltage | 230 V IEC / 240 V NEC |
| Rated Power | 1.50 kW |
| Rated Output Current | 7.80 A |
| Pulse Frequency | 8.00 kHz |
| Output Frequency | 0-550 Hz |
| High Overload | 150% Rated Output Current for 60 s, 300 s Cycle |
| Digital Inputs | 4 |
| Digital Outputs | 1 Relay Changeover Contact + 1 Transistor |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Communication | USS / Modbus RTU |
| Filter Class | Unfiltered |
| Cooling | External Fan |
| Protection Rating | IP20 / UL Open Type |
| Frame Size | FSAC |
| Dimensions (W x H x D) | 91 x 160.9 x 147 mm |
Key Features
200-240 VAC Single-Phase Input
The drive is specified for a single-phase 200-240 VAC line supply with a documented frequency range of 47-63 Hz.
7.80 A Rated Output Current
The documented rated output current is 7.80 A for the specified operating ratings.
150% High Overload
The documented high-overload capability is 150% of rated output current for 60 seconds with a 300-second cycle time.
Integrated I/O
The documented interface includes four digital inputs, two digital outputs, two analog inputs and one analog output.
USS / Modbus RTU
The drive supports USS and Modbus RTU communication for applicable industrial control and automation systems.
Applications
- Variable-speed AC motor control
- Industrial conveyor systems
- Pump speed control
- Fan speed control
- Material handling equipment
- Industrial machinery drive control
- Process equipment drive systems
- Automation control applications
Purchase Information
We support online purchase of the SIEMENS 6SL3210-5BB21-5UV1 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3210-5BB21-5UV1?
SIEMENS 6SL3210-5BB21-5UV1 is a SINAMICS V20 variable frequency drive with a 1.50 kW rated output power.
What input voltage does 6SL3210-5BB21-5UV1 use?
The documented line supply is single-phase 200-240 VAC with a tolerance of -15%/+10%.
What is the rated power of 6SL3210-5BB21-5UV1?
The documented rated power is 1.50 kW.
What is the rated output current?
The documented rated output current is 7.80 A.
What output frequency range is specified?
The documented output frequency range is 0-550 Hz.
What overload capability is specified?
The documented high-overload capability is 150% of rated output current for 60 seconds with a 300-second cycle time.
What I/O does 6SL3210-5BB21-5UV1 provide?
The drive provides four digital inputs, one relay changeover digital output, one transistor digital output, two analog inputs and one analog output.
What communication does 6SL3210-5BB21-5UV1 support?
The documented communication interfaces are USS and Modbus RTU.
What protection rating is specified?
The documented degree of protection is IP20 / UL Open Type.
What are the dimensions of 6SL3210-5BB21-5UV1?
The documented dimensions are 91 x 160.9 x 147 mm for width, height and depth.
What applications can 6SL3210-5BB21-5UV1 be considered for?
It can be considered for variable-speed motor control in industrial machinery, conveyors, pumps, fans and process equipment after electrical and mechanical requirements have been checked.
What should be checked before ordering 6SL3210-5BB21-5UV1?
Check the complete model number, line voltage, motor power and current requirements, I/O, communication, output frequency requirements, mounting dimensions and enclosure requirements against the existing system documentation.
