4.00 kW Low-Overload Rating
The SINAMICS G120C 6SL3210-1KE18-8AF1 has a documented low-overload rated power of 4.00 kW.

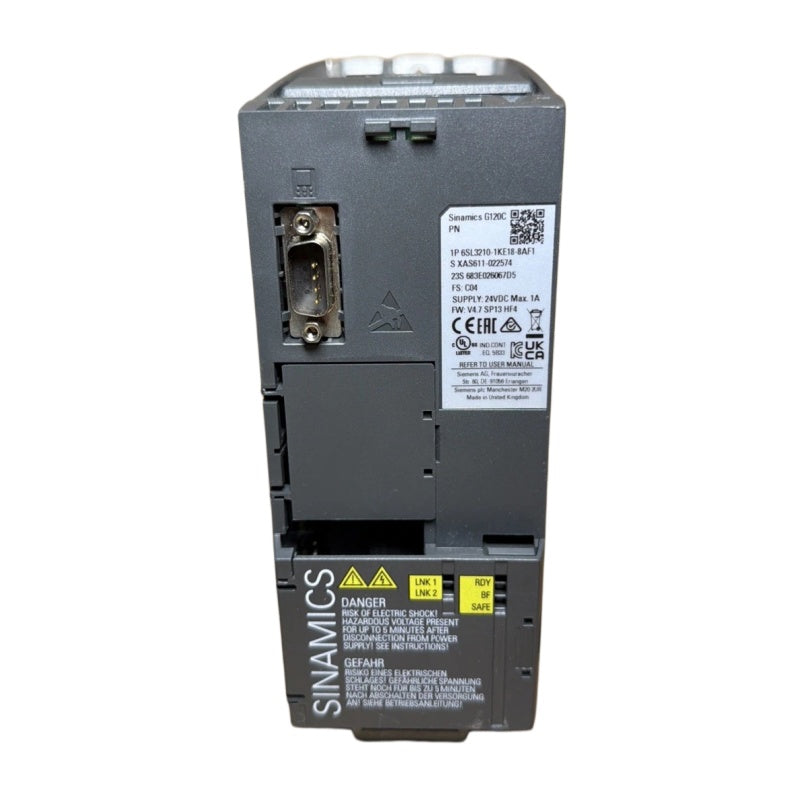

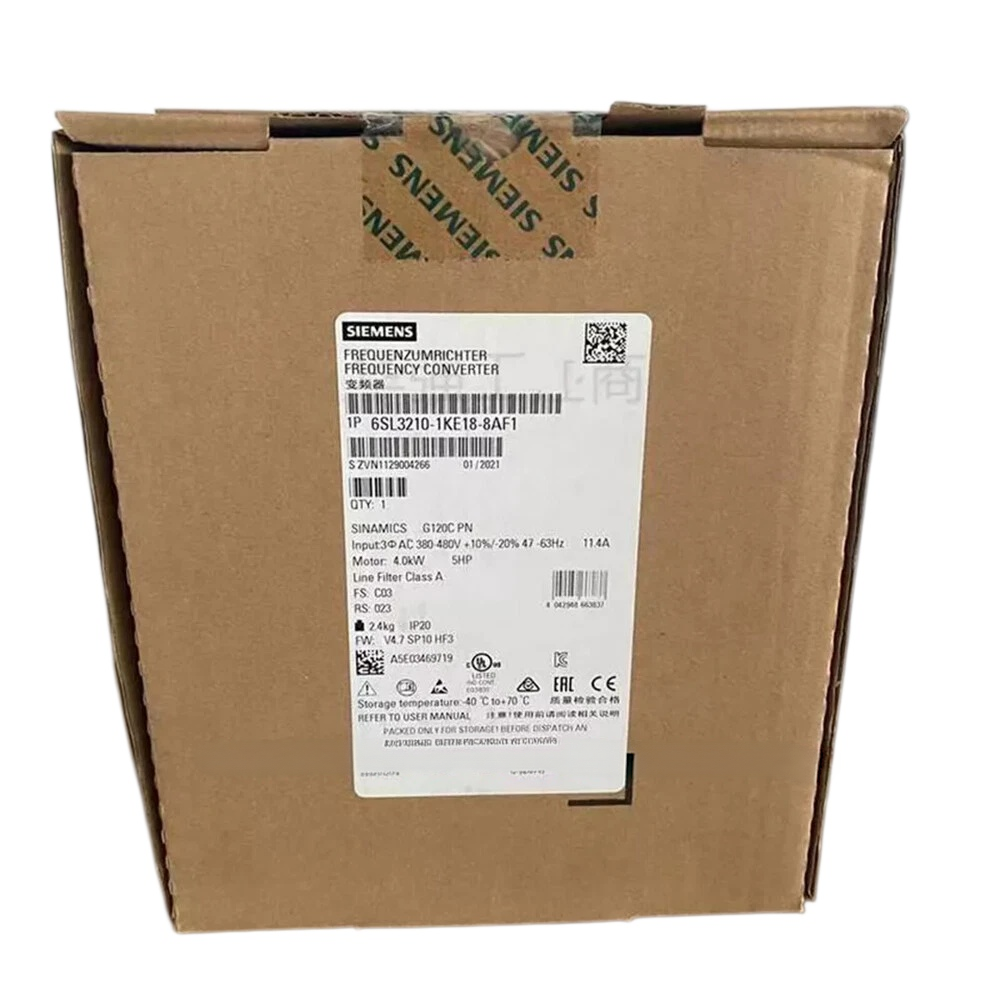

SIEMENS 6SL3210-1KE18-8AF1 Variable Frequency Drive 4kW 380-480V
Available in stock (400)
Regular price
$310.34
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3210-1KE18-8AF1 |
| Product Category | Variable Frequency Drive |
| Product Family | SINAMICS G120C |
| Input | 3 AC |
| Line Voltage | 380-480 V +10%/-20% |
| Line Frequency | 47-63 Hz |
| Rated Input Current (LO) | 11.40 A |
| Rated Input Current (HO) | 10.60 A |
| Rated Power (Low Overload) | 4.00 kW |
| Rated Power (High Overload) | 3.00 kW |
| Rated Output Current (LO) | 8.80 A |
| Rated Output Current (HO) | 7.30 A |
| Maximum Output Current | 14.60 A |
| Pulse Frequency | 4 kHz |
| I/O Interface | 6 DI, 2 DO, 1 AI, 1 AO, 1 Mot_t |
| Safety Function | Safe Torque Off (STO) |
| Fieldbus | PROFINET-PN |
| Filter | Integrated Filter Class A |
| External Supply | 24 V |
| Protection Rating | IP20 / UL Open Type |
| Frame Size | FSA |
| Dimensions (H x W x D) | 196 x 73 x 200 mm |
Key Features
380-480 V Three-Phase Input
The drive is specified for a three-phase 380-480 V AC line supply with +10%/-20% tolerance and 47-63 Hz line frequency.
PROFINET-PN Fieldbus
The documented fieldbus interface is PROFINET-PN for supported industrial automation communication.
Safe Torque Off
Safe Torque Off (STO) is integrated as a documented safety function for this catalog number.
Integrated I/O Interface
The documented interface includes six digital inputs, two digital outputs, one analog input, one analog output and one motor temperature input.
Integrated Class A Filter
This drive is specified with an integrated Class A filter and IP20 / UL Open Type protection.
Applications
- Variable-speed AC motor control
- Industrial conveyor systems
- Pump speed control applications
- Fan speed control applications
- Material handling equipment
- Industrial machinery drive systems
- Process equipment motor control
- Automation control applications
Purchase Information
We support online purchase of the SIEMENS 6SL3210-1KE18-8AF1 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3210-1KE18-8AF1?
SIEMENS 6SL3210-1KE18-8AF1 is a SINAMICS G120C variable frequency drive with a documented 4.00 kW low-overload power rating.
What input voltage does 6SL3210-1KE18-8AF1 use?
The documented input is three-phase 380-480 V AC with +10%/-20% voltage tolerance.
What is the rated power of 6SL3210-1KE18-8AF1?
The documented rated power is 4.00 kW under low-overload conditions and 3.00 kW under high-overload conditions.
What are the rated output currents?
The documented rated output current is 8.80 A under low-overload conditions and 7.30 A under high-overload conditions.
What is the maximum output current?
The documented maximum output current is 14.60 A.
What I/O interface does 6SL3210-1KE18-8AF1 provide?
The documented interface includes six digital inputs, two digital outputs, one analog input, one analog output and one motor temperature input.
What fieldbus does 6SL3210-1KE18-8AF1 use?
The documented fieldbus interface is PROFINET-PN.
Does 6SL3210-1KE18-8AF1 include Safe Torque Off?
Yes. Safe Torque Off (STO) is documented as an integrated safety function.
What protection rating is specified?
The documented protection classification is IP20 / UL Open Type.
What are the dimensions of 6SL3210-1KE18-8AF1?
Siemens specifies dimensions of 196 x 73 x 200 mm for height, width and depth.
What applications can 6SL3210-1KE18-8AF1 be considered for?
It can be considered for variable-speed motor control in industrial machinery, conveyors, pumps, fans and process equipment after electrical and mechanical requirements have been checked.
What should be checked before ordering 6SL3210-1KE18-8AF1?
Check the complete model number, supply voltage, motor power and current requirements, overload requirements, I/O, PROFINET requirements, safety functions, filter requirements and installation dimensions against the existing system documentation.
