0.55 kW Low Overload Rating
The SINAMICS G120C provides a documented rated power of 0.55 kW under low-overload operating conditions.

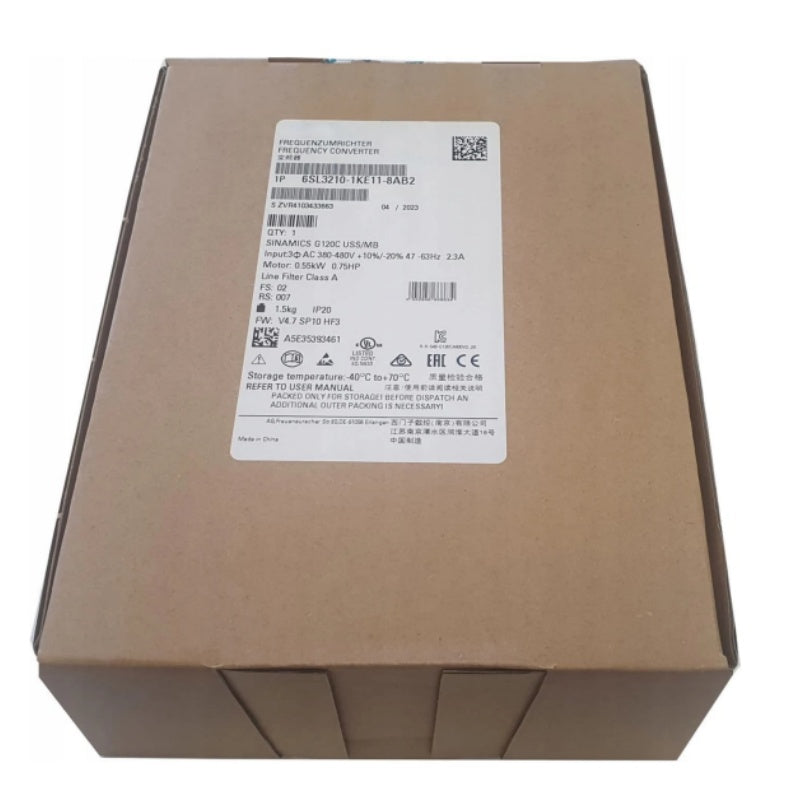

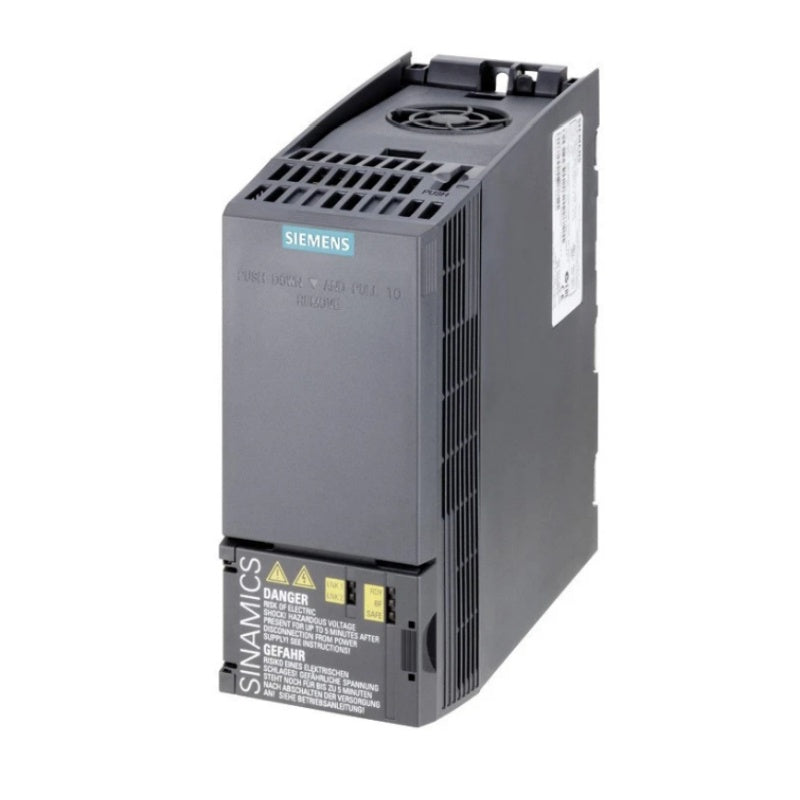

SIEMENS 6SL3210-1KE11-8AB2 Frequency Converter 0.55kW 380-480VAC
Available in stock (400)
Regular price
$334.89
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3210-1KE11-8AB2 |
| Product Category | Frequency Converter |
| Product Family | SINAMICS G120C |
| Input Phases | 3 AC |
| Line Voltage | 380-480 VAC +10%/-20% |
| Line Frequency | 47-63 Hz |
| Rated Power Low Overload | 0.55 kW |
| Rated Power High Overload | 0.37 kW |
| Rated Output Voltage | 400 V IEC |
| Rated Output Current | 1.80 A |
| Maximum Output Current | 2.60 A |
| Pulse Frequency | 4 kHz |
| I/O Interface | 6 DI, 2 DO, 1 AI, 1 AO |
| Fieldbus | USS / Modbus RTU |
| Safety Function | Safe Torque Off |
| Integrated Filter | Class A |
| Degree of Protection | IP20 / UL Open Type |
| Frame Size | FSAA |
| Dimensions | 173 x 73 x 155 mm (H x W x D) |
Key Features
380-480 VAC Input
The converter operates from a three-phase 380-480 VAC line supply with a documented tolerance of +10%/-20%.
USS / Modbus RTU
The integrated fieldbus interface supports USS and Modbus RTU communication.
Integrated I/O
The documented I/O interface includes six digital inputs, two digital outputs, one analog input and one analog output.
Safe Torque Off
The converter includes the documented Safe Torque Off safety function.
FSAA Compact Format
The FSAA converter enclosure measures 173 x 73 x 155 mm and has a documented IP20 / UL Open Type protection classification.
Applications
- Industrial motor speed control
- Factory automation drive systems
- Conveyor drive control
- Industrial machine drives
- Pump motor control
- Fan motor control
- Variable-speed motor applications
- Modbus RTU drive networks
Purchase Information
We support online purchase of the SIEMENS 6SL3210-1KE11-8AB2 Frequency Converter. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3210-1KE11-8AB2?
SIEMENS 6SL3210-1KE11-8AB2 is a SINAMICS G120C frequency converter for three-phase motor control applications.
What is the rated power of 6SL3210-1KE11-8AB2?
The documented rated power is 0.55 kW under low-overload conditions and 0.37 kW under high-overload conditions.
What input voltage does 6SL3210-1KE11-8AB2 use?
The documented line voltage is three-phase 380-480 VAC with a tolerance of +10%/-20%.
What line frequency does this converter support?
The documented line frequency range is 47-63 Hz.
What is the rated output current?
The documented rated output current is 1.80 A, with a maximum output current of 2.60 A.
What I/O does 6SL3210-1KE11-8AB2 provide?
The documented interface includes six digital inputs, two digital outputs, one analog input and one analog output.
Which fieldbus protocols are supported?
The integrated fieldbus interface supports USS and Modbus RTU.
Does 6SL3210-1KE11-8AB2 include Safe Torque Off?
Yes. Safe Torque Off is documented as an integrated safety function.
What is the degree of protection?
The converter is specified as IP20 / UL Open Type.
What are the dimensions of 6SL3210-1KE11-8AB2?
The documented dimensions are 173 x 73 x 155 mm (H x W x D), corresponding to frame size FSAA.
What should be checked before ordering 6SL3210-1KE11-8AB2?
Check the complete model number, motor power and current requirements, three-phase supply voltage, overload requirements, fieldbus interface, I/O configuration and installation requirements against the existing drive system documentation.
