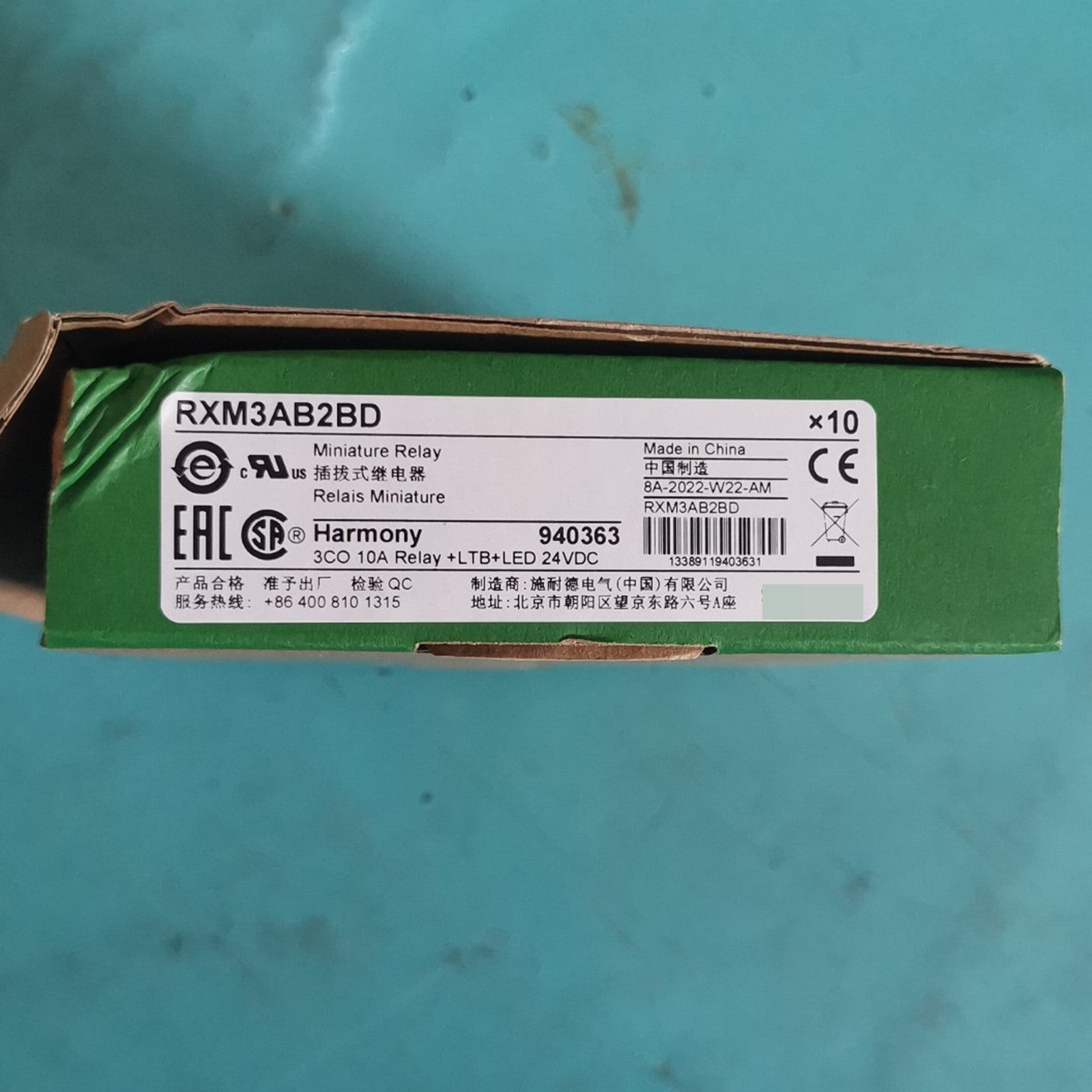

Schneider RXM3AB2BD Miniature Plug-in Relay 24VDC 10A 3CO
PRODUCT PRICE
USD
$24.06
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | RXM3AB2BD |
| Product Category | Miniature Plug-in Relay |
| Product Family | Harmony Electromechanical Relays |
| Series | RXM Series |
| Relay Type | Miniature Relay |
| Contacts Type and Composition | 3 C/O |
| Control Circuit Voltage | 24 VDC |
| Conventional Enclosed Thermal Current | 10 A |
| Status LED | With |
| Control Type | Lockable Test Button |
| Connection Type | Flat, Faston Type |
Key Features
3 C/O Contacts
The relay provides three changeover contacts for switching and control circuit applications.
10A Thermal Current
The documented conventional enclosed thermal current rating is 10 A.
Status LED
The RXM3AB2BD configuration includes an LED for visual relay status indication.
Lockable Test Button
The documented configuration includes a lockable test button for manual relay checking.
Miniature Plug-in Design
RXM3AB2BD is identified by Schneider as a miniature plug-in electromechanical relay in the RXM series.
Applications
- Industrial control panel switching
- Machine control circuits
- PLC output interface circuits
- Automation relay control
- Electrical cabinet control circuits
- Signal switching applications
- Multi-contact control circuits
- Industrial equipment maintenance projects
Purchase Information
We support online purchase of the Schneider RXM3AB2BD Miniature Plug-in Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider RXM3AB2BD?
Schneider RXM3AB2BD is a miniature plug-in electromechanical relay in the Harmony RXM series with three changeover contacts, a 24 VDC control circuit, status LED and lockable test button.
What control voltage does RXM3AB2BD use?
The documented control circuit voltage is 24 VDC.
How many contacts does RXM3AB2BD provide?
RXM3AB2BD provides three changeover contacts, specified as 3 C/O.
What current rating is specified for RXM3AB2BD?
Schneider specifies a conventional enclosed thermal current rating of 10 A.
Does RXM3AB2BD include an LED?
Yes. The documented configuration includes a status LED.
Does RXM3AB2BD include a test button?
Yes. Schneider specifies a lockable test button for this relay configuration.
What relay series does RXM3AB2BD belong to?
RXM3AB2BD belongs to Schneider Harmony Electromechanical Relays and the RXM series.
What type of relay is RXM3AB2BD?
Schneider identifies RXM3AB2BD as a miniature plug-in relay.
What applications can RXM3AB2BD be considered for?
It can be considered for industrial control panels, machine control circuits, automation switching and other relay control applications after the electrical requirements have been checked.
Can RXM3AB2BD be used in an existing control system?
It can be considered after the complete model number, control voltage, contact arrangement, current requirements, socket arrangement and circuit requirements have been checked against the existing system.
What should be checked before ordering RXM3AB2BD?
Check the complete RXM3AB2BD model number, 24 VDC control voltage, 3 C/O contact configuration, 10 A thermal current requirement, relay socket arrangement and electrical circuit requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
