2.2 kW Motor Rating
The ATV320U22M2C is specified for 2.2 kW or 3 hp motor power under the documented heavy-duty rating.

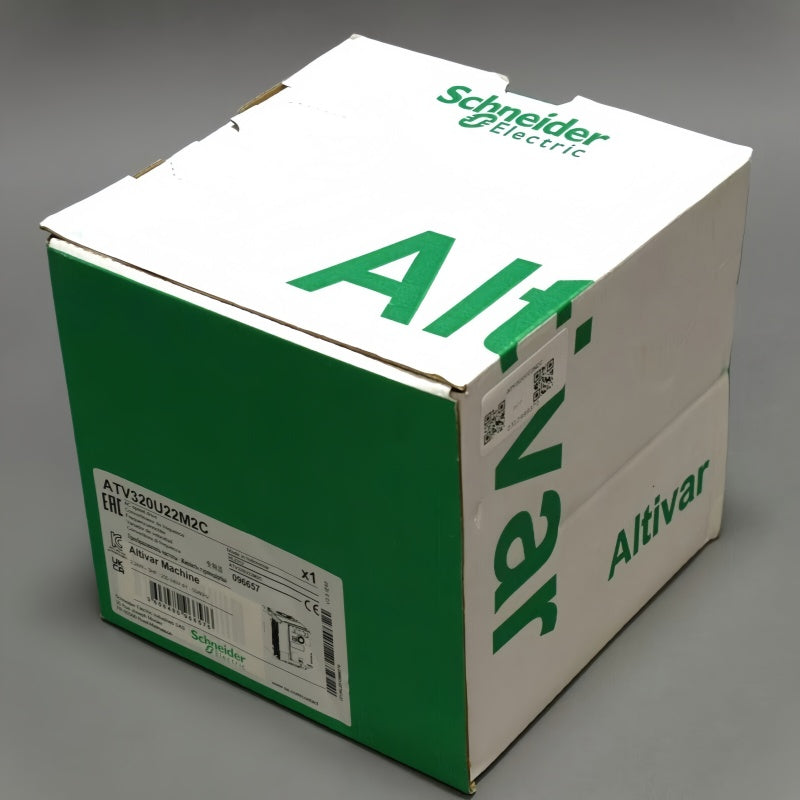

Schneider ATV320U22M2C Variable Speed Drive 2.2kW 200-240V 1-Phase
Available in stock (200)
Regular price
$199.74
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV320U22M2C |
| Product Category | Variable Speed Drive |
| Product Range | Altivar Machine ATV320 |
| Drive Format | Compact |
| Supply Voltage | 200-240 VAC |
| Network Phases | 1 Phase |
| Supply Frequency | 50-60 Hz |
| Motor Power | 2.2 kW |
| Motor Power | 3 hp |
| Continuous Output Current | 11 A at 4 kHz |
| Maximum Transient Current | 16.5 A for 60 s |
| Output Frequency | 0.1-599 Hz |
| EMC Filter | Class C2 integrated |
| Protection Rating | IP20 |
| Cooling Type | Fan |
Key Features
200-240 VAC Single-Phase Input
The documented rated supply voltage is 200 to 240 VAC using a single-phase network supply.
11 A Continuous Output
Schneider Electric specifies a continuous output current of 11 A at a 4 kHz switching frequency under the heavy-duty rating.
0.1-599 Hz Output
The documented speed drive output frequency range extends from 0.1 to 599 Hz.
Integrated C2 EMC Filter
The ATV320U22M2C incorporates a documented Class C2 EMC filter.
Compact IP20 Format
Schneider Electric identifies this catalog number as a compact-format drive with an IP20 degree of protection.
Applications
- Industrial machine speed control
- Asynchronous motor control
- Synchronous motor control
- Material handling machinery
- Packaging machine control
- Industrial process machinery
- Machine automation systems
- Motor speed and torque control
Purchase Information
We support online purchase of the Schneider ATV320U22M2C Variable Speed Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV320U22M2C?
Schneider ATV320U22M2C is an Altivar Machine ATV320 variable speed drive in compact format for synchronous and asynchronous motor control.
What motor power is specified for ATV320U22M2C?
Schneider Electric specifies a motor power rating of 2.2 kW or 3 hp under the documented heavy-duty rating.
What supply voltage does ATV320U22M2C use?
The documented rated supply voltage is 200 to 240 VAC.
Does ATV320U22M2C use a single-phase supply?
Yes. Schneider Electric specifies a single-phase network supply for this catalog number.
What supply frequency is specified?
The documented supply frequency range is 50 to 60 Hz.
What is the continuous output current of ATV320U22M2C?
The documented continuous output current is 11 A at 4 kHz under the heavy-duty rating.
What maximum transient current is specified?
Schneider Electric specifies a maximum transient current of 16.5 A for 60 seconds under the heavy-duty rating.
What output frequency range does ATV320U22M2C support?
The documented speed drive output frequency range is 0.1 to 599 Hz.
Does ATV320U22M2C include an EMC filter?
Yes. Schneider Electric specifies an integrated Class C2 EMC filter.
What is the protection rating of ATV320U22M2C?
The documented degree of protection is IP20 according to EN/IEC 61800-5-1.
What motor types are specified for ATV320U22M2C?
Schneider Electric identifies asynchronous and synchronous motors as the documented product destinations for this drive.
What should be checked before ordering ATV320U22M2C?
Check the complete ATV320U22M2C model number, 200-240 VAC single-phase supply, 2.2 kW motor requirement, motor type, required output current, EMC requirements and installation requirements before purchasing.
