Schneider

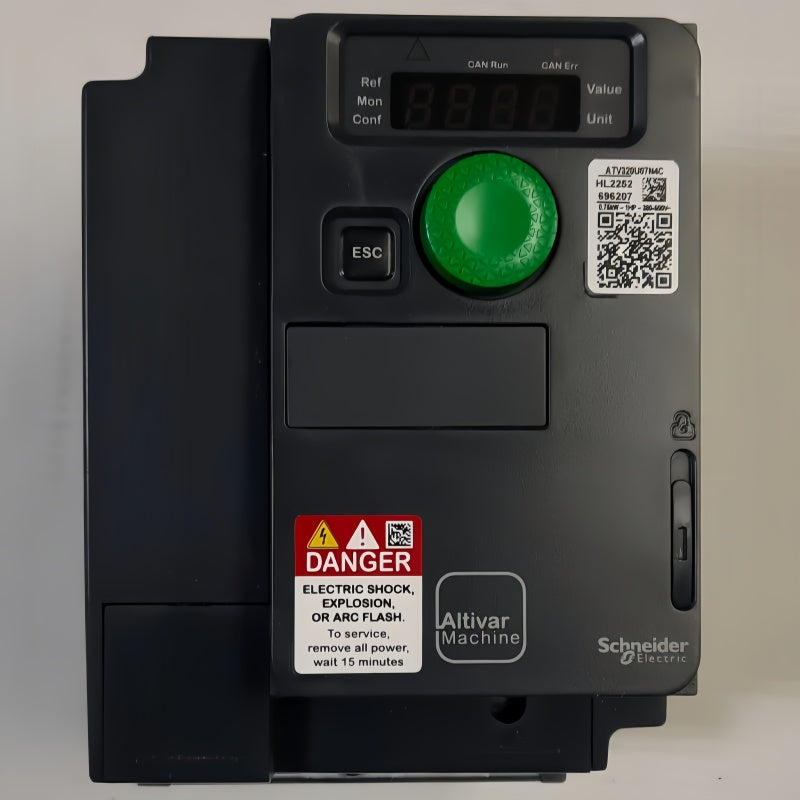

Schneider ATV320U07N4C Variable Speed Drive 0.75kW 380-500V 3-Phase

PRODUCT PRICE USD

$287.63

Available to order

Request a Quote

Bulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Schneider
Model Number	ATV320U07N4C
Product Category	Variable Speed Drive
Product Range	Altivar Machine ATV320
Control Block Format	Compact
Supply Voltage	380-500 VAC
Network Phases	3 Phase
Supply Frequency	50-60 Hz
Motor Power	0.75 kW
Motor Power	1 hp
Continuous Output Current	2.3 A at 4 kHz
Maximum Transient Current	3.5 A for 60 s
Output Frequency	0.1-599 Hz
EMC Filter	Class C2 integrated
Protection Rating	IP20
Cooling Type	Fan
Dimensions	105 × 143 × 158 mm

Key Features

0.75 kW Motor Rating

The ATV320U07N4C is specified for a motor power rating of 0.75 kW or 1 hp under the documented heavy-duty rating.

380-500 VAC Supply

The documented rated supply voltage range is 380 to 500 VAC with a three-phase network supply.

2.3 A Continuous Output

Schneider Electric specifies a continuous output current of 2.3 A at a 4 kHz switching frequency under the documented heavy-duty rating.

0.1-599 Hz Output

The documented speed drive output frequency range extends from 0.1 to 599 Hz.

Integrated C2 EMC Filter

The ATV320U07N4C incorporates a documented Class C2 EMC filter.

Compact Format

Schneider Electric identifies this ATV320 catalog number with a compact control block format and IP20 degree of protection.

Applications

Industrial machine speed control
Asynchronous motor control
Synchronous motor control
Conveyor control systems
Material handling machinery
Packaging machine control
Industrial process machinery
Machine automation systems

Purchase Information

We support online purchase of the Schneider ATV320U07N4C Variable Speed Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Schneider ATV320U07N4C?
Schneider ATV320U07N4C is an Altivar Machine ATV320 variable speed drive in compact format for synchronous and asynchronous motor control.

What motor power is specified for ATV320U07N4C?
Schneider Electric specifies a motor power rating of 0.75 kW or 1 hp under the documented heavy-duty rating.

What supply voltage does ATV320U07N4C use?
The documented rated supply voltage is 380 to 500 VAC.

Does ATV320U07N4C use a three-phase supply?
Yes. Schneider Electric specifies a three-phase network supply for this catalog number.

What supply frequency is specified?
The documented supply frequency range is 50 to 60 Hz.

What is the continuous output current of ATV320U07N4C?
The documented continuous output current is 2.3 A at 4 kHz under the heavy-duty rating.

What maximum transient current is specified?
Schneider Electric specifies a maximum transient current of 3.5 A for 60 seconds under the documented heavy-duty rating.

What output frequency range does ATV320U07N4C support?
The documented speed drive output frequency range is 0.1 to 599 Hz.

Does ATV320U07N4C include an EMC filter?
Yes. Schneider Electric specifies an integrated Class C2 EMC filter.

What is the protection rating of ATV320U07N4C?
The documented degree of protection is IP20 according to EN/IEC 61800-5-1.

What are the dimensions of ATV320U07N4C?
The documented drive dimensions are 105 × 143 × 158 mm without the additional EMC plate or UL Type 1 conformity kit.

What should be checked before ordering ATV320U07N4C?
Check the complete ATV320U07N4C model number, 380-500 VAC three-phase supply, 0.75 kW motor requirement, motor type, required output current, installation dimensions and application requirements before purchasing.
