0.75 kW Motor Rating
Schneider Electric specifies a motor power rating of 0.75 kW for the ATV320U07M2C under the documented heavy-duty rating.

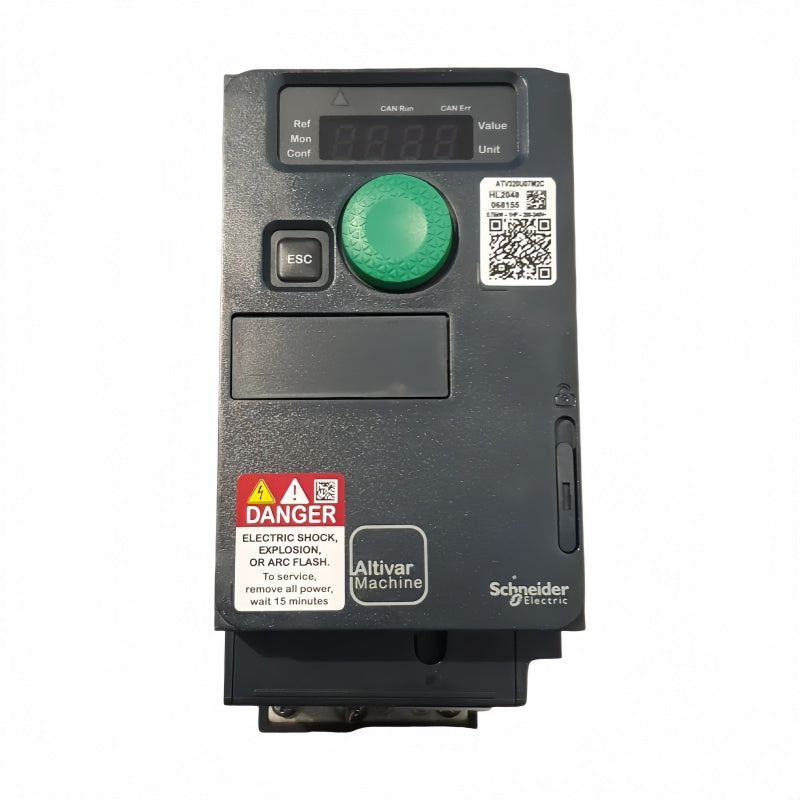

Schneider ATV320U07M2C Variable Speed Drive 0.75kW 200-240V 1-Phase
Available in stock (200)
Regular price
$158.60
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV320U07M2C |
| Product Category | Variable Speed Drive |
| Product Range | Altivar Machine ATV320 |
| Variant | Standard version |
| Drive Format | Compact |
| Mounting Mode | Wall mount |
| Supply Voltage | 200-240 VAC |
| Network Phases | 1 Phase |
| Motor Power | 0.75 kW |
| Maximum Horse Power Rating | 1 hp |
| Nominal Output Current | 4.8 A |
| EMC Filter | Class C2 integrated |
| Protection Rating | IP20 |
| Discrete Inputs | 7 |
| Discrete Outputs | 3 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
Key Features
200-240 VAC Supply
The documented rated supply voltage range is 200 to 240 VAC with a single-phase network supply.
4.8 A Nominal Output
The documented nominal output current for this catalog number is 4.8 A.
Integrated C2 EMC Filter
Schneider Electric specifies an integrated Class C2 EMC filter for the ATV320U07M2C.
Compact IP20 Format
The drive is documented in compact format with an IP20 degree of protection.
Integrated I/O
The documented control configuration includes seven discrete inputs, three discrete outputs, three analog inputs and one analog output.
Applications
- Industrial machine speed control
- Asynchronous motor control
- Synchronous motor control
- Material handling machinery
- Packaging machine control
- Industrial process machinery
- Machine automation systems
- Motor speed control applications
Purchase Information
We support online purchase of the Schneider ATV320U07M2C Variable Speed Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV320U07M2C?
Schneider ATV320U07M2C is an Altivar Machine ATV320 variable speed drive in compact format with a 0.75 kW motor rating and 200-240 VAC single-phase supply.
What motor power is specified for ATV320U07M2C?
Schneider Electric specifies a motor power rating of 0.75 kW under the documented heavy-duty rating.
What supply voltage does ATV320U07M2C use?
The documented rated supply voltage range is 200 to 240 VAC.
Does ATV320U07M2C use a single-phase supply?
Yes. Schneider Electric specifies a single-phase network supply for this catalog number.
What is the nominal output current of ATV320U07M2C?
The documented nominal output current is 4.8 A.
What is the maximum horsepower rating?
Schneider Electric specifies a maximum horsepower rating of 1 hp.
Does ATV320U07M2C include an EMC filter?
Yes. The documented configuration includes an integrated Class C2 EMC filter.
What is the protection rating of ATV320U07M2C?
Schneider Electric specifies an IP20 degree of protection.
How many discrete inputs does ATV320U07M2C provide?
The documented control configuration includes seven discrete inputs.
How many analog inputs and outputs are provided?
The documented configuration includes three analog inputs and one analog output.
Can ATV320U07M2C be considered for an existing machine?
It can be considered after the complete model number, 200-240 VAC single-phase supply, 0.75 kW motor requirement, nominal output current, I/O requirements and installation requirements have been checked against the existing system.
What should be checked before ordering ATV320U07M2C?
Check the complete ATV320U07M2C model number, 0.75 kW motor requirement, 200-240 VAC single-phase supply, 4.8 A nominal output current, motor type, control I/O and mounting requirements before purchasing.
