4 kW Motor Rating
The ATV312HU40N4 is specified for a 4 kW or 5 hp asynchronous motor rating.

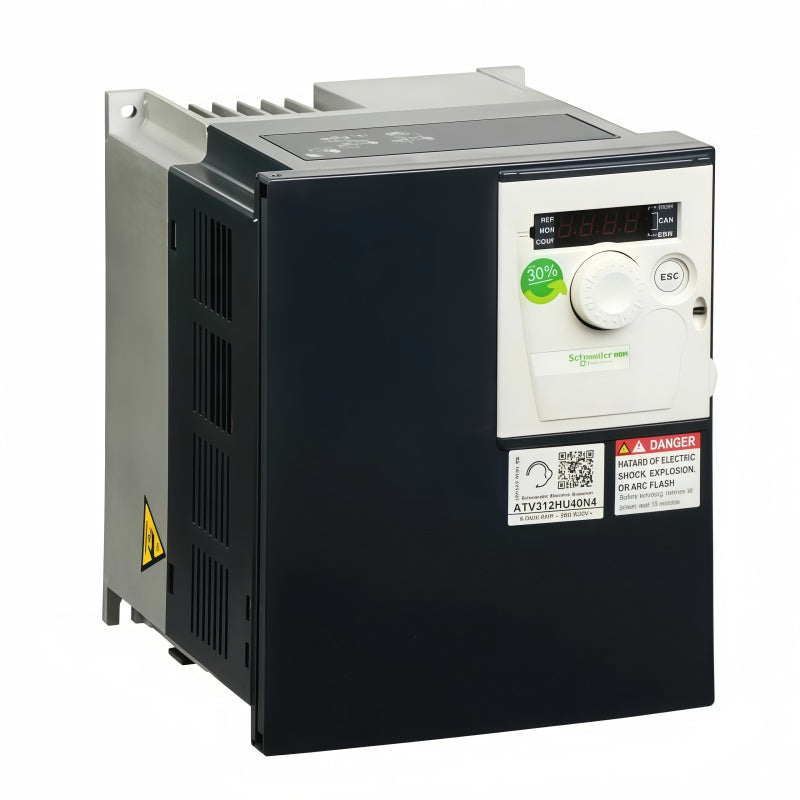

Schneider ATV312HU40N4 Variable Speed Drive 4kW 380-500V 3-Phase
Available in stock (200)
Regular price
$267.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV312HU40N4 |
| Product Category | Variable Speed Drive |
| Product Range | Altivar 312 |
| Product Destination | Asynchronous motors |
| Product Application | Simple machine |
| Assembly Style | With heat sink |
| Motor Power | 4 kW |
| Motor Power | 5 hp |
| Supply Voltage | 380-500 VAC |
| Network Phases | 3 Phase |
| Supply Frequency | 50-60 Hz |
| Line Current | 13.9 A at 380 V, 10.6 A at 500 V |
| Apparent Power | 9.2 kVA |
| Maximum Transient Current | 14.3 A for 60 s |
| Power Dissipation | 150 W at nominal load |
| EMC Filter | Integrated |
| Speed Range | 1-50 |
Key Features
380-500 VAC Supply
The documented rated supply voltage range is 380 to 500 VAC with a three-phase network supply.
50-60 Hz Supply
Schneider Electric specifies a supply frequency range of 50 to 60 Hz for this catalog number.
9.2 kVA Apparent Power
The documented apparent power rating for the ATV312HU40N4 is 9.2 kVA.
Integrated EMC Filter
Schneider Electric specifies an integrated EMC filter for this variable speed drive.
14.3 A Transient Current
The documented maximum transient current is 14.3 A for 60 seconds.
Applications
- Simple machine control
- Asynchronous motor speed control
- Material handling machinery
- Packaging machine control
- Conveyor speed control
- Industrial machine automation
- Motor-driven machinery
- Variable speed motor applications
Purchase Information
We support online purchase of the Schneider ATV312HU40N4 Variable Speed Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV312HU40N4?
Schneider ATV312HU40N4 is an Altivar 312 variable speed drive specified for asynchronous motors and simple machine applications.
What motor power is specified for ATV312HU40N4?
Schneider Electric specifies a motor power rating of 4 kW or 5 hp.
What supply voltage does ATV312HU40N4 use?
The documented rated supply voltage range is 380 to 500 VAC.
Does ATV312HU40N4 use a three-phase supply?
Yes. Schneider Electric specifies a three-phase network supply for this catalog number.
What supply frequency is specified for ATV312HU40N4?
The documented supply frequency range is 50 to 60 Hz.
What line current is specified for ATV312HU40N4?
Schneider Electric specifies 13.9 A at 380 V and 10.6 A at 500 V.
What is the apparent power rating of ATV312HU40N4?
The documented apparent power rating is 9.2 kVA.
What maximum transient current is specified?
The documented maximum transient current is 14.3 A for 60 seconds.
Does ATV312HU40N4 include an EMC filter?
Yes. Schneider Electric specifies an integrated EMC filter for this catalog number.
What motor type is specified for ATV312HU40N4?
Schneider Electric identifies asynchronous motors as the product destination for this drive.
What applications can ATV312HU40N4 be considered for?
It can be considered for simple machine and asynchronous motor speed control applications after the electrical, motor and installation requirements have been checked.
What should be checked before ordering ATV312HU40N4?
Check the complete ATV312HU40N4 model number, 4 kW motor requirement, 380-500 VAC three-phase supply, motor characteristics, current requirements and installation requirements before purchasing.
