1.5kW Motor Rating
The ATV12HU15M3 is specified for a 1.5 kW or 2 hp asynchronous motor rating.

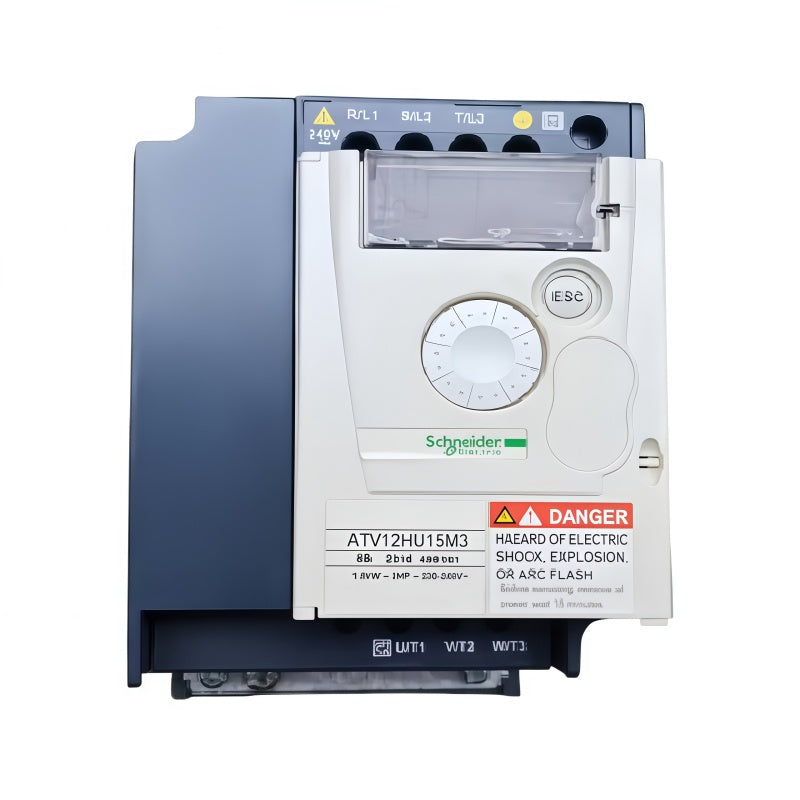

Schneider ATV12HU15M3 Variable Speed Drive 1.5kW 200-240V 3-Phase
Available in stock (200)
Regular price
$180.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV12HU15M3 |
| Product Category | Variable Speed Drive |
| Product Range | Altivar 12 |
| Product Destination | Asynchronous Motors |
| Motor Power | 1.5 kW / 2 hp |
| Rated Supply Voltage | 200-240 VAC |
| Network Phases | 3-Phase |
| Supply Frequency | 50/60 Hz ±5% |
| Nominal Output Current | 7.5 A |
| Line Current | 11.1 A at 200 V / 9.3 A at 240 V |
| Output Frequency | 0.5-400 Hz |
| Speed Range | 1:20 |
| Nominal Switching Frequency | 4 kHz |
| Protection Rating | IP20 Without Blanking Plate on Upper Part |
| Communication Protocol | Modbus |
| Physical Interface | 2-Wire RS485 |
| Connector | 1 RJ45 Modbus on Front Face |
| Discrete Inputs | 4 |
| Discrete Outputs | 2 |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Relay Outputs | 1 |
| EMC Filter | Without EMC Filter |
| Assembly Style | With Heat Sink |
| Built-In Fan | With |
Key Features
200-240V 3-Phase Supply
The documented rated supply is 200 to 240 VAC with a three-phase network connection.
7.5A Output Current
Schneider specifies a nominal continuous output current of 7.5 A at the documented drive operating conditions.
0.5-400Hz Output Frequency
The documented drive output-frequency range extends from 0.5 to 400 Hz for motor speed-control applications.
Modbus Communication
The drive incorporates Modbus serial communication through a two-wire RS485 physical interface and front RJ45 connector.
Integrated Control I/O
The documented control configuration includes four discrete inputs, two discrete outputs, one analog input, one analog output and one relay output.
Applications
- Conveyor speed control
- Pump motor control
- Industrial fan speed control
- Material handling machinery
- Packaging machine motor control
- Simple machine automation
- Industrial asynchronous motor control
- Variable-speed machinery applications
Purchase Information
We support online purchase of the Schneider ATV12HU15M3 Variable Speed Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV12HU15M3?
Schneider ATV12HU15M3 is an Altivar 12 variable speed drive for asynchronous motors, rated at 1.5 kW or 2 hp.
What supply voltage does ATV12HU15M3 use?
The documented rated supply-voltage range is 200 to 240 VAC.
Is ATV12HU15M3 a three-phase drive?
The documented network supply for ATV12HU15M3 is three-phase.
What motor power is ATV12HU15M3 rated for?
Schneider specifies a motor power rating of 1.5 kW or 2 hp.
What is the nominal output current of ATV12HU15M3?
The documented nominal continuous output current is 7.5 A.
What supply frequency does ATV12HU15M3 support?
The documented supply-frequency range is 50/60 Hz with a tolerance of ±5%.
What output-frequency range does ATV12HU15M3 provide?
The documented drive output-frequency range is 0.5 to 400 Hz.
What communication protocol does ATV12HU15M3 support?
The drive supports Modbus serial communication through a two-wire RS485 physical interface and an RJ45 connector.
What control I/O does ATV12HU15M3 provide?
Published specifications list four discrete inputs, two discrete outputs, one analog input, one analog output and one relay output.
What protection rating does ATV12HU15M3 have?
The documented degree of protection is IP20 without the blanking plate on the upper part.
What applications can ATV12HU15M3 be considered for?
It can be considered for variable-speed control of asynchronous motors in conveyors, pumps, fans and simple machinery after the motor, electrical supply and control requirements have been checked.
What should be checked before ordering ATV12HU15M3?
Check the complete model number, 1.5 kW motor rating, 200-240 VAC three-phase supply, 7.5 A output-current requirement, motor characteristics, control I/O, Modbus communication requirements, enclosure conditions and installation requirements before ordering.
