SANYO

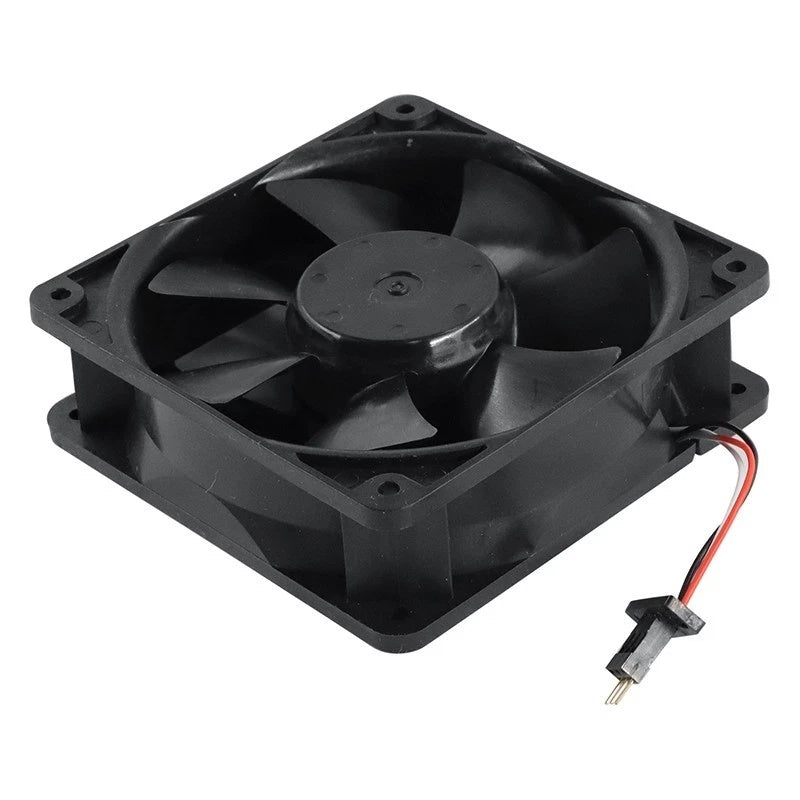

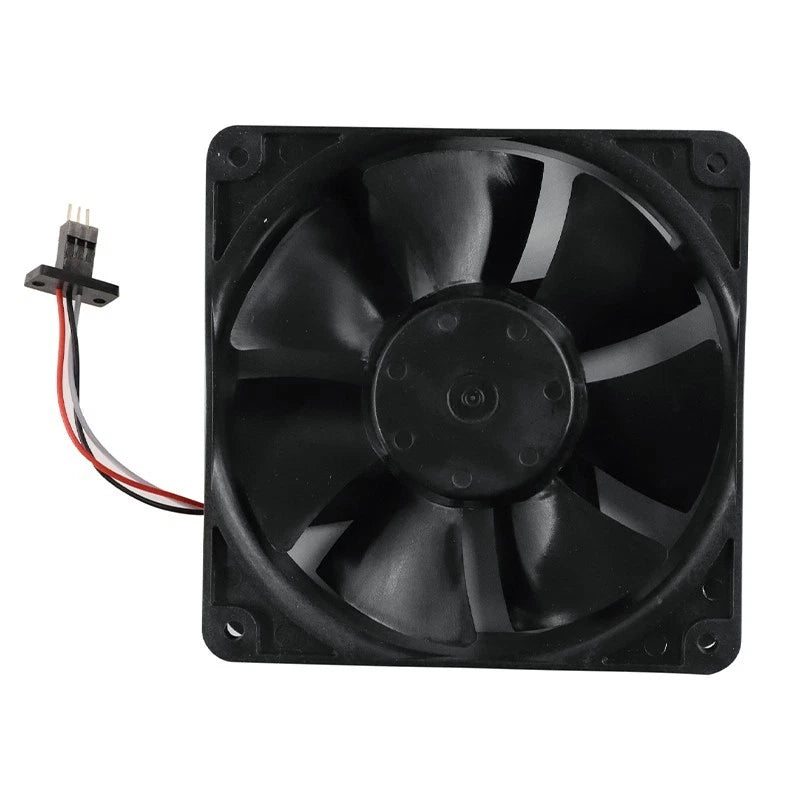

Sanyo Denki 9WF1224H1D03 DC Axial Cooling Fan 24V 7.68W 120x120x38mm

SKU: LL1-SA-9WF1224H1D03

$14.62

Available

PRODUCT GALLERY 01 / 4

✓ Product images for part identification

SANYO

Sanyo Denki 9WF1224H1D03 DC Axial Cooling Fan 24V 7.68W 120x120x38mm

SKU: LL1-SA-9WF1224H1D03

PRODUCT PRICE USD

$14.62

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Sanyo Denki
Product Series	San Ace 120W
Model Number	9WF1224H1D03
Product Category	DC Axial Cooling Fan

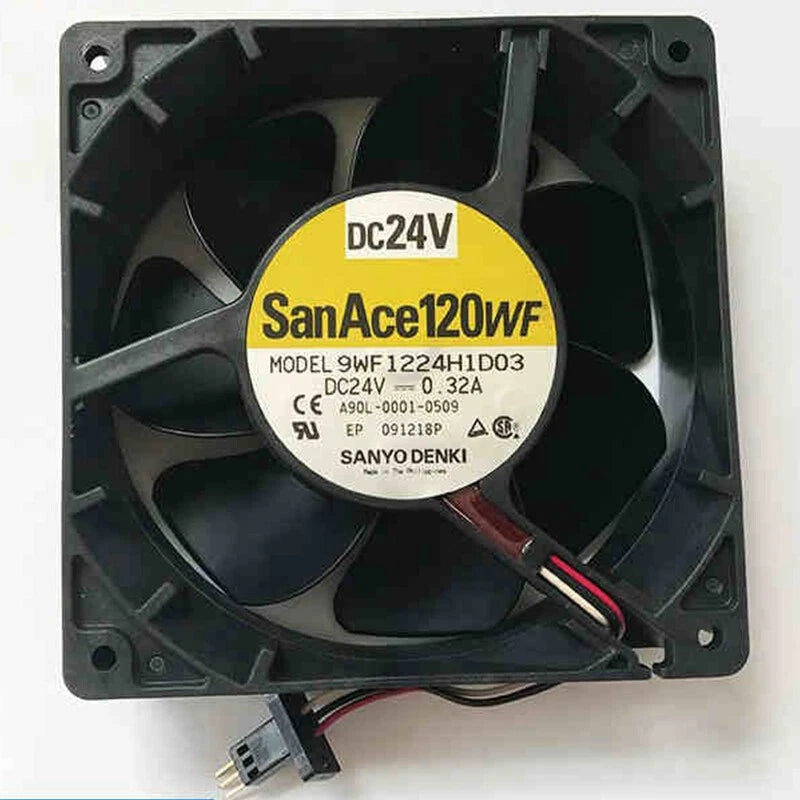

Related FANUC Part Number	A90L-0001-0509
Rated Voltage	24 VDC
Rated Current	0.32 A
Rated Input Power	7.68 W
Fan Dimensions	120 x 120 x 38 mm

Key Features

24 VDC Operation

Designed for compatible industrial cooling systems using a nominal 24 VDC power supply.

120 mm Axial Fan

The 120 x 120 x 38 mm frame provides a substantial cooling footprint for compatible industrial equipment.

High Airflow Capacity

The published product data lists maximum airflow of 431.5 m³/h (254 CFM) for cooling and ventilation applications.

Pulse Sensor Feedback

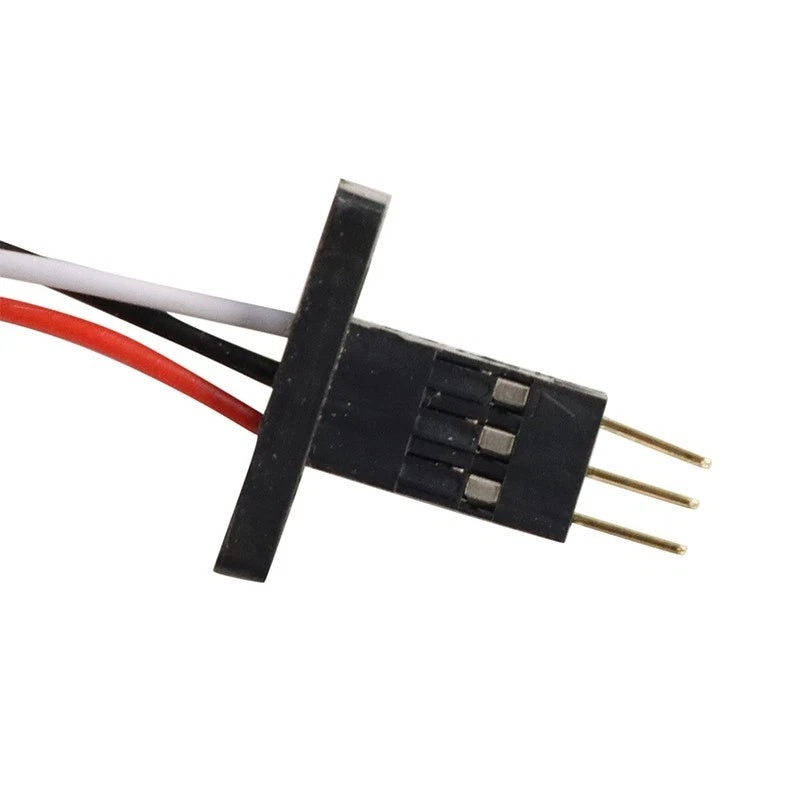

The 3-wire connection includes a pulse sensor output for rotational-speed monitoring in compatible equipment.

Ball Bearing Construction

The ball-bearing configuration supports fan rotation in industrial cooling applications.

Protective Functions

Listed motor protection features include locked-rotor burnout protection and reverse-polarity protection.

San Ace 120W Series

The series identification helps distinguish this fan from other Sanyo Denki models with different dimensions and electrical ratings.

FANUC Equipment Reference

This model is cross-referenced with FANUC A90L-0001-0509. Verify the installed part number and connector before replacement.

Applications

FANUC CNC machine cooling systems
Servo drive and amplifier ventilation
Industrial power supply cooling
Electrical control cabinet ventilation
Industrial automation equipment
Electronic enclosure thermal management
Industrial machinery maintenance
Compatible server and electronic equipment cooling

Purchase Information

We support purchase inquiries for the Sanyo Denki 9WF1224H1D03 DC Axial Cooling Fan. For bulk orders or related industrial cooling components, contact our team with your required quantity and application details. Before ordering, verify the complete model number, 24 VDC rating, 120 x 120 x 38 mm dimensions, three-wire pulse-sensor connection and equipment compatibility. If you are replacing a FANUC cooling fan, confirm the full A90L part number against the existing component.

Frequently Asked Questions

What is Sanyo Denki 9WF1224H1D03?
It is a San Ace 120W series DC axial cooling fan used in compatible industrial and electronic equipment.

What voltage does 9WF1224H1D03 use?
The rated supply is 24 VDC, with a listed operating voltage range of 14–27.6 VDC.

What are the current and power ratings?
Published specifications list a rated current of 0.32 A and rated input power of 7.68 W.

What are the dimensions of this fan?
The listed dimensions are 120 x 120 x 38 mm. Confirm the available mounting space and fan thickness before ordering.

What airflow does the fan provide?
The referenced product data lists maximum airflow of 431.5 m³/h, equivalent to approximately 254 CFM. Actual airflow depends on system resistance and operating conditions.

What is the noise level?
The referenced specification lists a noise level of 46 dB(A).

Does this fan provide a speed-monitoring signal?
Yes. The listed three-wire connection includes a pulse sensor output for compatible monitoring circuits. Confirm the wiring and signal requirements before installation.

Which FANUC part number is associated with this model?
Supplier references associate 9WF1224H1D03 with FANUC A90L-0001-0509. Verify the complete part number on the equipment before treating the components as interchangeable.

What protective functions are specified?
The product data lists locked-rotor burnout protection and reverse-polarity protection.

What is the operating temperature range?
The referenced specification lists an ambient operating range of -10°C to +70°C. Check the equipment's actual environmental requirements before installation.

Can this fan replace another 120 mm cooling fan?
Not automatically. Check the thickness, rated voltage, current, airflow requirements, connector, pulse-sensor wiring, mounting points and equipment part number before selecting a replacement.

What should be checked before ordering?
Confirm the complete model number, rated electrical specifications, 120 x 120 x 38 mm dimensions, three-wire connection, pulse-sensor function and compatibility with the target equipment.
