24 VDC Operation
Designed for a 24 VDC supply, suitable for compatible electronic equipment cooling systems.
SANYO

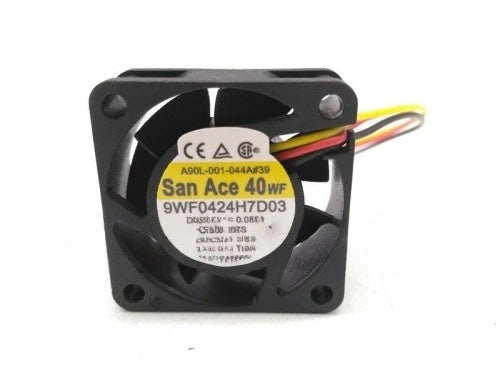

Sanyo Denki 9WF0424H7D03 DC Axial Cooling Fan 24V 40x40x15mm
$12.82
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
SANYO

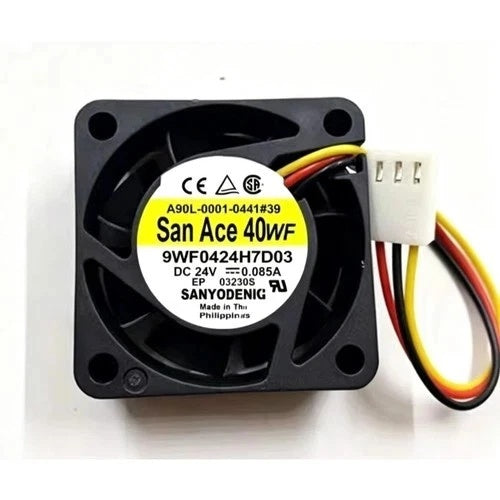

Sanyo Denki 9WF0424H7D03 DC Axial Cooling Fan 24V 40x40x15mm
PRODUCT PRICE
USD
$12.82
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Sanyo Denki |
| Series | San Ace 40WF |
| Model Number | 9WF0424H7D03 |
| Product Category | DC Axial Cooling Fan |
| Rated Voltage | 24 VDC |
| Rated Current | 0.085 A |
| Calculated Power | 2.04 W |
| Fan Dimensions | 40 x 40 x 15 mm |
| Connection | 3-wire, 3-pin connector |
| Fan Type | Brushless DC Axial Fan |
Key Features
Compact 40 mm Frame
The listed 40 x 40 x 15 mm form factor supports installation in equipment with limited mounting space.
Brushless DC Motor
The brushless fan design supports continuous airflow for thermal management in compatible equipment.
3-Wire Connection
Uses a 3-wire connection with a 3-pin connector. Confirm connector shape, wiring and pin assignment before installation.
2.04 W Calculated Power
At the listed 24 V and 0.085 A ratings, the calculated electrical input is 2.04 W. Actual operating conditions may vary.
San Ace 40WF Series
The series and complete model number help identify the fan when sourcing maintenance or replacement parts.
Applications
- CNC machine control equipment cooling
- Servo drive and control cabinet ventilation
- Industrial electronic equipment cooling
- Compact enclosure airflow management
- Control system maintenance
- Cooling fan replacement assessment
- Electronic module thermal management
- Industrial equipment repair and servicing
Purchase Information
We support online purchase inquiries for the Sanyo Denki 9WF0424H7D03 DC Axial Cooling Fan. For bulk orders or related cooling components, please contact our team with the required quantity and equipment application. Confirm the complete model number and connector configuration before ordering so the replacement fan can be checked against your existing assembly.
Frequently Asked Questions
What is Sanyo Denki 9WF0424H7D03?
It is a San Ace 40WF series DC axial cooling fan identified by the model number 9WF0424H7D03.
What voltage does this fan use?
The listed rated voltage is 24 VDC.
What is the rated current?
The listed rated current is 0.085 A.
What are the fan dimensions?
Product listings specify a 40 x 40 x 15 mm fan size. Verify the physical dimensions and mounting arrangement of your existing fan before ordering.
What connector does 9WF0424H7D03 use?
Listings identify a 3-wire, 3-pin connector. Confirm the connector shape, pinout and wire arrangement against the installed fan.
What is the power consumption?
Using the listed voltage and current ratings, the calculated power is 2.04 W (24 V x 0.085 A). This is a calculation from the nominal ratings, not a separately verified nameplate value.
Can this fan be used in CNC or servo equipment?
It may be suitable for compatible industrial control or drive cooling applications. Confirm the equipment part number, voltage, airflow direction and connector before replacement.
Is 9WF0424H7D03 associated with a FANUC replacement part?
Some supplier listings cross-reference this Sanyo Denki model with FANUC A90L-0001-0441#39. Verify the complete FANUC part number and the fan label before treating them as equivalent.
Can I replace it with another 40 mm fan?
Not automatically. The replacement must match the required thickness, voltage, current, airflow characteristics, mounting holes and connector configuration.
What should be checked before ordering?
Confirm the complete model number, 24 VDC rating, 0.085 A current rating, 40 x 40 x 15 mm dimensions, connector pinout and intended equipment application.
Need help confirming a model?
Send us your part number and technical requirements.
