12 VDC Operation
Designed for a nominal 12 VDC supply, with a specified operating voltage range of 10.2–13.8 VDC for compatible cooling systems.
SANYO
Sanyo Denki 9G0612P4H0011 DC Axial Fan 12V 60x60x25mm 9500RPM
$28.10
Available
PRODUCT GALLERY
01 / 2

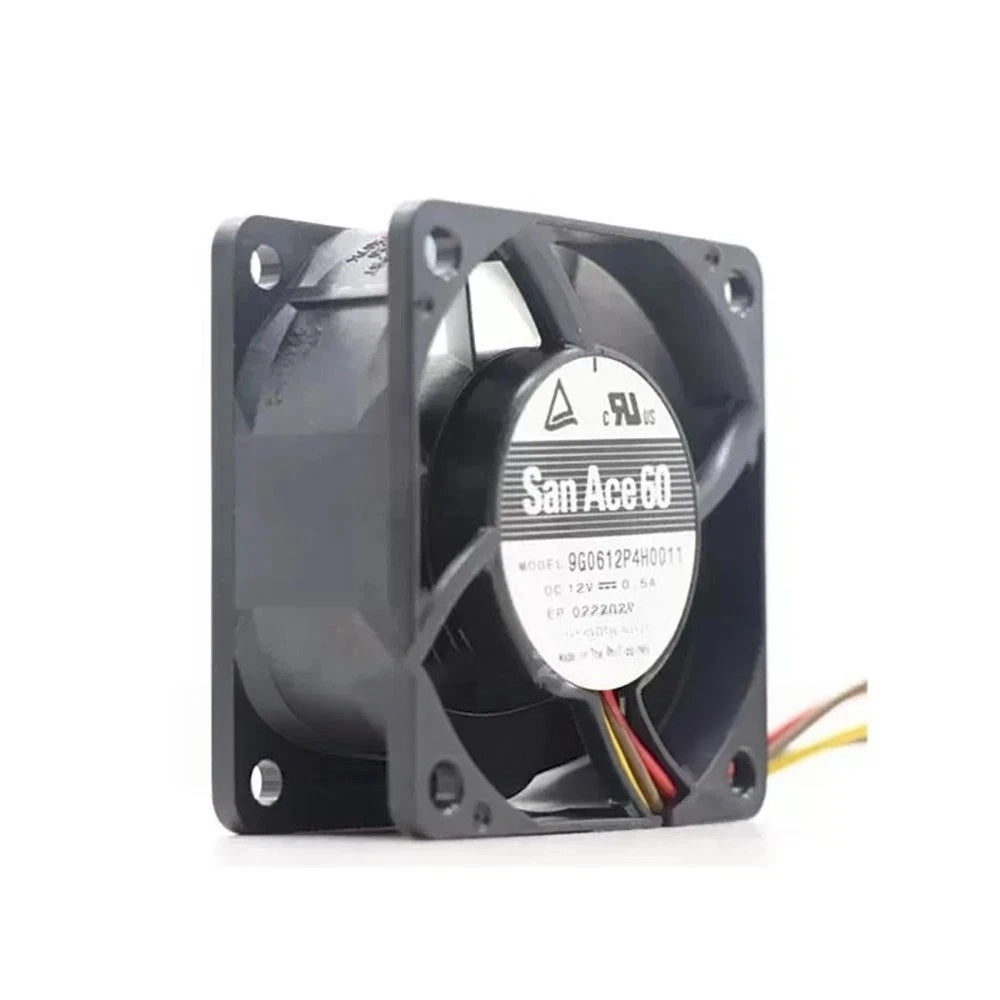

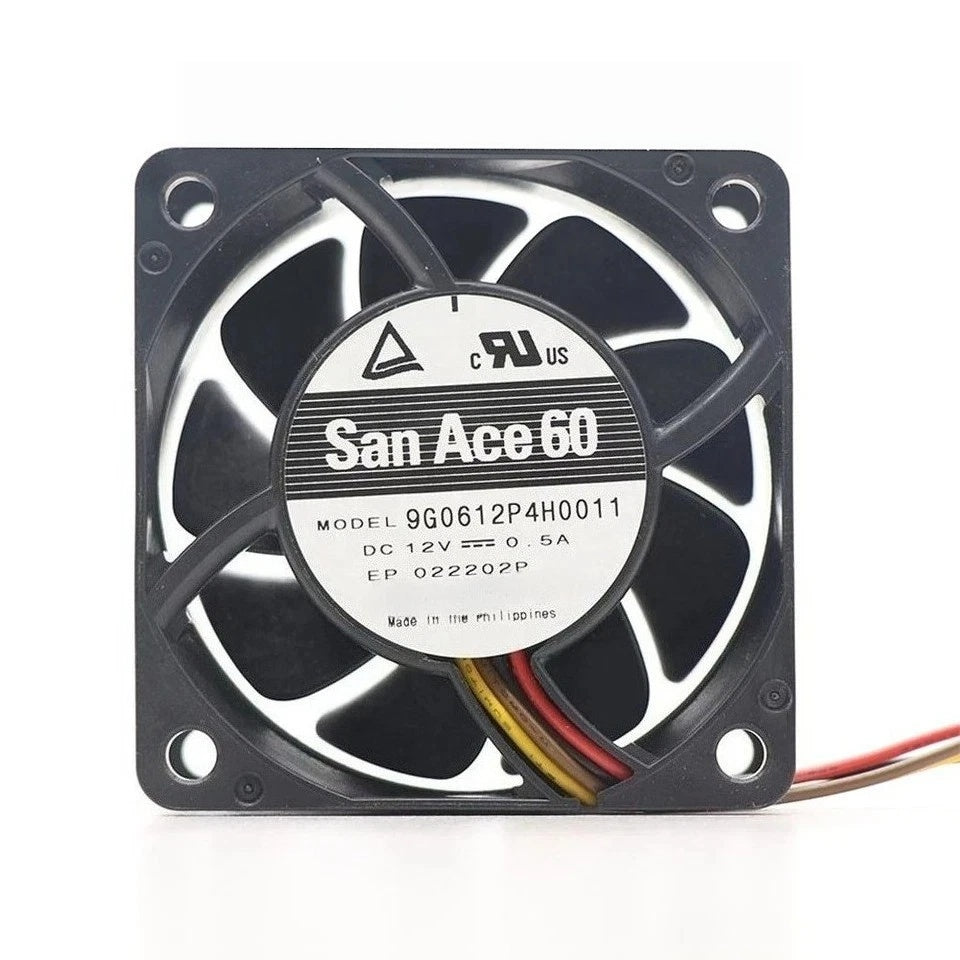

Product images for part identification
SANYO
Sanyo Denki 9G0612P4H0011 DC Axial Fan 12V 60x60x25mm 9500RPM
PRODUCT PRICE
USD
$28.10
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Sanyo Denki |
| Model Number | 9G0612P4H0011 |
| Product Category | DC Axial Cooling Fan |
| Product Series | San Ace 60 G Series |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 10.2–13.8 VDC |
| Rated Current | 0.50 A |
| Rated Input Power | 6 W |
| Frame Dimensions | 60 x 60 x 25 mm |
Key Features
High-Speed Cooling
The rated speed reaches 9,500 RPM at 100% PWM duty cycle, supporting high-airflow cooling in compatible equipment.
42.7 CFM Maximum Airflow
The maximum airflow is 1.21 m³/min (42.7 CFM), providing a measurable reference for ventilation design and replacement selection.
High Static Pressure
The specified maximum static pressure is 224 Pa (0.90 inH₂O), useful when evaluating airflow through equipment ventilation paths.
PWM Speed Control
The built-in PWM control function allows compatible equipment to regulate fan speed according to its thermal management requirements.
Pulse Sensor Feedback
A pulse sensor output enables rotational-speed monitoring through a compatible controller or fan monitoring circuit.
Compact 60 mm Frame
The 60 x 60 x 25 mm form factor suits equipment designed around this fan size. Verify mounting clearance before replacement.
Ball Bearing Construction
The ball-bearing design supports fan rotation in industrial and electronic cooling applications.
Applications
- Industrial electronic equipment cooling
- Power supply ventilation
- Industrial control cabinet airflow
- Automation controller thermal management
- Electronic enclosure ventilation
- PWM-controlled cooling assemblies
- Industrial equipment maintenance and repair
- Compact machine cooling systems
Purchase Information
We support purchase inquiries for the Sanyo Denki 9G0612P4H0011 DC Axial Cooling Fan. For bulk purchasing inquiries or related industrial cooling components, contact our team with your required quantity and application details. Before ordering, verify the full model number, 12 VDC rating, 60 x 60 x 25 mm dimensions, four-wire connection, PWM control requirements and pulse sensor compatibility with your existing equipment.
Frequently Asked Questions
What is Sanyo Denki 9G0612P4H0011?
It is a San Ace 60 G series DC axial cooling fan featuring PWM speed control and a pulse sensor output.
What voltage does 9G0612P4H0011 use?
The rated voltage is 12 VDC, and the specified operating voltage range is 10.2–13.8 VDC.
What are the rated current and power?
The manufacturer specifies a rated current of 0.50 A and rated input power of 6 W.
What are the dimensions of this fan?
The frame measures 60 x 60 x 25 mm. Confirm the mounting holes, frame shape and available clearance before ordering.
What is the rated fan speed?
The specified speed is 9,500 RPM at 100% PWM duty cycle. The actual speed depends on the applied control signal and operating conditions.
What is the maximum airflow?
The maximum airflow is 1.21 m³/min, equivalent to approximately 42.7 CFM.
What is the maximum static pressure?
The specified maximum static pressure is 224 Pa, equivalent to approximately 0.90 inH₂O.
Does this fan support PWM speed control?
Yes. The model includes PWM speed control. Confirm that the host equipment provides a compatible control signal and wiring interface.
Does the fan provide a rotation sensor signal?
Yes. It includes a pulse sensor output for monitoring fan rotation through compatible equipment.
What is the operating temperature range?
The specified operating temperature range is -20°C to +70°C.
What is the expected service life?
The published specification lists 40,000 hours at 60°C and 70,000 hours at 40°C under the manufacturer's stated test conditions.
Can this fan replace another 60 mm fan?
Not automatically. Verify the rated voltage, current, dimensions, airflow, static pressure, connector wiring, PWM input and pulse sensor requirements before selecting a replacement.
What should be checked before ordering?
Confirm the complete model number 9G0612P4H0011, 12 VDC rating, 0.50 A current, 6 W input, 60 x 60 x 25 mm frame and four-wire PWM/pulse-sensor connection.
Need help confirming a model?
Send us your part number and technical requirements.
