24 VDC Operation
Designed for compatible industrial cooling systems operating from a nominal 24 VDC supply.
SANYO
Sanyo Denki 109P0424H316 DC Axial Fan 24V 0.095A 40x40x28mm
$10.68
Available
PRODUCT GALLERY
01 / 3

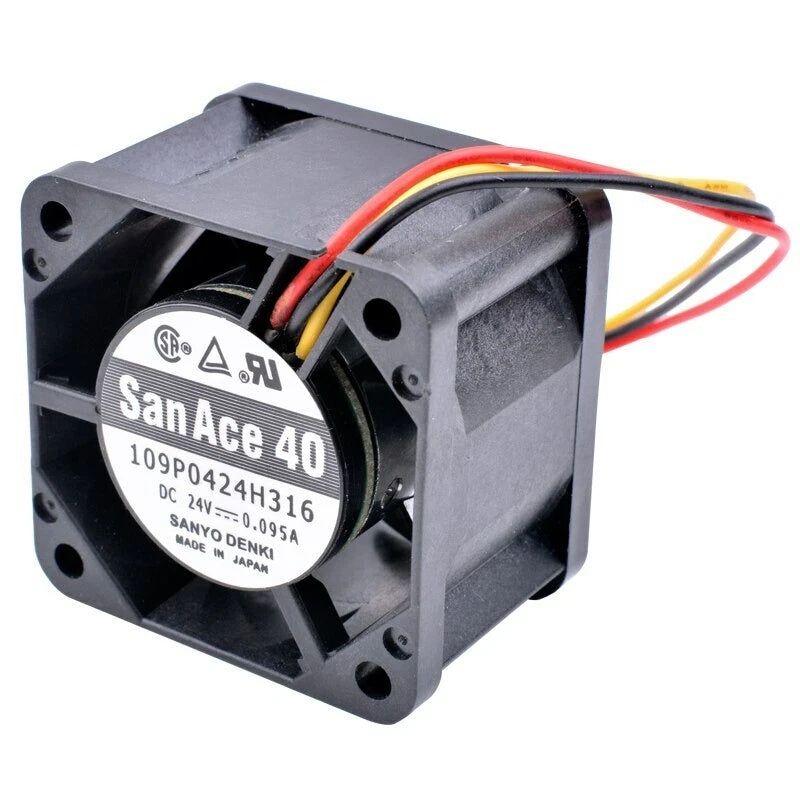

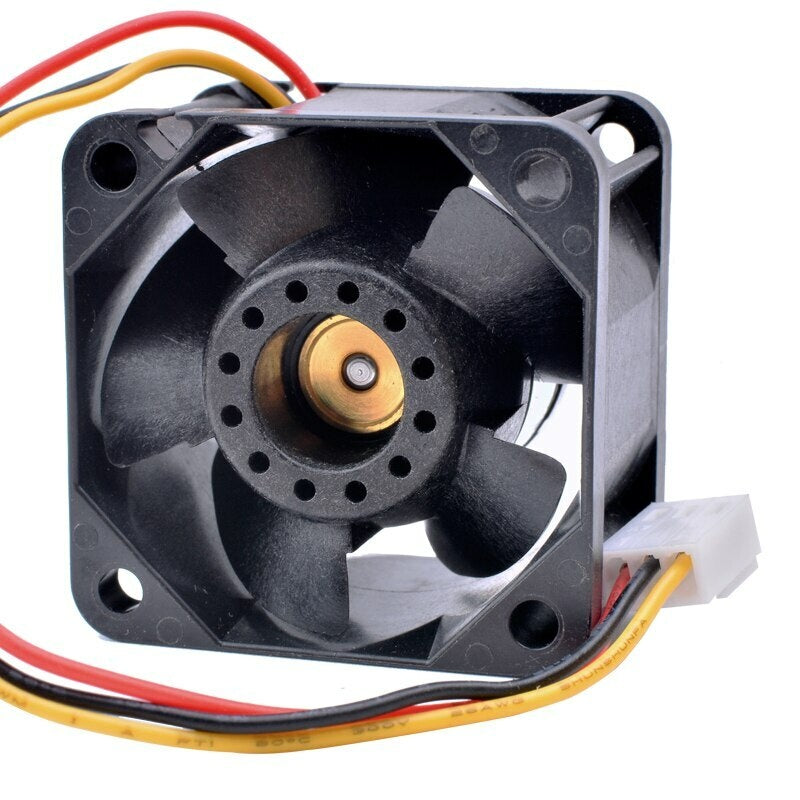

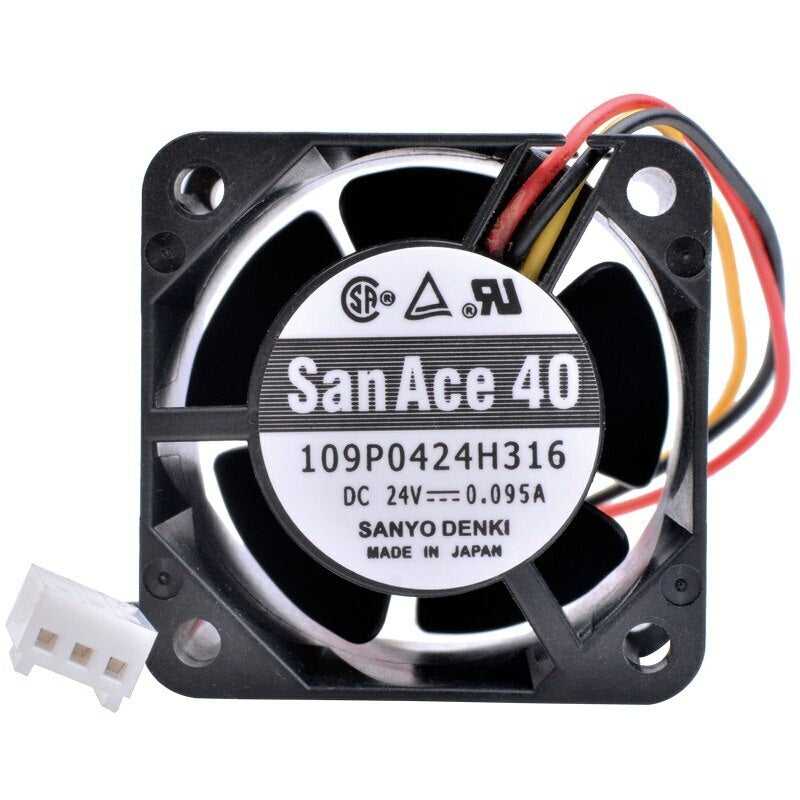

Product images for part identification
SANYO
Sanyo Denki 109P0424H316 DC Axial Fan 24V 0.095A 40x40x28mm
PRODUCT PRICE
USD
$10.68
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Sanyo Denki |
| Product Series | San Ace 40 |
| Model Number | 109P0424H316 |
| Product Category | DC Axial Cooling Fan |
| Frame Size | 40 x 40 mm |
| Frame Thickness | 28 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 12–27.6 VDC |
| Rated Current | 0.095 A |
| Rated Input Power | 2.28 W |
Key Features
Compact 40 mm Frame
The 40 x 40 x 28 mm form factor supports installation in compact control units and industrial electronic equipment.
High-Speed Airflow
The listed nominal speed is 8,700 RPM, with a maximum airflow of approximately 0.32 m³/min.
Static Pressure Performance
A listed maximum static pressure of approximately 103 Pa supports airflow through compatible equipment cooling paths.
Brushless DC Motor
The brushless motor design supports fan operation in compatible industrial cooling applications.
Industrial Equipment Cooling
Supplier listings associate this model with inverter, servo-drive and CNC equipment cooling applications.
Applications
- CNC control equipment cooling
- Servo drive ventilation
- Industrial inverter cooling
- Automation controller thermal management
- Machine tool maintenance
- Compact electronic enclosure ventilation
- Industrial control unit servicing
- Cooling fan replacement assessment
Purchase Information
We support purchase inquiries for the Sanyo Denki 109P0424H316 DC Axial Cooling Fan. For bulk orders or related industrial cooling components, contact our team with your required quantity and application details. Before ordering, confirm the full model number, fan dimensions, electrical ratings, connector configuration and the requirements of your existing equipment.
Frequently Asked Questions
What is Sanyo Denki 109P0424H316?
It is a San Ace 40 series DC axial cooling fan intended for compatible electronic and industrial equipment cooling applications.
What voltage does 109P0424H316 use?
The listed rated voltage is 24 VDC, with a published operating range of 12–27.6 VDC.
What is the rated current?
Supplier listings specify a rated current of 0.095 A.
What is the rated power consumption?
The listed rated input power is 2.28 W.
What are the dimensions of this fan?
The listed frame dimensions are 40 x 40 x 28 mm. Verify the installed fan's dimensions and mounting arrangement before ordering.
What is the rated fan speed?
Supplier specifications list a nominal speed of approximately 8,700 RPM.
What airflow does this fan provide?
The listed maximum airflow is approximately 0.32 m³/min, equivalent to about 11.3 CFM.
What is the maximum static pressure?
Available supplier specifications list approximately 103 Pa. Actual airflow and pressure depend on the installed system and operating conditions.
Which equipment can use this fan?
Listings associate the model with industrial inverters, servo drives and CNC control equipment. Confirm the exact equipment model and cooling requirements before use.
Does this fan have a 3-pin or 4-pin connector?
Supplier listings differ in how they describe the connector and wiring. Check the physical connector, wire count and pin assignment of the exact unit before ordering or installation.
Can it replace another 40 mm cooling fan?
Not automatically. Confirm the frame thickness, rated voltage, current, airflow requirements, mounting holes, connector and monitoring-signal requirements before selecting a replacement.
What should be checked before ordering?
Verify the full model number, 24 VDC rating, 0.095 A current, 2.28 W input power, 40 x 40 x 28 mm dimensions, connector configuration and equipment compatibility.
Need help confirming a model?
Send us your part number and technical requirements.
