Fan-and-Filter Unit
The SK 3239.110 is a complete fan-and-filter unit including a chopped-fibre filter mat, intended for enclosure thermal management.
RITTAL
RITTAL SK3239.110 Axial Fan 230VAC 50/60Hz
$346.00
Available
PRODUCT GALLERY
01 / 3

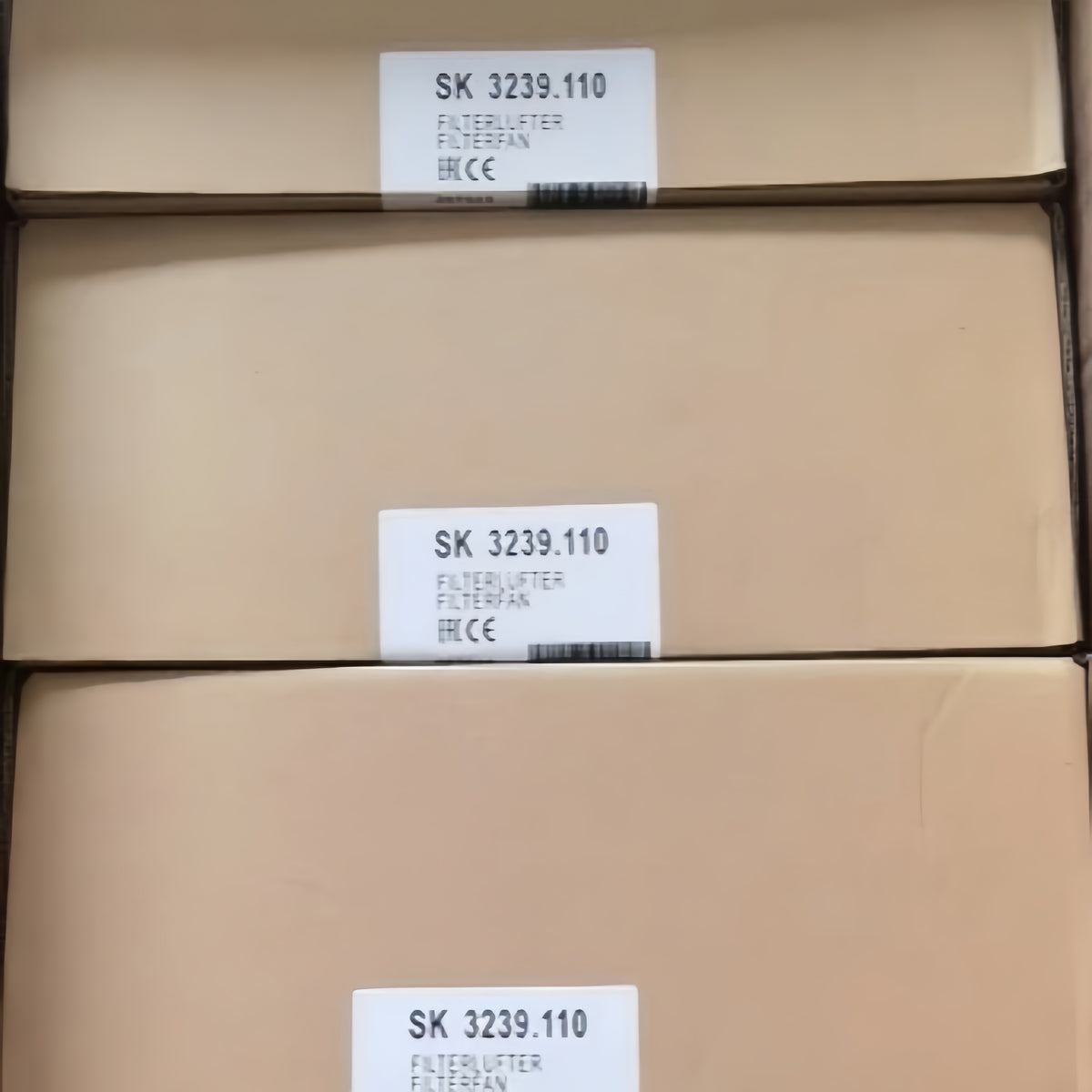

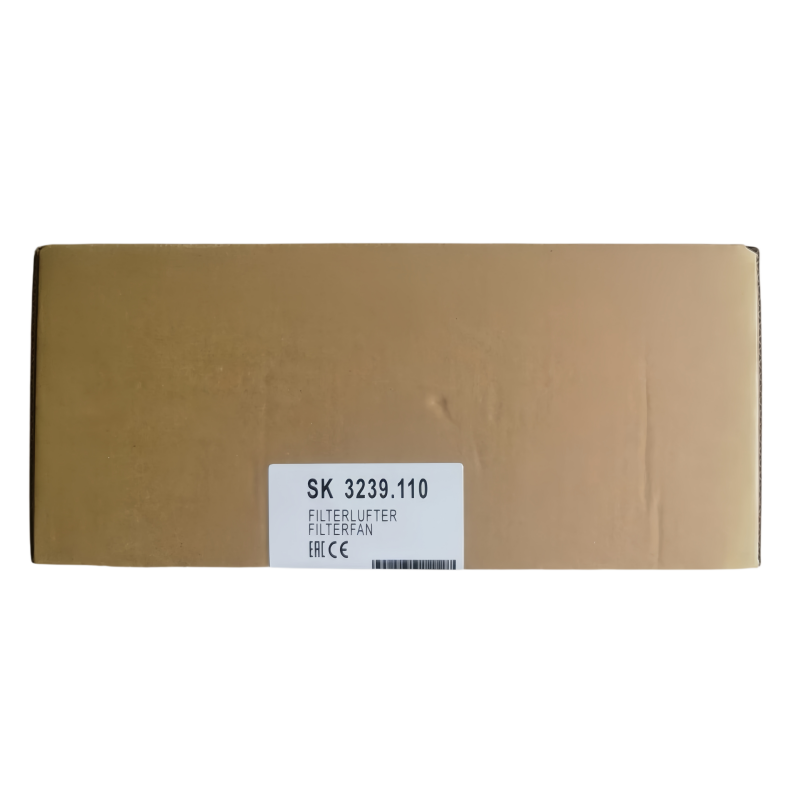

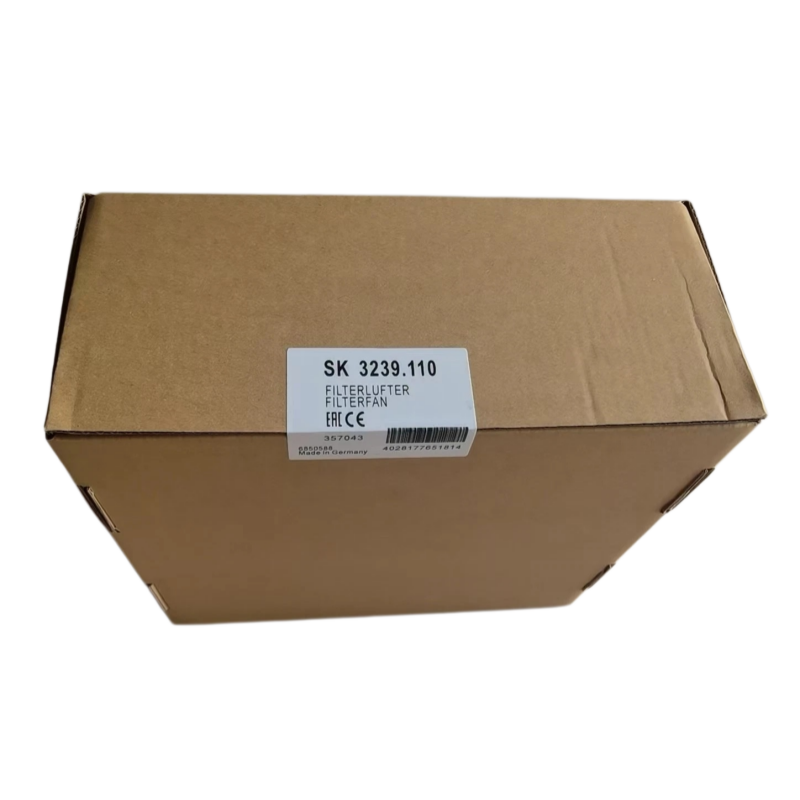

Product images for part identification
RITTAL
RITTAL SK3239.110 Axial Fan 230VAC 50/60Hz
PRODUCT PRICE
USD
$346.00
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | RITTAL |
| Model Number | SK3239.110 |
| Product Category | Axial Fan |
| Product Type | Fan-and-Filter Unit |
| Rated Operating Voltage | 115 V AC, 1~ (per manufacturer data) |
| Frequency | 50/60 Hz |
| Rated Current max. | 0.24 A (50 Hz) / 0.18 A (60 Hz) |
| Power Consumption | 16.5 W (50 Hz) / 14.9 W (60 Hz) |
| Air Throughput (unimpeded) | 100 m3/h (50 Hz) / 115 m3/h (60 Hz) with chopped-fibre filter |
| Dimensions | 204 mm x 204 mm |
| Installation Depth | 90 mm |
| IP Protection | IP54 (with chopped-fibre filter/pleated filter) |
| Noise Level | 46 dB(A) (50 Hz) / 49 dB(A) (60 Hz) |
| Operating Temperature | -15 °C to +55 °C |
| Weight | 1.04 kg |
Key Features
115 V AC Rated Operating Voltage
Manufacturer data specifies a 115 V AC, single-phase rated operating voltage for the SK 3239.110.
100/115 m3/h Air Throughput
The unimpeded air throughput is listed as 100 m3/h at 50 Hz and 115 m3/h at 60 Hz with the chopped-fibre filter.
IP54 Protection
The unit is rated IP54 with chopped-fibre or pleated filter, providing protection against dust and water splashes for enclosure cooling.
204 mm x 204 mm Face Dimensions
The fan-and-filter unit uses a 204 mm x 204 mm face with a 90 mm installation depth.
-15 °C to +55 °C Operating Range
The specified operating temperature range is -15 °C to +55 °C.
Applications
- Industrial enclosure cooling
- Control cabinet thermal management
- Filtered air intake for electrical panels
- Heat removal from automation equipment
- Ventilation of machine control cabinets
- Cooling of power and drive electronics in enclosures
Purchase Information
We support online purchase of the RITTAL SK3239.110 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the RITTAL SK3239.110? The SK3239.110 is a Rittal TopTherm fan-and-filter unit for enclosure cooling.
What voltage does the manufacturer specify for the SK3239.110? Rittal data identifies a 115 V AC, single-phase rated operating voltage for the SK 3239.110.
What is the air throughput of the SK3239.110? The unimpeded air throughput is 100 m3/h at 50 Hz and 115 m3/h at 60 Hz with a chopped-fibre filter.
What is the rated current of the SK3239.110? The maximum rated current is 0.24 A at 50 Hz and 0.18 A at 60 Hz.
What is the power consumption of the SK3239.110? The power consumption is 16.5 W at 50 Hz and 14.9 W at 60 Hz.
What is the IP protection of the SK3239.110? The unit is rated IP54 with chopped-fibre or pleated filter.
What are the dimensions of the SK3239.110? The face dimensions are 204 mm x 204 mm with a 90 mm installation depth.
What is the operating temperature range of the SK3239.110? The operating temperature range is -15 °C to +55 °C.
What is the weight of the SK3239.110? The weight is listed as 1.04 kg.
