230 VAC Fan-and-Filter Unit
The SK3238.100 operates from a 230 VAC supply and is configured as a fan-and-filter unit for enclosure cooling.
RITTAL
RITTAL SK3238.100 Axial Fan 230VAC 50/60Hz
$126.42
Available
PRODUCT GALLERY
01 / 4

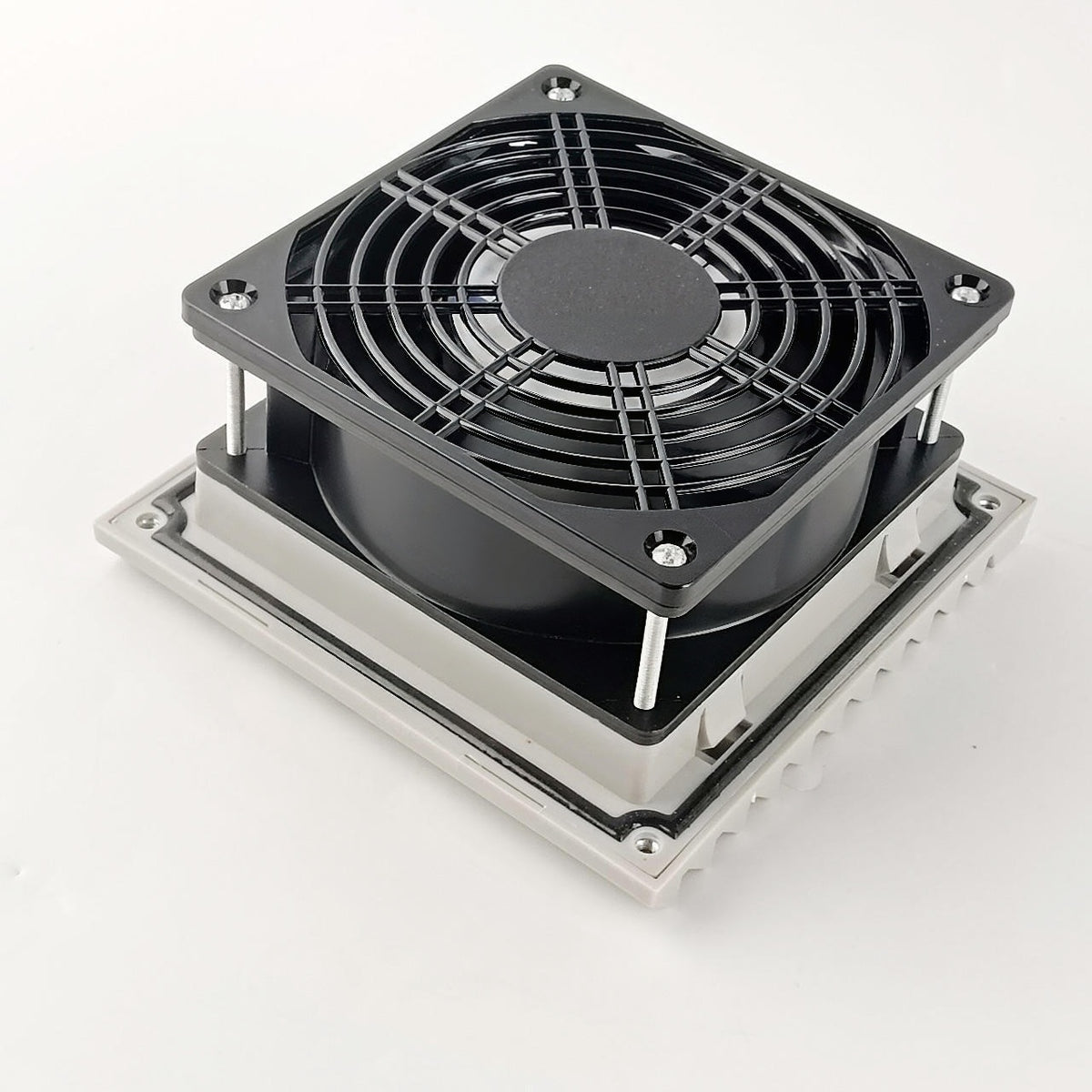

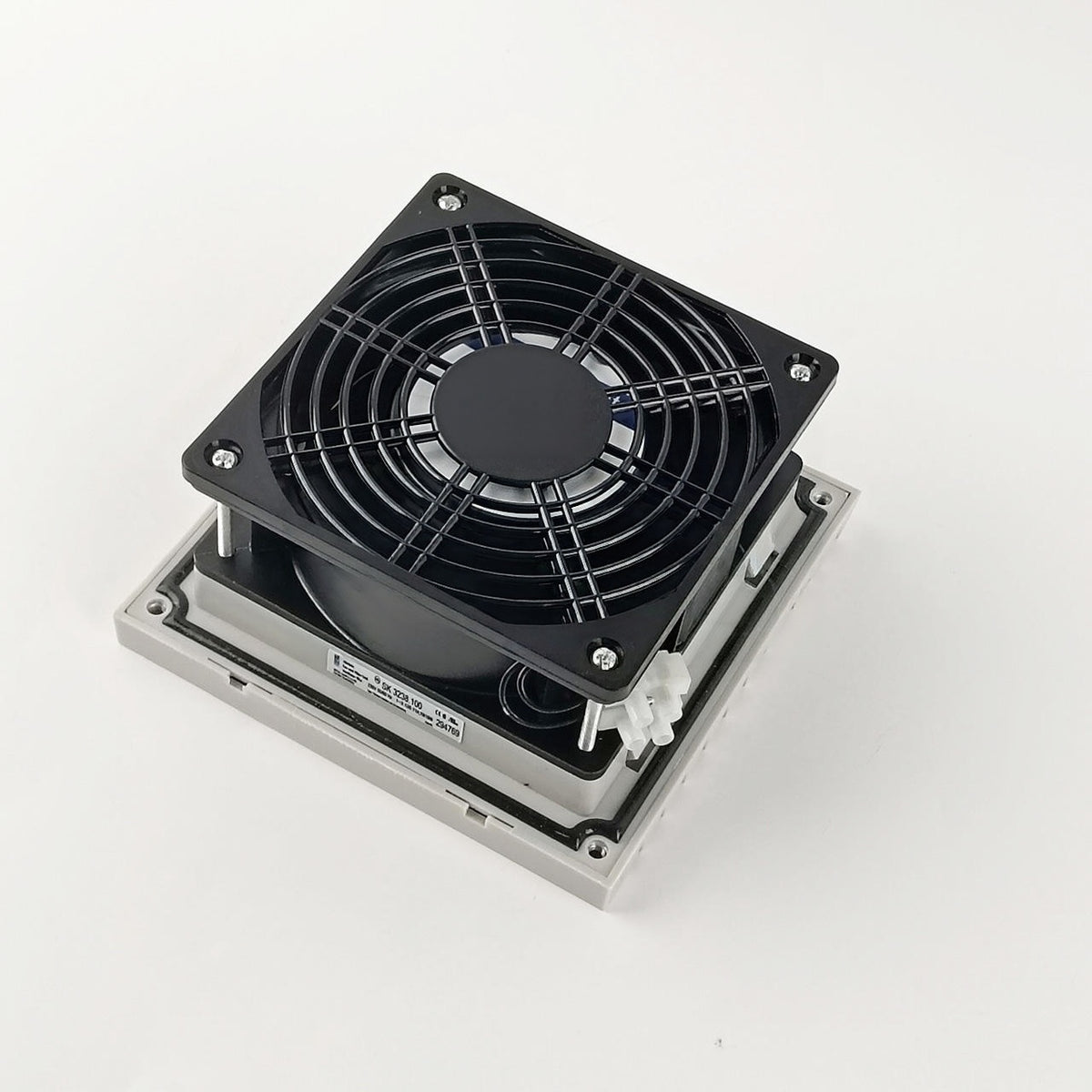

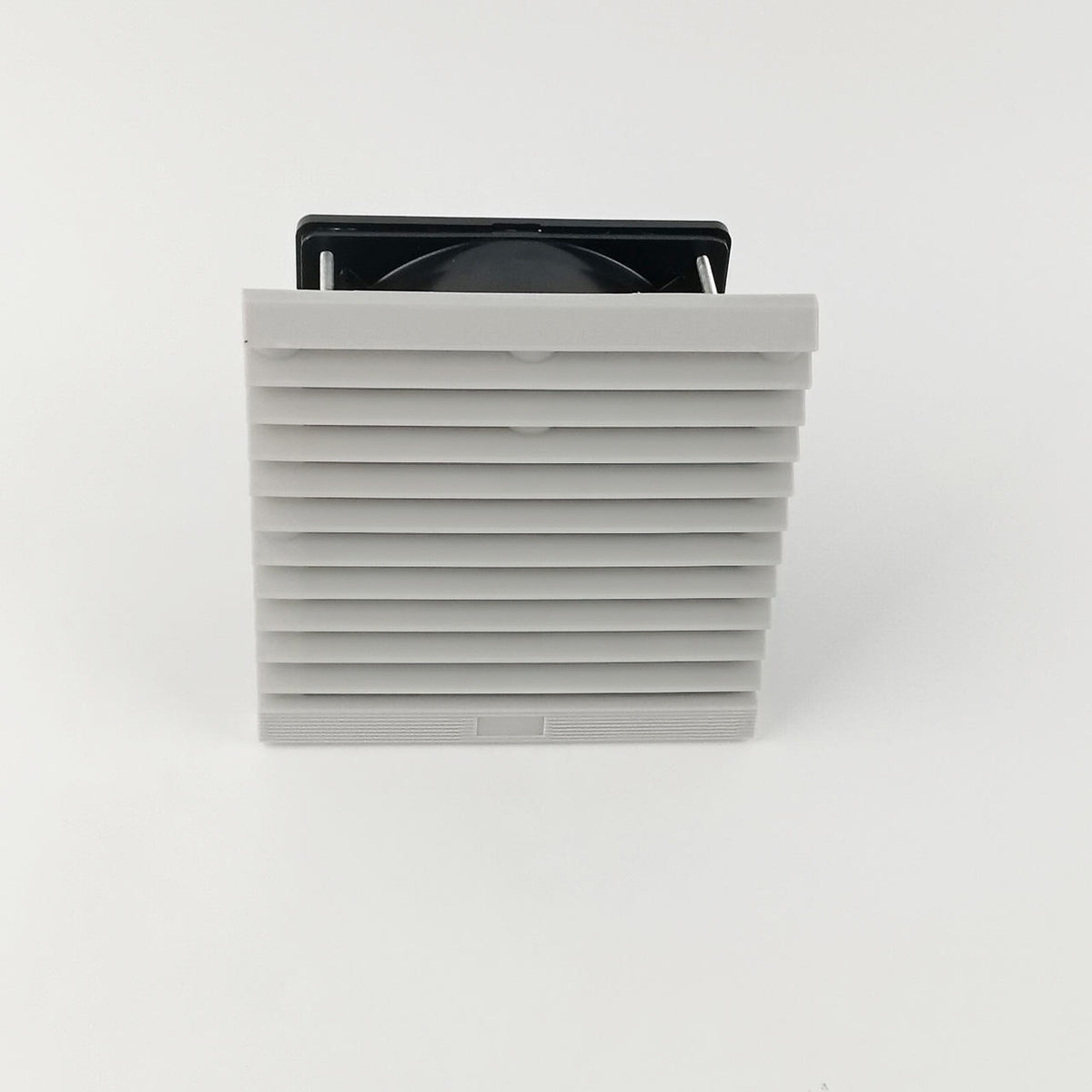

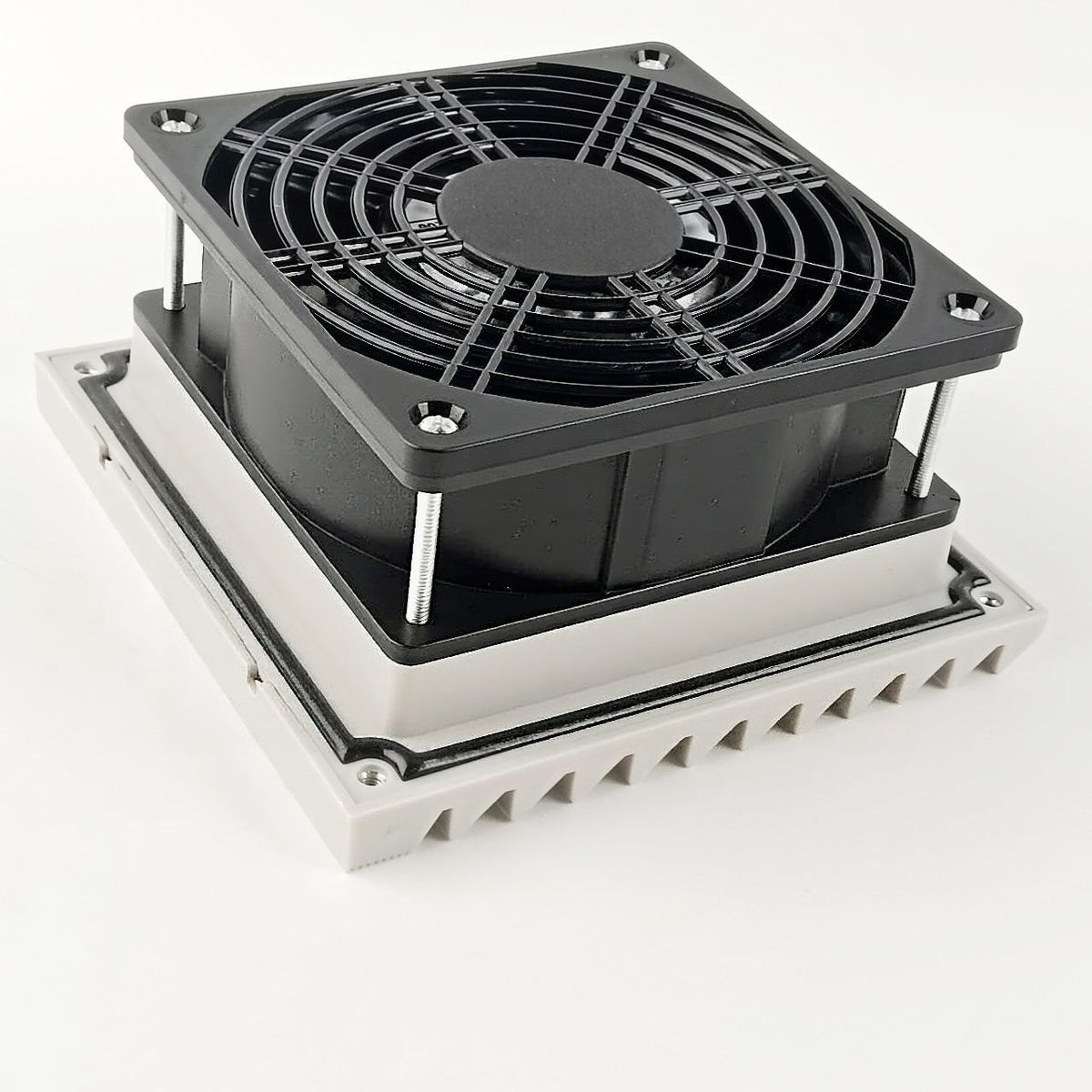

Product images for part identification
RITTAL
RITTAL SK3238.100 Axial Fan 230VAC 50/60Hz
PRODUCT PRICE
USD
$126.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | RITTAL |
| Model Number | SK3238.100 |
| Product Category | Axial Fan |
| Product Type | Fan-and-Filter Unit |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Current | 0.11 A |
| Power | 17 W |
| Air Throughput | 52 m3/h (50 Hz) / 63 m3/h (60 Hz) |
| Dimensions | 148.5 mm x 148.5 mm |
| IP Protection | IP54 |
Key Features
52/63 m3/h Air Throughput
The published air throughput is 52 m3/h at 50 Hz and 63 m3/h at 60 Hz.
148.5 mm x 148.5 mm Format
The unit uses a 148.5 mm square face dimension.
IP54 Protection
The fan-and-filter unit is rated IP54.
17 W Power Consumption
The power consumption is listed as 17 W.
0.11 A Current
The current draw is specified as 0.11 A.
Applications
- Electrical enclosure cooling
- Control panel ventilation
- Filtered air intake for cabinets
- Heat dissipation in automation enclosures
- Cooling of industrial electronic equipment
- Air circulation in machine control panels
Purchase Information
We support online purchase of the RITTAL SK3238.100 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the RITTAL SK3238.100? The SK3238.100 is a Rittal fan-and-filter unit for enclosure cooling.
What voltage does the SK3238.100 use? The unit is specified for 230 VAC operation.
What is the air throughput of the SK3238.100? The air throughput is 52 m3/h at 50 Hz and 63 m3/h at 60 Hz.
What is the power consumption of the SK3238.100? The power consumption is 17 W.
What is the current draw of the SK3238.100? The current is specified as 0.11 A.
What is the IP protection of the SK3238.100? The unit is rated IP54.
What are the face dimensions of the SK3238.100? The face dimensions are 148.5 mm x 148.5 mm.
