24 VDC Nominal Voltage
Rated for 24 VDC operation with a nominal voltage range of 12 to 28 VDC, as documented in ebm-papst 3314 series data.
PAPST
PAPST 3314GS Axial Fan 24VDC 92mm
$19.75
Available
PRODUCT GALLERY
01 / 3

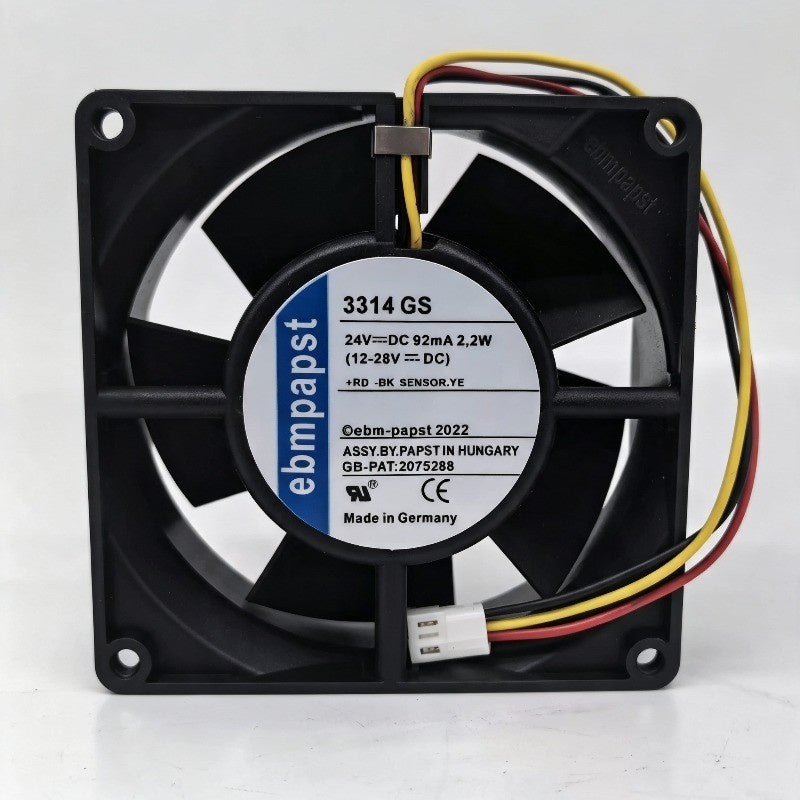

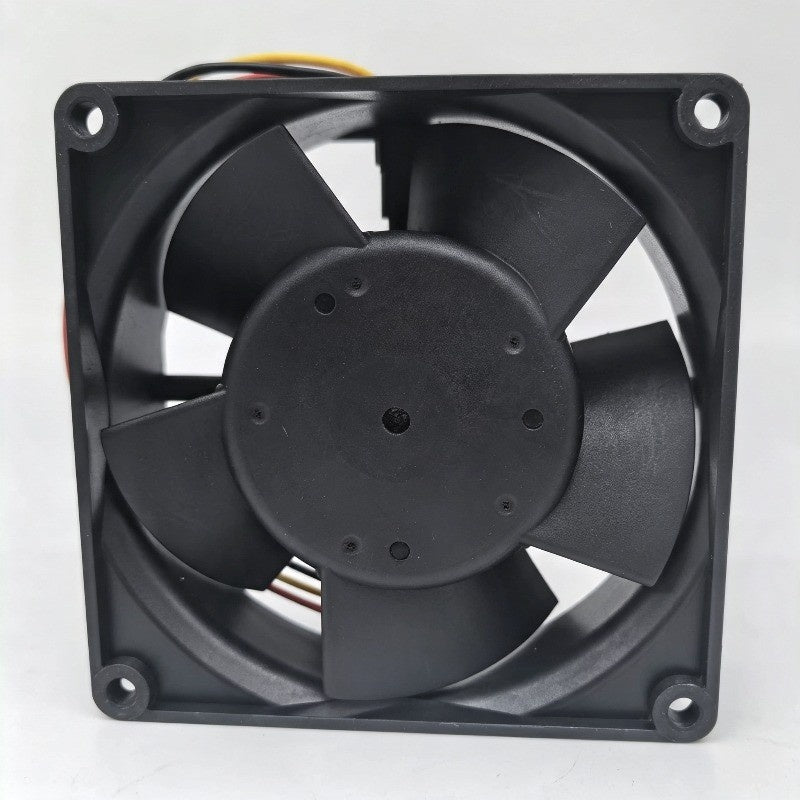

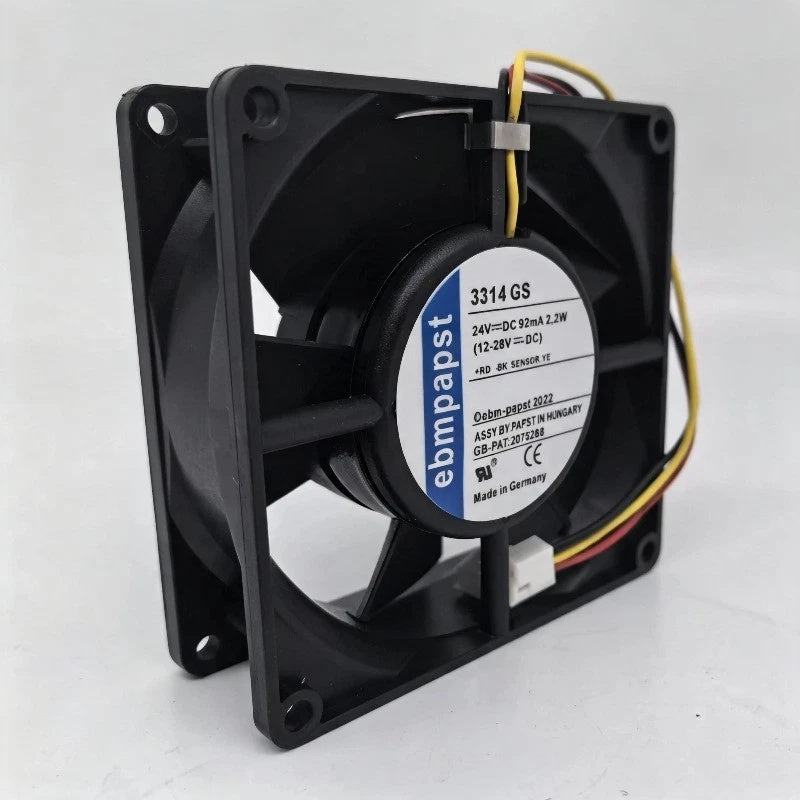

Product images for part identification
PAPST
PAPST 3314GS Axial Fan 24VDC 92mm
PRODUCT PRICE
USD
$19.75
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | PAPST |
| Model Number | 3314GS |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Nominal Voltage Range | 12-28 VDC |
| Power Consumption | 3 W |
| Fan Speed | 3200 RPM |
| Maximum Air Flow | 85 m³/h (47.1 CFM) |
| Noise Level | 40 dB(A) |
| Dimensions | 92 x 92 x 32 mm |
| Bearing Type | Ball Bearing |
| Degree of Protection | IP40 |
| Housing Material | Glass-fiber reinforced PBT plastic |
| Impeller Material | Glass-fiber reinforced PA plastic |
| Airflow Direction | Exhaust over struts |
Key Features
92 x 92 x 32 mm Frame
The fan uses a compact 92 mm square frame with a 32 mm depth for space-constrained installations.
85 m³/h Airflow
Documented performance for the 3314 series includes an air flow of 85 m³/h (47.1 CFM).
Ball Bearing Construction
ebm-papst 3314 series documentation specifies a ball bearing type for this axial fan.
IP40 Protection
The fan carries a documented IP40 degree of protection, suitable for protected industrial enclosure environments.
Applications
- Industrial control cabinet cooling
- Power supply thermal management
- Frequency inverter ventilation
- Electronic equipment forced-air cooling
- Compact machinery enclosure airflow
- 24 VDC system cooling assemblies
Purchase Information
We support online purchase of the PAPST 3314GS Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the PAPST 3314GS? The 3314GS is a DC axial fan within the ebm-papst 3314 series, rated for 24 VDC nominal operation with a 92 x 92 x 32 mm frame.
What is the nominal voltage? The nominal voltage is 24 VDC, with a documented nominal voltage range of 12 to 28 VDC.
What is the power consumption? Documented power consumption for the 3314 series is 3 W.
What is the fan speed? The 3314 series is documented at 3200 RPM.
What is the air flow? Documented air flow is 85 m³/h (47.1 CFM).
What is the noise level? The documented noise level is 40 dB(A).
What bearing type is used? ebm-papst 3314 series documentation specifies a ball bearing.
What is the degree of protection? The fan is documented with IP40 protection.
What are the dimensions? The fan measures 92 x 92 x 32 mm.
What is the housing material? The housing is made of glass-fiber reinforced PBT plastic, and the impeller is glass-fiber reinforced PA plastic.
Need help confirming a model?
Send us your part number and technical requirements.
