DC Low-Voltage Operation
Operates from a nominal 9 VDC supply with an allowable voltage range of 7.0 to 14.0 VDC for integration into compatible low-voltage cooling circuits.
Panasonic
Panasonic FBA11J10M Axial Fan 100VAC 120mm
$19.08
Available
PRODUCT GALLERY
01 / 3

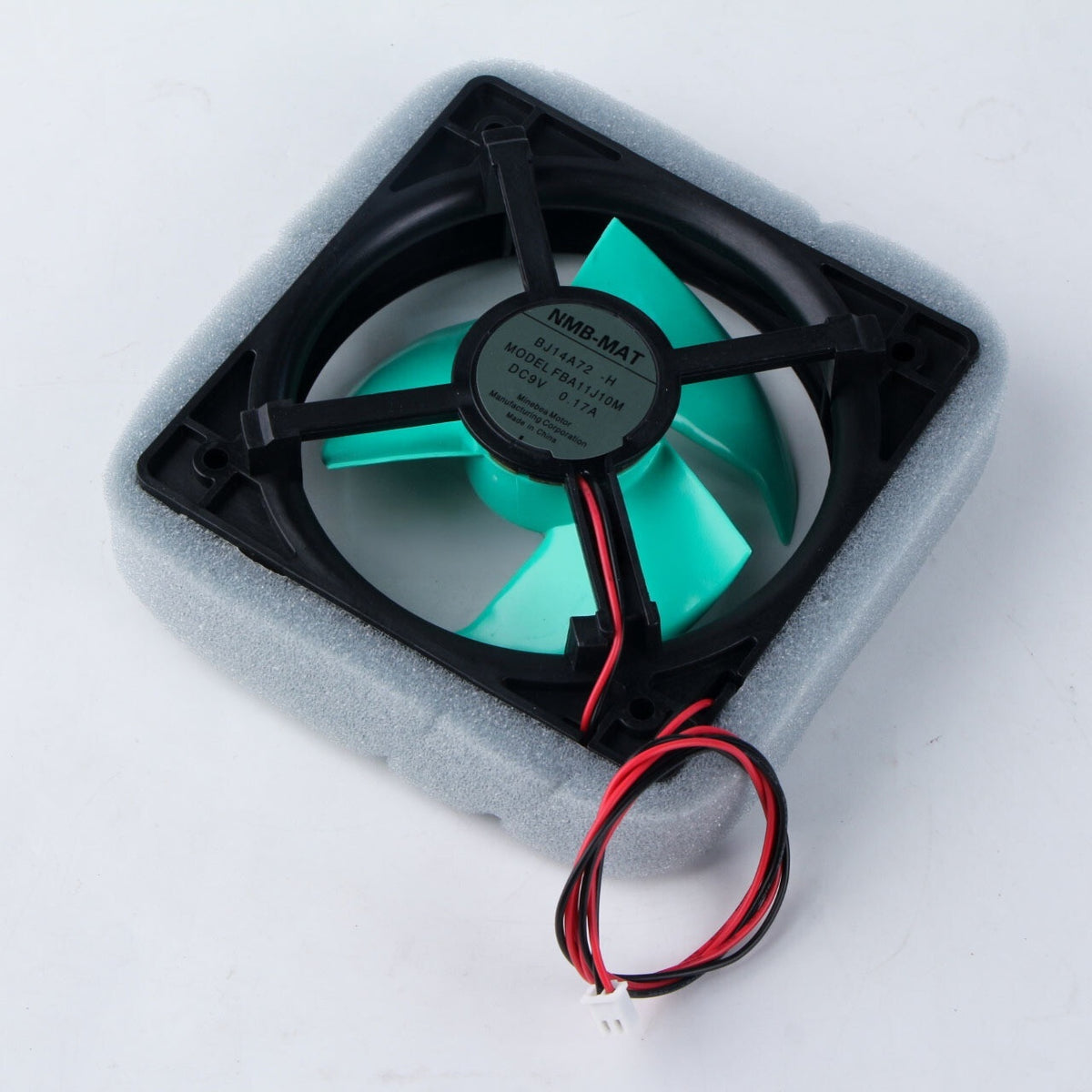

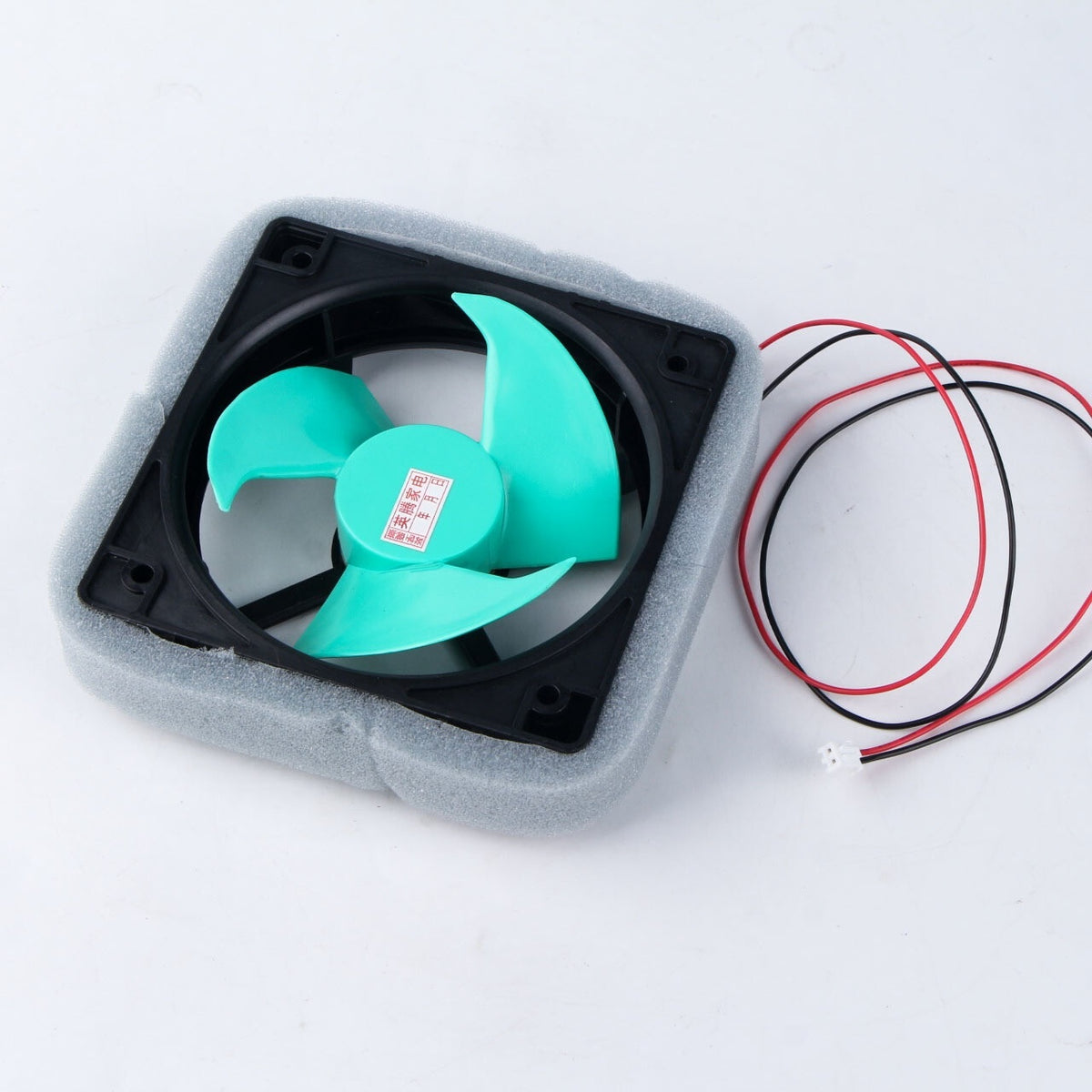

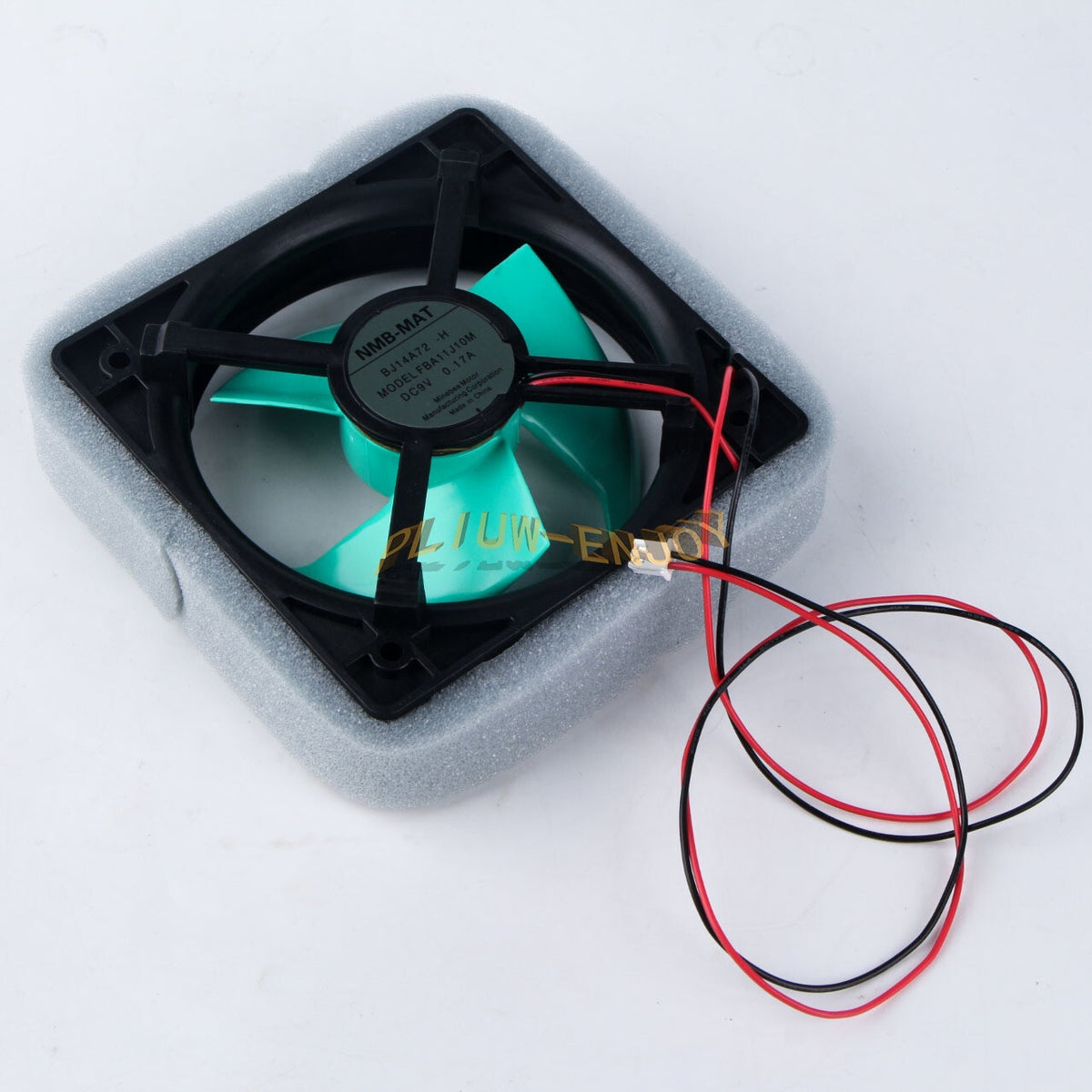

Product images for part identification
Panasonic
Panasonic FBA11J10M Axial Fan 100VAC 120mm
PRODUCT PRICE
USD
$19.08
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Panasonic |
| Model Number | FBA11J10M |
| Product Category | Axial Fan |
| Rated Voltage | 9 VDC |
| Operating Voltage Range | 7.0-14.0 VDC |
| Rated Current | 0.92 A |
| Input Power | 17.0 W |
| Fan Speed | 1920 RPM |
| Maximum Air Flow | 36.0 CFM (1.02 m³/min) |
| Maximum Static Pressure | 0.06 in H2O (17.0 Pa) |
| Noise Level | 24.0 dB |
| Dimensions | 113 x 113 x 38 mm |
| Bearing Type | Hydro Wave Bearing |
| Operating Temperature | -40°C to +40°C (65%RH) |
| Storage Temperature | -40°C to +70°C (65%RH, non-condensing) |
Key Features
1920 RPM Fan Speed
Published performance data identifies a rated fan speed of 1920 RPM in free air loading.
36 CFM Airflow
The FBA11J10M delivers a maximum airflow of 36.0 CFM (1.02 m³/min) according to documented free-air performance.
Hydro Wave Bearing
Manufacturer documentation specifies a Hydro Wave bearing type for this axial fan model.
Wide Storage Temperature
The fan is rated for storage from -40°C to +70°C and operation from -40°C to +40°C at 65% relative humidity.
Applications
- Low-voltage enclosure cooling
- Refrigeration fan assemblies
- Compact electronic equipment ventilation
- Control panel thermal management
- Low-profile air circulation in industrial cabinets
- OEM cooling assemblies requiring 9 VDC fans
Purchase Information
We support online purchase of the Panasonic FBA11J10M Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Panasonic FBA11J10M? The FBA11J10M is a DC axial fan documented by Panasonic with a nominal 9 VDC rating and a 113 x 113 x 38 mm frame.
What voltage does the FBA11J10M use? The rated voltage is 9 VDC, with an allowable operating voltage range of 7.0 to 14.0 VDC.
What is the rated current of the FBA11J10M? Documented rated operating current is 0.92 A.
What is the input power? The rated input power is 17.0 W.
What is the fan speed? The FBA11J10M is rated at 1920 RPM.
What airflow does the fan produce? Maximum airflow is listed as 36.0 CFM (1.02 m³/min).
What is the noise level? The documented noise level is 24.0 dB.
What bearing type is used? Manufacturer documentation specifies a Hydro Wave bearing.
What is the operating temperature range? The allowable operating ambient temperature range is -40°C to +40°C at 65%RH.
What are the physical dimensions? The fan frame measures 113 x 113 x 38 mm.
