140 mm Frame with 28 mm Thickness
The MU1428S-41 uses a 140 mm square frame with a 28 mm thickness, suitable for space-constrained panel or equipment cooling arrangements.
ORIX
ORIX MU1428S-41 Axial Fan 200VAC 50/60Hz
$43.68
Available
PRODUCT GALLERY
01 / 4

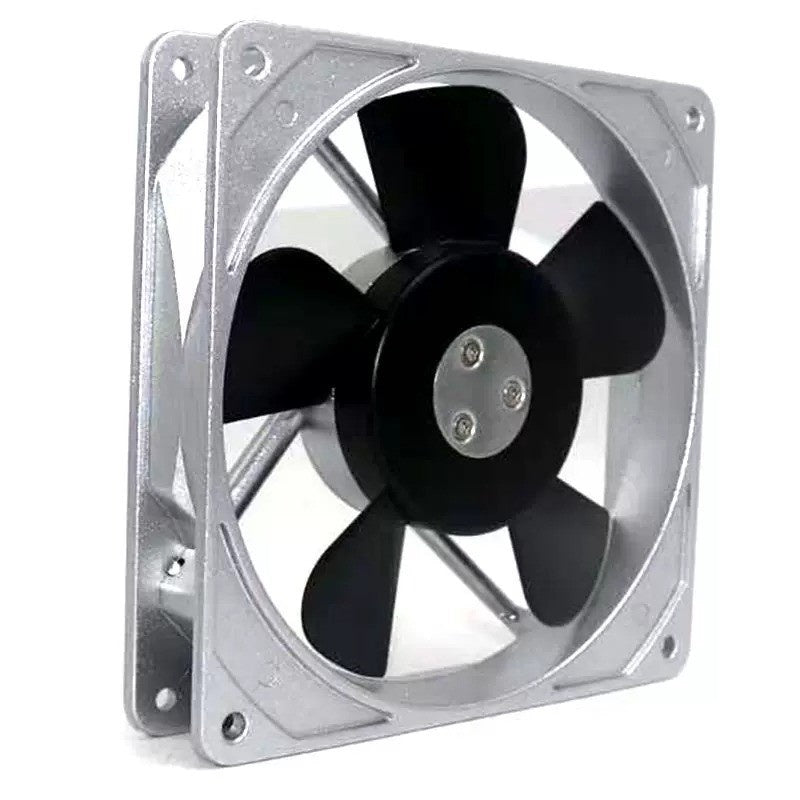

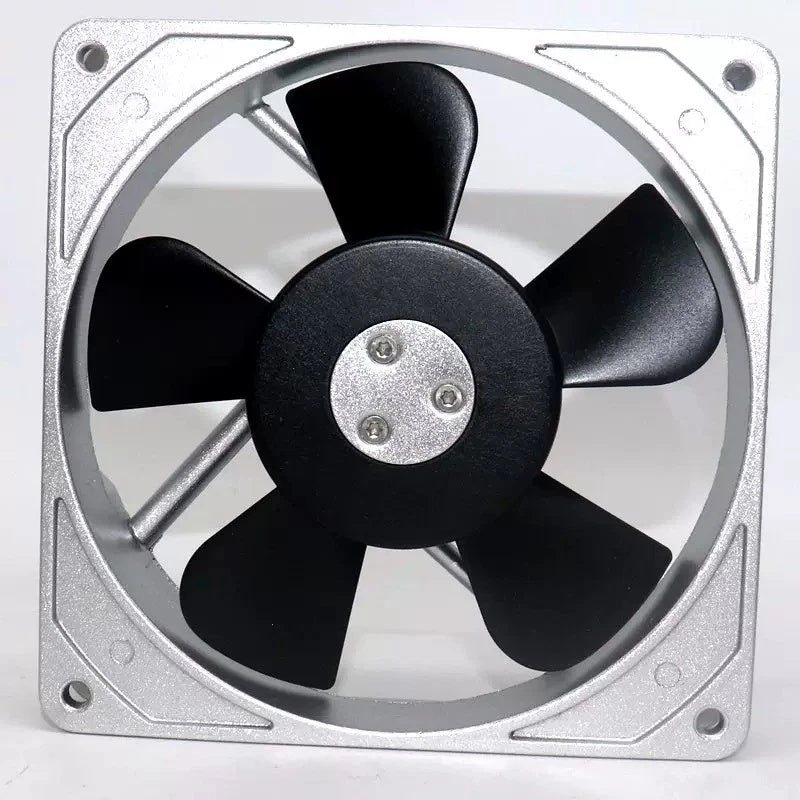

Product images for part identification
ORIX
ORIX MU1428S-41 Axial Fan 200VAC 50/60Hz
PRODUCT PRICE
USD
$43.68
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ORIX |
| Model Number | MU1428S-41 |
| Product Category | Axial Fan |
| Product Family | MU Series |
| Frame Size | 140 mm x 140 mm x 28 mm |
| Input Voltage | Single-Phase 200 VAC |
| Frequency | 50/60 Hz |
| Current | 0.10 A (50 Hz) / 0.09 A (60 Hz) |
| Input Power | 13.5 W (50 Hz) / 12.0 W (60 Hz) |
| Speed | 2400 r/min (50 Hz) / 2700 r/min (60 Hz) |
| Max. Air Flow | 2.4 m3/min (50 Hz) / 2.7 m3/min (60 Hz) |
| Max. Static Pressure | 43 Pa (50 Hz) / 39 Pa (60 Hz) |
| Noise Level | 44 dB(A) (50 Hz) / 46 dB(A) (60 Hz) |
| Bearing Type | Ball Bearing |
| Frame Material | Die-cast Aluminum |
| Impeller Material | Polycarbonate (Flammability V-0) |
| Overheat Protection | Impedance Protected |
| Weight | 0.4 kg |
Key Features
Single-Phase 200 VAC Input
Operates from a single-phase 200 VAC supply at 50 Hz or 60 Hz, with published current and power values for each frequency.
Dual-Frequency Performance Data
Manufacturer data specifies speed, air flow and static pressure at both 50 Hz and 60 Hz, allowing comparison for the intended supply frequency.
Ball Bearing Construction
The fan is equipped with a ball bearing assembly as identified in the manufacturer specifications.
Die-cast Aluminum Frame
The frame is made of die-cast aluminum and the impeller uses polycarbonate with V-0 flammability classification.
Impedance Overheat Protection
The motor incorporates impedance-type overheat protection as stated in the product specifications.
Applications
- Control panel and enclosure cooling
- Industrial equipment ventilation
- Power supply and drive cooling
- General axial airflow applications requiring a 140 mm frame
- Cooling of electronic assemblies in machinery
- Air circulation in compact industrial cabinets
Purchase Information
We support online purchase of the ORIX MU1428S-41 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the ORIX MU1428S-41? The MU1428S-41 is a single-phase AC axial fan from the ORIX MU series with a 140 mm square frame and 28 mm thickness.
What voltage does the MU1428S-41 require? The manufacturer specifies single-phase 200 VAC operation.
Does the MU1428S-41 operate at both 50 Hz and 60 Hz? Yes. The published specifications include separate current, power, speed, air flow and static pressure values for 50 Hz and 60 Hz.
What is the current consumption of the MU1428S-41? Manufacturer data lists 0.10 A at 50 Hz and 0.09 A at 60 Hz.
What is the input power of the MU1428S-41? The input power is specified as 13.5 W at 50 Hz and 12.0 W at 60 Hz.
What is the maximum air flow of the MU1428S-41? The maximum air flow is 2.4 m3/min at 50 Hz and 2.7 m3/min at 60 Hz.
What bearing type does the MU1428S-41 use? The fan uses a ball bearing assembly.
What is the weight of the MU1428S-41? The product weight is listed as 0.4 kg.
What is the frame material of the MU1428S-41? The frame is die-cast aluminum.
