160 mm Frame with 62 mm Thickness
The MRS16-TUL-F4 uses a 160 mm square frame with a 62 mm thickness, providing a larger axial fan format for higher air flow requirements.
ORIX
ORIX MRS16-TUL-F4 Axial Fan 100VAC 50/60Hz
$77.92
Available
PRODUCT GALLERY
01 / 2

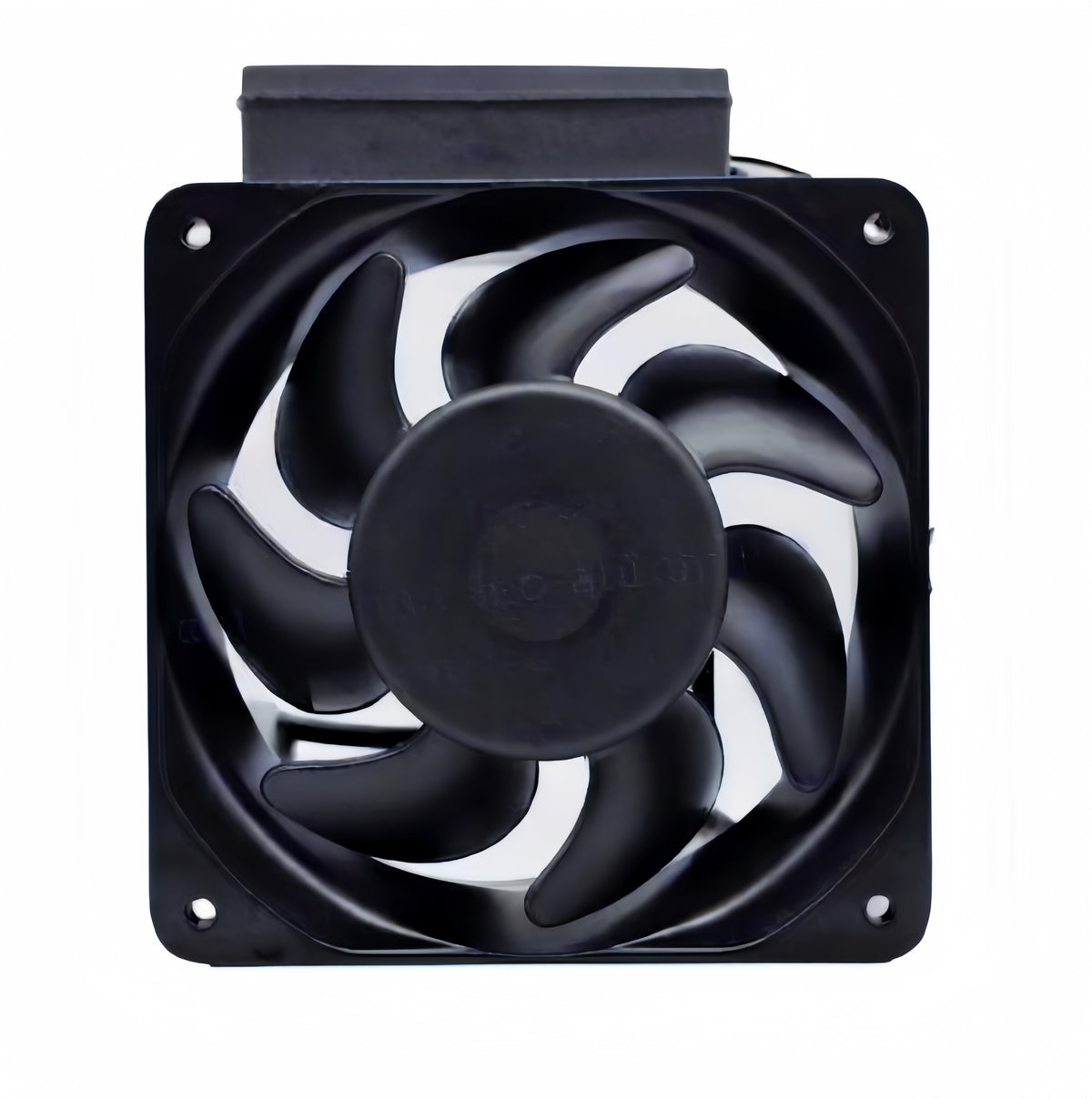

Product images for part identification
ORIX
ORIX MRS16-TUL-F4 Axial Fan 100VAC 50/60Hz
PRODUCT PRICE
USD
$77.92
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ORIX |
| Model Number | MRS16-TUL-F4 |
| Product Category | Axial Fan |
| Product Family | MRS Series |
| Frame Size | 160 mm x 160 mm x 62 mm |
| Input Voltage | Three-Phase 200/220/230 VAC |
| Frequency | 50/60 Hz |
| Current | 0.19 A (200 V, 50 Hz) / 0.17 A (200 V, 60 Hz) / 0.18 A (220/230 V, 60 Hz) |
| Input Power | 33 W (200 V, 50 Hz) / 37 W (200 V, 60 Hz) / 41 W (220 V, 60 Hz) / 43 W (230 V, 60 Hz) |
| Speed | 2800 r/min (200 V, 50 Hz) / 3250 r/min (200 V, 60 Hz) / 3300 r/min (220/230 V, 60 Hz) |
| Max. Air Flow | 6.2 m3/min (200 V, 50 Hz) / 7.3 m3/min (200/220/230 V, 60 Hz) |
| Max. Static Pressure | 127 Pa (200 V, 50 Hz) / 157 Pa (200/220/230 V, 60 Hz) |
| Noise Level | 49 dB(A) (200 V, 50 Hz) / 52 dB(A) (200 V, 60 Hz) / 53 dB(A) (220/230 V, 60 Hz) |
| Bearing Type | Ball Bearing |
| Frame Material | Die-cast Aluminum |
| Impeller Material | Polycarbonate (Flammability V-0) |
| Weight | 1.35 kg |
Key Features
Three-Phase AC Input
The fan is specified for three-phase 200/220/230 VAC operation, with published current and power values for each voltage and frequency combination.
7.3 m3/min Maximum Air Flow
Manufacturer data lists a maximum air flow of 7.3 m3/min at 60 Hz operation for the applicable voltages.
157 Pa Maximum Static Pressure
The maximum static pressure is specified as 157 Pa at 60 Hz, allowing the fan to work against higher system impedance.
Ball Bearing and Die-cast Frame
The fan uses ball bearings and a die-cast aluminum frame with a polycarbonate impeller rated V-0 for flammability.
Dual-Frequency Operation
Performance data is published for both 50 Hz and 60 Hz supply frequencies, covering speed, air flow, static pressure and noise.
Applications
- Industrial control cabinet cooling
- Cooling of drives and power electronics
- Heat dissipation in machinery enclosures
- Air circulation in equipment requiring a 160 mm fan
- Ventilation of electrical panels with three-phase supply
- Cooling of industrial automation components
Purchase Information
We support online purchase of the ORIX MRS16-TUL-F4 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the ORIX MRS16-TUL-F4? The MRS16-TUL-F4 is a three-phase AC axial fan from the ORIX MRS series with a 160 mm frame and 62 mm thickness.
What voltage does the MRS16-TUL-F4 use? Manufacturer specifications identify three-phase 200/220/230 VAC operation.
What is the maximum air flow of the MRS16-TUL-F4? The maximum air flow is 6.2 m3/min at 200 V, 50 Hz and 7.3 m3/min at 60 Hz for the applicable voltages.
What is the maximum static pressure? The maximum static pressure is 127 Pa at 200 V, 50 Hz and 157 Pa at 60 Hz.
What is the input power at 200 V, 50 Hz? The input power is specified as 33 W at 200 V, 50 Hz.
What is the current at 200 V, 50 Hz? The current is listed as 0.19 A at 200 V, 50 Hz.
What is the speed at 60 Hz? The speed is 3250 r/min at 200 V, 60 Hz and 3300 r/min at 220/230 V, 60 Hz.
What is the weight of the MRS16-TUL-F4? The product weight is 1.35 kg.
What bearing type does the MRS16-TUL-F4 use? The fan uses ball bearings.
