160 mm Frame Size
The MRS16-D belongs to the ORIX MRS series with a 160 mm frame size, intended for larger air flow requirements in industrial cooling arrangements.
ORIX

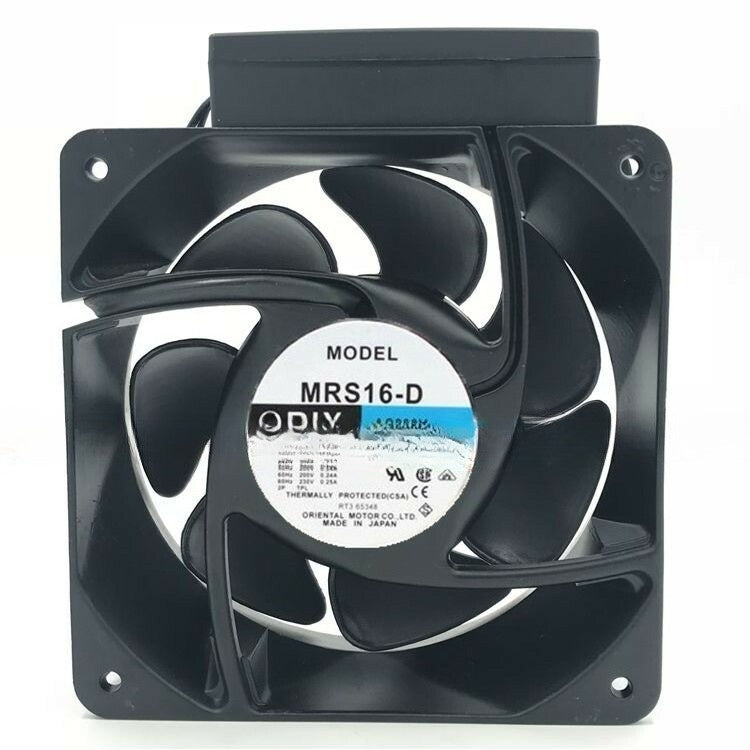

ORIX MRS16-D Axial Fan 100VAC 50/60Hz
$72.89
Available
PRODUCT GALLERY
01 / 2

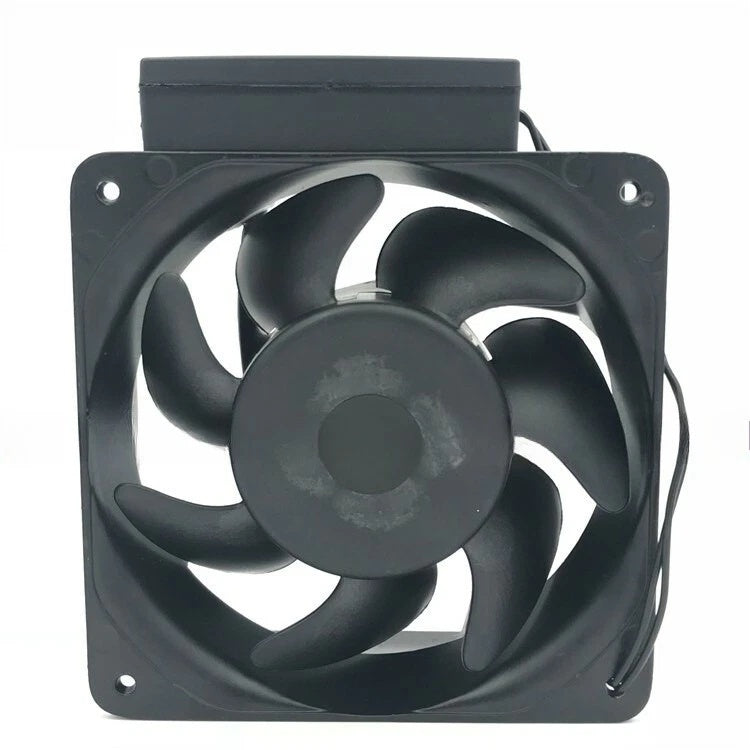

Product images for part identification
ORIX
ORIX MRS16-D Axial Fan 100VAC 50/60Hz
PRODUCT PRICE
USD
$72.89
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ORIX |
| Model Number | MRS16-D |
| Product Category | Axial Fan |
| Product Family | MRS Series |
| Frame Size | 160 mm x 160 mm |
| Input Voltage | Single-Phase 100/110/115 VAC (per series documentation) |
| Frequency | 50/60 Hz |
| Bearing Type | Ball Bearing |
| Frame Material | Die-cast Aluminum |
| Impeller Material | Polycarbonate (Flammability V-0) |
Key Features
Single-Phase AC Input
MRS16 series documentation identifies single-phase 100/110/115 VAC variants for 50 Hz and 60 Hz operation.
Ball Bearing Assembly
The fan is built with a ball bearing assembly as identified in the series specifications.
Die-cast Aluminum Frame
The frame uses die-cast aluminum construction, and the impeller is made of polycarbonate with V-0 flammability rating.
Applications
- Control cabinet and enclosure cooling
- Industrial equipment air circulation
- Cooling of power supplies and electronic drives
- Ventilation in machinery with a 160 mm fan mounting space
- General axial airflow applications at 100/110/115 VAC
- Air movement in industrial control panels
Purchase Information
We support online purchase of the ORIX MRS16-D Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the ORIX MRS16-D? The MRS16-D is an AC axial fan from the ORIX MRS series with a 160 mm frame size.
What input voltage is associated with the MRS16-D? The MRS16 series documentation identifies single-phase 100/110/115 VAC variants. The input title specifies 100 VAC, 50/60 Hz.
What is the frame size of the MRS16-D? The fan uses a 160 mm frame size as part of the MRS16 designation.
What bearing type does the MRS16 series use? The MRS16 series specifications identify ball bearing construction.
What is the frame material of the MRS16 series? The frame is die-cast aluminum and the impeller is polycarbonate with V-0 flammability classification.
Does the MRS16-D operate at 50 Hz and 60 Hz? The MRS16 series is documented for 50 Hz and 60 Hz operation.
Can the MRS16-D be used for control cabinet cooling? The 160 mm frame and axial airflow design are consistent with control cabinet and industrial enclosure cooling applications, after verifying the electrical and mounting requirements.
