Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 4710NL-05W-B30 |
| Product Category | DC Axial Fan |
| Manufacturer | NMB Technologies / Minebea |
| Product Series | 4710NL |
| Fan Type | DC Axial Cooling Fan |
| Manufacturer-Documented Full Model | 4710NL-05W-B30-D00 |
| Additional Manufacturer Catalog Configuration | 4710NL-05W-B30-P00 |
| Commercially Documented Assembly Suffix | D00, D02, P00 and P02 in Spare-Parts Listings; Confirm the Complete Assembly Marking |
| Nominal Voltage | 24 VDC |
| Electrical Supply Type | Direct Current |
| Manufacturer Catalog Current -D00 / -P00 | 0.12 A (120 mA) |
| Manufacturer Catalog Input Power -D00 / -P00 | 2.88 W |
| Commercial Assembly Current Marking | 0.16 A in Multiple Exact-Model Supplier Listings |
| Calculated Power at Commercial 0.16A Marking | 3.84 W at 24 VDC; Calculated Value, Not the Manufacturer's Standard Catalog Power Rating |
| Electrical Specification Discrepancy | The Historical NMB Catalog Specifies 0.12 A for Standard B30-D00 and B30-P00 Models, While Commercially Documented Assemblies Show 0.16 A. Verify the Supplied Fan Label Before Designing or Replacing a Power Circuit |
| Manufacturer Catalog Operating Voltage Range | 10.0–27.6 VDC for the Standard 4710NL-05W-B30 Configuration |
| Frame Dimensions (W × H × D) | 119 × 119 × 25 mm Nominal |
| Frame Width | 119 mm |
| Frame Height | 119 mm |
| Frame Depth | 25 mm Nominal; Manufacturer Drawing Shows 25.5 ±0.5 mm |
| Common Fan Size Class | 120 × 120 × 25 mm Class |
| Manufacturer Frame Tolerance | 119.0 ±0.8 mm in the 4710NL Mechanical Drawing |
| Manufacturer Catalog Fan Speed | 2050 RPM for 4710NL-05W-B30-D00 and -P00 |
| Manufacturer Catalog Maximum Airflow | 80 CFM for the Standard B30 Configurations |
| Manufacturer Catalog Maximum Static Pressure | 0.14 in H₂O |
| Manufacturer Catalog Noise Level | 35 dBA |

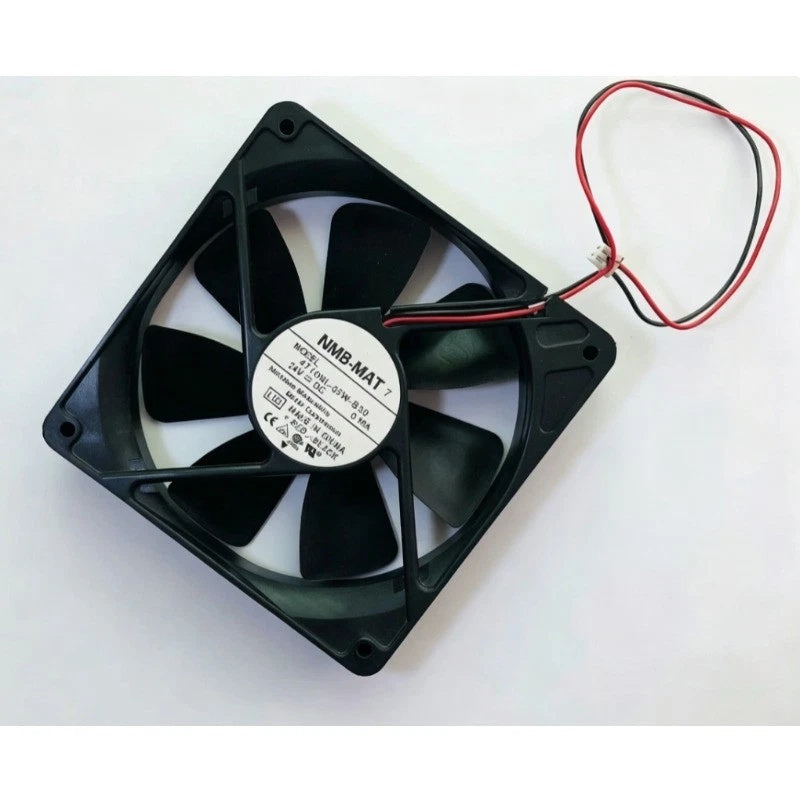

The NMB-MAT 4710NL-05W-B30 is a DC axial cooling fan from the NMB 4710NL series. It uses a nominal 24 VDC supply and a compact square-frame design for forced-air cooling of compatible industrial electronics, power supplies, control equipment and ventilation assemblies. Electrical ratings should be checked against the complete assembly label.
The manufacturer identifies the 4710NL series as a 119 mm square, approximately 25 mm deep cooling fan family. The detailed drawing shows a 25.5 ±0.5 mm depth, 105 mm mounting-hole spacing and 4.3 mm mounting holes. Both flange-type and rib-type mechanical configurations are documented, making the complete suffix important for installation.
The NMB 4710NL series datasheet specifies 2050 RPM, 80 CFM maximum airflow, 0.14 inches of water maximum static pressure and 35 dBA for the standard 24 VDC B30 configurations. These figures provide a documented baseline for replacement evaluation, but the performance of assemblies carrying a different 0.16 A current marking should be checked separately.
The historical manufacturer datasheets specify 0.12 A and 2.88 W for 4710NL-05W-B30-D00 and -P00. Several current commercial listings identify 0.16 A on fans sold under the abbreviated 4710NL-05W-B30 designation, equivalent to 3.84 W calculated at 24 VDC. This distinction matters when checking the existing equipment supply and selecting a replacement.
The standard 4710NL series uses red and black power leads with an AWG24 cable specification. Commercial listings document bare-lead and two-pin-connector assemblies with different cable lengths. The standard two-wire version does not provide an additional tachometer or PWM input conductor, while separately advertised multi-wire assemblies require individual wiring verification.
Historical documentation identifies a transition from the NMB 4710NL family toward the 4710KL series. However, the manufacturer rates the related 4710KL-05W-B30 at 0.15 A, 2200 RPM and 88.2 CFM, which differs from the 4710NL standard B30 ratings. Electrical, mechanical, mounting and airflow compatibility must be confirmed before selecting any later-series alternative.
We support online purchase inquiries for the NMB-MAT 4710NL-05W-B30 DC Axial Fan. For individual units, bulk requirements or related industrial cooling products, please contact our team with the required quantity, full model number and equipment specifications. Please provide the existing fan label and confirm whether the assembly is marked -D00, -P00, -D02, -P02 or another suffix. We can provide quotation information and discuss applicable delivery and transportation arrangements after reviewing your request. The NMB manufacturer catalog specifies 24 VDC and 0.12 A for the standard B30 configurations, whereas multiple commercial assembly listings show 24 VDC and 0.16 A. Verify the actual current marking, connector, lead length, mounting style and cooling performance before ordering or installing a replacement. The related 4710KL model has different manufacturer performance specifications and should not be substituted solely on the basis of similar dimensions.
What is NMB-MAT 4710NL-05W-B30?
NMB-MAT 4710NL-05W-B30 is a 24 VDC axial cooling fan from the NMB 4710NL series. The manufacturer publishes specifications for complete B30-D00 and B30-P00 versions, both with a nominal 119 × 119 × 25 mm frame and standard 2050 RPM performance. Some commercial assemblies carry a different current marking, so the complete fan suffix should be verified.
Is 4710NL-05W-B30 an AC fan or DC fan?
It is a DC axial cooling fan. Multiple manufacturer and model-specific supplier references identify a nominal 24 VDC supply. It should not be connected directly to a 115 VAC, 220 VAC or 230 VAC power source or replaced with an AC fan merely because the external dimensions are similar.
What is the rated voltage and operating voltage range?
The nominal rated voltage is 24 VDC. The NMB 4710NL manufacturer catalog specifies an operating voltage range of 10.0–27.6 VDC for standard 4710NL-05W-B30-D00 and -P00 configurations. The permissible range for a commercially marked 0.16 A assembly has not been independently established and should be confirmed before use outside nominal voltage.
Is the rated current 0.12A or 0.16A?
The historical NMB 4710NL manufacturer datasheets specify 0.12 A for standard 4710NL-05W-B30-D00 and -P00. Several current commercial listings instead identify 0.16 A for fans labeled 4710NL-05W-B30, including a D00 assembly. Both figures are documented, but they are not interchangeable without further clarification. Use the current marking and complete part number on the actual fan when assessing electrical compatibility.
What is the power consumption of 4710NL-05W-B30?
The manufacturer catalog lists 2.88 W for its standard 24 VDC, 0.12 A B30 configurations. At the alternative supplier-reported 0.16 A marking, 24 VDC multiplied by 0.16 A gives 3.84 W calculated power. The latter is not a separately verified manufacturer running-power specification. Confirm the assembly's electrical rating before selecting a power supply.
What are the dimensions and mounting-hole spacing?
The standard nominal size is 119 mm wide, 119 mm high and 25 mm deep. The manufacturer mechanical drawing gives a depth of 25.5 ±0.5 mm, a frame width of 119.0 ±0.8 mm, 105.0 ±0.5 mm mounting-hole center spacing and 4.3 ±0.2 mm mounting holes. The manufacturer also documents different rib-type and flange-type frame configurations.
What is the fan speed of 4710NL-05W-B30?
NMB's 4710NL series catalogs specify 2050 RPM for standard 4710NL-05W-B30-D00 and -P00 models at nominal 24 VDC. This is the manufacturer's documented B30 performance reference. Where a fan is marked 0.16 A or has an equipment-specific suffix, verify whether the standard speed rating applies to that assembly.
What is the maximum airflow and static pressure?
The manufacturer specifies 80 CFM maximum airflow and 0.14 inches of water maximum static pressure for the standard 4710NL B30 configuration. These are separate endpoints on the pressure-airflow curve and are not achieved simultaneously. Installed airflow depends on ventilation openings, filters, heatsinks and other system restrictions. The exact performance of commercially documented 0.16 A assemblies has not been independently confirmed.
What is the acoustic noise level?
The manufacturer's standard B30 catalog noise rating is 35 dBA. This value corresponds to the documented 2050 RPM configuration. Installed noise may change with mounting vibration, guards, airflow restrictions and enclosure resonance. The exact acoustic rating of a modified or equipment-specific assembly should be verified independently.
Does 4710NL-05W-B30 use two wires or three wires?
The standard manufacturer's 4710NL documentation describes two power leads, red and black, using AWG24 UL1007 wire. Multiple model-specific commercial listings also identify two-wire configurations, including some with two-pin connectors. One seller offers optional three-wire and other custom versions, but the electrical signal arrangements of those variants have not been manufacturer-verified. Confirm the complete assembly and connector before ordering.
What is the difference between 4710NL-05W-B30 and 4710KL-05W-B30?
Both are NMB 24 VDC axial fan models with approximately 119 × 119 × 25 mm frame dimensions, but their manufacturer specifications differ. The standard 4710NL-B30 catalog specifies 0.12 A, 2050 RPM, 80 CFM and 35 dBA. The manufacturer documents the later 4710KL-05W-B30-B00 at 0.15 A, 2200 RPM, 88.2 CFM and 35 dB. The bearing, frame and termination arrangements should also be compared. A historical series-transition reference does not establish complete electrical or cooling equivalence for every model suffix.
Is 4710NL-05W-B30 discontinued, and what should be checked before ordering?
The 4710NL is a legacy NMB fan series, and historical industry documentation describes a transition toward the 4710KL family. However, an exact-model current manufacturer lifecycle statement and a verified direct replacement for every 4710NL-05W-B30 assembly were not established. Before ordering, confirm the complete suffix, nominal 24 VDC supply, actual 0.12 A or 0.16 A current marking, 119 × 119 × 25 mm frame, mounting style, 105 mm mounting-hole spacing, red and black power wiring, connector, cable length, rotation and airflow direction. Where guaranteed airflow, static pressure, bearing life or environmental limits are required, request documentation for the precise assembly rather than applying the ratings of a different 4710KL fan.
Send us your part number and technical requirements.
