Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 3610PS-20T-B30 |
| Product Category | AC Axial Fan |
| Manufacturer | NMB Technologies Corporation / MinebeaMitsumi |
| Product Series | 3610PS |
| Fan Type | AC Tubeaxial Cooling Fan |
| Manufacturer-Documented Complete Model | 3610PS-20T-B30-B00 |
| Manufacturer Frequency-Specific Records | 3610PS-20T-B30-B00_50Hz and 3610PS-20T-B30-B00_60Hz |
| Nominal Voltage | 200 VAC |
| Electrical Supply Type | Alternating Current (AC) |
| Rated Frequency | 50 / 60 Hz |
| Starting Voltage | 130 VAC at Both 50Hz and 60Hz in Manufacturer Product Records |
| Nominal Frame Dimensions (W × H × D) | 92 × 92 × 25 mm |
| Distributor-Listed External Dimensions | Approximately 92.5 × 92.5 × 25 mm |
| Frame Width | 92 mm Nominal |
| Frame Height | 92 mm Nominal |
| Frame Depth | 25 mm |
| Common Cooling Fan Size Class | 9225 |
| Rated Current at 50Hz | 0.10 A |
| Rated Current at 60Hz | 0.08 A |
| Input Power at 50Hz | 13 W |
| Input Power at 60Hz | 10 W |
| Input Power Tolerance | +10% / -20% According to Manufacturer Product Records |
| Nominal Fan Speed at 50Hz | 2600 RPM |
| Nominal Fan Speed at 60Hz | 3100 RPM |
| Maximum Airflow at 50Hz | 28.6 CFM |
| Maximum Airflow at 60Hz | 35 CFM |
| Maximum Airflow at 50Hz in Metric Units | 0.80 m³/min |
| Maximum Airflow at 60Hz in Metric Units | 0.98 m³/min |
| Maximum Static Pressure at 50Hz | 43.2 Pa |
| Maximum Static Pressure at 60Hz | 60.8 Pa |
| Maximum Static Pressure at 50Hz in Inches of Water | 0.17 in H₂O |
| Maximum Static Pressure at 60Hz in Inches of Water | 0.24 in H₂O |
| Noise Level at 50Hz | 33.5 dB |
| Noise Level at 60Hz | 38 dB |
| Bearing Type | Ball Bearing |
| Motor Type | AC Fan Motor |
| Approximate Weight | 300 g |

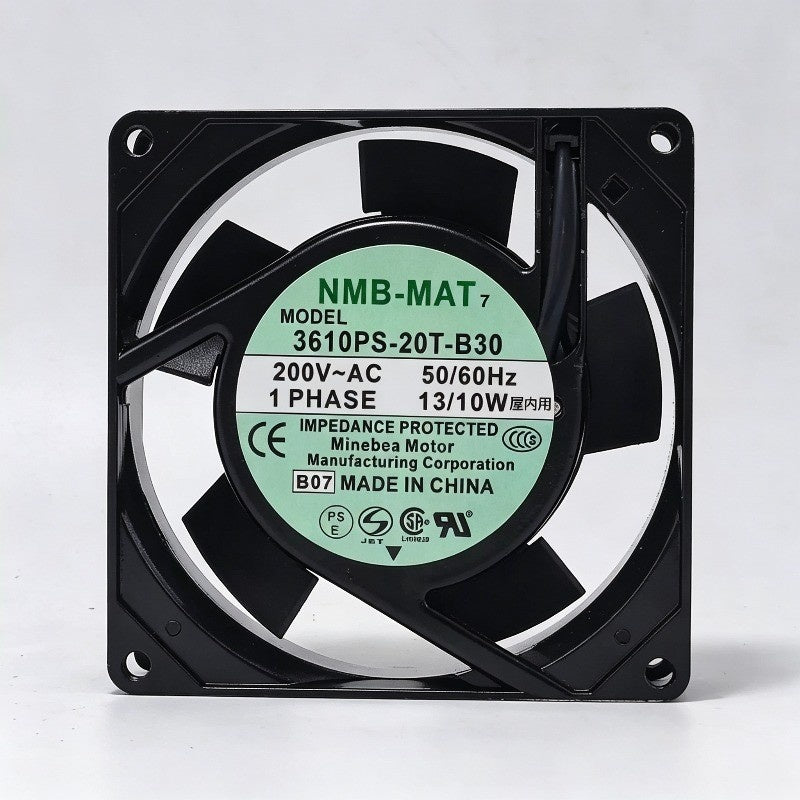

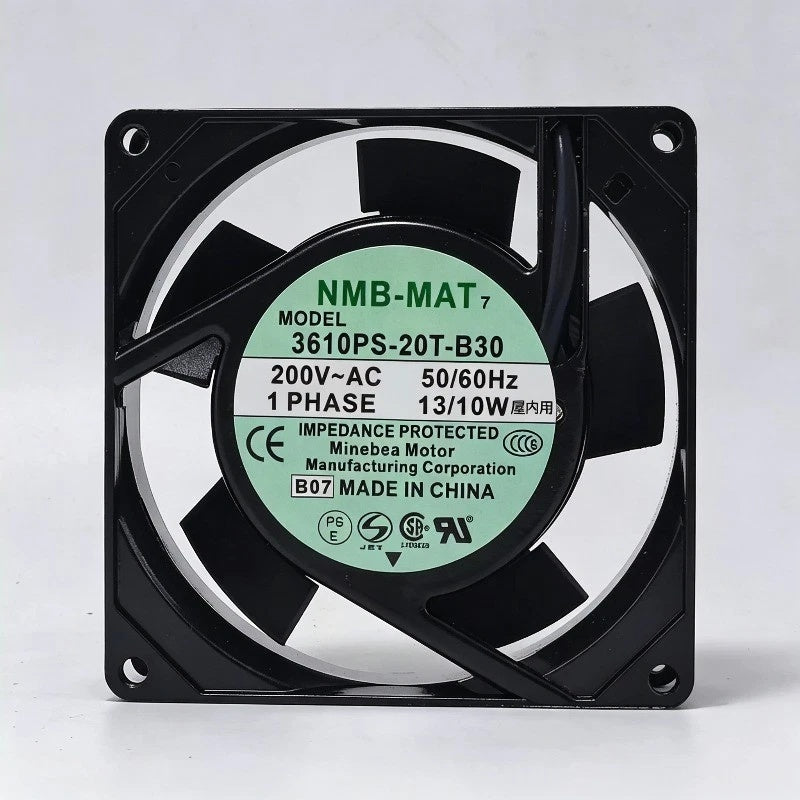

The NMB-MAT 3610PS-20T-B30 is an AC-powered axial cooling fan from the 3610PS series. Unlike the 3610KL DC fan family, this model is designed for a nominal 200 VAC supply. Its compact square frame supports forced-air ventilation in compatible industrial electrical equipment, control enclosures and AC-powered cooling assemblies.
The manufacturer documents separate operating characteristics at both supply frequencies. At 50Hz, the fan is rated at 0.10 A, 13 W and 2600 RPM. At 60Hz, it is rated at 0.08 A, 10 W and 3100 RPM. These frequency-specific values are important when selecting the fan for equipment used in different electrical supply systems.
NMB specifies a nominal 92 mm square frame with a 25 mm depth. Distributor mechanical listings describe an outside frame dimension of approximately 92.5 mm square. The documented model uses an aluminum frame and a fiberglass-reinforced polycarbonate impeller, supporting its intended mechanical configuration for AC equipment ventilation.
The manufacturer lists a maximum airflow of 28.6 CFM at 50Hz and 35 CFM at 60Hz. Maximum static pressure is 43.2 Pa at 50Hz and 60.8 Pa at 60Hz. The fan's cooling performance therefore changes with supply frequency, and actual installed airflow depends on system resistance.

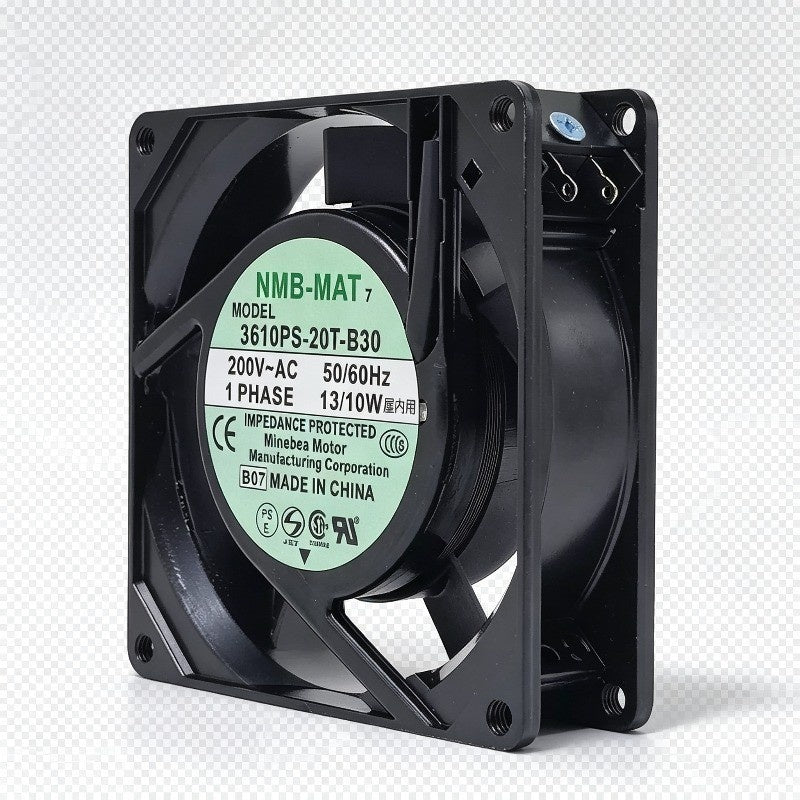

The 3610PS-20T-B30-B00 uses ball bearings and has a documented two-terminal AC electrical connection. NMB's current product records specify an L10 life expectancy of 100,000 hours at 25°C. The AC terminals must be wired using an installation method appropriate for the equipment voltage and applicable electrical safety requirements.
NMB identifies 09225PB-B0L-EA-00 as the newer part number for the legacy 3610PS-20T-B30-B00, describing it as an identical fan under a new part number. Both 50Hz and 60Hz versions are documented. Replacement selection should still confirm voltage, frequency, dimensions, terminal arrangement and installed equipment compatibility.
We support online purchase inquiries for the NMB-MAT 3610PS-20T-B30 AC Axial Fan. If you need to make bulk purchases or inquire about other industrial cooling products, please contact our team with the required quantity, complete model number and equipment specifications. Please confirm the full 3610PS-20T-B30-B00 designation, nominal 200 VAC supply and intended 50Hz or 60Hz operating frequency. We can provide quotation information and discuss applicable delivery and transportation arrangements after reviewing your request. The manufacturer identifies 09225PB-B0L-EA-00 as the newer part number for the documented legacy model. Before ordering or installing a replacement, verify the electrical supply, two-terminal connection, mounting dimensions and equipment cooling requirements. Installation of this AC-powered fan should be performed using appropriate electrical safety procedures.
What is NMB-MAT 3610PS-20T-B30?
NMB-MAT 3610PS-20T-B30 is an AC axial cooling fan from the NMB Technologies 3610PS series. The manufacturer-documented complete model is 3610PS-20T-B30-B00. It is designed for a nominal 200 VAC supply at 50Hz or 60Hz and has a 92 × 92 × 25 mm nominal frame.
Is 3610PS-20T-B30 an AC fan or DC fan?
It is an AC axial fan, not a DC fan. NMB classifies the complete -B00 model under its AC Axial Fans product category and specifies 200 VAC. It should not be substituted for a 12 VDC or 24 VDC fan in the 3610KL series merely because the frame dimensions are similar.
What is the rated voltage and operating frequency?
The nominal supply is 200 VAC, with manufacturer specifications provided separately for 50Hz and 60Hz operation. The published starting voltage is 130 VAC for both frequency records. The starting-voltage specification does not mean that 130 VAC is the recommended continuous operating supply; use the nominal rating and applicable manufacturer requirements.
What are the dimensions of 3610PS-20T-B30?
NMB specifies a nominal frame size of 92 mm wide, 92 mm high and 25 mm deep. DigiKey gives approximately 92.5 × 92.5 × 25 mm as the outside dimensions. Confirm the mounting-hole pattern, frame clearance and terminal position before replacing an installed fan.
What is the rated current at 50Hz and 60Hz?
At 50Hz, the manufacturer specifies 0.10 A. At 60Hz, the specified current is 0.08 A. The current is frequency-dependent, so the correct value should be used when checking the fan supply circuit and electrical load.
What is the input power of 3610PS-20T-B30?
The manufacturer's product records list 13 W at 50Hz and 10 W at 60Hz, with a published input-power tolerance of +10% / -20%. These are the correct frequency-specific power values; multiplying the AC RMS voltage by current does not necessarily give the real input power because power factor must also be considered.
What is the fan speed at 50Hz and 60Hz?
NMB specifies 2600 RPM at 50Hz and 3100 RPM at 60Hz. The difference is expected for this AC motor design and means that the operating frequency should be identified when evaluating cooling performance or selecting a replacement.
What is the maximum airflow of 3610PS-20T-B30?
The manufacturer's current product records list 28.6 CFM, or 0.80 m³/min, at 50Hz and 35 CFM, or 0.98 m³/min, at 60Hz. Some older distributor records use slightly different CFM figures, but the values above follow NMB's current published product specifications.
What is the maximum static pressure?
NMB lists a maximum static pressure of 43.2 Pa, or 0.17 inches of water, at 50Hz. At 60Hz, the maximum static pressure is 60.8 Pa, or 0.24 inches of water. Maximum free-air flow and maximum static pressure represent separate operating points on the fan curve and are not achieved simultaneously.
What bearing type and expected life does 3610PS-20T-B30 use?
The documented -B00 model uses ball bearings. NMB's current 50Hz and 60Hz product pages both list an L10 expected life of 100,000 hours at 25°C. DigiKey's legacy attributes separately show a 50,000-hour reference at 25°C. When life expectancy matters for equipment maintenance planning, use the specific manufacturer's published rating and verify the operating conditions.
Does 3610PS-20T-B30 have wires or electrical terminals?
DigiKey identifies the complete -B00 model as having two electrical terminals. The standard listing does not specify a separate tachometer, locked-rotor alarm or PWM signal connection. Because this is a 200 VAC component, terminal wiring, insulation, isolation, protective measures and electrical installation must be handled by appropriately qualified personnel.
Is 3610PS-20T-B30 discontinued, and what should be checked before ordering?
NMB identifies 3610PS-20T-B30-B00 as a legacy part number that is not recommended for new designs and lists 09225PB-B0L-EA-00 as its newer designation. DigiKey lists the legacy model as obsolete and identifies the successor as manufacturer-recommended. Before ordering, confirm the full model suffix, 200 VAC nominal voltage, 50Hz or 60Hz frequency, two-terminal connection, 92 × 92 × 25 mm frame, ball bearing construction, appropriate frequency-specific current, input power, RPM, airflow, static pressure, mounting requirements and the equipment's electrical safety provisions. Verify the new model's connection arrangement and mechanical fit before replacement.
