80 × 80 × 25 mm Cooling Fan
The NMB-MAT 3110GL-B4W-B54 is an 80 mm square DC axial cooling fan with a 25 mm frame depth. Its dimensions make it suitable for compatible electronic equipment requiring an 8025-format forced-air cooling assembly.
NMB
NMB-MAT 3110GL-B4W-B54 DC Axial Fan 12V 0.30A 80x80x25mm
$10.46
Available
PRODUCT GALLERY
01 / 9

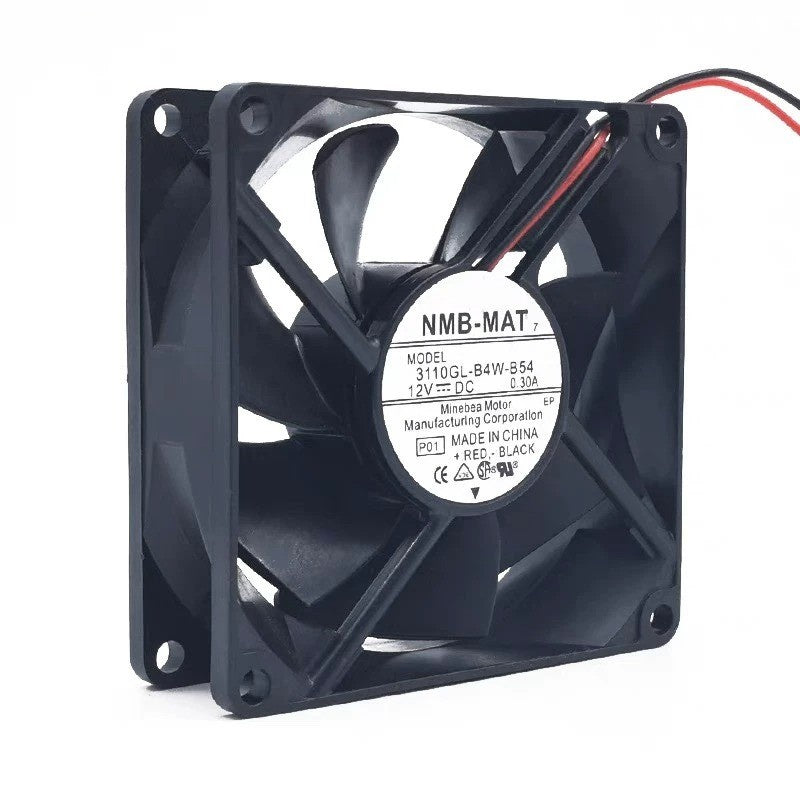

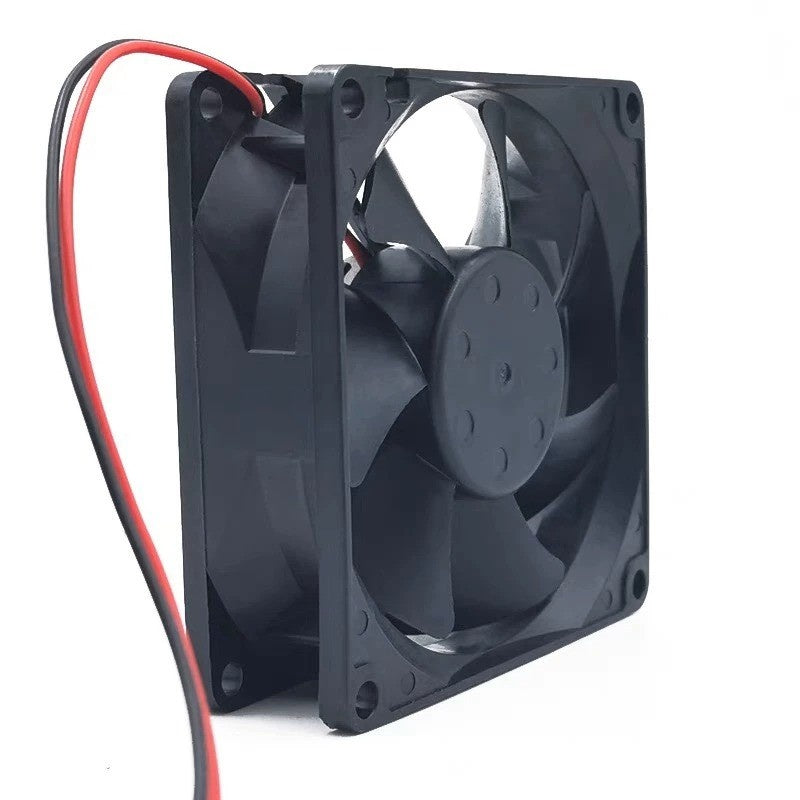

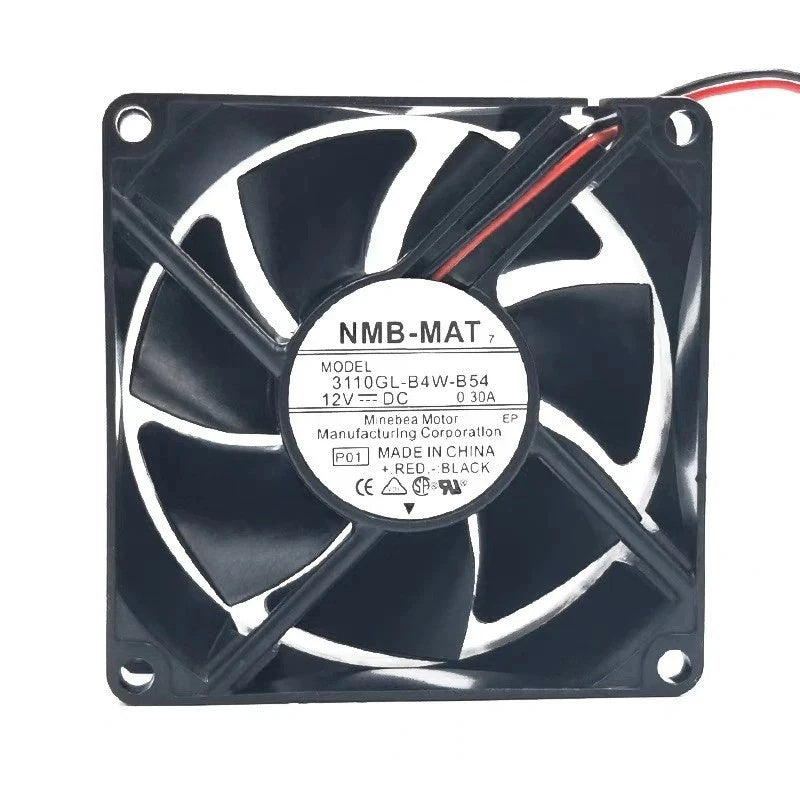

Product images for part identification
NMB
NMB-MAT 3110GL-B4W-B54 DC Axial Fan 12V 0.30A 80x80x25mm
PRODUCT PRICE
USD
$10.46
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | NMB-MAT |
| Model Number | 3110GL-B4W-B54 |
| Product Category | DC Axial Fan |
| Manufacturer | NMB Technologies / MinebeaMitsumi |
| Product Series | 3110GL |
| Fan Type | Brushless DC Axial Cooling Fan |
| Frame Dimensions (W × H × D) | 80 × 80 × 25 mm |
| Frame Size | 80 mm |
| Frame Thickness | 25 mm |
| Nominal Voltage | 12 VDC |
| Current Marking in Commercial Listings | 0.30 A; Verify Against the Fan Nameplate |
| Nominal Power at 12V and 0.30A | 3.6 W Calculated from Listed Electrical Values; Not Independently Confirmed as a Manufacturer Test Rating |
| Series Operating Voltage Reference | 6.0-13.8 VDC for Published 12V Standard Variants; Exact B54 Range Requires Confirmation |
| Published 3110GL-B4W-B50-P00 Speed Reference | 3250 RPM; Reference Variant Only |
| Published 3110GL-B4W-B60-P00 Speed Reference | 3400 RPM; Reference Variant Only |
| Exact B54 Rated Fan Speed | Not Independently Confirmed in Manufacturer Documentation |
| Published B50 Series Airflow Reference | 38.8 CFM (1.10 m³/min); Not a Confirmed B54 Rating |
| Published B60 Series Airflow Reference | 40.2 CFM (1.14 m³/min); Not a Confirmed B54 Rating |
| Published B50 Series Static Pressure Reference | 37.2 Pa (0.15 in H₂O) |
| Published B60 Series Static Pressure Reference | 40.2 Pa (0.16 in H₂O) |
| Exact B54 Airflow and Static Pressure | Confirm from Full-Suffix Manufacturer Documentation |
| Published B50 Series Noise Reference | 34 dB(A) |
| Published B60 Series Noise Reference | 35 dB(A) |
| Series Lead Wire Reference | UL1007, 26 AWG for Published Standard Variants |
| Mounting Hole Spacing | 71.5 ±0.3 mm in Series Mechanical Drawing |
| Mounting Hole Diameter | 4.3 ±0.2 mm in Series Mechanical Drawing |
| Series Operating Temperature Reference | -10°C to +60°C for Published Standard Variants |
| Series Storage Temperature Reference | -40°C to +60°C, Non-Condensing |
| Series Insulation Resistance | 10 MΩ Minimum at 500 VDC |
| Series Dielectric Withstand | 700 VAC for 1 Second |
| Series Standard Variant Weight | 95 g; Exact B54 Assembly Weight Not Confirmed |
| Series Standard Variant Life Reference | 60,000 Hours at 25°C with 10% Failure Rate, P00 Versions |
| Possible Additional Product Suffix | 3110GL-B4W-B54-P31 Appears in Commercial Listings; Verify Exact Assembly |
Key Features
12VDC Brushless Motor
The B54 model is commercially identified as a 12 VDC cooling fan with a 0.30 A current marking. Manufacturer documentation confirms the 3110GL-B4W family is a 12 VDC brushless fan series, although electrical performance specific to the B54 configuration should be verified from its nameplate.
Ball Bearing Construction
The manufacturer's 3110GL series documentation identifies ball bearing construction. This design supports continuous rotating equipment cooling applications when the fan is operated within its specified electrical and environmental limits.
Axial Airflow for Electronics Cooling
The 3110GL series uses axial airflow to move air through compatible equipment enclosures and cooling paths. Published standard B50 and B60 versions deliver 38.8 CFM and 40.2 CFM respectively, but the B54 airflow rating must be independently confirmed before system-level cooling calculations.
Two-Wire Replacement Configurations
Commercially listed 3110GL-B4W-B54 fans commonly use two electrical leads for 12 VDC power. Specific connector styles and cable lengths may differ, so the installed fan wiring and any additional assembly suffix should be checked before replacement.
Industrial and Electronic Equipment Cooling
The 80 × 80 × 25 mm format can be used in compatible power supplies, control electronics, computer enclosures and other ventilated equipment. Electrical current, installation clearances, airflow direction and mounting details must match the original cooling design.
Applications
- Industrial control cabinet electronics ventilation
- 12VDC power supply cooling systems
- Industrial computer and server enclosure cooling
- Electronic switching equipment ventilation
- Control boards and power electronics cooling
- Industrial test instruments and embedded equipment ventilation
- Maintenance of compatible machinery cooling assemblies
- Replacement of matching 80 × 80 × 25 mm DC axial fans
Purchase Information
We support online purchase of the NMB-MAT 3110GL-B4W-B54 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is NMB-MAT 3110GL-B4W-B54?
NMB-MAT 3110GL-B4W-B54 is a 12 VDC axial cooling fan from the NMB Technologies 3110GL family. Commercial product listings identify an 80 × 80 × 25 mm frame and a 0.30 A current marking. The exact airflow and speed specifications for the B54 variant are not established by the available standard-series datasheet.
What is the rated voltage of 3110GL-B4W-B54?
The rated voltage is 12 VDC according to multiple listings for the exact B54 designation. Minebea's part numbering system also identifies B4W series fans as 12 VDC models. Check the fan label before installation.
What are the dimensions of 3110GL-B4W-B54?
The fan measures 80 mm wide, 80 mm high and 25 mm deep. It belongs to the commonly used 8025 axial cooling fan size class. Mounting hole positions and connector clearance should also be compared with the existing fan assembly.
What is the current rating of 3110GL-B4W-B54?
Commercial listings for the B54 model commonly specify 0.30 A at 12 VDC. The publicly available Minebea standard-series table does not separately identify the B54 configuration, so the actual manufacturer's label should be used to confirm the electrical rating.
What is the power consumption of 3110GL-B4W-B54?
Multiplying the commercially listed 12 VDC by 0.30 A gives a nominal electrical estimate of 3.6 W. This calculation is not a substitute for a manufacturer-measured operating power specification, which can depend on fan speed and actual current draw.
What is the fan speed of 3110GL-B4W-B54?
The published manufacturer table lists 3250 RPM for standard 3110GL-B4W-B50-P00 and 3400 RPM for 3110GL-B4W-B60-P00. Sellers report different speed figures for B54 assemblies. A B54-specific datasheet or actual fan label is needed to confirm its rated speed.
What is the airflow of 3110GL-B4W-B54?
The manufacturer publishes 38.8 CFM for the standard B50 version and 40.2 CFM for the B60 version. These are useful series references but should not be presented as verified airflow values for the B54 configuration. Confirm B54 performance before selecting it for a critical cooling application.
What bearing type does 3110GL-B4W-B54 use?
The 3110GL series manufacturer documentation specifies ball bearings. Commercial B54 listings also describe ball bearing construction. The full fan configuration should be inspected where bearing type is a replacement requirement.
Does 3110GL-B4W-B54 have two wires?
Common commercially available B54 configurations use two leads, usually red for positive DC and black for negative DC. Connector style and cable length can vary between assemblies. Verify wiring against the actual fan rather than assuming that every suffix has the same termination.
What is the difference between 3110GL-B4W-B54 and 3110GL-B4W-B50?
Both belong to the 12 VDC 3110GL family and share the 80 × 80 × 25 mm frame format. The standard B50-P00 datasheet lists 0.23 A, 3250 RPM and 38.8 CFM, while commercial B54 listings identify a 0.30 A current marking. Exact speed, airflow and wiring equivalence cannot be established from the shortened B54 model alone.
Can 3110GL-B4W-B54 be used to replace another 80 mm cooling fan?
It may be suitable when the equipment uses a compatible 80 × 80 × 25 mm 12 VDC axial fan. Before substitution, compare the current draw, expected airflow and pressure, connector or wire termination, mounting arrangement, fan direction and equipment thermal requirements. Matching physical size alone does not establish compatibility.
What should be checked before ordering 3110GL-B4W-B54?
Verify the full catalog number 3110GL-B4W-B54 and any additional suffix such as -P31, 12 VDC supply, 0.30 A label marking, 80 × 80 × 25 mm dimensions, mounting hole spacing, bearing type, actual wire or connector arrangement, lead length, polarity, airflow direction and equipment compatibility. For applications requiring a precise RPM, airflow or static pressure rating, obtain documentation for the exact B54 assembly rather than substituting standard B50 or B60 series values.
