Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 2406KL-05W-B59 |
| Product Category | DC Axial Fan |
| Manufacturer | NMB Technologies Corporation / MinebeaMitsumi |
| Product Series | 2406KL |
| Fan Type | Brushless DC Axial Cooling Fan |
| Frame Dimensions (W × H × D) | 60 × 60 × 15 mm |
| Frame Width | 60 mm |
| Frame Height | 60 mm |
| Frame Thickness | 15 mm |
| Nominal Voltage | 24 VDC |
| Operating Voltage Range | 10-27.6 VDC for Manufacturer-Documented -L00 and -L50 Variants |
| Rated Current | 0.10 A for Manufacturer-Documented Variants |
| Rated Input Power | 2.4 W |
| Nominal Fan Speed | 4600 RPM |
| Maximum Airflow | 18.3 CFM |
| Maximum Airflow in Metric Units | 0.52 m³/min |
| Maximum Static Pressure | 51.2 Pa |
| Maximum Static Pressure in Inches of Water | 0.20 in H₂O |
| Noise Level | 34 dB |
| Bearing Type | Ball Bearing |
| Motor Design | Brushless DC Motor |
| Expected Bearing Life | 70,000 Hours L10 at 25°C for Documented Variants |
| Electrical Connection | Three-Wire Leads on Documented -L00 and -L50 Versions |
| Monitoring Output | Dependent on Complete Model Suffix |
| Locked-Rotor Output Variant | 2406KL-05W-B59-L00 |
| Tachometer Output Variant | 2406KL-05W-B59-L50 |
| Mounting Configuration | Rib-Type Frame for Documented -L00 and -L50 Variants |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Cooling Principle | Forced-Air Axial Ventilation |
| Approximate Weight | 45 g |
| Operating Temperature | -10°C to +60°C for Documented Versions |
| Application Voltage Class | 24 VDC Industrial Electronics Cooling |
| Manufacturer Country of Origin Listing | China for Documented Variants |
| Manufacturer Replacement for -L00 | 06015KA-24N-AL-00 |
| Manufacturer Replacement for -L50 | 06015KA-24N-AT-00 |
| Replacement Selection Requirement | Verify Monitoring Signal, Wiring, Fan Performance and Mechanical Compatibility |

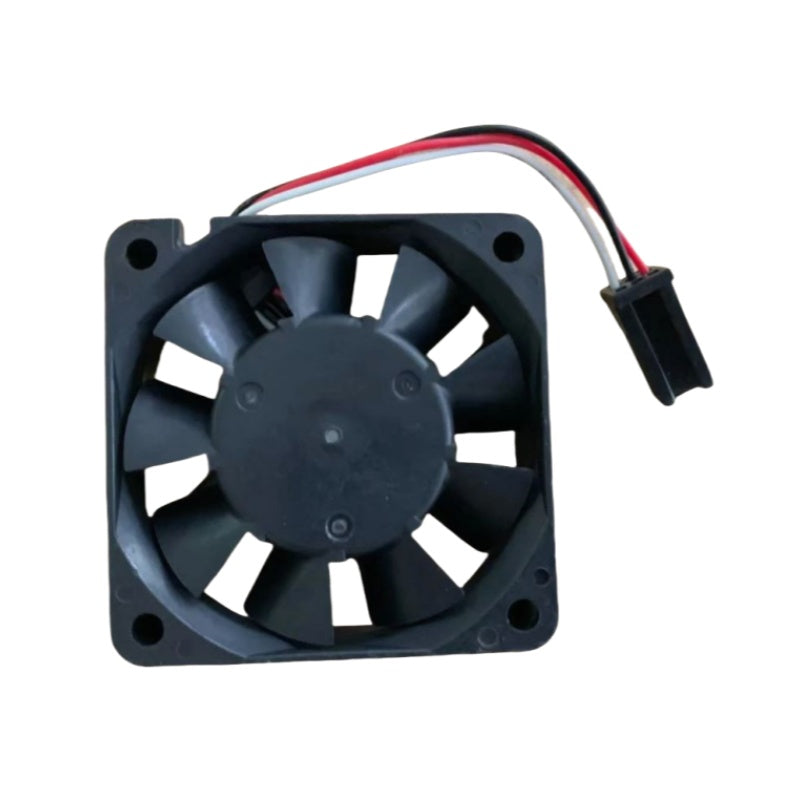

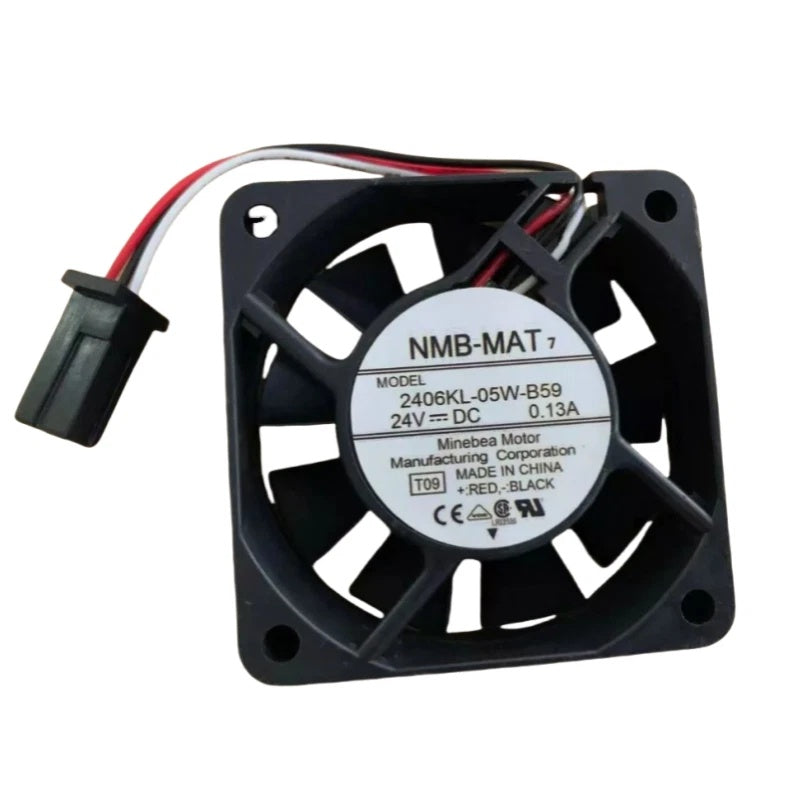

The NMB-MAT 2406KL-05W-B59 belongs to the 2406KL series of compact DC axial fans. Its 60 mm square frame and slim 15 mm profile are suitable for compatible industrial electronic equipment requiring forced-air ventilation within limited installation space.
The manufacturer-documented -L00 and -L50 versions use a nominal 24 VDC supply, with an operating voltage range of 10-27.6 VDC. Their rated current is 0.10 A and rated input power is 2.4 W, supporting compatible low-voltage equipment cooling systems.
NMB specifies a nominal speed of 4600 RPM, maximum airflow of 18.3 CFM and maximum static pressure of 51.2 Pa. These characteristics support airflow through appropriately designed ventilation openings and industrial electronics cooling paths.
The documented 2406KL B59 variants use ball bearings with an L10 life expectancy of 70,000 hours at 25°C. This is a statistical bearing-life specification measured under defined conditions, and actual service life depends on the equipment operating environment.
Different complete model suffixes provide different monitoring functions. The 2406KL-05W-B59-L00 features locked-rotor detection, while the 2406KL-05W-B59-L50 provides a tachometer output. The required monitoring signal must match the connected equipment.

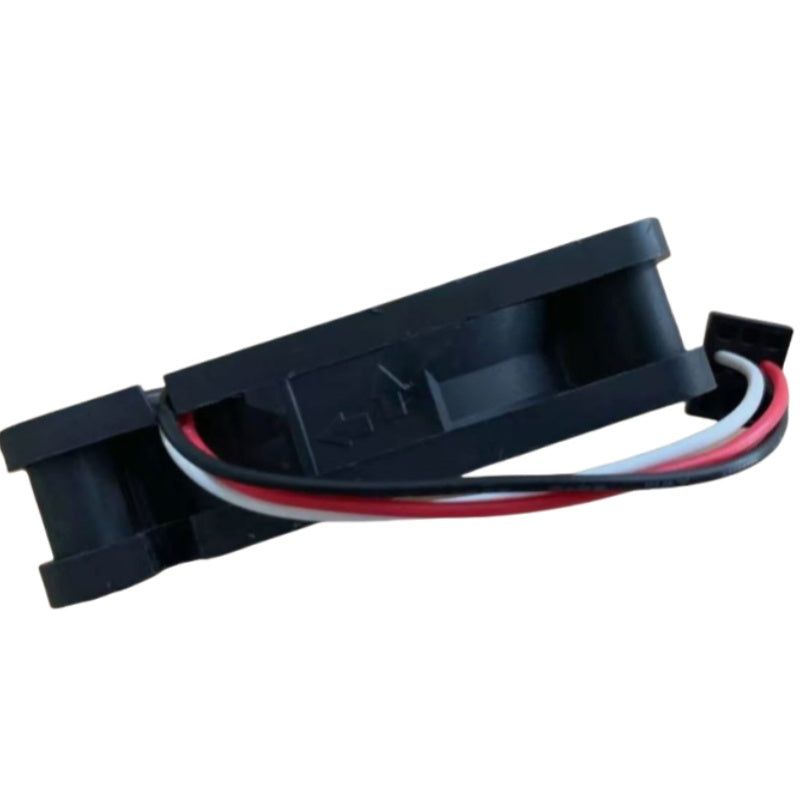

The documented -L00 and -L50 versions use a rib-type frame and three-wire leads. Their compact construction supports maintenance of compatible equipment, provided that the existing fan dimensions, connector configuration, mounting points and signal function are matched.
We support online purchase of the NMB-MAT 2406KL-05W-B59 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is NMB-MAT 2406KL-05W-B59?
NMB-MAT 2406KL-05W-B59 is a 24 VDC brushless axial cooling fan from the NMB Technologies 2406KL series. Manufacturer-documented full-suffix versions include 2406KL-05W-B59-L00 and 2406KL-05W-B59-L50, both featuring a 60 × 60 × 15 mm frame, 4600 RPM nominal speed and 18.3 CFM maximum airflow.
What is the rated voltage of 2406KL-05W-B59?
The nominal rated voltage is 24 VDC. NMB specifies an operating voltage range of 10-27.6 VDC for the documented -L00 and -L50 variants. Verify that the equipment power supply and wiring meet the applicable electrical requirements before installation.
What are the dimensions of 2406KL-05W-B59?
The fan measures 60 mm wide, 60 mm high and 15 mm deep. It belongs to the 6015 axial cooling fan size class. Mounting hole positions, frame construction and wire clearance should also be checked before selecting a replacement.
What is the rated current of 2406KL-05W-B59?
The manufacturer specifies a rated current of 0.10 A for the documented -L00 and -L50 versions. Both have a published rated input power of 2.4 W. Other special assemblies using the abbreviated model designation should be checked against their complete part number and fan label.
What are the fan speed and maximum airflow specifications?
NMB specifies 4600 RPM nominal speed and 18.3 CFM maximum airflow, equivalent to approximately 0.52 m³/min. Actual airflow after installation depends on equipment ventilation resistance and operating conditions.
What is the maximum static pressure of 2406KL-05W-B59?
The manufacturer specifies a maximum static pressure of 51.2 Pa, equivalent to approximately 0.20 inches of water. This is a fan performance limit and does not indicate the airflow available at every operating pressure.
What bearing type does 2406KL-05W-B59 use?
The manufacturer-documented B59 variants use ball bearings. NMB lists an L10 life expectancy of 70,000 hours at 25°C. This represents a statistical bearing-life rating and does not guarantee an individual fan will operate for that duration.
Does 2406KL-05W-B59 have three wires?
The documented -L00 and -L50 configurations have three-wire leads. Two wires provide DC power, while the additional wire supports the variant-specific monitoring output. Connector style, wire identification and signal behavior must be verified using the complete fan designation.
What is the difference between 2406KL-05W-B59-L00 and 2406KL-05W-B59-L50?
Both documented versions share nominal 24 VDC operation, 0.10 A current, 4600 RPM speed, 18.3 CFM airflow and 60 × 60 × 15 mm dimensions. The -L00 version provides a locked-rotor output, while the -L50 version provides a tachometer signal. They should not be treated as electrically interchangeable when fan monitoring is required.
What is the difference between 2406KL-05W-B59 and 2410ML-05W-B59?
The 2406KL series uses a 60 × 60 × 15 mm frame, while the 2410ML series uses a 60 × 60 × 25 mm frame. The two series have different mechanical thicknesses and model-specific cooling characteristics. A matching 24 VDC voltage does not establish interchangeability.
Is NMB-MAT 2406KL-05W-B59 discontinued?
NMB marks the documented 2406KL-05W-B59-L00 and -L50 versions as not recommended for new designs and identifies a part-number change. Distributors list the legacy versions as discontinued. NMB provides 06015KA-24N-AL-00 as the replacement for -L00 and 06015KA-24N-AT-00 for -L50. These references must be matched to the required monitoring function.
What should be checked before ordering 2406KL-05W-B59?
Verify the complete model number 2406KL-05W-B59 and any additional -L00 or -L50 suffix, nominal 24 VDC voltage, 0.10 A rated current, 2.4 W power rating, 60 × 60 × 15 mm dimensions, 4600 RPM speed, 18.3 CFM maximum airflow, 51.2 Pa maximum static pressure, ball bearing construction, rib-type mounting, three-wire connection, connector details and locked-rotor or tachometer monitoring requirements. For legacy equipment, compare the full specifications of any replacement rather than selecting a fan based on frame size alone.
