Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 2006ML-05W-B50 |
| Product Category | DC Axial Fan |
| Manufacturer | NMB Technologies Corporation / MinebeaMitsumi |
| Product Series | 2006ML |
| Fan Type | Brushless DC Axial Cooling Fan |
| Frame Dimensions (W × H × D) | 50 × 50 × 15 mm |
| Frame Width | 50 mm |
| Frame Height | 50 mm |
| Frame Thickness | 15 mm |
| Nominal Voltage | 24 VDC |
| Rated Current | 0.12 A, Consistent with Commercial Listings and Fan Label References |
| Nominal Electrical Power | 2.88 W, Calculated from 24 VDC × 0.12 A |
| Operating Voltage Range | 14.0-27.6 VDC Reported for the -L01 Variant; Exact Base-Model Range Not Independently Confirmed |
| Fan Speed | 5300 RPM Reported for -L01; 4700 RPM Reported for -B22; Confirm Exact Assembly |
| Maximum Airflow | 14.1 CFM Reported for -L01; 17 CFM Reported for -B22; Values Are Supplier-Specific and Not Independently Manufacturer-Verified |
| Maximum Static Pressure | 47.1 Pa (0.19 in H₂O) Reported for -L01; Confirm Exact Variant |
| Noise Level | 36 dB(A) Reported for -L01; 31 dB(A) Reported for -B22 |
| Bearing Type | Ball Bearing, Reported for Documented Commercial Variants |
| Motor Design | Brushless DC Motor |
| Cooling Principle | Forced-Air Axial Ventilation |
| Two-Wire Assembly Reference | 2006ML-05W-B50-B22 |
| Three-Wire Assembly Reference | 2006ML-05W-B50-L01 |
| Monitoring Output | Locked-Rotor Signal Reported for -L01; No Separate Monitoring Wire on Two-Wire -B22 Assembly |
| Wire Polarity for Documented -B22 Assembly | Red: Positive; Black: Negative |
| Fan Frame Material | Plastic |
| Impeller Material | Plastic |
| Mounting Arrangement | Square Frame with Corner Mounting Holes; Confirm Hardware Dimensions |
| Approximate Weight | 25 g Reported for -L01; Exact Base-Model Weight Not Confirmed |
| Operating Temperature Reference | -10°C to +70°C Reported for -L01; Verify for Exact Supplied Fan |
| Application Voltage Class | 24 VDC Industrial Electronics Cooling |

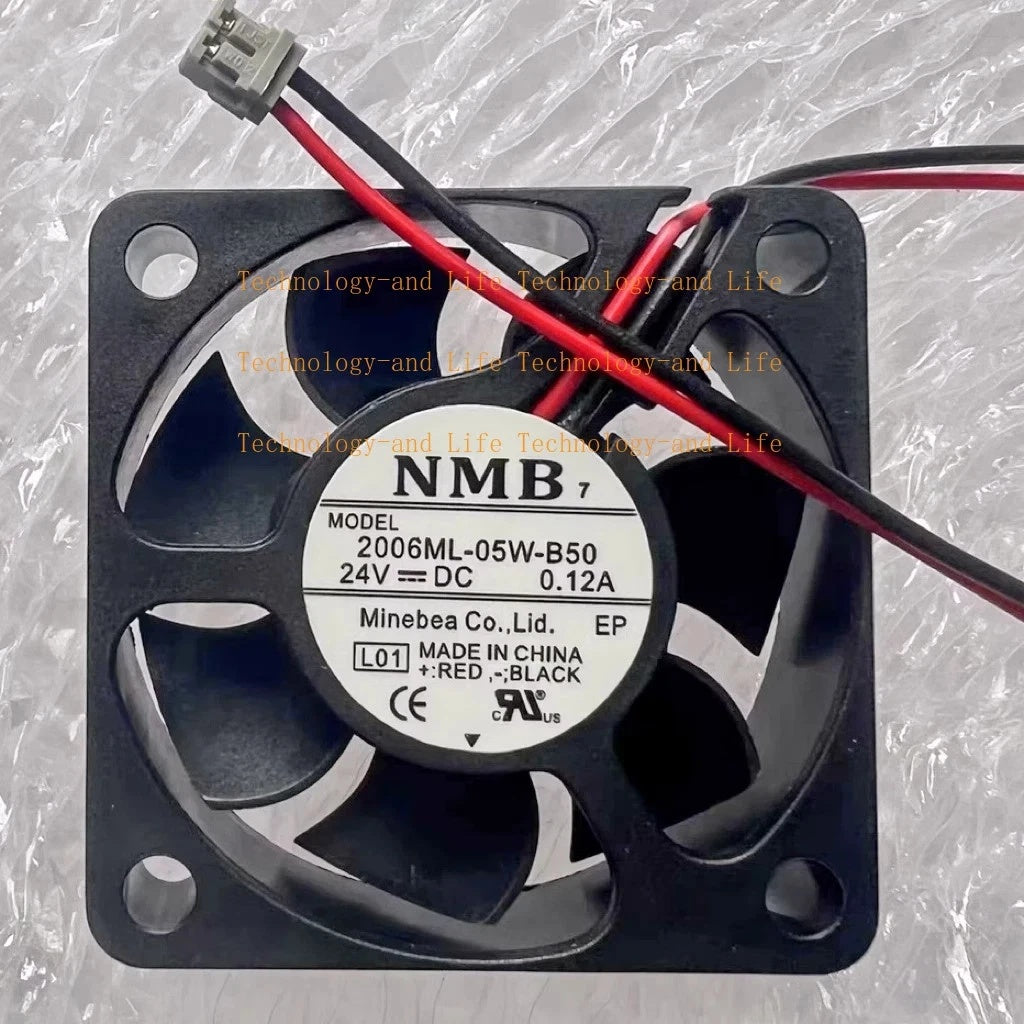

The NMB-MAT 2006ML-05W-B50 is a compact axial cooling fan with a 50 mm square frame and 15 mm thickness. Its low-profile construction supports ventilation in compatible industrial electronics and electrical equipment with restricted installation space.
The fan is identified by commercial product references and fan-label documentation as a 24 VDC brushless model rated at 0.12 A. The calculated nominal input power is approximately 2.88 W, making the model suitable for evaluation in compatible low-voltage cooling circuits.
The 2006ML series uses an axial impeller to move cooling air through equipment ventilation paths. Published supplier specifications for different B50 assemblies report different speed and airflow figures, so the complete suffix should be checked before performing thermal design calculations.
Commercially documented B50 assemblies use ball bearings to support the rotating fan motor. Operating life depends on bearing configuration, enclosure temperature, installation orientation and actual service conditions.
Supplier references identify two-wire and three-wire versions within the 2006ML-05W-B50 family. A two-wire assembly provides basic DC supply connections, while the documented -L01 assembly includes an additional locked-rotor monitoring function. Their electrical interfaces should not be assumed interchangeable.
The fan can be evaluated for cooling maintenance in compatible industrial inverters, power supplies and control electronics. Replacement selection requires checking the full fan identification, cable termination, cooling performance and mechanical dimensions rather than relying on the abbreviated model alone.
We support online purchase of the NMB-MAT 2006ML-05W-B50 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is NMB-MAT 2006ML-05W-B50?
NMB-MAT 2006ML-05W-B50 is a compact brushless DC axial cooling fan associated with the NMB Technologies 2006ML series. Published commercial references consistently identify a 24 VDC rating, 0.12 A current and 50 × 50 × 15 mm dimensions.
What is the rated voltage of 2006ML-05W-B50?
The nominal rated voltage is 24 VDC. A supplier listing for the -L01 assembly specifies an operating range of 14.0-27.6 VDC, but that range should be verified against the complete model suffix before applying it to another assembly.
What are the dimensions of 2006ML-05W-B50?
The fan measures 50 mm wide, 50 mm high and 15 mm deep. This configuration is commonly called a 5015 axial cooling fan. Matching dimensions alone does not confirm mounting or electrical compatibility.
What is the rated current of 2006ML-05W-B50?
The rated current is consistently listed as 0.12 A for commercially documented B50 configurations. Product-label references also show 24 VDC and 0.12 A. The complete fan label should be checked before installation.
What is the power consumption of 2006ML-05W-B50?
Using the published nominal 24 VDC and 0.12 A ratings gives a calculated power of 2.88 W. Actual operating power depends on the fan's electrical characteristics and supply conditions.
What is the rated fan speed?
Published supplier specifications are not consistent across different B50 assemblies. One reference reports 5300 RPM for 2006ML-05W-B50-L01, while another reports 4700 RPM for 2006ML-05W-B50-B22. A manufacturer specification for the exact assembly is required to establish the applicable rated speed.
What is the maximum airflow?
A supplier lists 14.1 CFM for the -L01 assembly, while another lists approximately 17 CFM for the -B22 assembly. These figures have not been independently verified against a manufacturer-specific B50 datasheet and should not be treated as interchangeable design ratings.
What bearing type does 2006ML-05W-B50 use?
Commercially documented variants are described as ball bearing fans. The exact bearing configuration and rated service life should be verified using the complete supplied part number and technical documentation.
Does 2006ML-05W-B50 have two wires or three wires?
Both connection arrangements appear in commercial references. The -B22 assembly is documented as a two-wire fan, while the -L01 assembly is listed with three wires and a locked-rotor monitoring function. Confirm the installed fan's connection before selecting a replacement.
What is the difference between 2006ML-05W-B50-B22 and 2006ML-05W-B50-L01?
Both are identified as 24 VDC, 0.12 A cooling fans with 50 × 50 × 15 mm dimensions. The published -B22 reference describes a two-wire connection, whereas the -L01 reference describes three wires and locked-rotor monitoring. Supplier-published speed and airflow figures also differ. Full electrical and mechanical compatibility must be verified.
Can 2006ML-05W-B50 be used in an industrial inverter?
The model is commercially described for inverter and electronic equipment cooling applications. Before installation, verify the equipment's supply voltage, allowable current, mounting arrangement, airflow direction, connector wiring and required cooling performance.
What should be checked before ordering 2006ML-05W-B50?
Verify the exact model number 2006ML-05W-B50, any additional suffix such as -B22 or -L01, nominal 24 VDC voltage, 0.12 A rated current, 50 × 50 × 15 mm dimensions, wire count, connector or lead termination, polarity, bearing construction, fan monitoring requirements, mounting holes, airflow direction and equipment compatibility. When a precise speed, airflow, noise rating or service-life requirement is important, obtain the specification for the complete assembly before selecting a replacement.
