Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 06025VA-12N-CL |
| Product Category | DC Axial Fan |
| Manufacturer | NMB Technologies Corporation / MinebeaMitsumi |
| Product Series | 06025VA |
| Related Legacy Series | 2410VL, According to NMB 06025VA Series Documentation |
| Fan Type | Brushless DC Axial Cooling Fan |
| Frame Dimensions (W × H × D) | 60 × 60 × 25 mm |
| Frame Width | 60 mm |
| Frame Height | 60 mm |
| Frame Depth | 25 mm |
| Cooling Fan Size Class | 6025 |

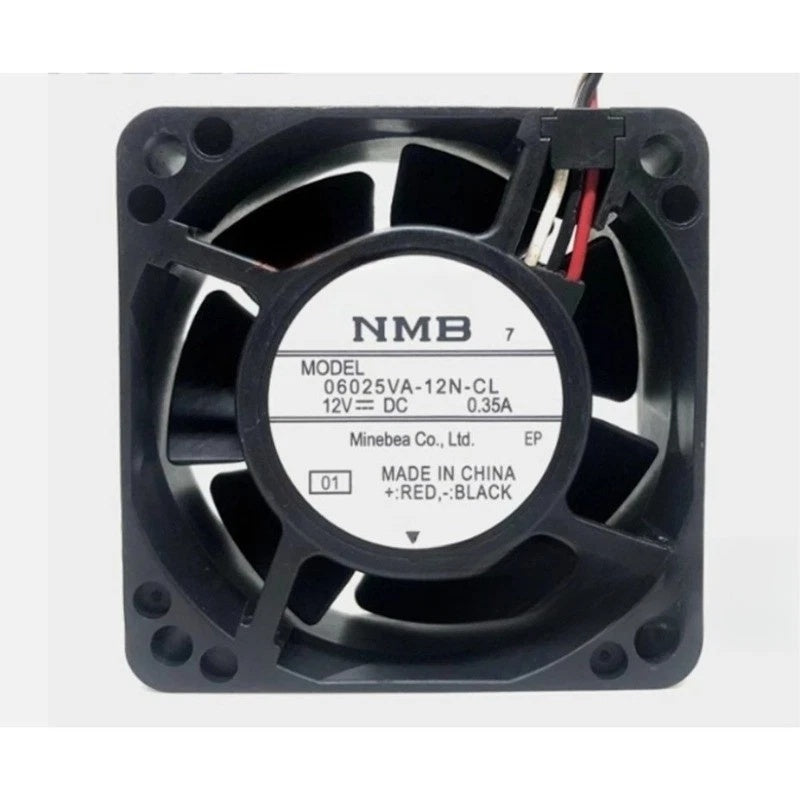

The NMB-MAT 06025VA-12N-CL is a DC axial cooling fan with a 60 mm square frame and 25 mm depth. Multiple independent product references confirm its 6025-size construction. This compact form factor supports forced-air ventilation in compatible industrial automation equipment, power electronics and control enclosures.
Several commercially documented 06025VA-12N-CL assemblies specify a nominal 12 VDC supply and 0.35 A current rating. These values correspond to approximately 4.2 W electrical input. This is distinct from the standard 06025VA-12N-AA version, which is listed in the manufacturer's catalog at 0.26 A. Equipment power requirements should be checked against the exact fan marking.
The documented -CL assemblies use three electrical leads, with some versions supplied with a three-pin connector. Suppliers variously describe the additional conductor as an alarm or tachometer connection. Because a manufacturer pinout for the complete -CL model has not been verified, the third-wire signal function and connection polarity must be confirmed before installation.
An independent supplier reports 6300 RPM nominal speed, 33.5 CFM airflow and approximately 97 Pa static pressure for 06025VA-12N-CL. These figures are useful as preliminary supplier references, but they are not established by the publicly available NMB standard-series datasheet. The exact fan performance should be independently verified when airflow or pressure is critical to equipment operation.
The manufacturer's 06025VA series technical documentation specifies ball bearings, brushless DC operation and plastic frame and impeller construction. Commercial -CL product descriptions also identify ball bearings. The standard series has an L10 life reference of 40,000 hours at 60°C, but the exact lifetime and environmental specifications of the -CL assembly require separate confirmation.
The 06025VA-12N-CL is sold for industrial equipment cooling, including applications requiring compact airflow and additional wiring. Some commercial sellers describe the assembly as water-resistant or waterproof. NMB confirms that environmental protection options are available within the broader 06025VA family, but no exact IP rating has been independently verified for this specific -CL model.
We support online purchase inquiries for the NMB-MAT 06025VA-12N-CL DC Axial Fan. If you need to make bulk purchases or inquire about other industrial cooling products, please contact our team with the required quantity, exact model number and equipment specifications. Please provide the existing fan label and connector details whenever available. We can provide quotation information and discuss applicable delivery and transportation arrangements after reviewing your request. For replacement applications, confirm the 12 VDC supply, 0.35 A current, 60 × 60 × 25 mm dimensions, three-wire connection and third-wire electrical function. If your installation requires a defined environmental protection rating or cooling performance, request exact-model documentation before ordering.
What is NMB-MAT 06025VA-12N-CL?
NMB-MAT 06025VA-12N-CL is a 12 VDC axial cooling fan from the NMB 06025VA family. Multiple product listings identify a 60 × 60 × 25 mm frame, 0.35 A current rating and three-wire connection. It is suitable for evaluation in compatible electronic and industrial ventilation systems.
What is the rated voltage of 06025VA-12N-CL?
Commercial references consistently specify a nominal 12 VDC supply. The publicly available NMB 06025VA series datasheet describes operating voltage ranges for standard -AA configurations, but does not establish a separate range for the -CL model. Confirm the actual fan's permitted supply range before operation.
What are the dimensions of 06025VA-12N-CL?
The fan measures 60 mm wide, 60 mm high and 25 mm deep according to multiple model-specific suppliers. The standard 06025VA manufacturer drawing shows approximately 50 mm mounting hole center spacing, but the supplied -CL assembly and any customized housing should be checked for the exact mounting arrangement.
What is the current rating and electrical power?
Multiple suppliers specify 0.35 A at 12 VDC for 06025VA-12N-CL. Multiplying these values produces 4.2 W of nominal electrical input. This figure is consistent across the reviewed commercial listings. Actual electrical consumption should be checked if the equipment has strict power limits.
What is the fan speed of 06025VA-12N-CL?
One independent supplier lists 6300 RPM. However, an exact-model NMB datasheet confirming that speed has not been located. The manufacturer's 06025VA-12N-AA standard version is rated at 7000 RPM, but that value should not be assigned to the -CL model because the two configurations have different reported current ratings.
What are the airflow and maximum static pressure ratings?
An independent supplier reports 33.5 CFM maximum airflow and 0.39 inches of water static pressure, approximately 97 Pa, for the -CL model. These values have not been confirmed against an NMB -CL performance curve. The standard -AA model has separate published figures and should not be used as a substitute for exact -CL specifications.
What is the noise level of 06025VA-12N-CL?
A commercial supplier reports a noise level of 44 dB(A) for the -CL fan. An independent manufacturer measurement for this exact assembly was not located. Actual equipment noise also depends on the enclosure, fan mounting and airflow resistance.
Does 06025VA-12N-CL have three wires?
Yes. Multiple suppliers identify the -CL as a three-wire cooling fan, and some list a three-pin connector. The third conductor may be associated with an alarm or speed-monitoring function, but the exact electrical behavior requires verification against the fan's actual wiring specification.
Does 06025VA-12N-CL have a tachometer or locked-rotor alarm output?
Suppliers provide differing descriptions of the additional wire, including tachometer and alarm functionality. A manufacturer-approved pinout for the complete -CL configuration has not been independently confirmed. Do not connect the third conductor to a control circuit based only on the wire count or supplier description.
Is 06025VA-12N-CL waterproof?
Several suppliers market this model as a waterproof or sealed cooling fan. However, an exact IP protection rating for the -CL assembly was not independently verified. The manufacturer states that environmentally protected and oil-resistant versions can be customized within the broader 06025VA series. Applications requiring a particular IP rating should use documentation for the exact supplied fan.
What is the difference between 06025VA-12N-CL and 06025VA-12N-AA?
Both are associated with NMB's 06025VA family and nominal 12 VDC, 60 × 60 × 25 mm fan format. Commercial listings consistently give 0.35 A for the -CL, while the manufacturer specifies 0.26 A, 7000 RPM, 27.9 CFM and 144.9 Pa for the standard -AA model. The -CL also appears in three-wire configurations. The electrical and performance differences mean the two suffixes should not be assumed interchangeable.
What should be checked before ordering 06025VA-12N-CL?
Verify the complete model 06025VA-12N-CL and any assembly marking, nominal 12 VDC voltage, 0.35 A current rating, 60 × 60 × 25 mm frame dimensions, mounting hole positions, three-wire arrangement, connector shape and pinout, third-wire monitoring function, airflow direction and existing equipment compatibility. For applications requiring specific RPM, airflow, static pressure, noise level, bearing-life rating or environmental protection, obtain exact-model specifications rather than applying the standard 06025VA-12N-AA catalog values.
