200-220 VAC Operation
Designed for a 200-220 VAC power supply in CNC spindle motor cooling applications.
NMB
NMB A90L-0001-0516/R Spindle Motor Cooling Fan 200-220VAC 3-Phase 50/60Hz
$92.68
Available
PRODUCT GALLERY
01 / 7

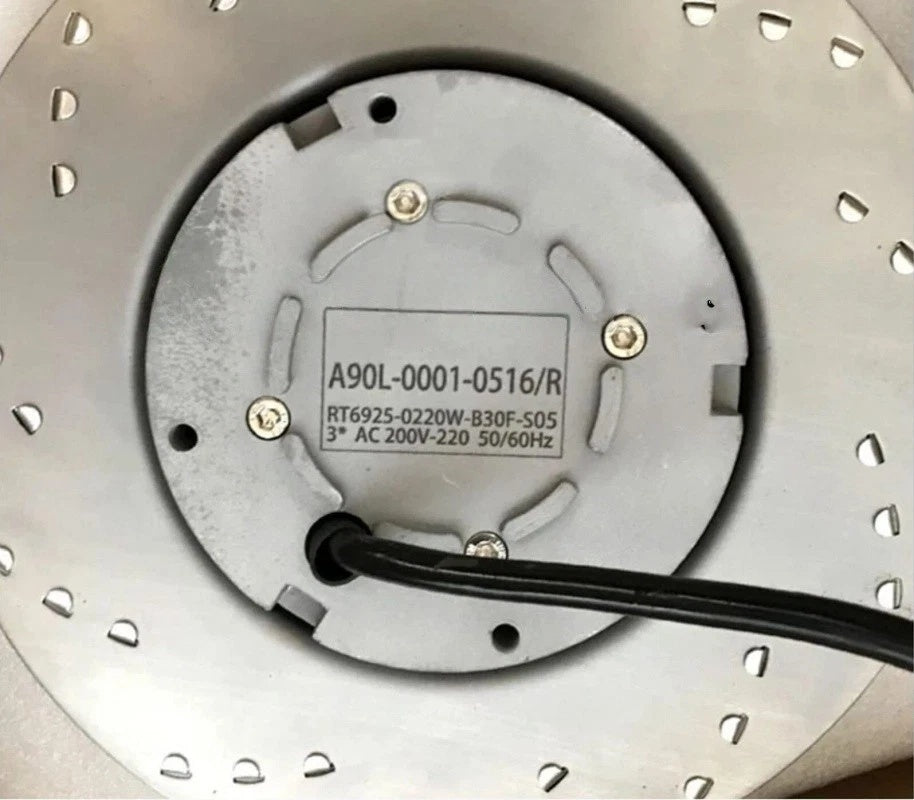

Product images for part identification
NMB
NMB A90L-0001-0516/R Spindle Motor Cooling Fan 200-220VAC 3-Phase 50/60Hz
PRODUCT PRICE
USD
$92.68
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | NMB |
| Model Number | A90L-0001-0516/R |
| Product Category | Spindle Motor Cooling Fan |
| Fan Family | RT6925 |
| Fan Type | AC Spindle Motor Cooling Fan |
| Supply Voltage | 200-220 VAC |
| Electrical Phase | 3-Phase AC |
| Rated Frequency | 50/60 Hz |
| Exhaust Configuration | Rear Exhaust |
| Electrical Connection | 4-Wire Lead Connection |
| Application | CNC Spindle Motor Cooling |
Key Features
Three-Phase AC Design
Uses a three-phase AC electrical configuration for spindle motor ventilation equipment.
50/60 Hz Frequency
Supports 50 Hz and 60 Hz electrical supply frequencies for the documented fan configuration.
Rear Exhaust Configuration
The /R model is identified as a rear-exhaust fan for applicable spindle motor cooling installations.
RT6925 Fan Family
Associated with the RT6925 spindle cooling fan family. The complete model identification should be checked when selecting the fan.
Four-Wire Connection
Documented with a four-wire electrical connection arrangement. Lead identification and termination should be checked before installation.
Applications
- FANUC CNC spindle motor cooling
- CNC machine tool spindle ventilation
- Industrial spindle motor heat removal
- Machine tool motor cooling assemblies
- Three-phase AC spindle fan systems
- CNC spindle motor maintenance
- Industrial machining equipment ventilation
- Spindle motor cooling system servicing
Purchase Information
We support online purchase of the FANUC A90L-0001-0516/R Spindle Motor Cooling Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FANUC A90L-0001-0516/R?
FANUC A90L-0001-0516/R is a spindle motor cooling fan used for forced-air ventilation in applicable CNC spindle motor systems.
What voltage does A90L-0001-0516/R require?
Product specifications identify a 200-220 VAC electrical supply for this spindle cooling fan.
Is A90L-0001-0516/R a single-phase or three-phase fan?
The documented electrical configuration is three-phase AC.
What frequency does A90L-0001-0516/R support?
The documented operating frequencies are 50 Hz and 60 Hz.
What is the primary function of this cooling fan?
The fan provides forced-air circulation to remove heat from spindle motor cooling assemblies during CNC machine operation.
What does the rear-exhaust configuration mean?
The /R model is identified with a rear-exhaust arrangement. Airflow direction and installation orientation should be checked against the existing spindle motor assembly.
Which fan family is associated with A90L-0001-0516/R?
The model is associated with the RT6925 fan family. The complete fan identification and configuration should be verified before selection.
What electrical connection does the fan use?
Product information identifies a four-wire lead connection. The wiring arrangement and protective earth connection should be checked against the applicable technical documentation.
Can this fan be considered for FANUC spindle motor maintenance?
It can be considered when the complete fan part number, electrical ratings, exhaust orientation, dimensions and mounting requirements have been verified against the installed spindle motor.
Are A90L-0001-0516/R and A90L-0001-0516/F identical?
They have different suffix designations. Airflow orientation, mounting and electrical configuration should be checked separately before selecting either version.
Can another RT6925 fan be used in place of A90L-0001-0516/R?
Other RT6925 configurations should be evaluated only after verifying the complete part number, electrical requirements, airflow direction, mounting arrangement and wiring against the existing system.
What should be verified before ordering FANUC A90L-0001-0516/R?
Confirm the complete model number including the /R suffix, 200-220 VAC supply, three-phase operation, 50/60 Hz frequency, fan dimensions, rear-exhaust arrangement, mounting details and wiring requirements.
Need help confirming a model?
Send us your part number and technical requirements.
