Technical specifications, features, applications and purchasing information.
| Brand | NMB-MAT |
| Model Number | 12038VA-24Q-FA |
| Product Category | DC Axial Fan |
| Manufacturer Identification | NMB Technologies Corporation / MinebeaMitsumi |
| Product Series | 12038VA |
| Fan Type | Brushless DC Axial Cooling Fan |
| Commercial Assembly Reference | 12038VA-24Q-FA, 01 |
| Frame Dimensions (W × H × D) | 120 × 120 × 38 mm |
| Frame Width | 120 mm |
| Frame Height | 120 mm |
| Frame Depth | 38 mm |
| Common Fan Size Class | 12038 |
| Nominal Voltage | 24 VDC |
| Standard Series Mounting Hole Center Spacing | 105.0 ±0.5 mm |
| Standard Series Mounting Hole Diameter | 4.3 ±0.3 mm |
| Standard Series Frame Tolerance | 120.0 ±0.5 mm |
| Standard Series Depth Tolerance | 38.0 ±0.5 mm |
| Standard Series Lead Wire Reference | UL10368 AWG24 or UL3443 AWG24, Depending on Series Configuration |
| Standard Series Minimum Lead Length | 300 mm in the Manufacturer Mechanical Drawing; Not Verified for the -FA Connector Assembly |
| Standard Series Rotation | Clockwise as Viewed from the Label Side |
| Standard Series Airflow Direction | Toward the Label Side |
| Standard Series Motor Protection | Automatic Restart and Reverse-Polarity Protection |
| Standard Q-Class Operating Temperature | -10°C to +70°C in Manufacturer Series Documentation; Exact -FA Limit Requires Confirmation |
| Standard Series Storage Temperature | -40°C to +70°C in Non-Condensing Conditions |
| Standard Series Life Reference | 40,000 Hours L10 at 60°C; Not Independently Verified for the Exact -FA Assembly |
| Standard Series Insulation Resistance | 10 MΩ Minimum at 500 VDC |
| Standard Series Dielectric Withstand | 700 VAC for 1 Second |

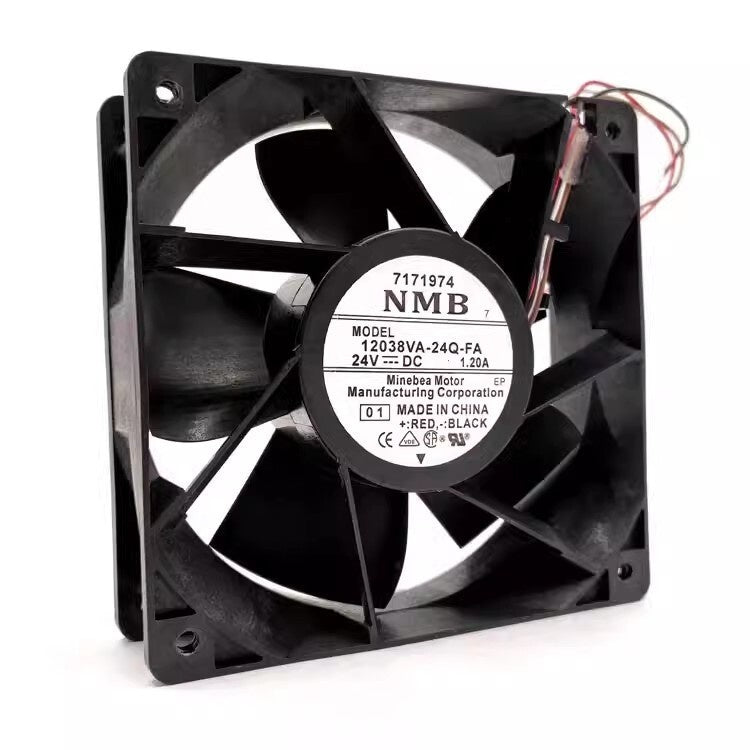

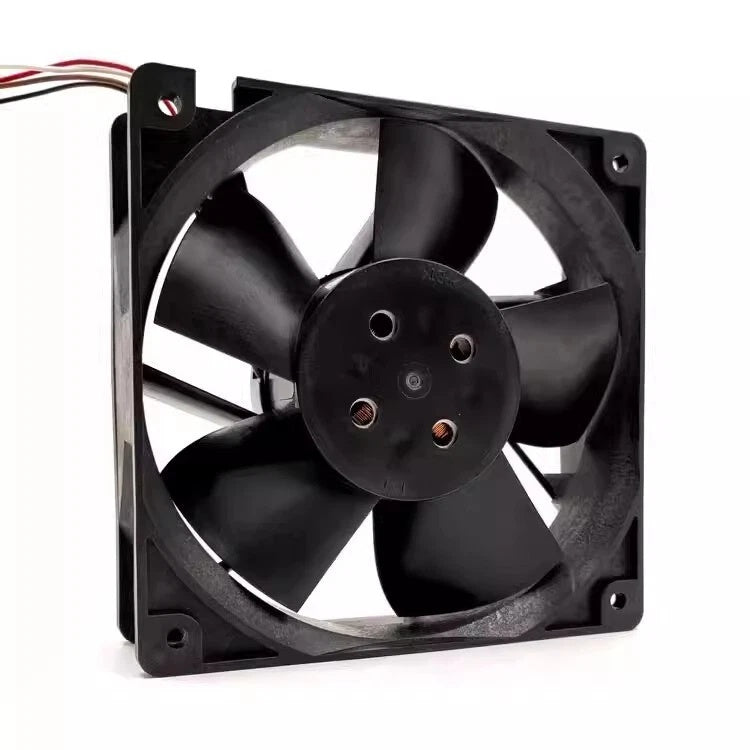

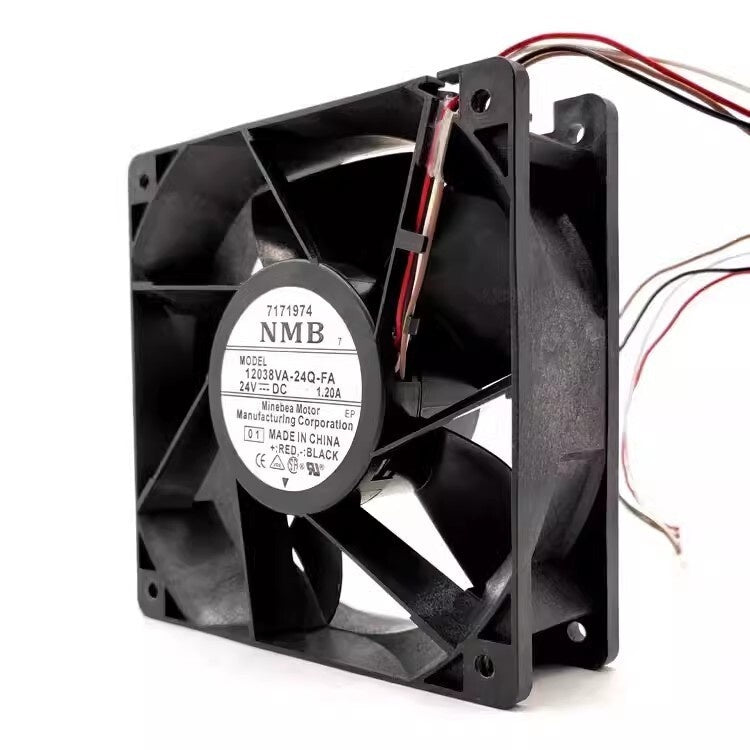

The NMB-MAT 12038VA-24Q-FA is a DC axial cooling fan with a 120 mm square frame and 38 mm depth. This 12038-size configuration is used for forced-air cooling in compatible industrial inverters, electronic power supplies and equipment enclosures where effective ventilation is necessary to remove heat from electrical components.
Multiple exact-model commercial listings identify a nominal 24 VDC supply and 1.20 A current marking. These values correspond to a calculated 28.8 W electrical load. This current rating differs from the 1.04 A specified for standard NMB 12038VA-24Q-AAE and -24Q-EAE models, so the standard series electrical specification should not replace the -FA assembly's documented marking.
The manufacturer's standard 12038VA-24Q documentation specifies 5700 RPM, 215.7 CFM maximum airflow and 287 Pa maximum static pressure. Several independent -FA suppliers publish these same airflow characteristics, while another lists a lower fan speed. As a result, these figures should be treated as standard Q-class performance references rather than confirmed exact-FA ratings.
Common 12038VA-24Q-FA assemblies are documented with two electrical leads, typically red and black, sometimes terminating in an equipment-specific connector. The documented two-wire configuration provides DC power and return without a separate tachometer, locked-rotor or PWM signal conductor. A separate seller advertises a four-wire version, making physical connector verification important.
The NMB 12038VA series uses ball bearings, a brushless DC motor and black plastic housing and impeller components. Its standard series datasheet specifies automatic restart and reverse-polarity protection, together with an L10 life reference of 40,000 hours at 60°C. The exact -FA assembly should be checked before applying these series-level environmental and reliability specifications.
The 12038VA-24Q-FA is commercially associated with cooling fans for industrial variable frequency drives, power electronics and automation equipment. Its 120 mm frame and 38 mm depth make it relevant to compatible equipment requiring substantial forced airflow. Replacement selection must account for electrical power, connector configuration, airflow direction and mounting clearance.
We support online purchase inquiries for the NMB-MAT 12038VA-24Q-FA DC Axial Fan. If you need to make bulk purchases or inquire about related industrial cooling products, please contact our team with your required quantity, exact model number and equipment specifications. For replacement applications, please provide photographs of the existing fan label, mounting frame and connector, along with the equipment or inverter model when available. We can provide quotation information and discuss applicable delivery and transportation arrangements after reviewing your request. Please verify the nominal 24 VDC supply, 1.20 A current marking, 120 × 120 × 38 mm frame and exact wiring arrangement. If the application requires a guaranteed fan speed, airflow, static pressure or acoustic rating, request exact-model documentation before purchasing.
What is NMB-MAT 12038VA-24Q-FA?
NMB-MAT 12038VA-24Q-FA is a brushless DC axial cooling fan identified in industrial parts and cooling fan supplier catalogs. Multiple exact-model records specify a 24 VDC supply, 1.20 A current rating and 120 × 120 × 38 mm frame. Common documented versions have two-wire electrical connections.
What is the rated voltage of 12038VA-24Q-FA?
The nominal voltage is 24 VDC. This value is consistent across multiple exact-model listings. NMB's standard 12038VA-24Q series documentation specifies an operating range of 18.0–27.6 VDC, but that range has not been separately verified for the exact -FA assembly. Confirm the installed fan label and equipment requirements before use.
What are the dimensions of 12038VA-24Q-FA?
The fan has a nominal frame size of 120 mm wide, 120 mm high and 38 mm deep. The standard NMB 12038VA series mechanical drawing shows 105.0 ±0.5 mm mounting hole spacing and holes approximately 4.3 mm in diameter. These measurements provide a series reference; check the actual -FA housing and any connector assembly before replacement.
What is the rated current and electrical power?
Multiple exact-model suppliers report 1.20 A at 24 VDC, corresponding to a calculated electrical power of 28.8 W. Some seller pages also publish 25 W, but the NMB standard -24Q datasheet assigns approximately 25 W to a different 1.04 A configuration. Therefore, 28.8 W is the appropriate calculation from the documented -FA label values, not a separately verified manufacturer operating-power measurement.
What is the fan speed of 12038VA-24Q-FA?
The manufacturer's standard 12038VA-24Q series is rated at 5700 RPM. Some exact-FA suppliers also state 5700 RPM, but another commercial listing specifies 4800 RPM. Because no manufacturer datasheet was located explicitly resolving the exact -FA speed, confirm the complete assembly and actual performance before relying on either figure.
What is the maximum airflow of 12038VA-24Q-FA?
NMB specifies 215.7 CFM, approximately 6.11 m³/min, for standard 12038VA-24Q models. Several commercial -FA product listings report the same figure. However, the exact -FA configuration's current differs from the standard manufacturer model, and the published airflow has not been independently established for that complete suffix. Treat 215.7 CFM as a Q-class reference until confirmed.
What is the maximum static pressure?
The standard NMB 12038VA-24Q series has a maximum static pressure rating of 287 Pa, approximately 1.15 inches of water. Some commercial -FA listings report a similar pressure. An exact -FA manufacturer performance curve has not been located, so the actual pressure-flow characteristics should be confirmed for critical applications. Maximum airflow and maximum pressure are not achieved simultaneously.
What is the noise level of 12038VA-24Q-FA?
The NMB standard 12038VA-24Q series datasheet specifies 63 dB, and several -FA suppliers repeat this figure. Since the exact -FA acoustic rating has not been independently manufacturer-verified, actual installed noise should be evaluated with the specific fan assembly, mounting structure and airflow restrictions.
Does 12038VA-24Q-FA use two wires or four wires?
PcHub, Elecok and several other exact-model listings identify two-wire assemblies, sometimes with a connector. At least one other seller advertises a four-wire version of the same abbreviated part number. For this reason, the number of wires should not be assumed from the base model alone. Verify the actual fan label, connector and wire count before ordering.
Does the fan provide PWM speed control or a tachometer output?
The commonly documented two-wire 12038VA-24Q-FA configuration provides DC power and return and does not have separate tachometer, locked-rotor or PWM signal wires. Other configurations advertised commercially may differ, but their signal specifications have not been verified. Do not substitute a two-wire assembly into equipment requiring a dedicated feedback or PWM control interface without checking compatibility.
What is the difference between 12038VA-24Q-FA and 12038VA-24Q-EAE-0?
Both belong to the NMB 12038VA family and are associated with nominal 24 VDC operation and a 120 × 120 × 38 mm frame. The exact -FA version is commercially documented at 1.20 A, while NMB specifies 1.04 A and approximately 25 W for 12038VA-24Q-EAE-0. The -EAE-0 manufacturer model is specified at 5700 RPM, 215.7 CFM and 287 Pa. These models should not be assumed electrically identical or directly interchangeable based solely on the shared 12038VA-24Q designation.
What should be checked before ordering 12038VA-24Q-FA?
Confirm the exact NMB-MAT model 12038VA-24Q-FA and any assembly identifier, nominal 24 VDC voltage, 1.20 A current marking, 120 × 120 × 38 mm dimensions, mounting hole pattern, actual two-wire or alternative connection arrangement, connector polarity, lead length, rotation direction, airflow direction and equipment compatibility. If the fan is replacing a cooling unit in an inverter or other industrial system, verify available fan power and the equipment's cooling requirements. For applications requiring exact RPM, CFM, static pressure, acoustic noise, ingress protection or life expectancy, obtain documentation for the actual -FA assembly rather than assuming all standard 12038VA-24Q series ratings are identical.
Send us your part number and technical requirements.
