12 VDC Operation
The U92C12MS1B3-52 is rated for a 12 VDC power supply, as identified in refrigerator service documentation and model-specific product records.
NIDEC

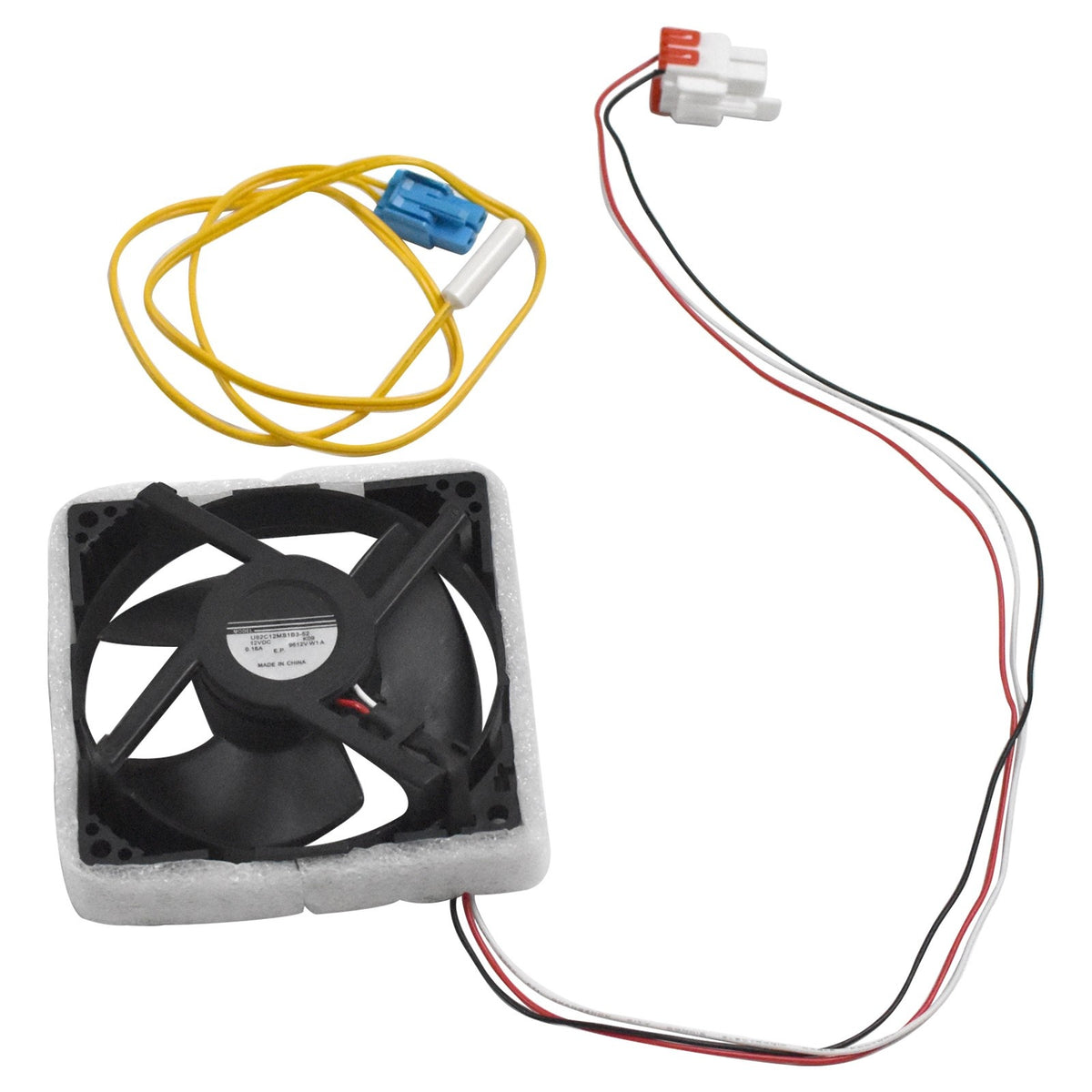

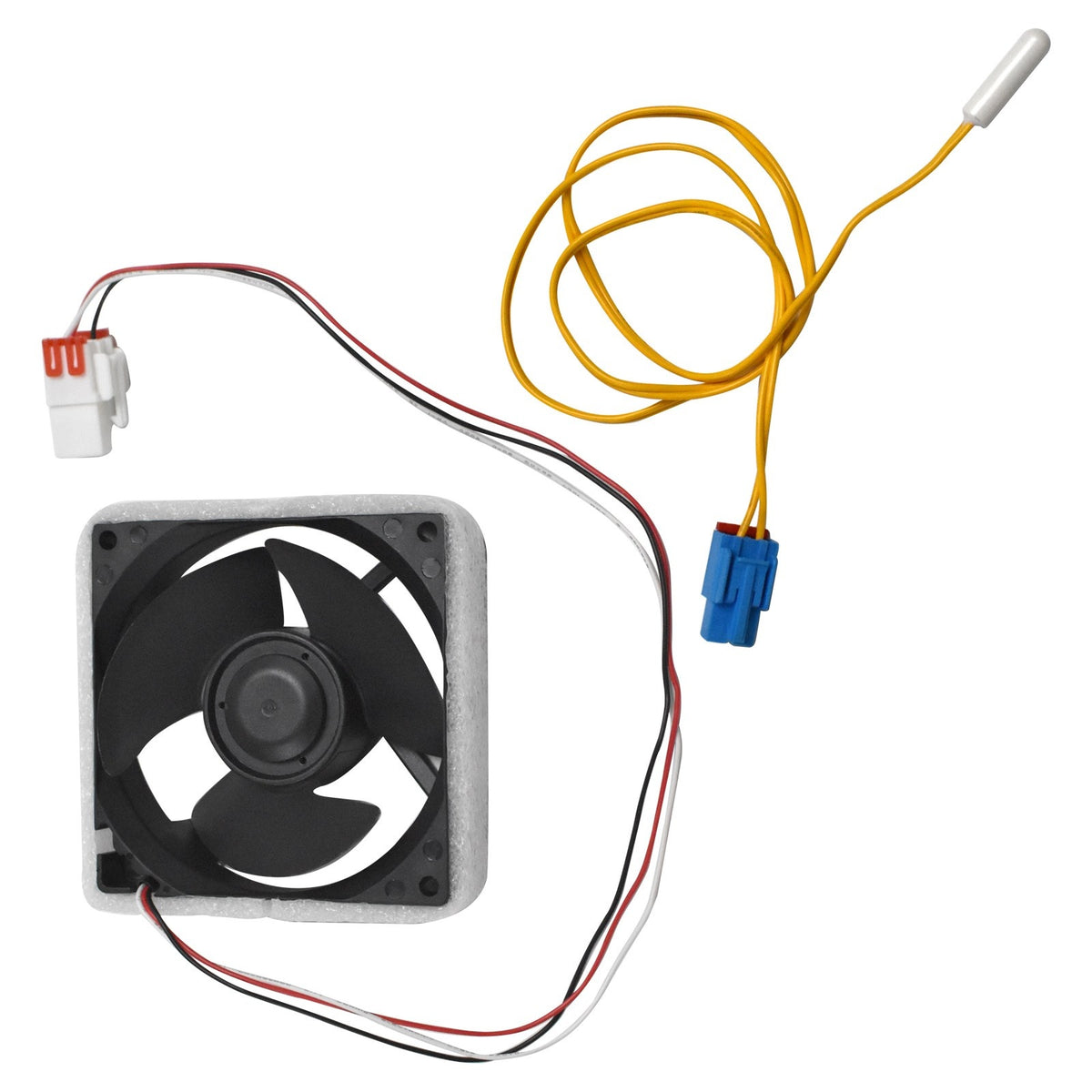

Nidec U92C12MS1B3-52 Refrigerator Cooling Fan 12V 0.16A 1.92W
$10.42
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
NIDEC
Nidec U92C12MS1B3-52 Refrigerator Cooling Fan 12V 0.16A 1.92W
PRODUCT PRICE
USD
$10.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Nidec |
| Model Number | U92C12MS1B3-52 |
| Product Category | Refrigerator Cooling Fan |
| Fan Type | DC Axial Cooling Fan |
| Rated Voltage | 12 VDC |
| Rated Current | 0.16 A |
| Rated Input Power | 1.92 W |
| Primary Application | Refrigerator Evaporator Air Circulation |
Key Features
0.16 A Rated Current
The specified rated current is 0.16 A, providing an electrical reference when comparing the fan with an existing refrigeration assembly.
1.92 W Input Power
Refrigerator technical service documentation identifies an input power rating of 1.92 W for this complete fan model.
Refrigerator Air Circulation
The fan is used for moving air within compatible refrigerator cooling assemblies, including evaporator airflow applications.
Axial Cooling Configuration
The axial fan configuration supports airflow through a suitable refrigerator ventilation passage when installed in the correct position and orientation.
Complete Model Identification
The full U92C12MS1B3-52 designation is important when identifying a replacement. Mounting dimensions and connector arrangements must also match the intended appliance.
Applications
- Refrigerator evaporator air circulation
- Refrigerated compartment cooling
- Household refrigerator ventilation
- Internal refrigerator airflow assemblies
- Refrigeration system fan servicing
- Refrigerator cooling component maintenance
- Appliance evaporator fan replacement
- Compatible refrigerator air circulation repairs
Purchase Information
We support online purchase of the Nidec U92C12MS1B3-52 Refrigerator Cooling Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Nidec U92C12MS1B3-52?
It is a DC refrigerator cooling fan identified by the Nidec U92C12MS1B3-52 model number and referenced in refrigerator technical documentation.
What is the rated voltage of U92C12MS1B3-52?
The documented rated voltage is 12 VDC.
What is the rated current?
Model-specific product records list a rated current of 0.16 A.
What is the rated input power?
Refrigerator service documentation specifies 1.92 W for the U92C12MS1B3-52 fan motor.
What type of fan is U92C12MS1B3-52?
The model is classified as a DC axial cooling fan used in refrigerator air circulation applications.
What is the primary application of this fan?
The fan is associated with refrigerator evaporator cooling and internal air circulation.
Is this model referenced in Samsung refrigerator documentation?
Yes. Samsung refrigerator technical service documentation identifies U92C12MS1B3-52 as a 12 VDC, 1.92 W refrigerator fan motor. Compatibility with a particular refrigerator model must be checked separately.
What dimensions should be checked before replacement?
Check the complete frame dimensions, mounting-hole positions, fan thickness and installation clearance against the existing unit. Supplier listings differ on the precise dimensions.
How should the electrical connector be checked?
Compare the wire count, connector housing, pin assignment and cable routing with the installed fan. Supplier descriptions of the connector configuration are not consistent.
Can U92C12MS1B3-52 replace another refrigerator fan?
Replacement suitability depends on the appliance model, electrical ratings, physical dimensions, mounting arrangement, connector and airflow direction. A similar appearance alone does not establish interchangeability.
What should be verified before ordering?
Confirm the complete U92C12MS1B3-52 model number, 12 VDC supply, 0.16 A current, 1.92 W input power, physical mounting dimensions and electrical connection against the existing refrigerator fan.
