24 VDC Rated Supply
Designed for equipment using a nominal 24 VDC supply, with a specified operating range of 20.4–27.6 VDC.
NIDEC
Nidec M34313-16 DC Axial Fan 24V 0.16A 60x60x25mm
$7.61
Available
PRODUCT GALLERY
01 / 2

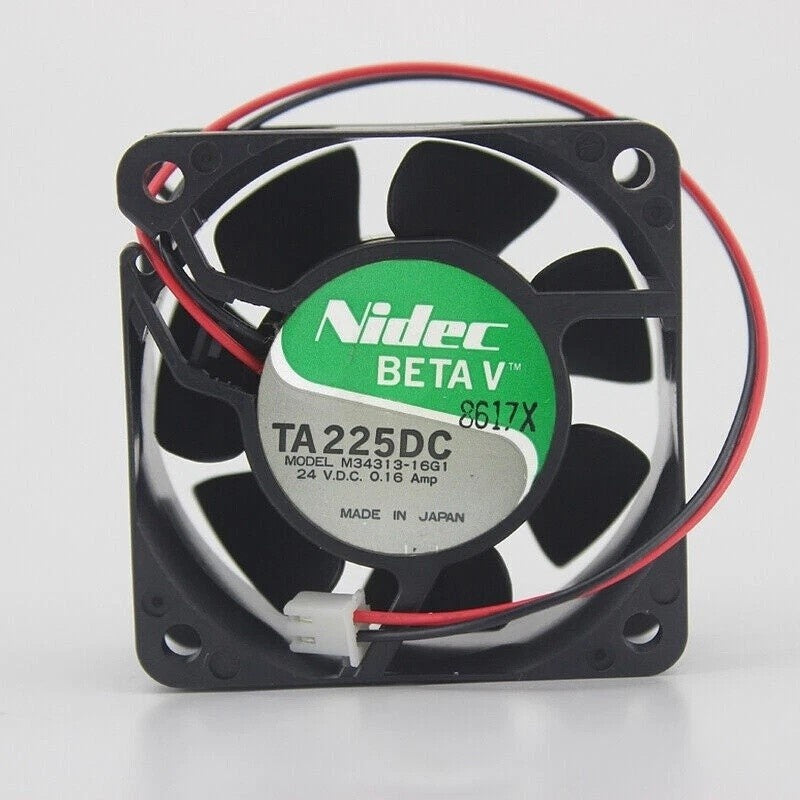

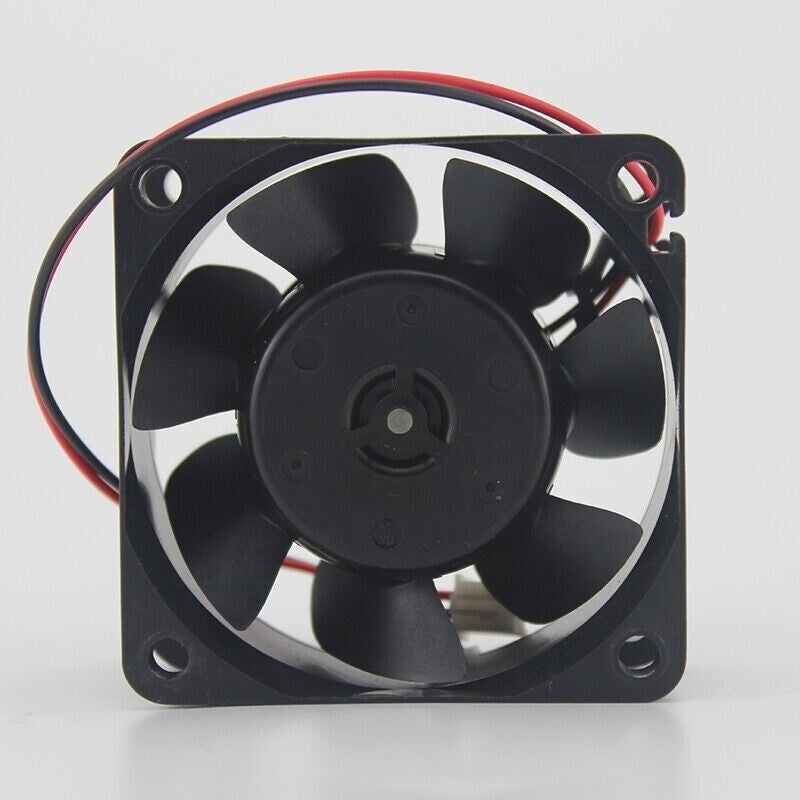

Product images for part identification
NIDEC
Nidec M34313-16 DC Axial Fan 24V 0.16A 60x60x25mm
PRODUCT PRICE
USD
$7.61
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Nidec |
| Model Number | M34313-16 |
| Product Category | DC Axial Cooling Fan |
| Product Series | TA225DC |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 20.4–27.6 VDC |
| Rated Current | 160 mA (0.16 A) |
| Rated Input Power | 3.84 W |
| Frame Dimensions | 60 x 60 x 25 mm |
| Product Weight | Approximately 71 g |
Key Features
Compact 60 mm Frame
The 60 x 60 x 25 mm frame provides a defined mounting size for compatible industrial and electronic equipment.
5,150 RPM Rated Speed
The manufacturer lists a nominal fan speed of 5,150 RPM at rated voltage under the specified test conditions.
25 CFM Airflow
The specified airflow rating is 25 CFM at nominal voltage and zero static pressure. Actual airflow depends on system resistance.
Ball Bearing Construction
The TA225DC series specification identifies ball bearings for the M34313 model, supporting continuous fan rotation in compatible equipment.
Two-Wire Power Connection
The -16 suffix identifies the specified color-coded 300 mm power leads with stripped ends for electrical connection.
Polarity Protection
The series documentation identifies polarity protection. Correct positive and negative wiring should still be observed during installation.
Industrial Cooling Design
The axial airflow configuration supports heat removal from compatible power electronics, electrical assemblies and equipment enclosures.
Applications
- Industrial inverter cooling
- Variable frequency drive ventilation
- Power electronics thermal management
- Industrial control cabinet airflow
- Electrical equipment cooling
- Telecommunications equipment ventilation
- Power supply cooling assemblies
- Industrial fan maintenance and replacement
Purchase Information
We support purchase inquiries for the Nidec M34313-16 DC Axial Cooling Fan. For bulk purchasing or related industrial cooling components, contact our team with your required quantity and equipment application. Before ordering, confirm the complete model number, 24 VDC supply, 0.16 A current rating, 60 x 60 x 25 mm frame, two-wire lead configuration and required airflow. The -16 suffix identifies the lead termination configuration, so compare the cable length and connector or stripped-end requirements with the existing installation.
Frequently Asked Questions
What is Nidec M34313-16?
It is a Nidec TA225DC series DC axial cooling fan identified by model M34313-16.
What voltage does M34313-16 use?
The rated voltage is 24 VDC, with a specified operating voltage range of 20.4–27.6 VDC.
What is the rated current?
The manufacturer series specification lists a rated current of 160 mA, equivalent to 0.16 A.
What is the rated input power?
The specified input power is 3.84 W at the rated operating condition.
What are the fan dimensions?
The fan measures 60 x 60 x 25 mm. Verify the available mounting space and hole positions before replacement.
What is the rated speed?
The specified nominal speed is 5,150 RPM at 24 VDC under the manufacturer's stated test conditions.
What is the airflow rating?
The specified airflow is 25 CFM, approximately 42.5 m³/h, at nominal voltage and zero static pressure.
What is the specified sound level?
The manufacturer series table lists a sound level of 31.5 dBA for model M34313 under the stated test conditions.
What does the -16 suffix mean?
The series documentation states that the -16 suffix identifies color-coded 300 mm power leads with stripped ends.
How many wires does this fan use?
This model uses two power leads. The series drawing identifies red for positive and black for negative; verify the actual fan markings before wiring.
What is the operating temperature range?
The TA225DC series table lists an operating temperature range of -10°C to +70°C for model M34313.
Can M34313-16 replace another 60 mm fan?
Not automatically. Compare the voltage, current, dimensions, airflow, mounting pattern, lead length and wiring polarity with the existing fan and equipment requirements.
What should be checked before ordering?
Confirm model M34313-16, 24 VDC rating, 0.16 A current, 3.84 W input, 60 x 60 x 25 mm dimensions and 300 mm two-wire lead configuration.
