24 VDC Operation
The D04G-24TS2 01 is rated for a 24 VDC power supply, supporting cooling systems designed around this voltage.
NIDEC
Nidec D04G-24TS2 01 DC Axial Cooling Fan 24V 0.17A 40x40x20mm
$9.56
Available
PRODUCT GALLERY
01 / 3

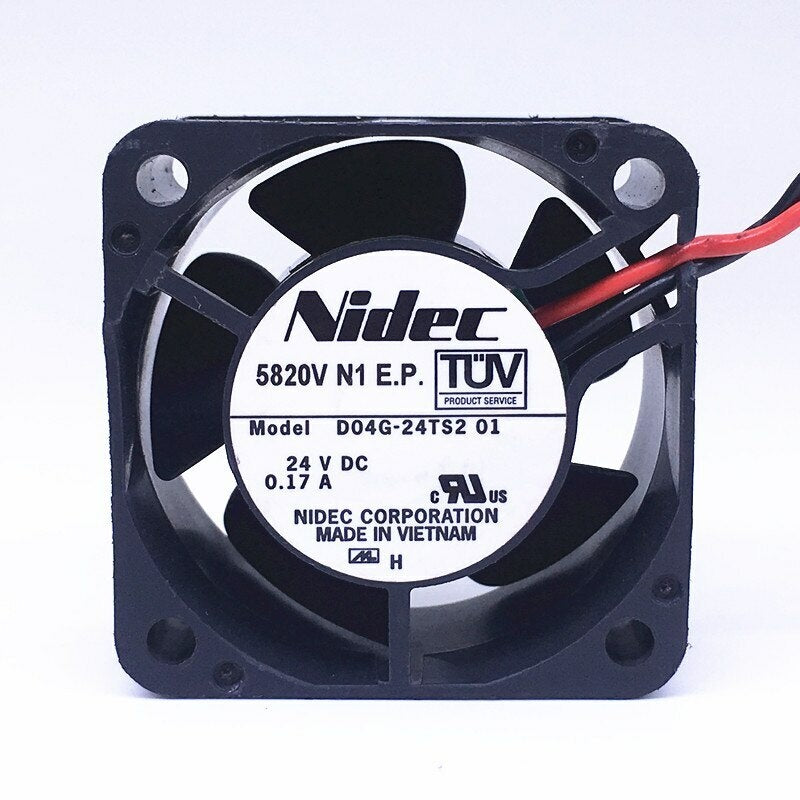

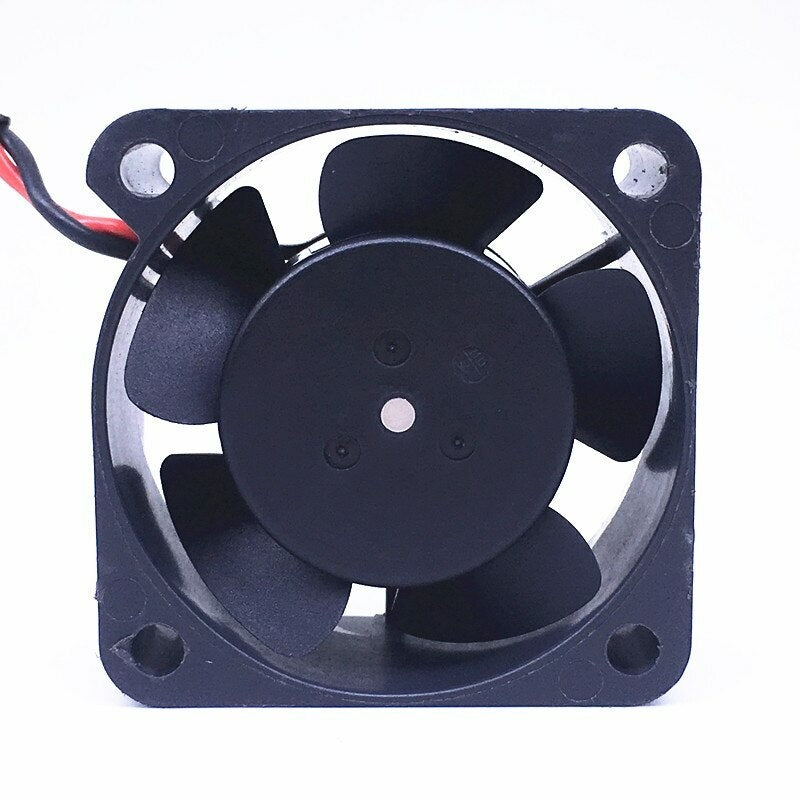

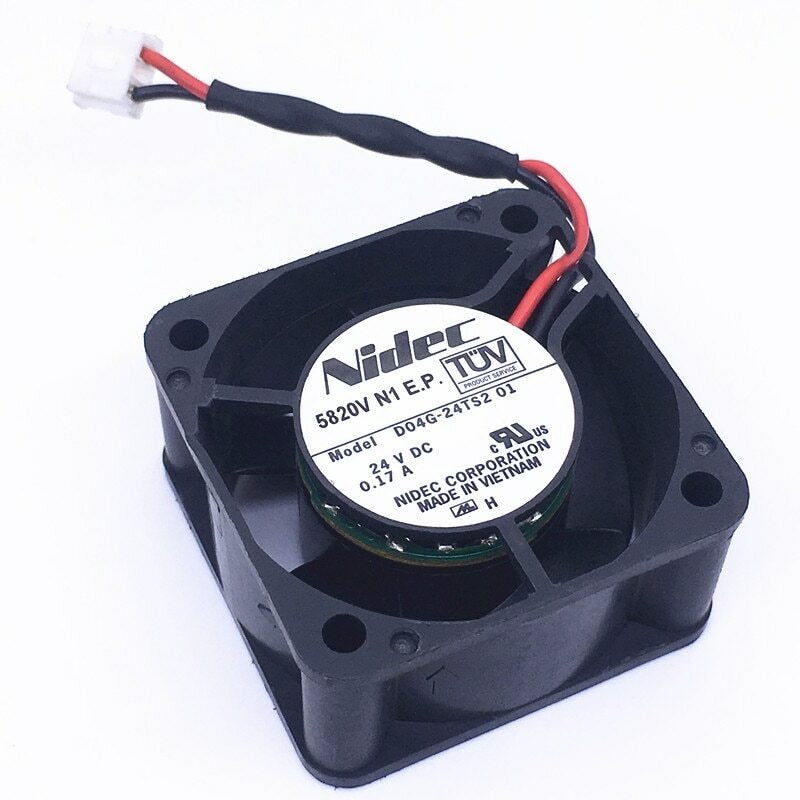

Product images for part identification
NIDEC
Nidec D04G-24TS2 01 DC Axial Cooling Fan 24V 0.17A 40x40x20mm
PRODUCT PRICE
USD
$9.56
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Nidec |
| Model Number | D04G-24TS2 01 |
| Product Category | DC Axial Cooling Fan |
| Fan Type | Brushless DC Axial Fan |
| Rated Voltage | 24 VDC |
| Rated Current | 0.17 A |
| Frame Dimensions | 40 x 40 x 20 mm |
| Bearing Type | Dual Ball Bearing |
| Electrical Connection | 2-Wire Power Leads |
Key Features
0.17 A Rated Current
The specified current rating provides an electrical reference when checking power supply requirements and selecting a replacement cooling fan.
Compact 40 mm Frame
The 40 x 40 x 20 mm dimensions allow installation in compatible equipment with limited space for ventilation components.
Brushless DC Motor
The brushless DC axial fan design provides forced airflow through suitable electrical and electronic equipment cooling paths.
Dual Ball Bearings
The documented dual ball-bearing construction supports rotating operation in compact equipment cooling assemblies.
Two-Wire Power Connection
The model uses two power leads. The connector shape, polarity and cable routing should be checked against the installed fan before replacement.
Applications
- Industrial frequency converter cooling
- Variable frequency drive ventilation
- Compact industrial inverter cooling
- Industrial control equipment ventilation
- Power electronics thermal management
- Electronic enclosure cooling
- Industrial equipment maintenance
- Replacement of compatible 40 mm axial fans
Purchase Information
We support online purchase of the Nidec D04G-24TS2 01 DC Axial Cooling Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Nidec D04G-24TS2 01?
It is a Nidec brushless DC axial cooling fan with a 40 x 40 x 20 mm frame, intended for compatible equipment ventilation applications.
What is the rated voltage?
The rated supply voltage is 24 VDC. Confirm the equipment power supply before installation.
What is the rated current?
Model-specific product information identifies a rated current of 0.17 A.
What are the dimensions of D04G-24TS2 01?
The fan measures 40 x 40 x 20 mm. Check mounting-hole spacing and available clearance before ordering.
What type of cooling fan is this?
The D04G-24TS2 01 is classified as a brushless DC axial cooling fan.
What bearing type does this fan use?
Model-specific product listings identify dual ball bearings.
How many wires does the fan have?
The documented configuration uses two power leads. Confirm the connector and polarity against the existing component.
Does every D04G-24TS2 01 fan have the same connector?
The two-wire configuration is documented, but the connector should be matched against the installed unit before replacement.
Can this fan be used for inverter cooling?
It is listed for frequency converter and industrial inverter cooling applications. Suitability depends on the specific equipment's voltage, dimensions and cooling requirements.
Can D04G-24TS2 01 replace another 40 mm fan?
Not automatically. Verify the complete part number, 20 mm frame thickness, rated voltage, current, mounting arrangement, airflow direction and electrical connection.
What should be checked before ordering?
Confirm the D04G-24TS2 01 model marking, 24 VDC supply, 0.17 A current rating, 40 x 40 x 20 mm frame and two-wire connection against the existing equipment.
Need help confirming a model?
Send us your part number and technical requirements.
