115 VAC Input
Rated for 115 VAC at 50/60 Hz with documented current of 0.50/0.45 A and power of 37/36 W.
Maxair
Maxair 15050B1HL Axial Fan 115VAC 172mm
$36.10
Available
PRODUCT GALLERY
01 / 3

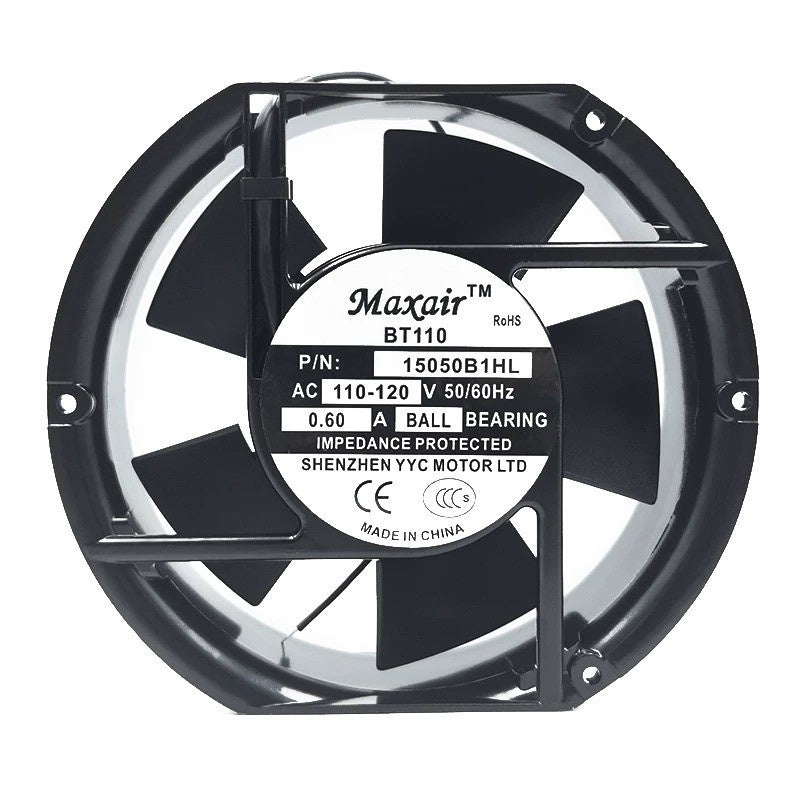

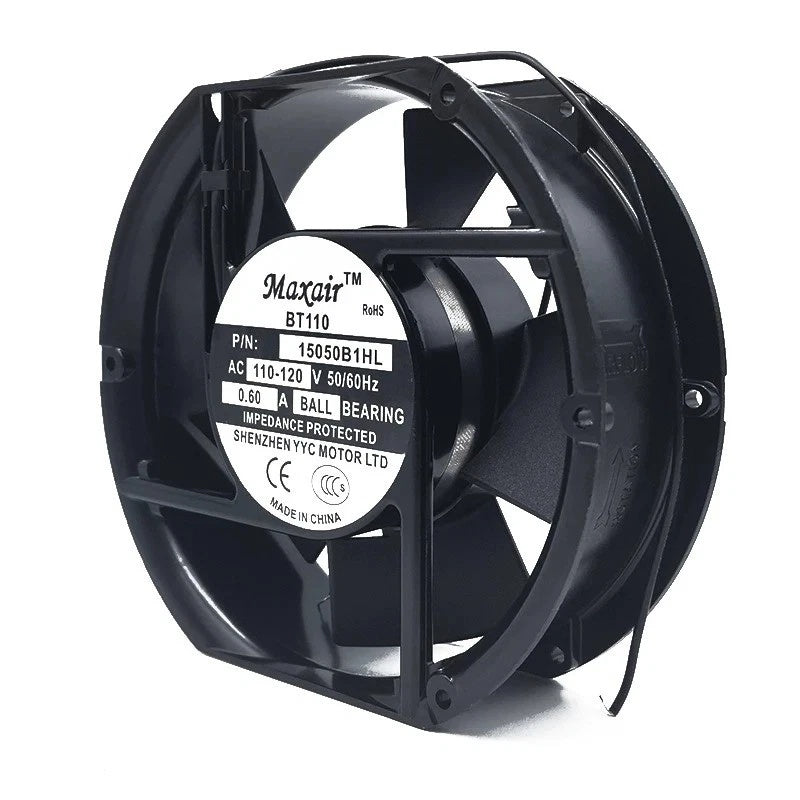

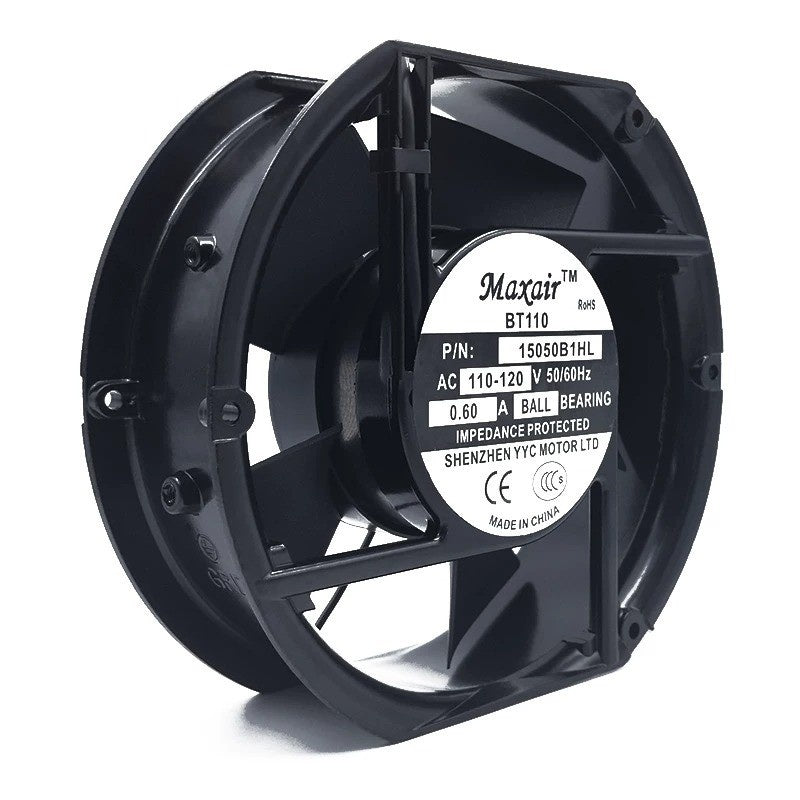

Product images for part identification
Maxair
Maxair 15050B1HL Axial Fan 115VAC 172mm
PRODUCT PRICE
USD
$36.10
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Maxair |
| Model Number | 15050B1HL |
| Product Category | Axial Fan |
| Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Current | 0.50/0.45 A |
| Power | 37/36 W |
| Fan Speed | 2700/3100 RPM |
| Air Flow | 190/235 CFM (5.37/6.65 m³/min) |
| Static Pressure | 16.00/17.78 mmH2O |
| Noise Level | 45/50 dB-A |
| Dimensions | 172 x 150 x 51 mm |
| Bearing Type | Ball Bearing |
Key Features
172 x 150 x 51 mm Frame
The fan uses an oval 172 x 150 mm frame with a 51 mm depth for higher-airflow enclosure cooling.
Dual-Speed Airflow
Documented speed is 2700 RPM at 50 Hz and 3100 RPM at 60 Hz, delivering 190/235 CFM.
Ball Bearing Type
Performance tables for the 15050B1H series identify a ball bearing construction.
Static Pressure Performance
Static pressure is documented at 16.00/17.78 mmH2O across 50/60 Hz operation.
Applications
- Telecom cabinet cooling
- Industrial enclosure ventilation
- Power electronics thermal management
- Control panel airflow
- Large equipment forced-air cooling
- AC-powered rack cooling
Purchase Information
We support online purchase of the Maxair 15050B1HL Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Maxair 15050B1HL? The 15050B1HL is an AC axial fan with a 172 x 150 x 51 mm frame, rated for 115 VAC operation.
What voltage does the 15050B1HL use? It operates on 115 VAC at 50/60 Hz.
What is the current and power? Documented current is 0.50/0.45 A and power is 37/36 W.
What are the fan speeds? Speed is 2700 RPM at 50 Hz and 3100 RPM at 60 Hz.
What is the airflow? Airflow is 190/235 CFM (5.37/6.65 m³/min).
What is the static pressure? Static pressure is documented at 16.00/17.78 mmH2O.
What is the noise level? Noise is 45/50 dB-A.
What bearing type is used? The 15050B1H series uses a ball bearing.
What are the dimensions? The fan measures 172 x 150 x 51 mm.
Need help confirming a model?
Send us your part number and technical requirements.
