115 VAC / 50 Hz Input
Documented rated voltage is 115 VAC at 50 Hz, with a starting voltage of 75 V and current of 0.380 A.
HOFFMAN
HOFFMAN 5915PC-12T-B30-A09 Axial Fan 115VAC 172mm
$34.75
Available
PRODUCT GALLERY
01 / 3

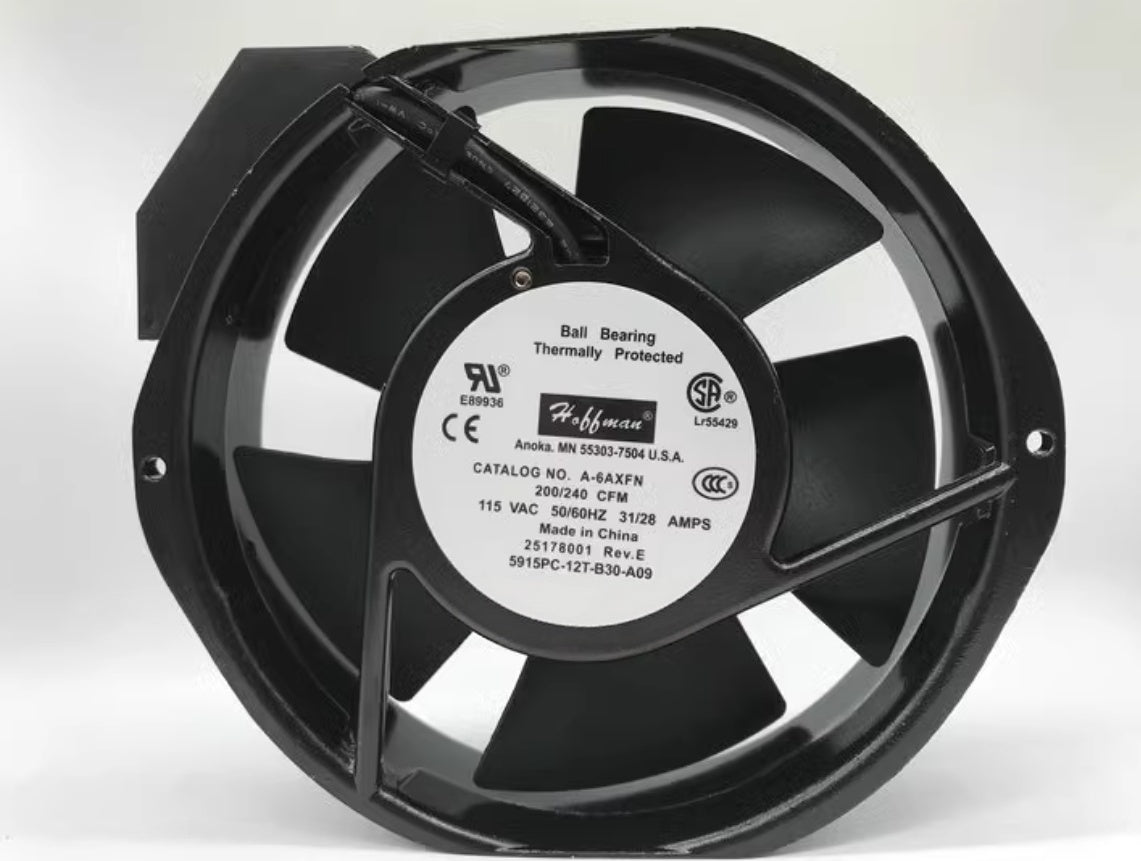

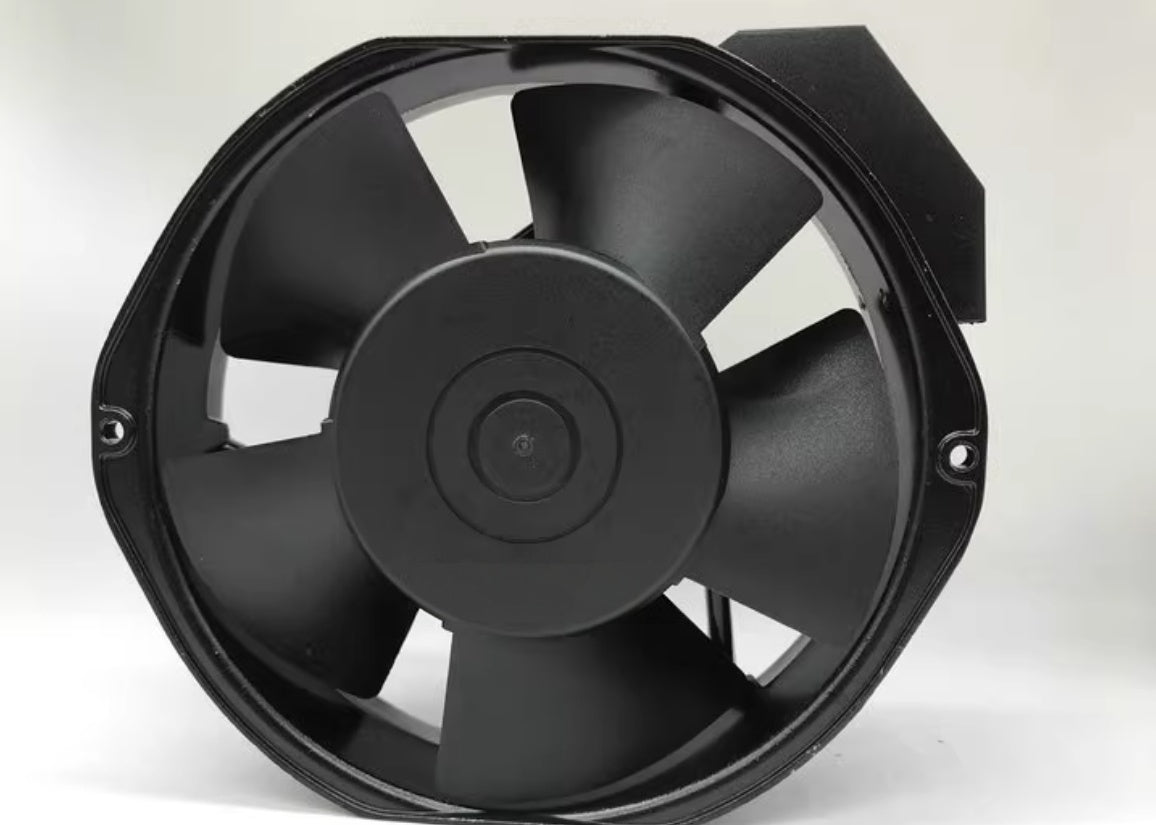

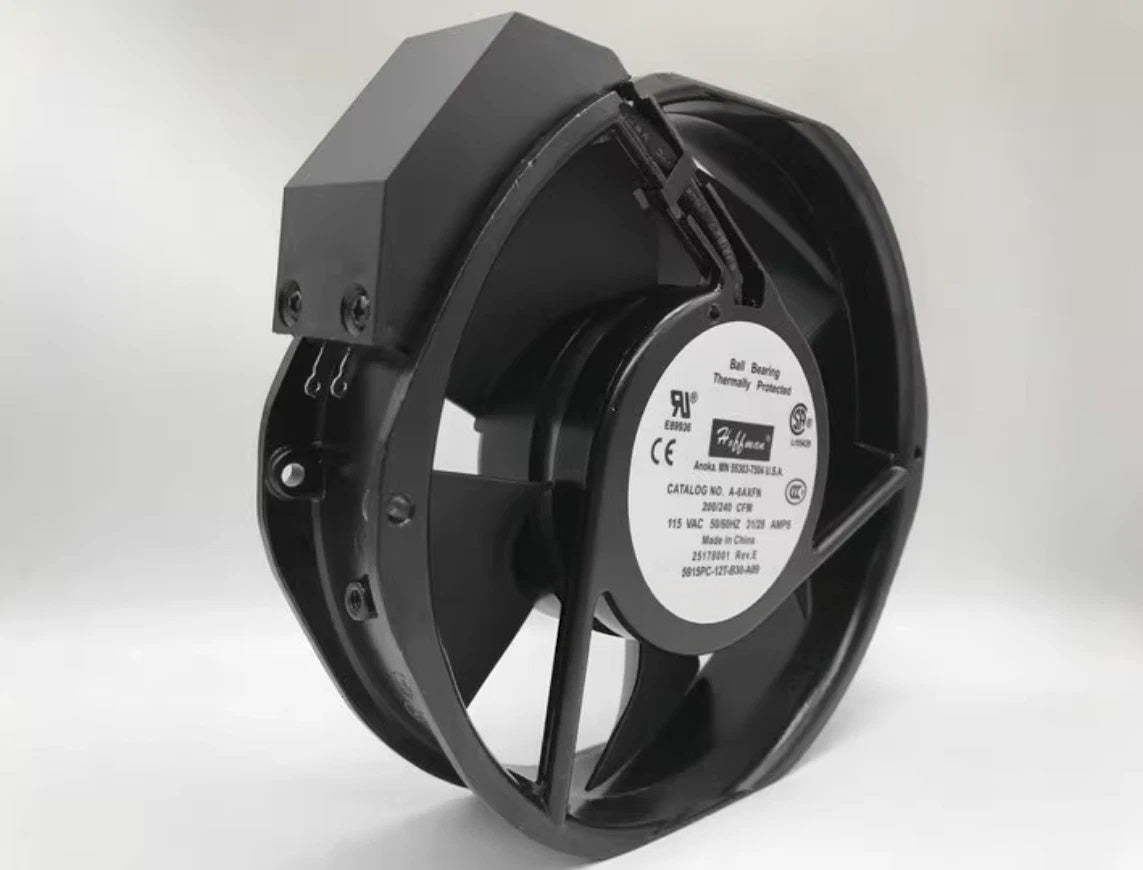

Product images for part identification
HOFFMAN
HOFFMAN 5915PC-12T-B30-A09 Axial Fan 115VAC 172mm
PRODUCT PRICE
USD
$34.75
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | HOFFMAN |
| Model Number | 5915PC-12T-B30-A09 |
| Product Category | Axial Fan |
| Rated Voltage | 115 VAC |
| Frequency | 50 Hz |
| Starting Voltage | 75 V |
| Current | 0.380 A |
| Input Power | 35.0 W |
| Fan Speed | 2700 RPM |
| Maximum Airflow | 5.00 m³/min |
| Maximum Static Pressure | 156.8 Pa |
| Noise Level | 52.0 dB-A |
| Dimensions | 150 x 172 x 38 mm |
Key Features
35 W Input Power
The fan is rated at 35.0 W input power with a speed of 2700 RPM.
5.00 m³/min Airflow
Maximum airflow is documented at 5.00 m³/min with a maximum static pressure of 156.8 Pa.
150 x 172 x 38 mm Frame
The fan uses a 150 x 172 mm frame with a 38 mm depth for enclosure cooling applications.
Applications
- Industrial enclosure cooling
- Electrical cabinet ventilation
- Power equipment thermal management
- Control panel airflow
- Telecom equipment cooling
- AC-powered forced-air cooling
Purchase Information
We support online purchase of the HOFFMAN 5915PC-12T-B30-A09 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the HOFFMAN 5915PC-12T-B30-A09? The 5915PC-12T-B30-A09 is an AC axial fan with a 150 x 172 x 38 mm frame, rated for 115 VAC operation.
What voltage does the fan use? The rated voltage is 115 VAC at 50 Hz.
What is the current and power? Documented current is 0.380 A and input power is 35.0 W.
What is the fan speed? The fan is rated at 2700 RPM.
What is the airflow? Maximum airflow is 5.00 m³/min.
What is the static pressure? Maximum static pressure is 156.8 Pa.
What is the noise level? Noise is documented at 52.0 dB-A.
What are the dimensions? The fan measures 150 x 172 x 38 mm.
What is the starting voltage? The starting voltage is 75 V.
Need help confirming a model?
Send us your part number and technical requirements.
