230 VAC Input
The UF-123823H operates from a 230 VAC supply and is impedance protected.
FULLTECH

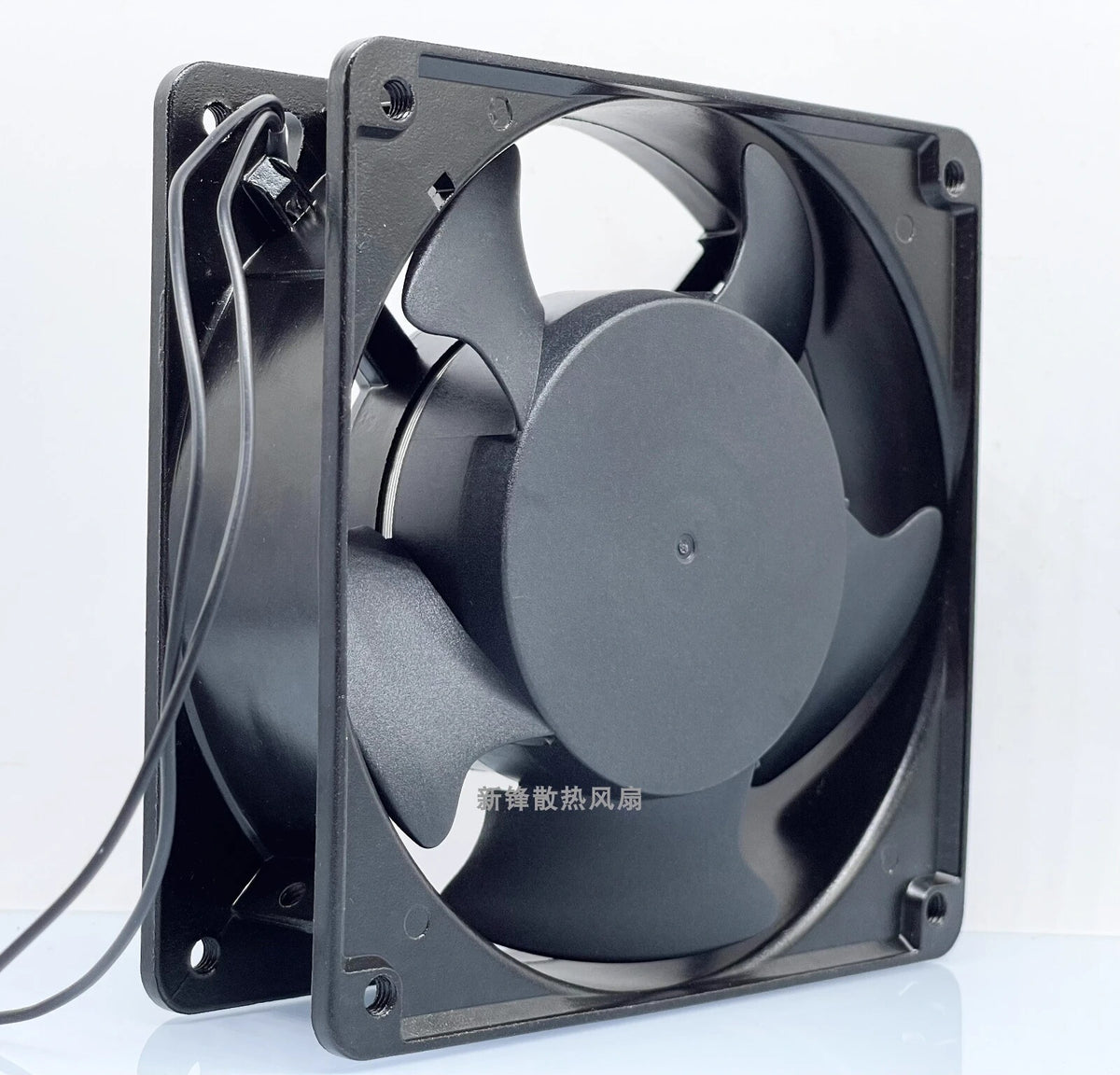

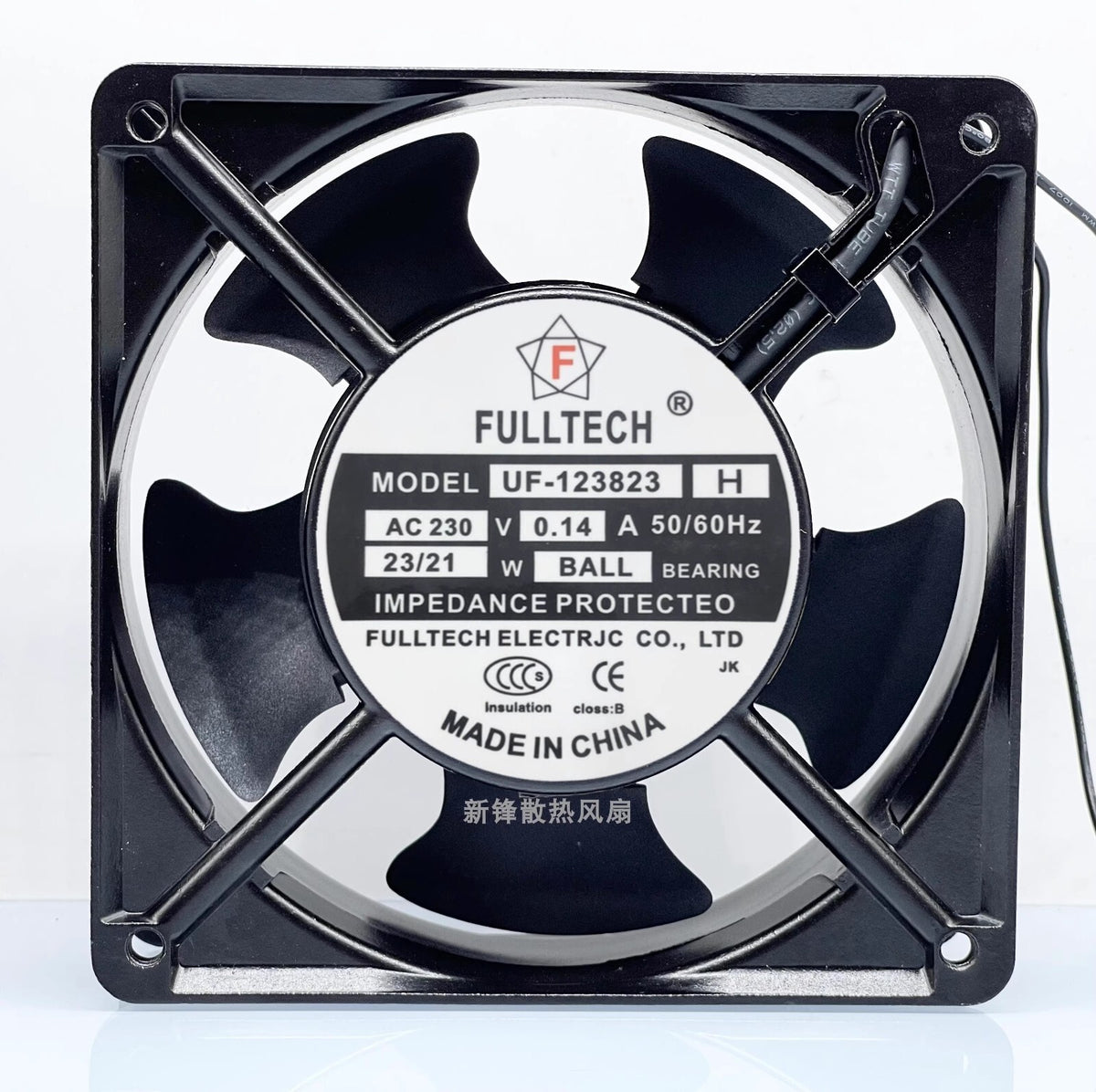

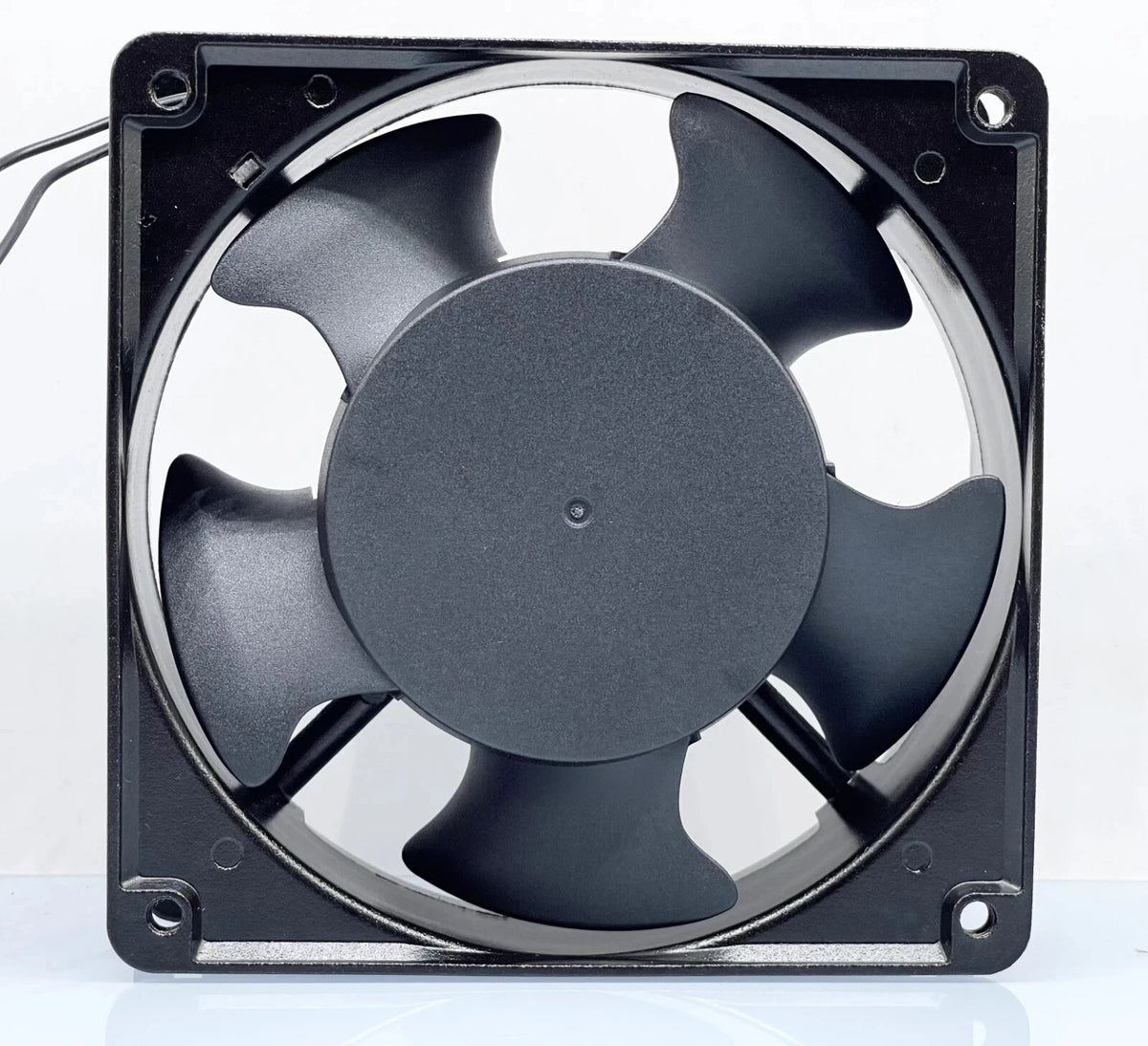

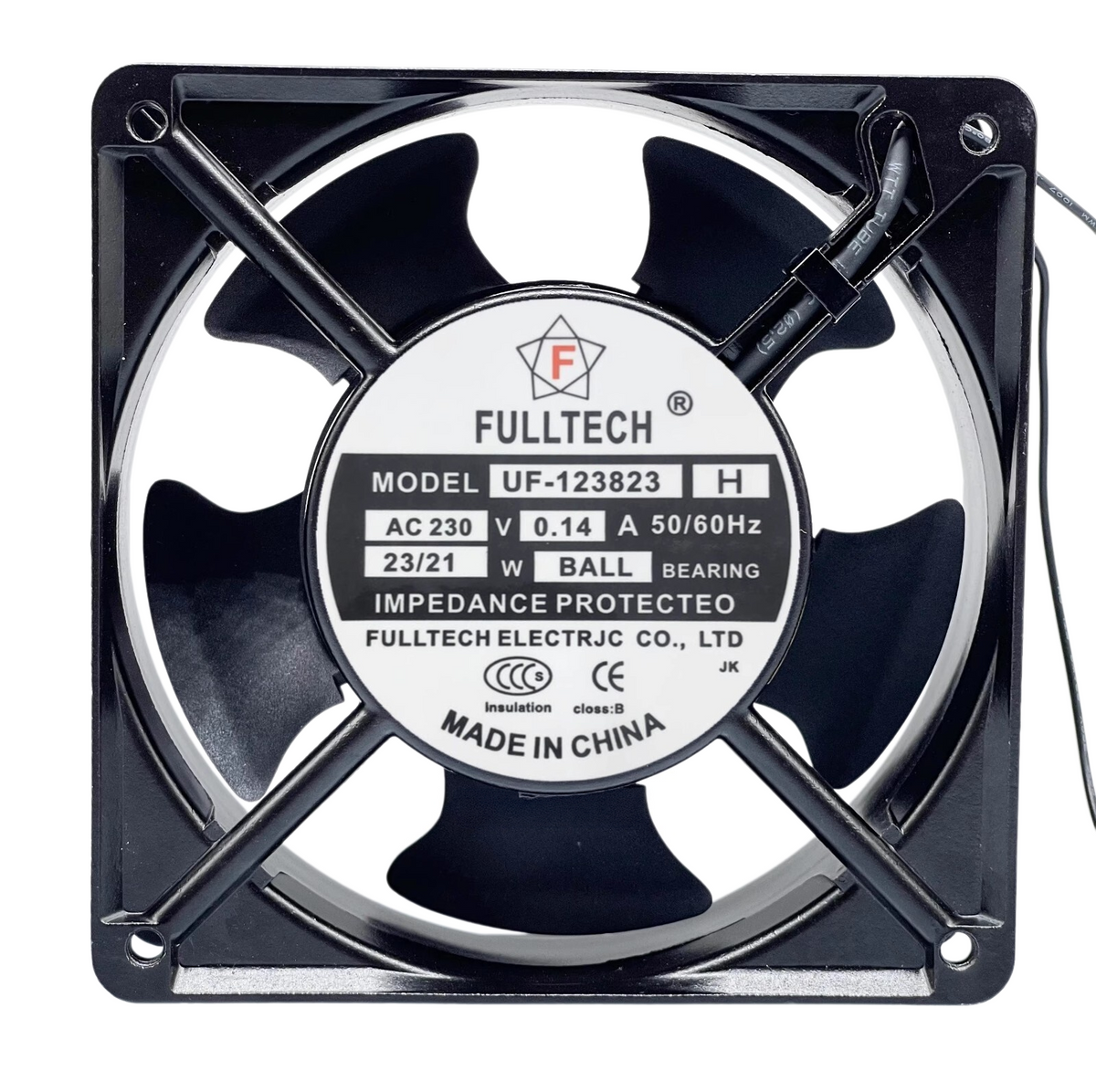

FULLTECH UF-123823H Axial Fan 230VAC 120mm
$16.28
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
FULLTECH
FULLTECH UF-123823H Axial Fan 230VAC 120mm
PRODUCT PRICE
USD
$16.28
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FULLTECH |
| Model Number | UF-123823H |
| Product Category | Axial Fan |
| Voltage | 230 VAC |
| Current | 0.14 A |
| Power | 23/21 W |
| Fan Size | 120 mm x 120 mm x 38 mm |
| Speed | 2600/3000 RPM |
| Air Flow | 80/91 CFM (6.8/8.5 m3/min) |
| Static Pressure | 7.3/9.2 mmH2O |
| Bearing Type | Ball |
| Termination | 2 Wires |
| Protection | Impedance Protected |
Key Features
120 mm x 120 mm x 38 mm Frame
The fan uses a 120 mm square frame with a 38 mm thickness.
80/91 CFM Air Flow
The air flow is specified as 80/91 CFM (6.8/8.5 m3/min) depending on speed.
2600/3000 RPM Speed
The fan speed is 2600/3000 RPM.
23/21 W Power, 0.14 A
The power consumption is 23/21 W with a current of 0.14 A.
Ball Bearing, 2-Wire
The fan uses ball bearings and a 2-wire termination.
Applications
- Industrial enclosure cooling at 230 VAC
- Control cabinet ventilation
- Heat dissipation in power electronics
- Air circulation in automation equipment
- Cooling of drives and electronic modules
- General axial airflow applications requiring a 120 mm fan
Purchase Information
We support online purchase of the FULLTECH UF-123823H Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the FULLTECH UF-123823H? The UF-123823H is a FULLTECH axial fan with a 120 mm x 120 mm x 38 mm frame, rated for 230 VAC operation.
What voltage does the UF-123823H use? The fan operates from 230 VAC.
What is the current of the UF-123823H? The current is specified as 0.14 A.
What is the power consumption of the UF-123823H? The power is 23/21 W.
What is the air flow of the UF-123823H? The air flow is 80/91 CFM (6.8/8.5 m3/min).
What is the speed of the UF-123823H? The fan speed is 2600/3000 RPM.
What bearing type does the UF-123823H use? The fan uses ball bearings.
What is the size of the UF-123823H? The fan frame is 120 mm x 120 mm x 38 mm.
Does the UF-123823H have impedance protection? Yes, the fan is impedance protected.
Need help confirming a model?
Send us your part number and technical requirements.
