120 mm x 120 mm x 38 mm Frame
The UF-123812H uses a 120 mm square frame with a 38 mm thickness, a common format for industrial enclosure cooling.
FULLTECH
FULLTECH UF-123812H Axial Fan 115VAC 120mm
$19.40
Available
PRODUCT GALLERY
01 / 3

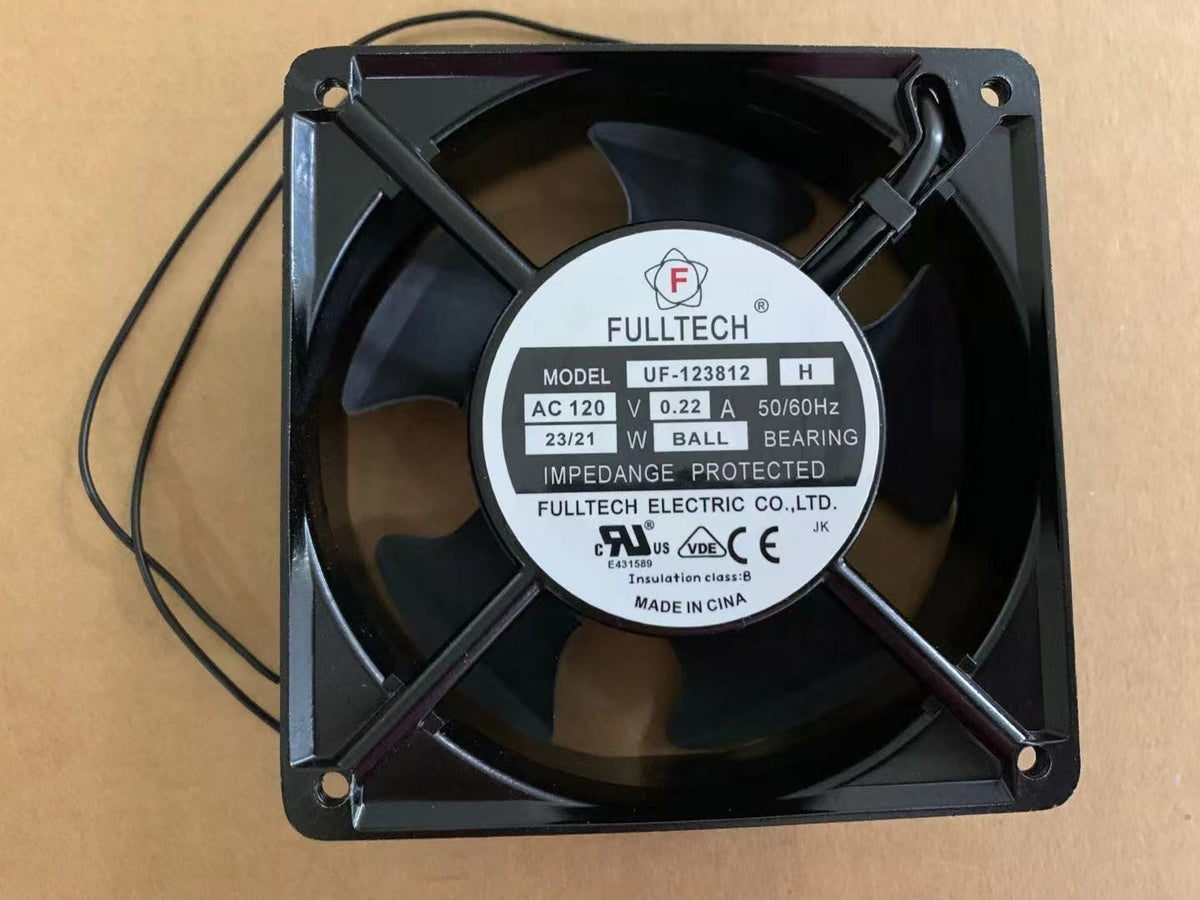

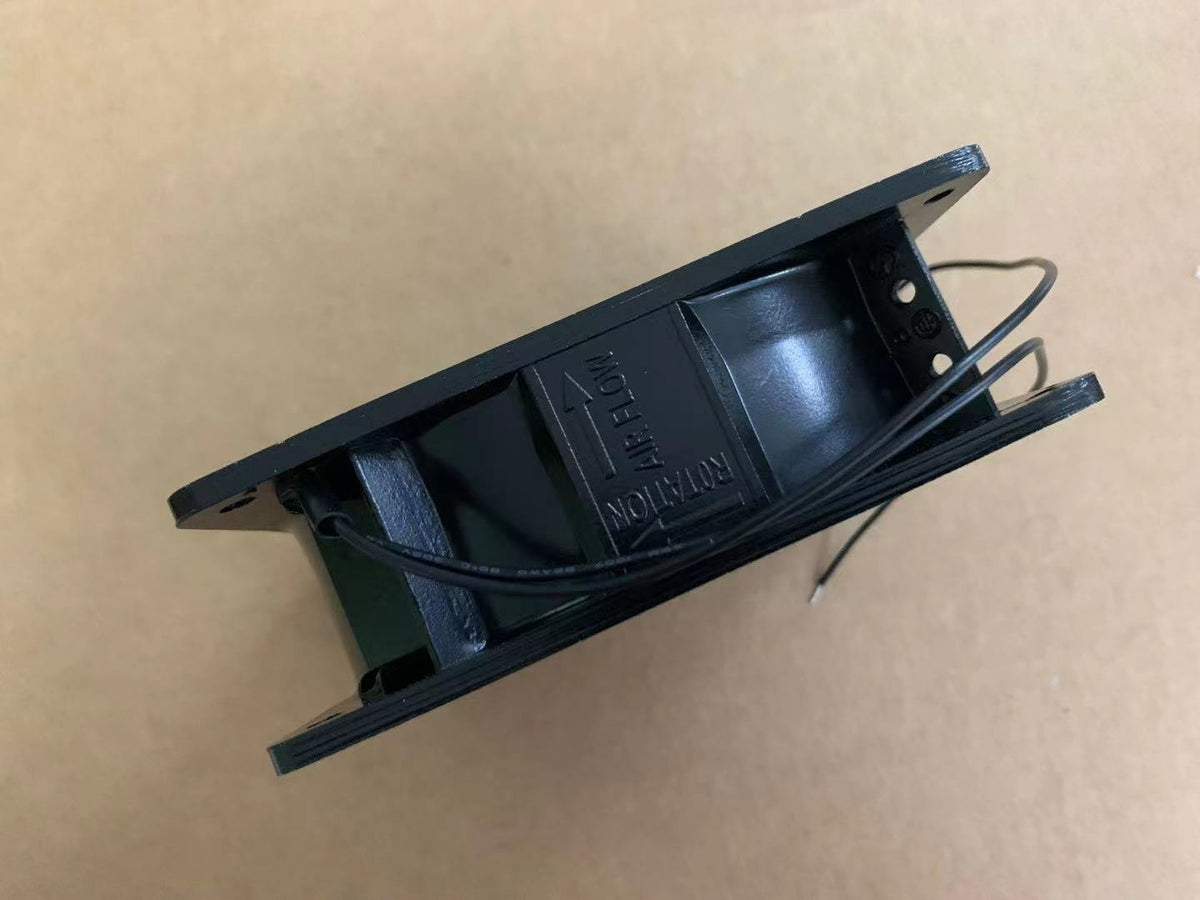

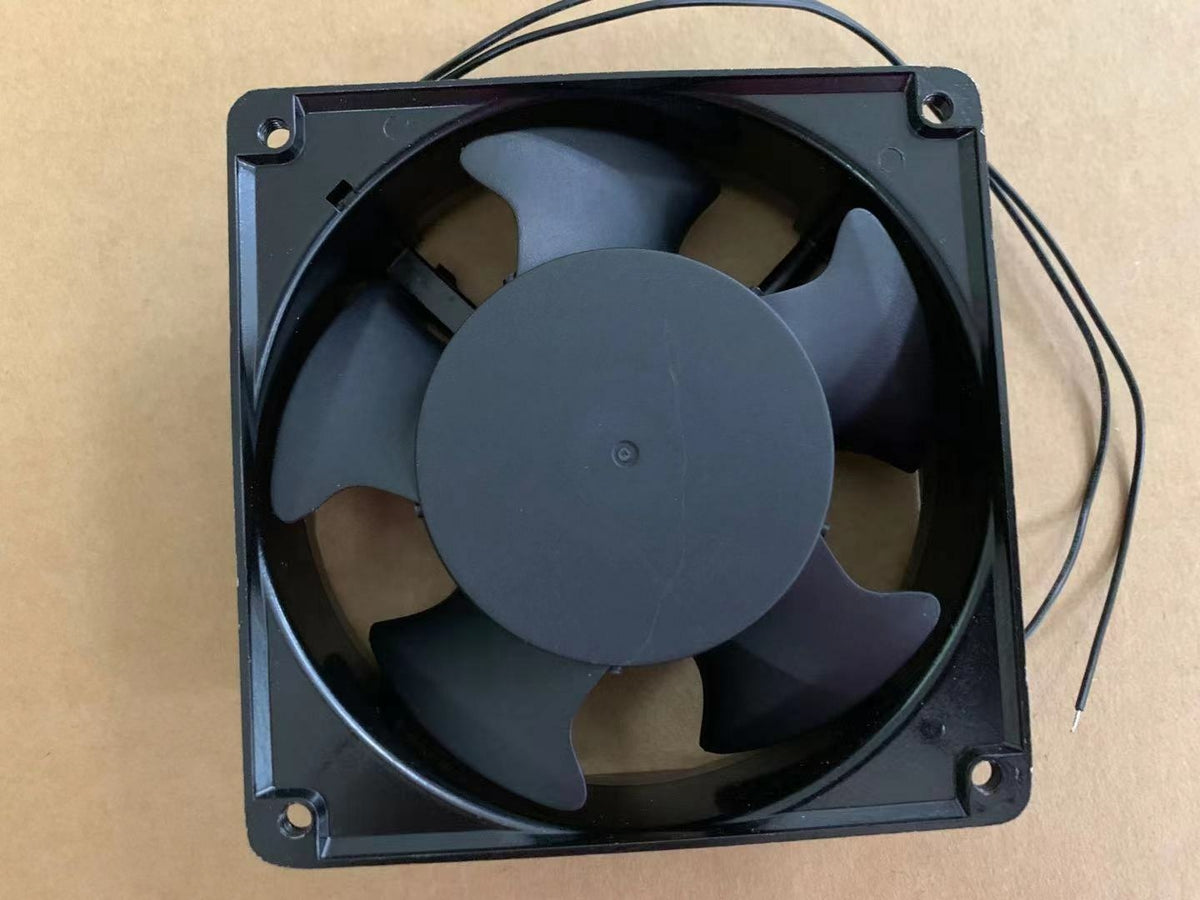

Product images for part identification
FULLTECH
FULLTECH UF-123812H Axial Fan 115VAC 120mm
PRODUCT PRICE
USD
$19.40
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FULLTECH |
| Model Number | UF-123812H |
| Product Category | Axial Fan |
| Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Current | 0.22 A |
| Power | 23/21 W |
| Fan Size | 120 mm x 120 mm x 38 mm |
| Speed | 2600/3000 RPM |
| Air Flow | 80/91 CFM (6.8/8.5 m3/min) |
| Noise Level | 42/46 dB |
| Bearing Type | Ball |
| Termination | 2 Wires |
Key Features
115 VAC Input
The fan is specified for 115 VAC operation at 50/60 Hz.
80/91 CFM Air Flow
The air flow is listed as 80 CFM at 50 Hz and 91 CFM at 60 Hz (6.8/8.5 m3/min).
2600/3000 RPM Speed
The speed is specified as 2600 RPM at 50 Hz and 3000 RPM at 60 Hz.
Ball Bearing Construction
The fan uses ball bearings and a two-wire termination.
23/21 W Power
The power consumption is identified as 23 W at 50 Hz and 21 W at 60 Hz, with a current of 0.22 A.
Applications
- Industrial cabinet and enclosure cooling
- Control panel ventilation
- Heat dissipation in automation equipment
- Air circulation in power supplies and drives
- Cooling of electronic modules in machinery
- General axial airflow applications requiring a 120 mm fan
Purchase Information
We support online purchase of the FULLTECH UF-123812H Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the FULLTECH UF-123812H? The UF-123812H is a FULLTECH axial fan with a 120 mm x 120 mm x 38 mm frame, rated for 115 VAC operation.
What voltage does the UF-123812H use? The fan operates from 115 VAC at 50/60 Hz.
What is the air flow of the UF-123812H? The air flow is 80/91 CFM (6.8/8.5 m3/min) depending on the operating frequency.
What is the speed of the UF-123812H? The speed is 2600/3000 RPM.
What is the power consumption of the UF-123812H? The power is 23/21 W and the current is 0.22 A.
What bearing type does the UF-123812H use? The fan uses ball bearings.
What is the size of the UF-123812H? The fan frame is 120 mm x 120 mm x 38 mm.
How many wires does the UF-123812H have? The fan has a 2-wire termination.
Need help confirming a model?
Send us your part number and technical requirements.
