180° Rotary Motion
The DSR-25-180-P provides a documented swivel and adjustment range from 0° to 180° for limited-angle pneumatic rotary motion.

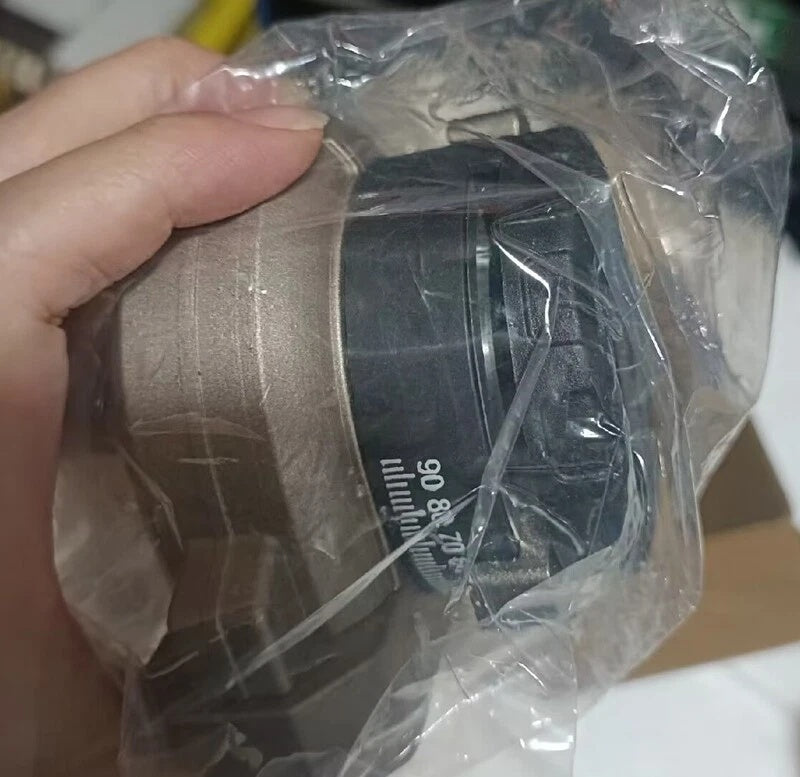

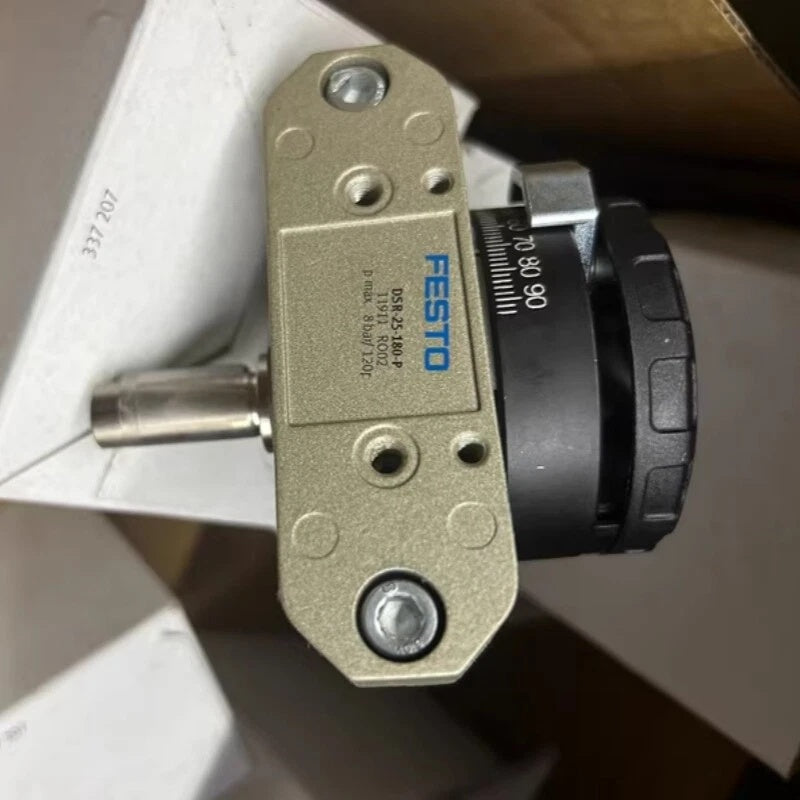

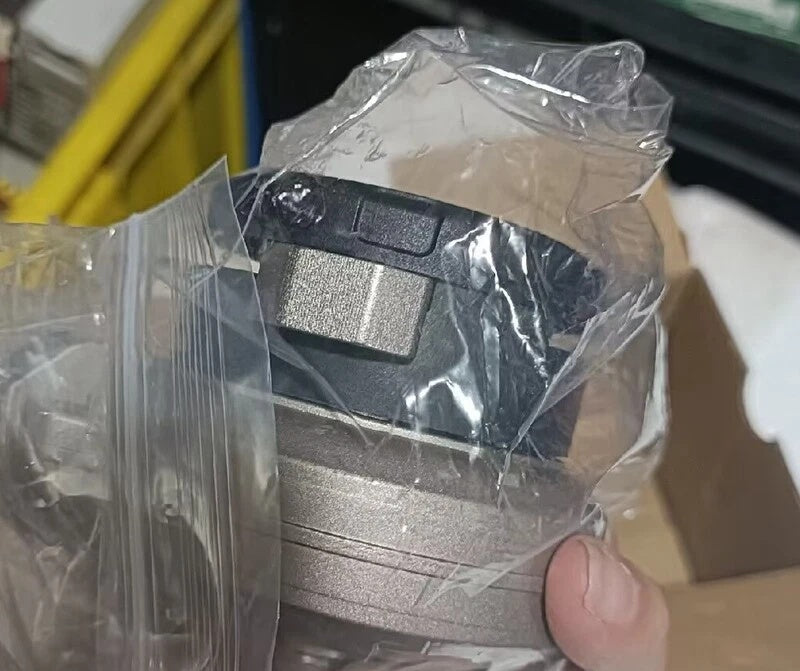

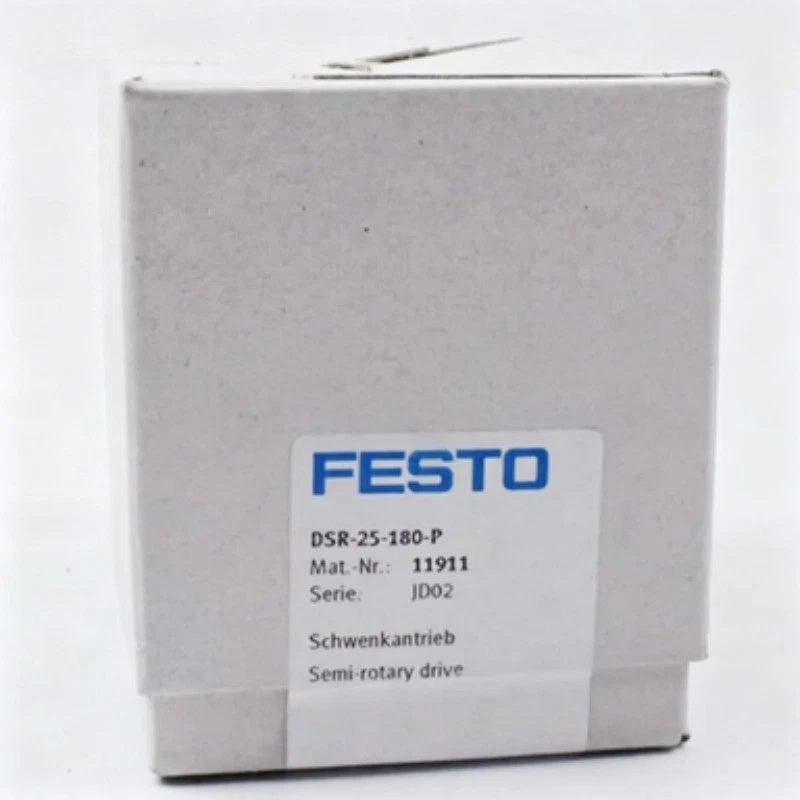

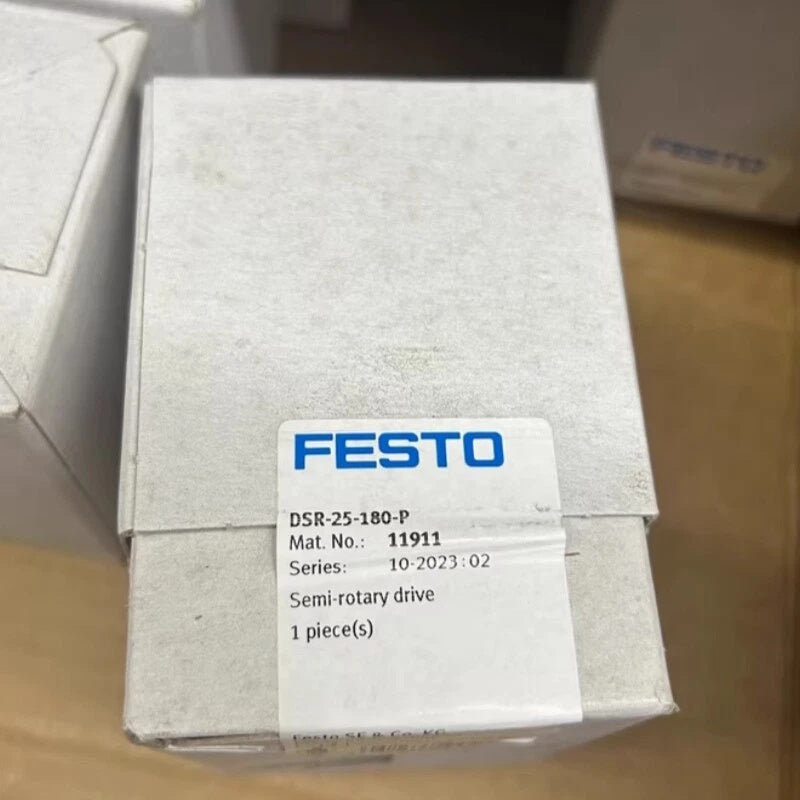

FESTO DSR-25-180-P Semi-Rotary Drive 180° 5Nm G1/8
Available in stock (400)
Regular price
$88.30
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSR-25-180-P |
| Product Category | Semi-Rotary Drive |
| Part Number | 11911 |
| Series | DSR |
| Size | 25 |
| Swivel Angle | 0° to 180° |
| Rotation Angle Adjustment Range | 0° to 180° |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mode of Operation | Double-acting |
| Design | Rotary vane |
| Position Sensing | None |
| Operating Pressure | 2-8 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Theoretical Torque at 6 Bar | 5 Nm |
| Maximum Axial Force | 75 N |
| Maximum Radial Force | 200 N |
| Pneumatic Connection | G1/8 |
| Mounting Position | Any |
| Drive Shaft Material | Steel, nickel-plated |
| Housing Material | Die-cast zinc |
Key Features
5 Nm Theoretical Torque
The documented theoretical torque is 5 Nm at an operating pressure of 6 bar.
Double-Acting Vane Design
The actuator uses a double-acting rotary-vane design to convert compressed air into controlled rotary movement.
Adjustable Rotation Range
The swivel angle can be adjusted within the documented 0° to 180° rotation range to suit the mechanical motion requirement.
Elastic End Cushioning
Elastic cushioning rings or plates are provided at both ends to manage movement near the end positions.
G1/8 Pneumatic Connection
The documented pneumatic connection is G1/8 for integration into suitable compressed-air circuits.
Applications
- Pneumatic rotary positioning systems
- Automated assembly machinery
- Workpiece turning mechanisms
- Material handling equipment
- Packaging and processing machinery
- Indexing and swivelling mechanisms
- Machine automation systems
- Limited-angle rotary motion applications
Purchase Information
We support online purchase of the FESTO DSR-25-180-P Semi-Rotary Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSR-25-180-P?
It is a double-acting pneumatic semi-rotary drive with a rotary-vane design and an adjustable swivel range up to 180°.
What is the FESTO part number?
The documented part number is 11911.
What is the swivel angle?
The documented swivel angle and rotation adjustment range are 0° to 180°.
What torque does DSR-25-180-P provide?
The documented theoretical torque is 5 Nm at 6 bar.
What is the operating pressure range?
The documented operating pressure range is 2 to 8 bar.
What pneumatic connection does it use?
The documented pneumatic connection is G1/8.
What type of operation does it use?
The DSR-25-180-P uses double-acting pneumatic operation.
Does it include position sensing?
The documented configuration does not include position sensing.
What type of cushioning is used?
The actuator uses elastic cushioning rings or plates at both ends.
What is the ambient temperature range?
The documented ambient temperature range is -10°C to +60°C.
Can DSR-25-180-P replace another semi-rotary drive?
It can be considered after the complete model number and technical requirements have been checked. Swivel angle, torque, operating pressure, pneumatic connection, shaft arrangement, mounting and allowable loads should be verified against existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 180° swivel range, 5 Nm theoretical torque at 6 bar, G1/8 connection, mounting arrangement and required load conditions.
