0° to 180° Rotary Motion

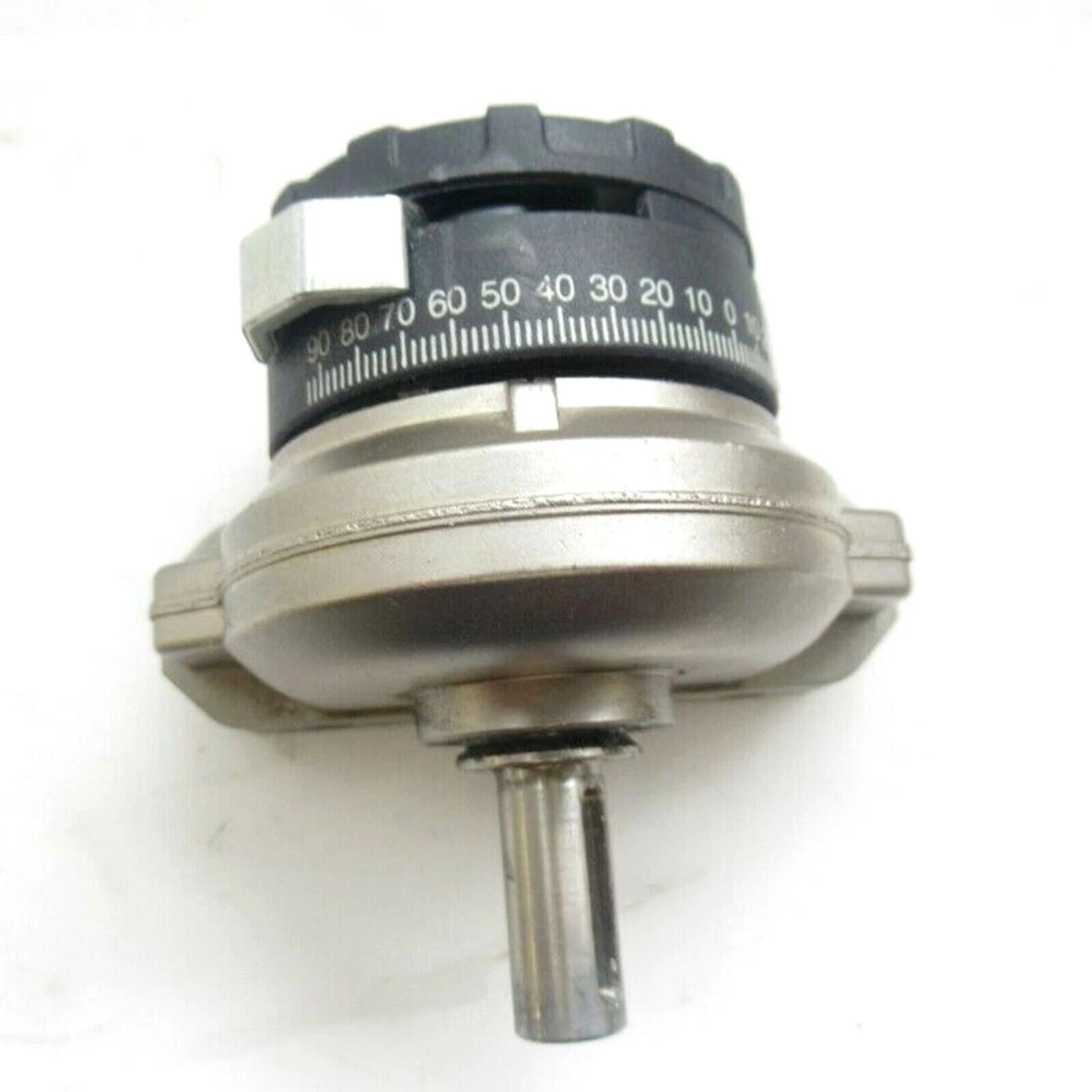

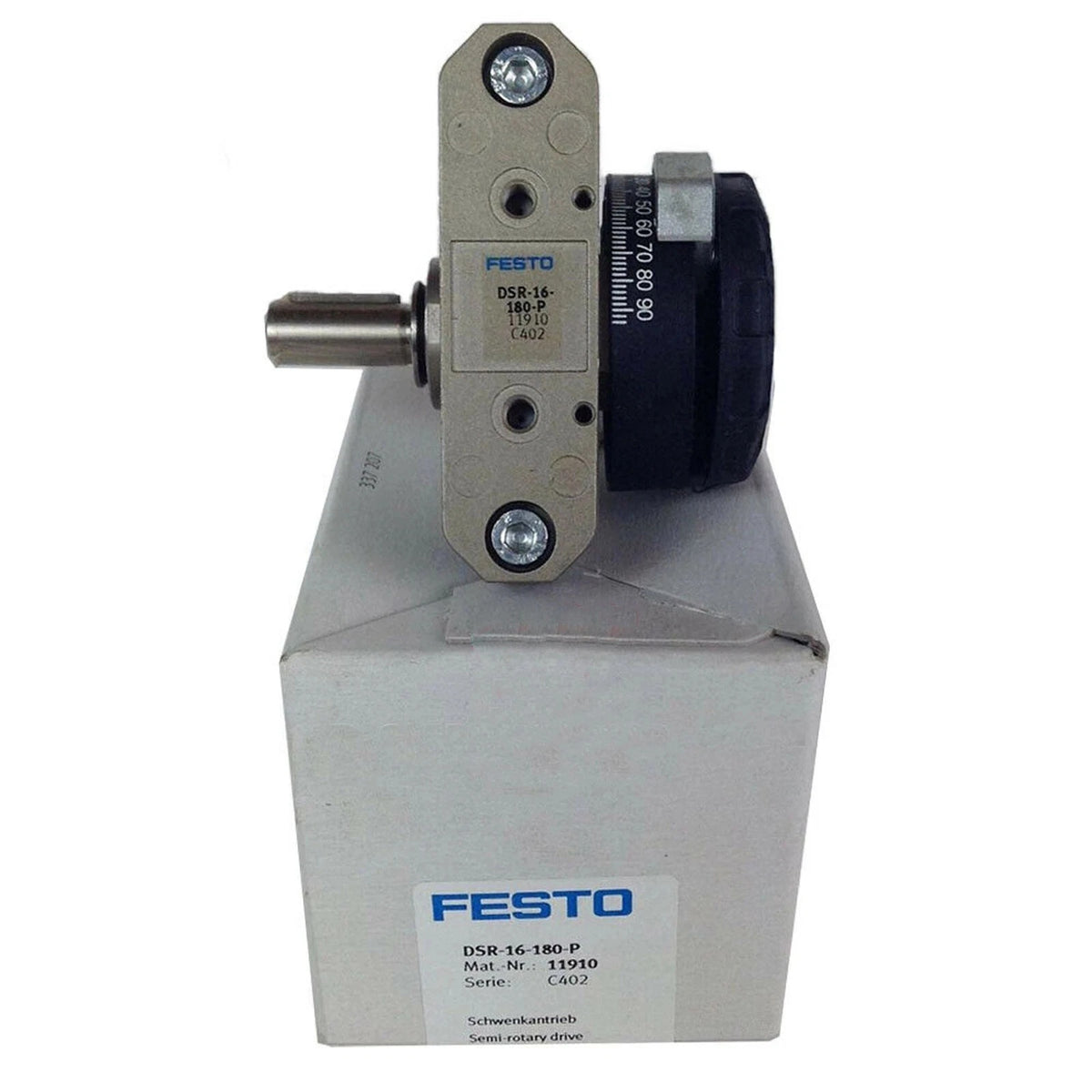

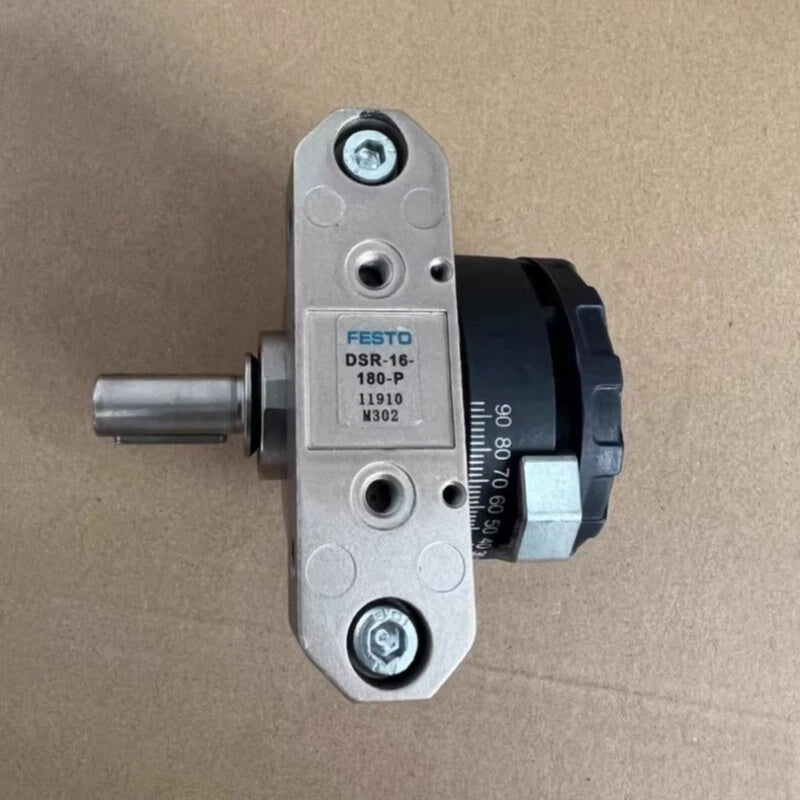

The DSR-16-180-P provides an adjustable swivel angle from 0° to 180° for pneumatic rotary-motion applications.
FESTO DSR-16-180-P Semi-Rotary Drive 180° 2Nm M5
Available in stock (398)
Regular price
$77.18
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSR-16-180-P |
| Product Category | Semi-Rotary Drive |
| Part Number | 11910 |
| Size | 16 |
| Swivel Angle | 0° to 180° |
| Rotation Angle Adjustment Range | 0° to 180° |
| Cushioning Angle | 2.1° |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mode of Operation | Double-acting |
| Design | Rotary vane |
| Position Detection | None |
| Mounting Position | Any |
| Operating Pressure | 2-8 bar |
| Maximum Swivel Frequency at 6 Bar | 3 Hz |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Maximum Axial Force | 30 N |
| Maximum Radial Force | 75 N |
| Theoretical Torque at 6 Bar | 2 Nm |
| Product Weight | 300 g |
| Mounting Type | With through-hole |
| Pneumatic Connection | M5 |
| Cover Material | Reinforced PA |
| Drive Shaft Material | Steel, nickel-plated |
| Seal Material | NBR |
| Housing Material | Die-cast zinc |
Key Features
Double-Acting Operation
The semi-rotary drive uses double-acting pneumatic operation to provide controlled rotary movement in both directions.
Rotary Vane Design
The actuator uses a rotary vane design for converting compressed-air energy into limited angular movement.
2 Nm Theoretical Torque
The documented theoretical torque is 2 Nm at an operating pressure of 6 bar.
Elastic End Cushioning
Elastic cushioning rings or plates are provided at both ends, with a documented cushioning angle of 2.1°.
M5 Pneumatic Connection
The DSR-16-180-P uses an M5 pneumatic connection and operates within a documented pressure range of 2 to 8 bar.
Applications
- Pneumatic rotary positioning systems
- Automated assembly machinery
- Workpiece turning mechanisms
- Material handling equipment
- Packaging and processing machinery
- Pneumatic indexing mechanisms
- Machine automation systems
- Limited-angle rotary motion applications
Purchase Information
We support online purchase of the FESTO DSR-16-180-P Semi-Rotary Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSR-16-180-P?
It is a double-acting pneumatic semi-rotary drive that uses a rotary vane design for limited-angle rotary motion.
What is the FESTO part number?
The documented part number is 11910.
What is the swivel angle?
The documented swivel angle and adjustment range are 0° to 180°.
What is the operating pressure range?
The documented operating pressure range is 2 to 8 bar.
What torque does DSR-16-180-P provide?
The documented theoretical torque is 2 Nm at 6 bar.
What pneumatic connection does it use?
The specified pneumatic connection is M5.
What type of cushioning is used?
The actuator uses elastic cushioning rings or plates at both ends.
Does DSR-16-180-P support position detection?
This model is specified without position detection.
What is the maximum swivel frequency?
The documented maximum swivel frequency at 6 bar is 3 Hz.
What is the ambient temperature range?
The documented ambient temperature range is -10°C to +60°C.
Can DSR-16-180-P replace another rotary actuator?
It can be considered after the complete model number and technical requirements have been checked, including swivel angle, torque, operating pressure, pneumatic connection, mounting arrangement and allowable shaft loads.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 0° to 180° swivel range, 2-8 bar operating pressure, M5 connection and required torque.
