270° Swivel Range
The DSM-40-270-P-FW-A-B provides a documented swivel angle and adjustment range from 0° to 270° for limited rotary-motion applications.

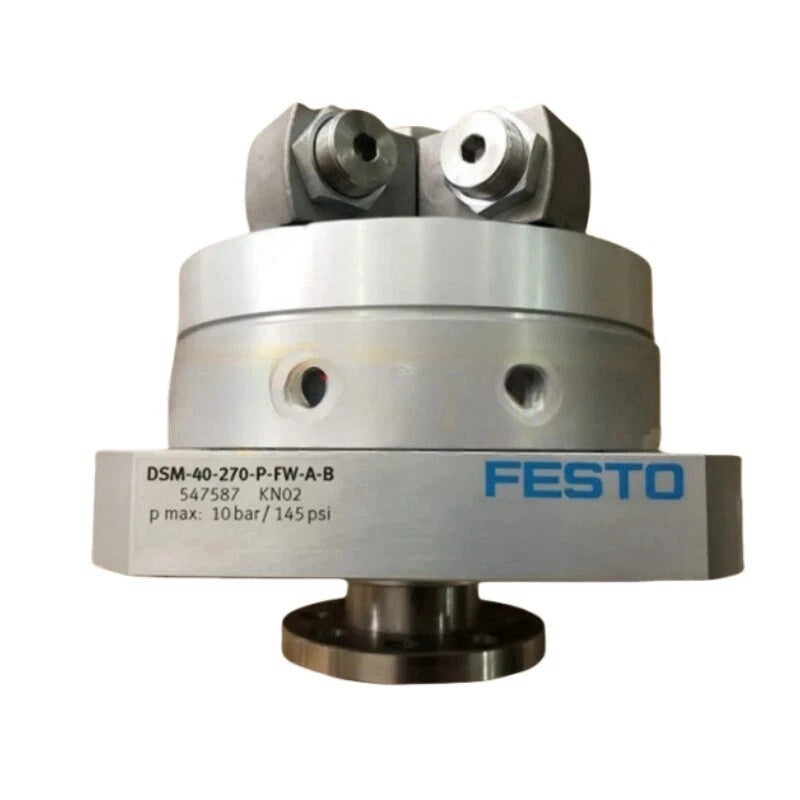

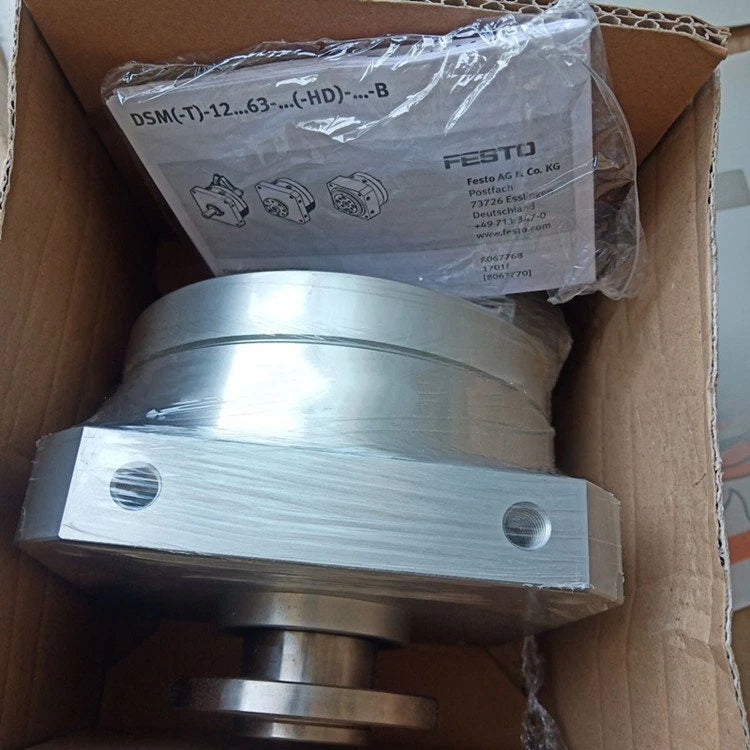

FESTO DSM-40-270-P-FW-A-B Semi-Rotary Drive 270° 20Nm G1/8
Available in stock (400)
Regular price
$281.06
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSM-40-270-P-FW-A-B |
| Product Category | Semi-Rotary Drive |
| Part Number | 547587 |
| Series | DSM |
| Size | 40 |
| Swivel Angle | 0° to 270° |
| Rotation Angle Adjustment Range | 0° to 270° |
| Fine Adjustment | -6° |
| Cushioning Angle | 2° |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mode of Operation | Double-acting |
| Design | Vane |
| Position Detection | Via proximity switch |
| Operating Pressure | 1.5-10 bar |
| Maximum Swivel Frequency at 6 Bar | 2 Hz |
| Repetition Accuracy | 1° |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Maximum Stop Force | 650 N |
| Maximum Axial Force | 120 N |
| Maximum Radial Force | 350 N |
| Theoretical Torque at 6 Bar | 20 Nm |
| Permissible Mass Moment of Inertia | 0.035 kgm² |
| Product Weight | 2835 g |
| Mounting Type | Via female thread |
| Pneumatic Connection | G1/8 |
| Drive Shaft | Flanged shaft |
| Drive Shaft Material | Steel, nickel-plated |
| Seal Material | TPE-U(PU) |
| Housing Material | Aluminium, anodized |
Key Features
20 Nm Theoretical Torque
The documented theoretical torque is 20 Nm at an operating pressure of 6 bar.
Double-Acting Vane Design
The actuator uses a double-acting vane design to convert compressed-air energy into controlled rotary movement.
Flanged Drive Shaft
The FW configuration provides a flanged drive shaft for mechanical connection to the driven component.
Position Detection
The DSM-40-270-P-FW-A-B is designed for position detection via a suitable proximity switch.
Elastic End Cushioning
Elastic cushioning rings or plates are fitted at both ends, with a documented cushioning angle of 2°.
Applications
- Pneumatic rotary positioning systems
- Automated assembly machinery
- Workpiece turning mechanisms
- Material handling equipment
- Packaging and processing machinery
- Indexing and swivelling mechanisms
- Machine automation systems
- Limited-angle rotary motion applications
Purchase Information
We support online purchase of the FESTO DSM-40-270-P-FW-A-B Semi-Rotary Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSM-40-270-P-FW-A-B?
It is a double-acting pneumatic semi-rotary drive with a vane design, flanged shaft and position detection via proximity switch.
What is the FESTO part number?
The documented part number is 547587.
What is the swivel angle?
The documented swivel angle and rotation adjustment range are 0° to 270°.
What torque does the actuator provide?
The documented theoretical torque is 20 Nm at 6 bar.
What is the operating pressure range?
The documented operating pressure range is 1.5 to 10 bar.
What pneumatic connection does it use?
The documented pneumatic connection is G1/8.
What type of shaft does this model have?
The FW configuration uses a flanged drive shaft.
Does DSM-40-270-P-FW-A-B support position detection?
Yes. Position detection is provided via a suitable proximity switch.
What type of cushioning is used?
The actuator uses elastic cushioning rings or plates at both ends.
What is the ambient temperature range?
The documented ambient temperature range is -10°C to +60°C.
Can DSM-40-270-P-FW-A-B replace another rotary actuator?
It can be considered after the complete model number and technical requirements have been checked. Swivel angle, torque, operating pressure, shaft design, pneumatic connection, mounting and allowable loads should be verified against the existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 270° swivel range, 20 Nm theoretical torque at 6 bar, G1/8 connection, flanged shaft and required position-sensing arrangement.
