ISO 15552 Cylinder
The DSBC-32-60-PPSA-N3 is a standards-based pneumatic cylinder conforming to ISO 15552 for industrial linear-motion applications.
1 / 10
Festo

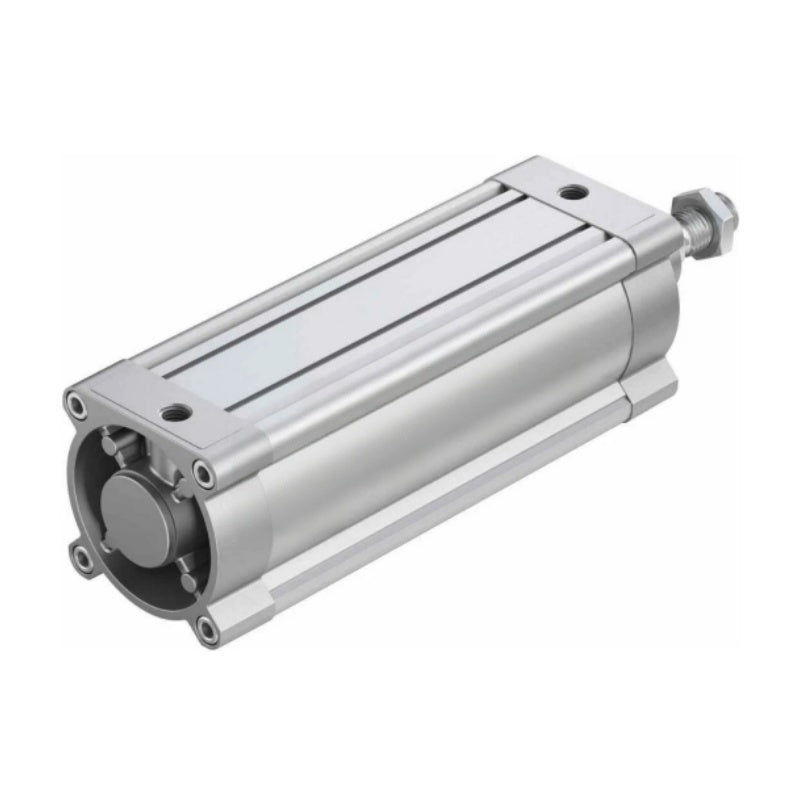

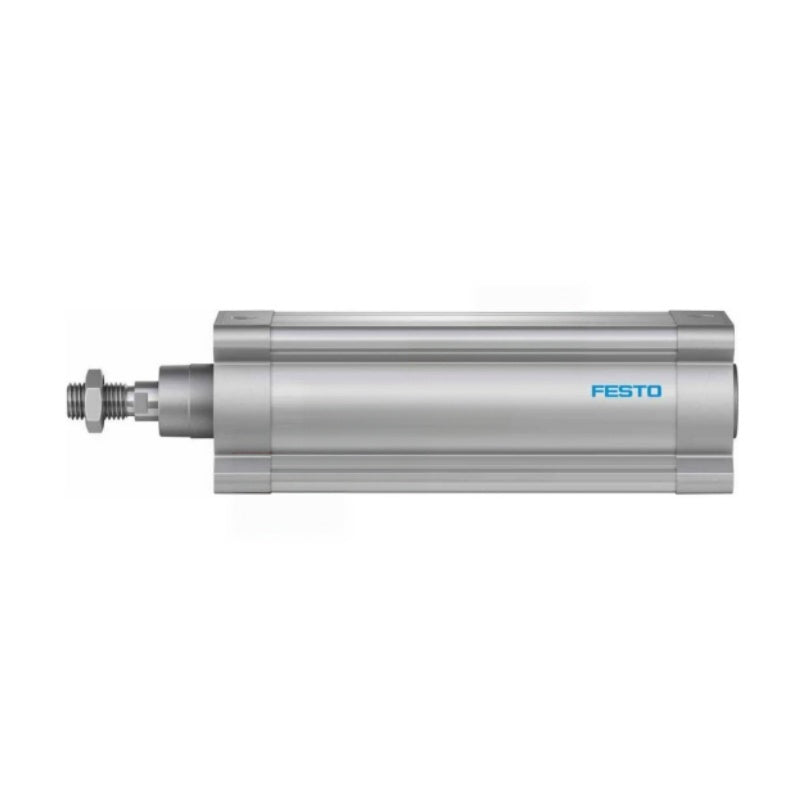

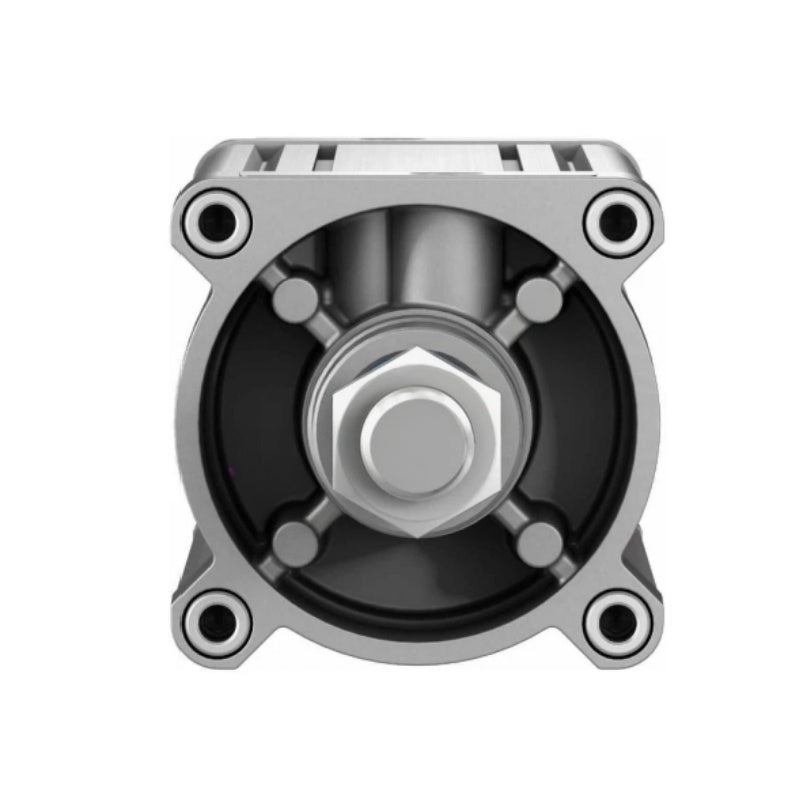

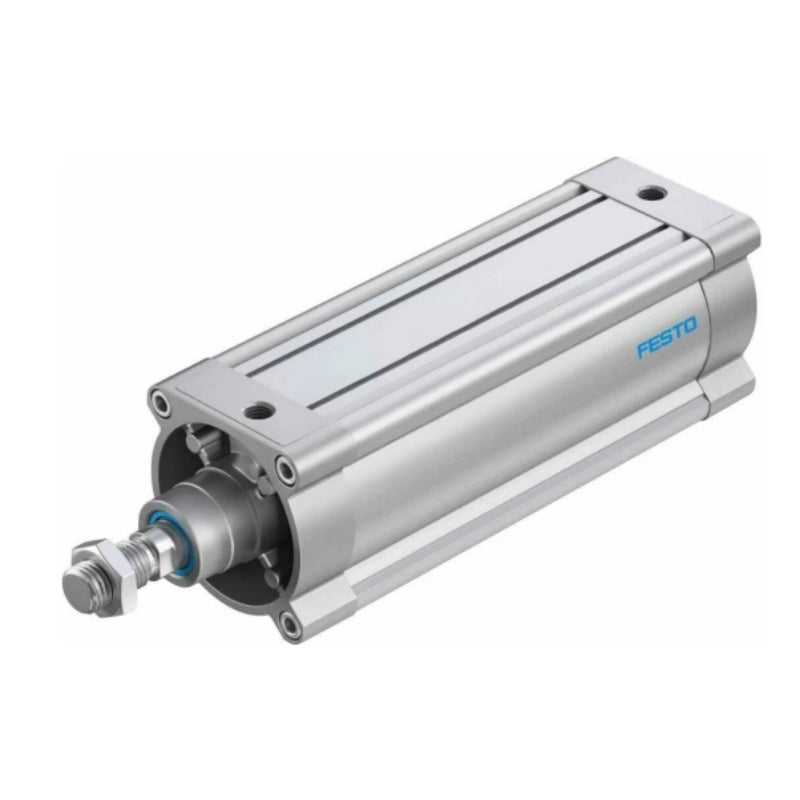

FESTO DSBC-32-60-PPSA-N3 ISO Cylinder 32mm Bore 60mm Stroke 12bar
PRODUCT PRICE
USD
$114.02
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-32-60-PPSA-N3 |
| Product Category | ISO Cylinder |
| Part Number | 2123087 |
| Series | DSBC |
| Conforms to Standard | ISO 15552 |
| Stroke | 60 mm |
| Piston Diameter | 32 mm |
| Mode of Operation | Double-Acting |
| Cushioning | Self-Adjusting Pneumatic End-Position Cushioning |
| Cushioning Length | 17 mm |
| Piston Rod Thread | M10x1.25 |
| Pneumatic Connection | G1/8 |
| Operating Pressure | 0.6-12 bar |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Position Detection | Via Proximity Switch |
| Theoretical Force at 6 bar, Advance Stroke | 483 N |
| Theoretical Force at 6 bar, Return Stroke | 415 N |
| Product Weight | 627 g |
Key Features
32 mm Bore and 60 mm Stroke
The cylinder combines a 32 mm piston diameter with a 60 mm stroke for pneumatic linear movement.
Double-Acting Operation
Compressed air acts on both sides of the piston to provide controlled advance and return movements.
Self-Adjusting Cushioning
PPS self-adjusting pneumatic end-position cushioning provides deceleration at the cylinder end positions without manual cushioning adjustment.
0.6-12 Bar Operating Range
The documented operating pressure range is 0.6 to 12 bar for suitable compressed-air systems.
Position Detection
The cylinder supports position detection via a suitable proximity switch for integration into automated pneumatic systems.
Applications
- Industrial linear motion
- Automated assembly equipment
- Pneumatic handling systems
- Packaging machinery
- Material positioning equipment
- Machine automation
- Clamping and pushing mechanisms
- Production line equipment
Purchase Information
We support online purchase of the FESTO DSBC-32-60-PPSA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-32-60-PPSA-N3?
It is a double-acting standards-based pneumatic cylinder from the FESTO DSBC series conforming to ISO 15552.
What is the FESTO part number?
The part number for DSBC-32-60-PPSA-N3 is 2123087.
What are the bore and stroke dimensions?
The piston diameter is 32 mm and the stroke is 60 mm.
What type of cushioning is used?
The cylinder uses self-adjusting pneumatic end-position cushioning with a documented cushioning length of 17 mm.
Is DSBC-32-60-PPSA-N3 double-acting?
Yes. The documented mode of operation is double-acting.
What is the operating pressure range?
The documented operating pressure range is 0.6 to 12 bar.
What pneumatic connection does it use?
The pneumatic connection is G1/8.
What piston rod thread is provided?
The piston rod has an M10x1.25 male thread.
Does the cylinder support position detection?
Yes. The cylinder is designed for position detection via a suitable proximity switch.
What is the ambient temperature range?
The documented ambient temperature range is -20°C to +80°C.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 483 N on the advance stroke and 415 N on the return stroke at 6 bar.
What should be checked before ordering?
Verify the complete DSBC-32-60-PPSA-N3 model designation, part number 2123087, 32 mm piston diameter, 60 mm stroke, G1/8 pneumatic connection, M10x1.25 piston rod thread and the mechanical and pneumatic requirements of the target application.
Need help confirming a model?
Send us your part number and technical requirements.
