NPN N/O Switching
The sensor uses an NPN switching output with a normally open contact function.

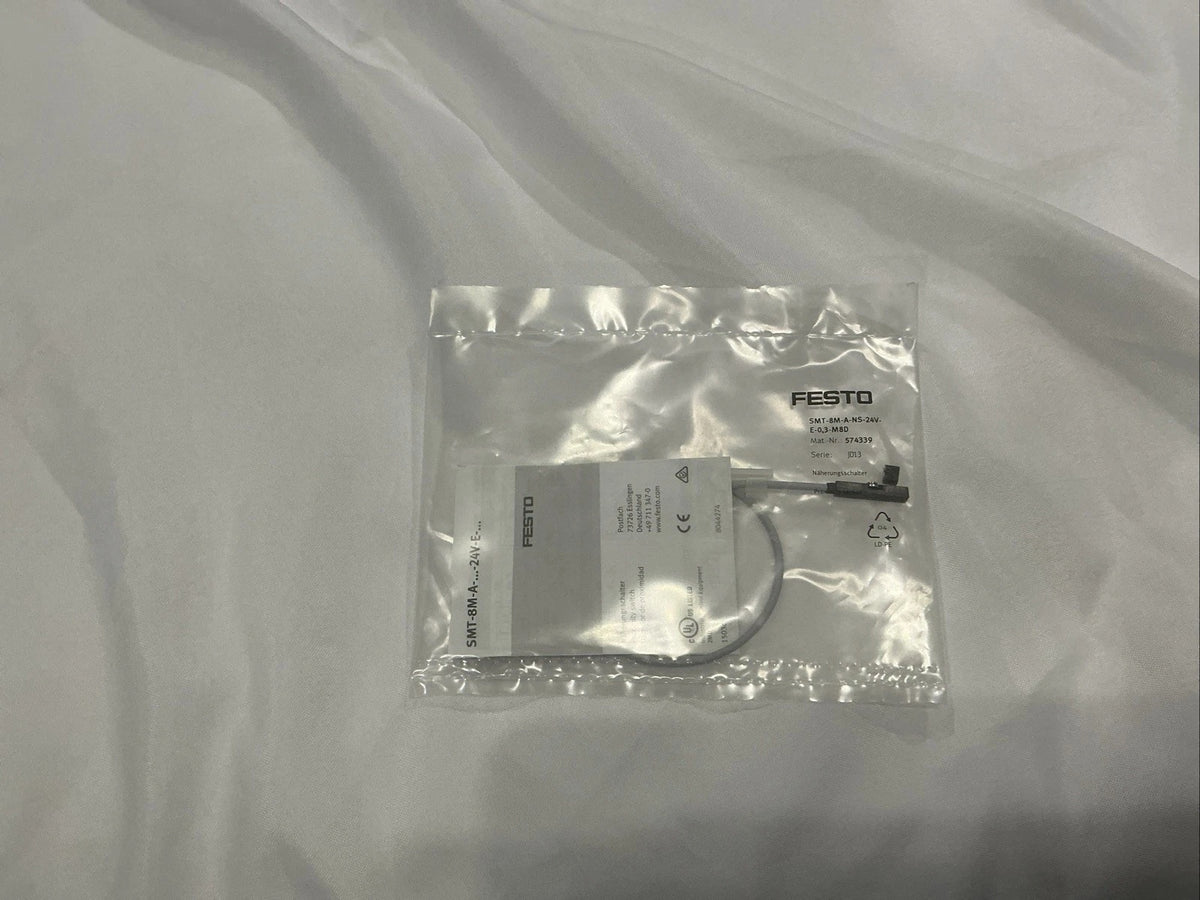

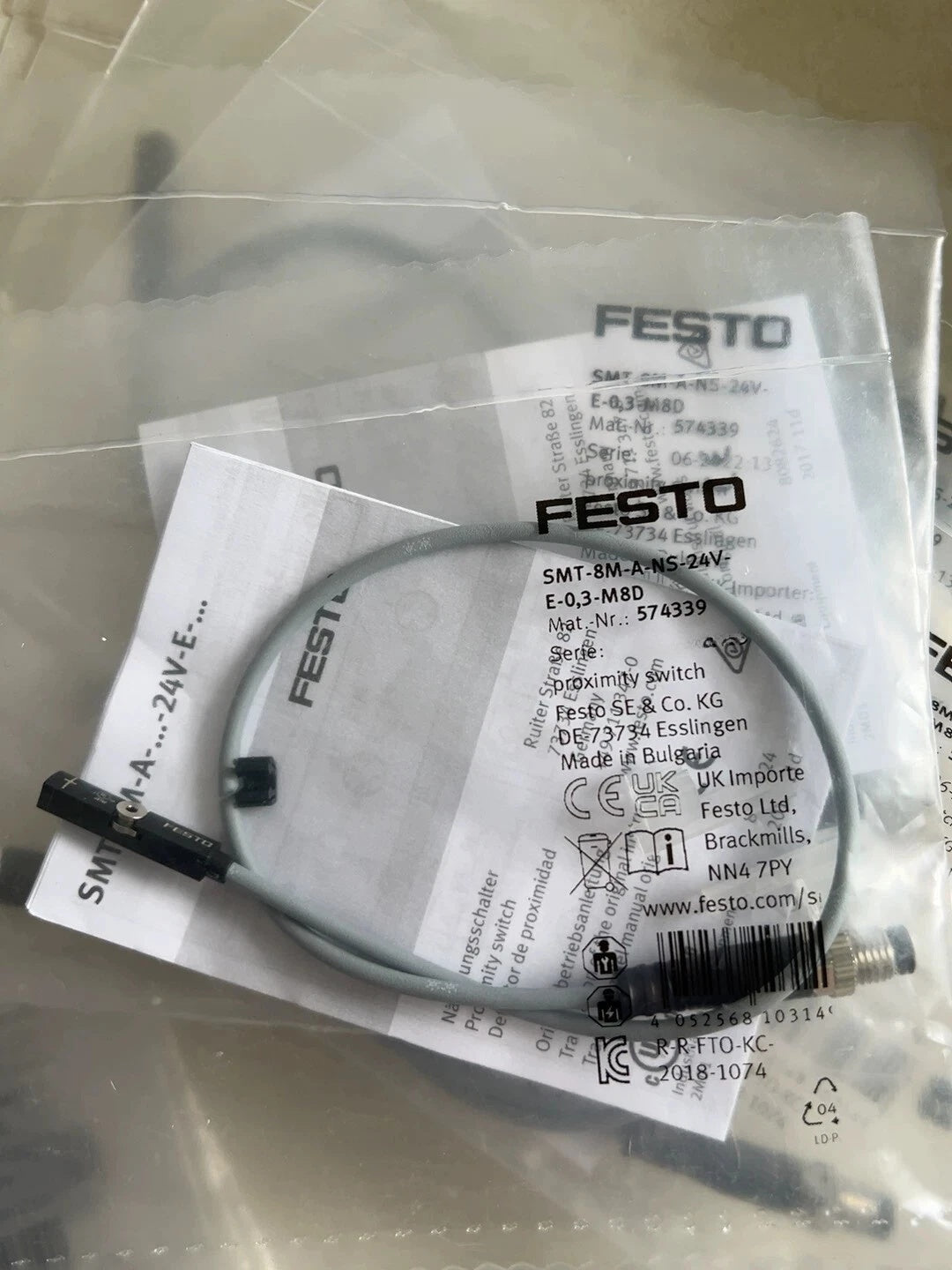

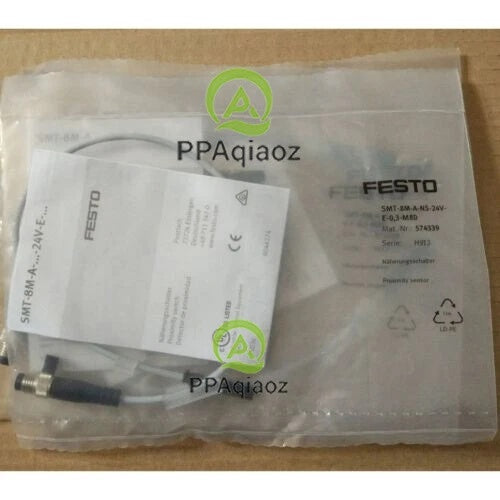

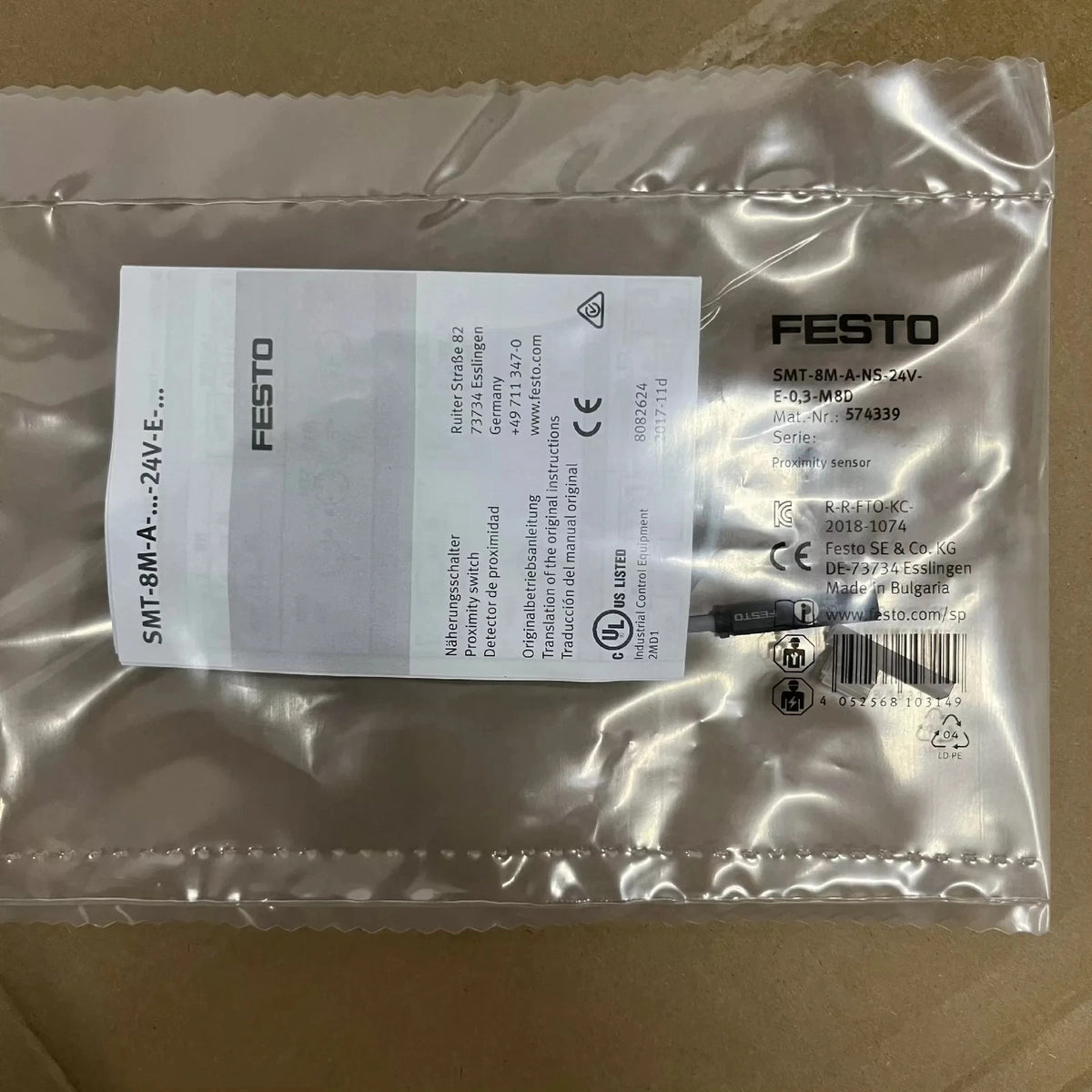

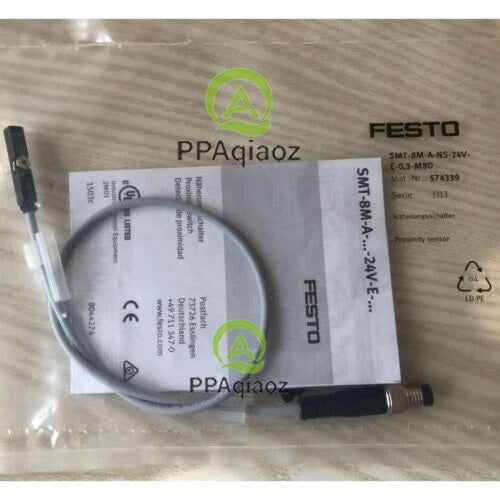

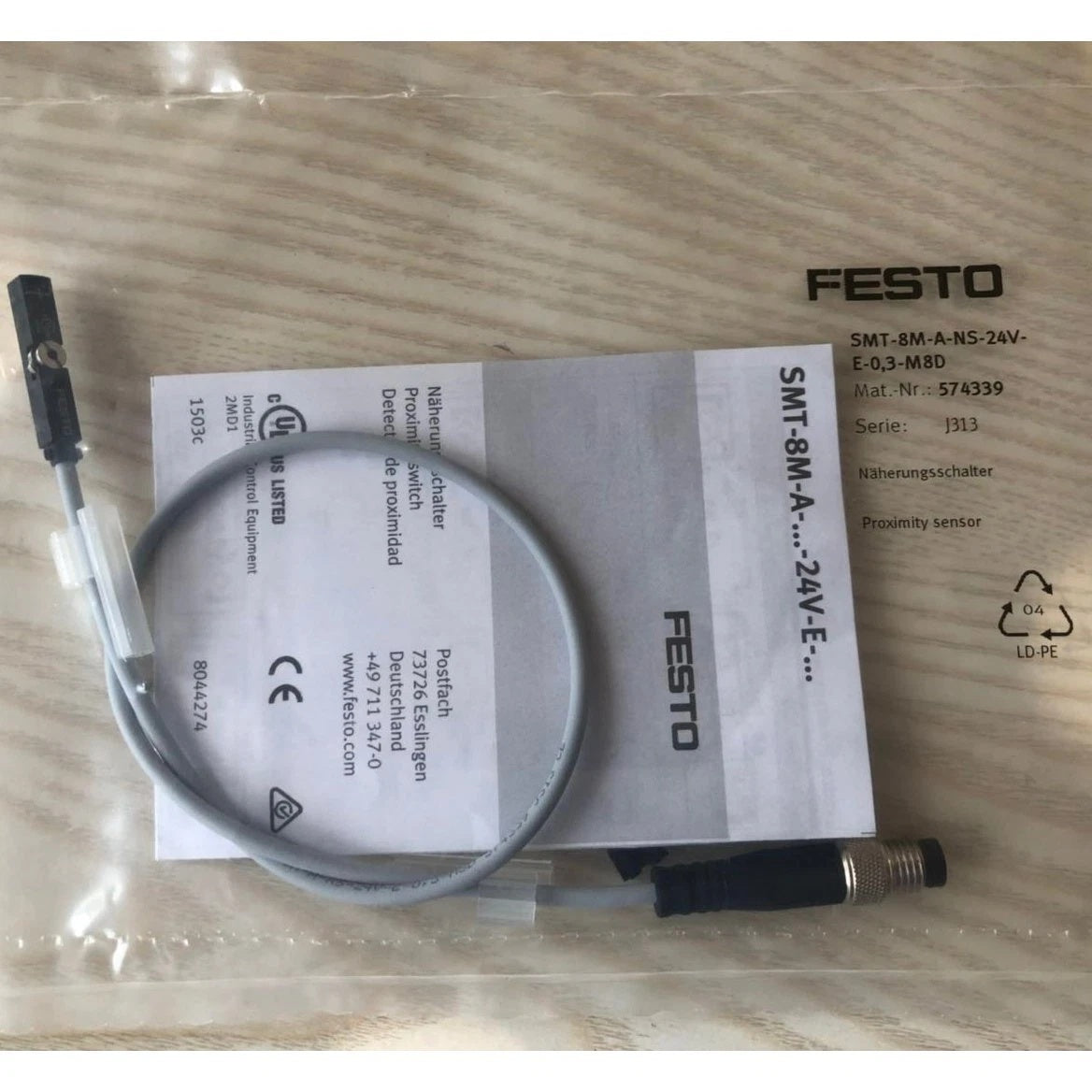

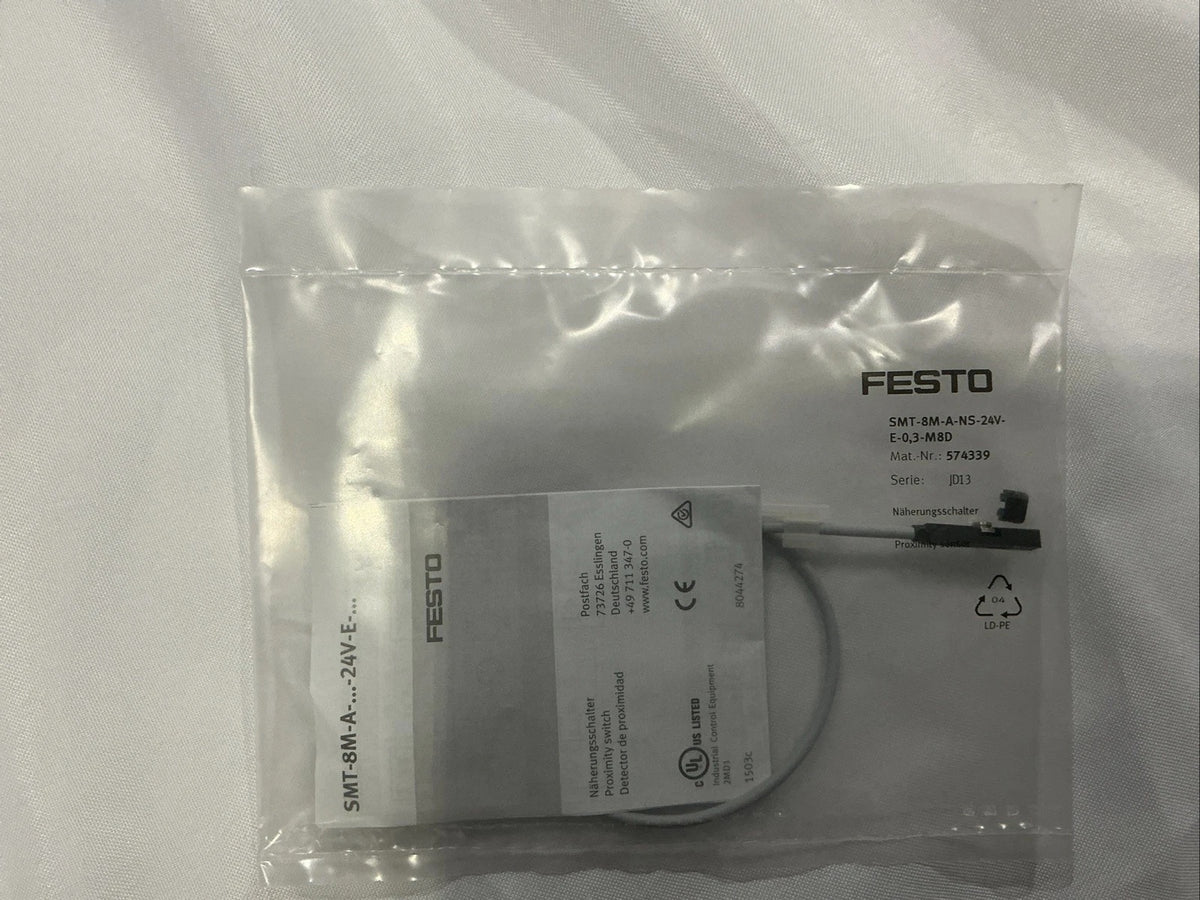

FESTO SMT-8M-A-NS-24V-E-0,3-M8D Proximity Sensor 24VDC NPN M8
Available in stock (400)
Regular price
$16.91
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | SMT-8M-A-NS-24V-E-0,3-M8D |
| Product Category | Proximity Sensor |
| Part Number | 574339 |
| Design | For T-slot |
| Measured Variable | Position |
| Measuring Principle | Magneto-resistive |
| Switching Output | NPN |
| Switching Element Function | N/O contact |
| Rated Operational Voltage | 24 VDC |
| Operational Voltage Range | 5-30 VDC |
| Maximum Output Current | 100 mA |
| Maximum Switching Frequency | 130 Hz |
| Repetition Accuracy | 0.2 mm |
| Electrical Connection | M8x1, A-coded, 3-pin |
| Cable Length | 0.3 m |
| Ambient Temperature | -40°C to +85°C |
| Degree of Protection | IP65 / IP68 / IP69K |
| Product Weight | 8.9 g |
Key Features
24 VDC Rated Operation
Festo specifies a rated operational voltage of 24 VDC and an operating range of 5-30 VDC.
Magneto-Resistive Sensing
Position detection is based on a magneto-resistive measuring principle.
T-Slot Design
The sensor is designed for T-slot mounting and can be inserted into the slot from above.
M8 Electrical Connection
A 0.3 m cable with an M8x1 A-coded 3-pin connector is specified for this model.
IP65 / IP68 / IP69K
The published degree of protection includes IP65, IP68 and IP69K.
Applications
- Pneumatic cylinder position sensing
- End-position detection in automation systems
- Machine position monitoring
- Actuator position feedback
- Industrial handling equipment
- Assembly automation
- Packaging machinery position detection
- Automated production equipment
Purchase Information
We support online purchase of the FESTO SMT-8M-A-NS-24V-E-0,3-M8D Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO SMT-8M-A-NS-24V-E-0,3-M8D?
It is a proximity sensor for position detection with a magneto-resistive measuring principle and an NPN switching output.
What is the part number for SMT-8M-A-NS-24V-E-0,3-M8D?
Festo identifies this model with part number 574339.
What switching output does this sensor use?
The specified switching output is NPN with an N/O contact function.
What voltage does SMT-8M-A-NS-24V-E-0,3-M8D use?
The rated operational voltage is 24 VDC, with a specified DC operating range of 5-30 VDC.
What is the maximum output current?
The specified maximum output current is 100 mA.
What is the maximum switching frequency?
The specified maximum switching frequency is 130 Hz.
What electrical connection is provided?
This model uses a 0.3 m cable with an M8x1 A-coded 3-pin connector.
What is the ambient temperature range?
The specified ambient temperature range is -40°C to +85°C.
What degree of protection is specified?
The published degree of protection includes IP65, IP68 and IP69K.
What should be checked before ordering?
Check the complete model number, NPN N/O switching requirement, 5-30 VDC operating range, M8 connection, T-slot installation requirements and the electrical documentation for the application.
Can this sensor be considered for an existing automation system?
It can be considered after the complete model number and the electrical, mechanical and installation requirements have been checked against the existing system.
