3/2-Way Valve Function
The valve is configured as a closed, monostable 3/2-way solenoid valve with mechanical spring reset.

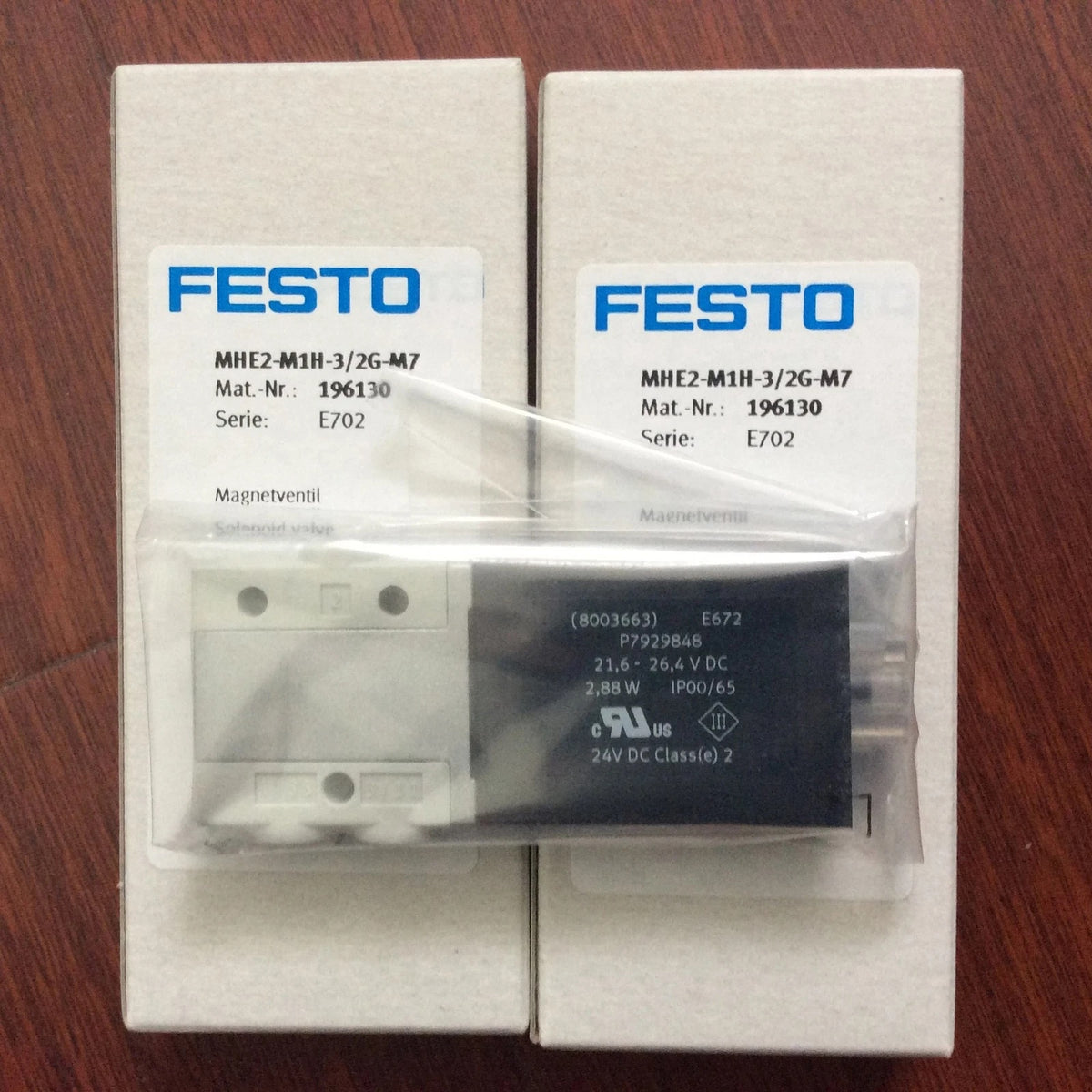

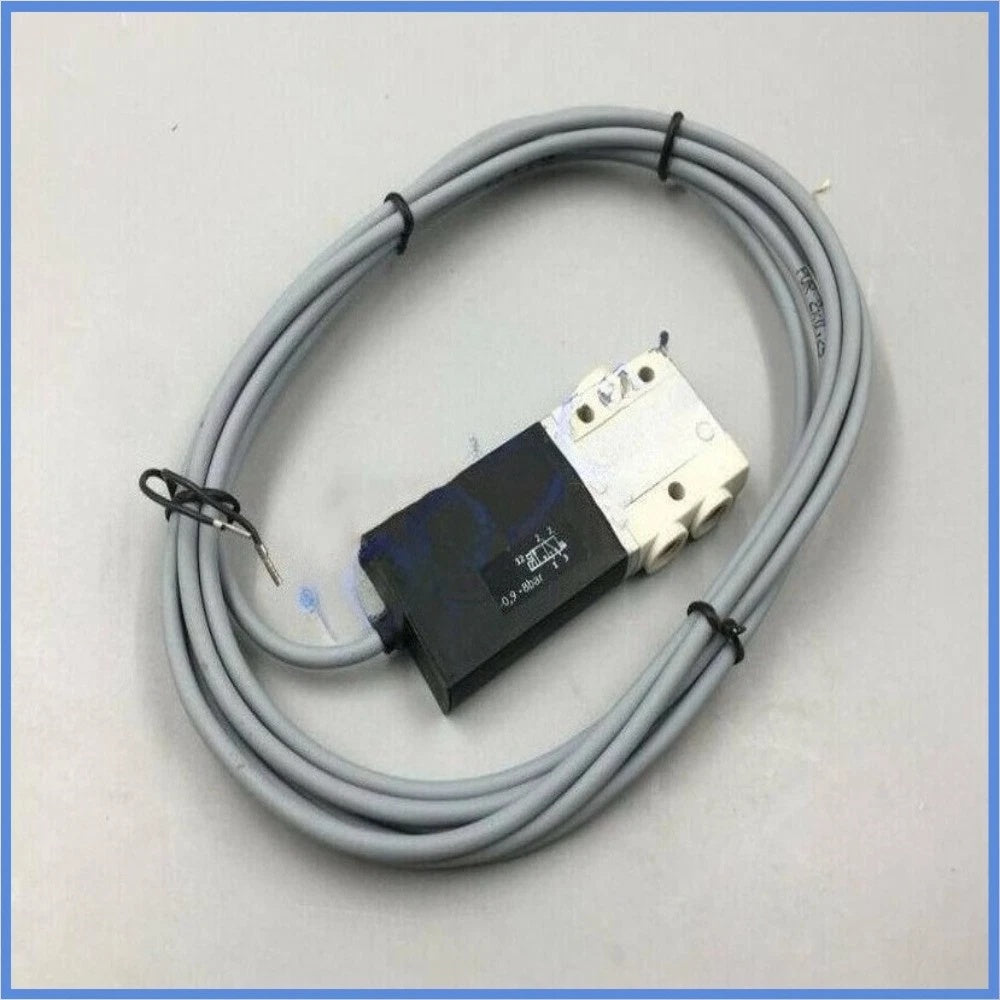

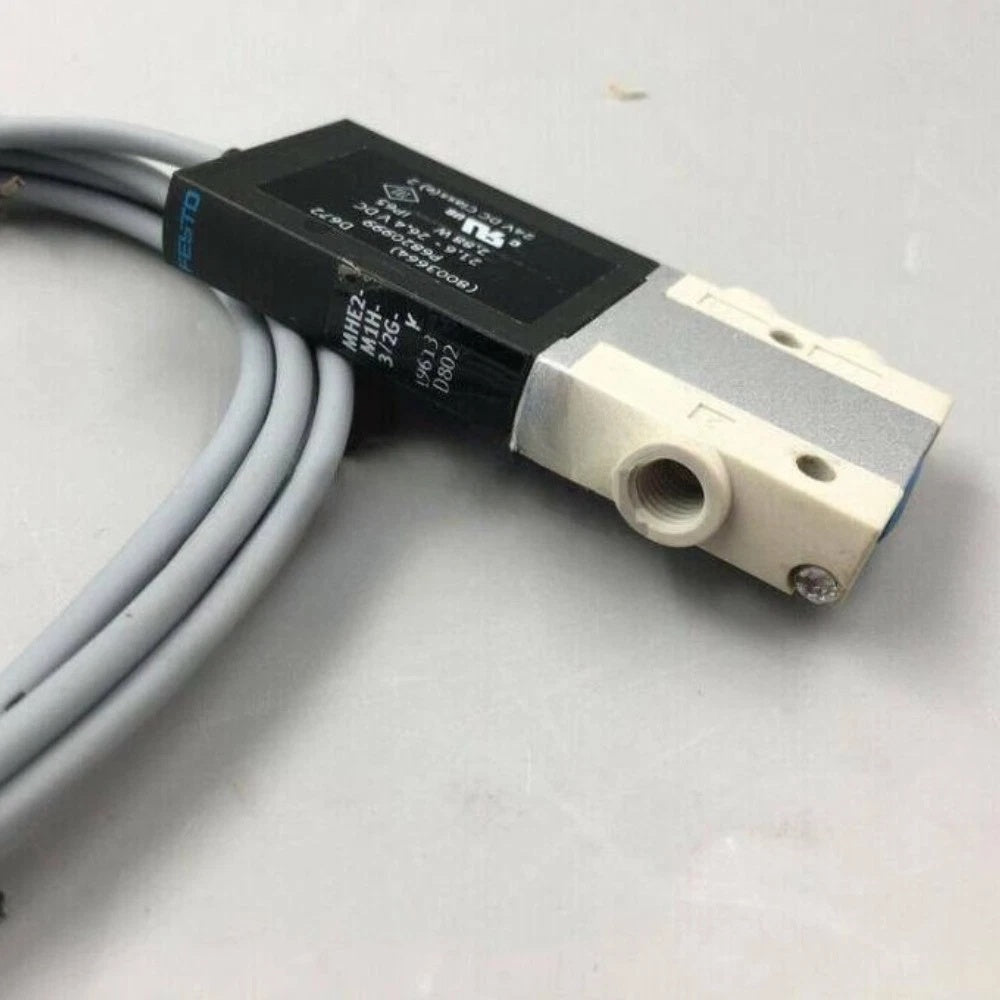

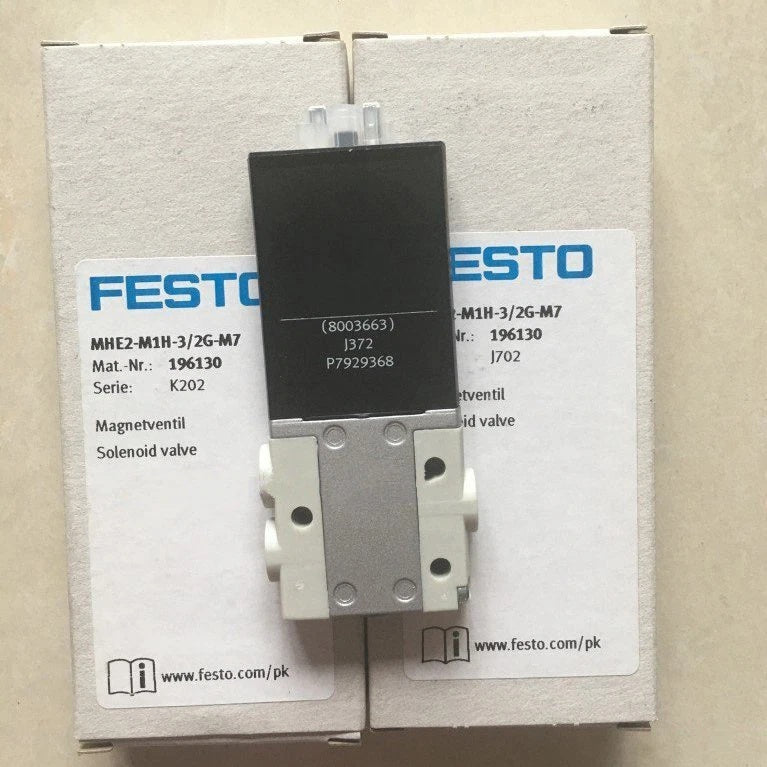

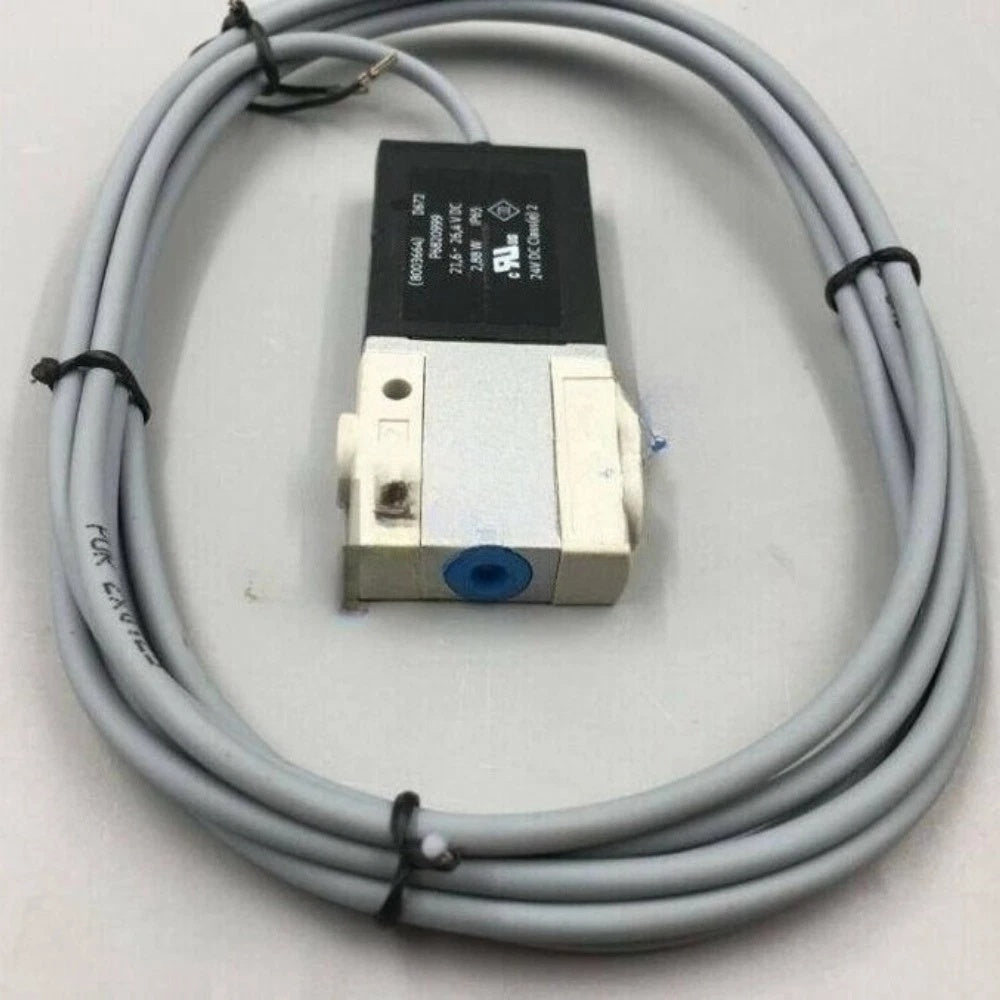

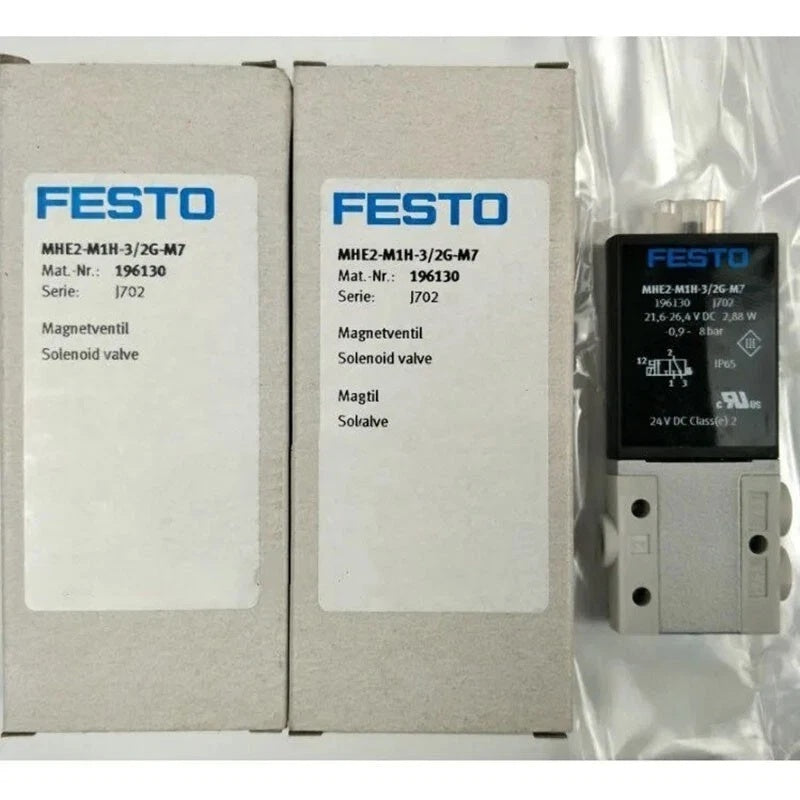

FESTO MHE2-M1H-3/2G-M7 Solenoid Valve 24VDC M7 100 l/min
Available in stock (400)
Regular price
$37.41
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MHE2-M1H-3/2G-M7 |
| Product Category | Solenoid Valve |
| Part Number | 196130 |
| Valve Function | 3/2-way, Closed, Monostable |
| Actuation Type | Electrical |
| Construction Width | 10 mm |
| Standard Nominal Flow Rate | 100 l/min |
| Pneumatic Working Port | M7 |
| Operating Voltage | 24 VDC |
| Operating Pressure | -0.9 to 8 bar |
| Design | Pressure-Relief Poppet Valve |
| Reset Method | Mechanical Spring |
| Degree of Protection | IP65 |
| Nominal Size | 2 mm |
| Manual Override | Non-Detenting |
| Type of Control | Direct |
| Maximum Switching Frequency | 130 Hz |
| Switching Time Off | 3.5 ms |
| Switching Time On | 7 ms |
| Duty Cycle | 100% |
| Coil Characteristics | 24 VDC, 2.88 W |
| Operating Medium | Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5°C to +60°C |
| Electrical Connection | 2-Pin Plug |
| Mounting Type | Through-Hole |
| Pneumatic Connections 1, 2 and 3 | M7 |
Key Features
24VDC Operation
The specified operating voltage is 24 VDC, with coil characteristics of 2.88 W.
100 l/min Nominal Flow
The documented standard nominal flow rate is 100 l/min under the specified standardized conditions.
M7 Pneumatic Connections
The working port and pneumatic connections 1, 2 and 3 use M7 connections.
Direct Control
The valve uses direct control with a pressure-relief poppet valve design and mechanical spring reset.
130 Hz Maximum Switching Frequency
The specified maximum switching frequency is 130 Hz, with a 7 ms switching-on time and 3.5 ms switching-off time.
Applications
- Pneumatic automation systems
- Compressed-air control circuits
- Rapid pneumatic switching applications
- Industrial machine pneumatic control
- Automated equipment air control
- Pneumatic actuator control circuits
- Equipment requiring 3/2-way valve functions
- Industrial pneumatic system maintenance
Purchase Information
We support online purchase of the FESTO MHE2-M1H-3/2G-M7 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MHE2-M1H-3/2G-M7?
FESTO MHE2-M1H-3/2G-M7 is an electrically actuated 3/2-way, closed, monostable solenoid valve with part number 196130.
What operating voltage does MHE2-M1H-3/2G-M7 use?
The specified operating voltage is 24 VDC.
What is the valve function of MHE2-M1H-3/2G-M7?
It has a 3/2-way, closed, monostable valve function with mechanical spring reset.
What is the nominal flow rate?
The specified standard nominal flow rate is 100 l/min.
What pneumatic connection does the valve use?
The pneumatic working port and pneumatic connections 1, 2 and 3 are specified as M7.
What is the operating pressure range?
The documented operating pressure range is -0.9 to 8 bar.
What is the degree of protection?
The specified degree of protection is IP65.
What are the switching characteristics?
The specified maximum switching frequency is 130 Hz, with a switching-on time of 7 ms and switching-off time of 3.5 ms.
What operating medium is specified?
The specified operating medium is compressed air per ISO 8573-1:2010 [7:4:4].
What ambient temperature range is specified?
The specified ambient temperature range is -5°C to +60°C.
What electrical connection is used?
The documented electrical connection is a 2-pin plug.
What should be checked before ordering MHE2-M1H-3/2G-M7?
Check the complete model number, 24 VDC electrical requirement, 3/2-way valve function, M7 pneumatic connections, pressure requirements and installation requirements against the intended pneumatic system before ordering.
