20 mm Bore and 10 mm Stroke
The ADVU-20-10-P-A combines a 20 mm piston diameter with a 10 mm stroke for short linear movements in pneumatic equipment.

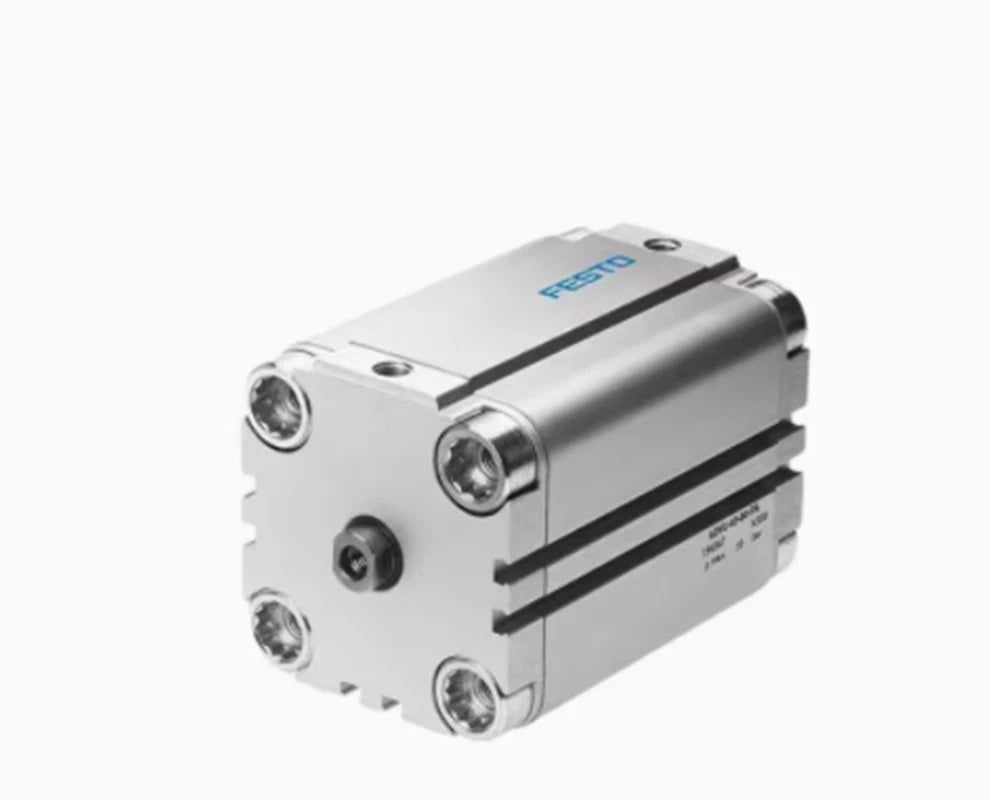

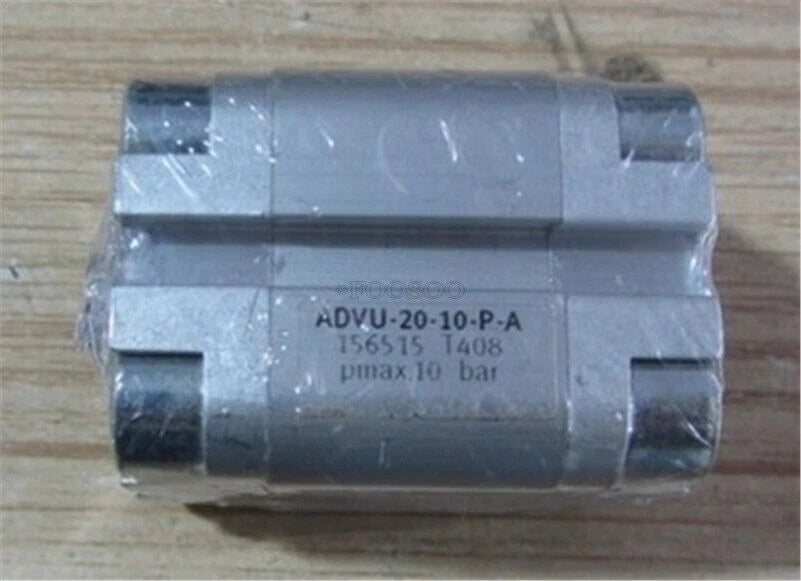

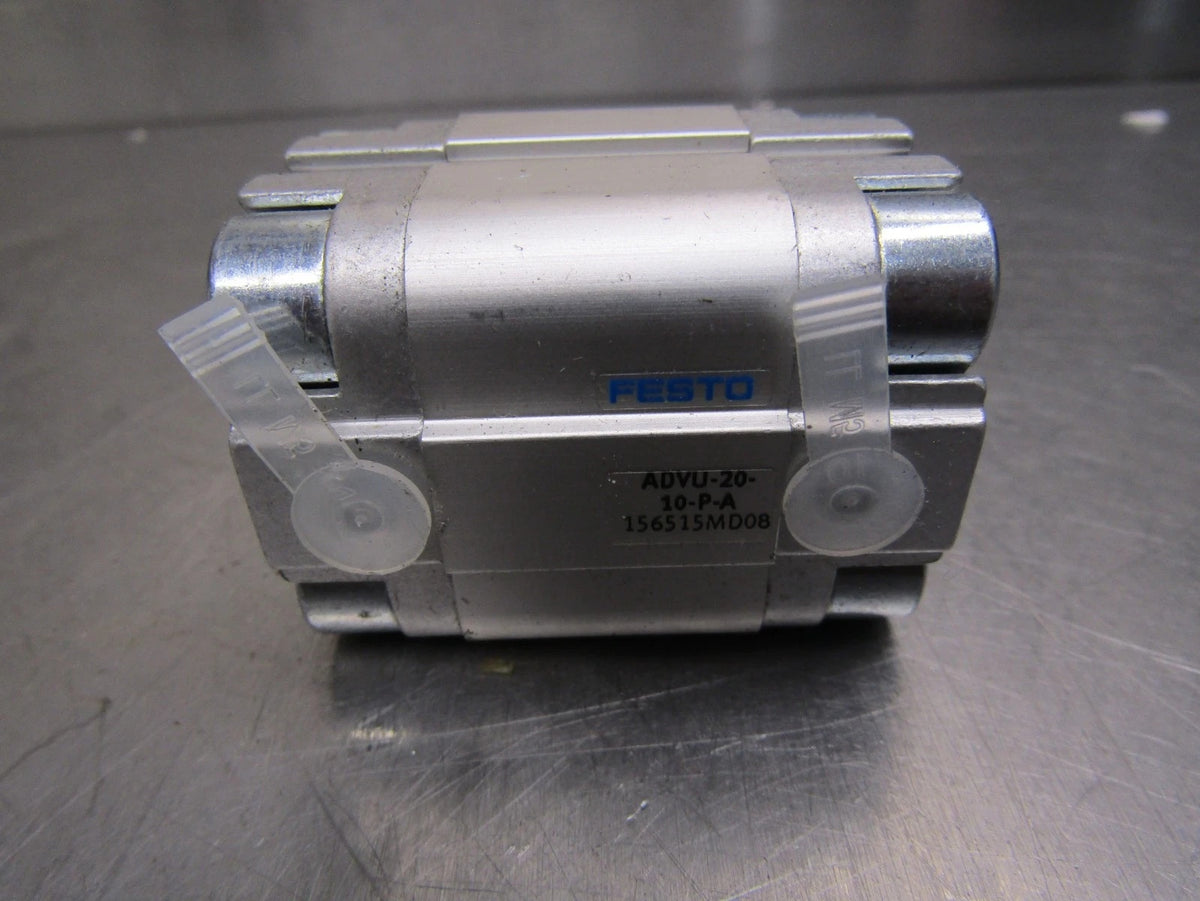

FESTO ADVU-20-10-P-A Compact Pneumatic Cylinder 20mm Bore 10mm Stroke
Available in stock (400)
Regular price
$27.20
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | ADVU-20-10-P-A |
| Product Category | Compact Pneumatic Cylinder |
| Part Number | 156515 |
| Series | ADVU |
| Piston Diameter | 20 mm |
| Stroke | 10 mm |
| Mode of Operation | Double-Acting |
| Cushioning | Elastic Cushioning Rings at Both Ends |
| Position Sensing | For Proximity Sensor |
| Piston Rod End | Internal Thread |
| Piston Rod Thread | M5 |
| Pneumatic Connection | M5 |
| Operating Pressure | 1–10 bar |
Key Features
Double-Acting Operation
Compressed air drives both extension and retraction, providing controlled movement in both directions.
Elastic End Cushioning
Elastic cushioning rings at both ends absorb impact energy as the piston reaches its end positions.
Position Sensing
The cylinder supports position detection using an appropriately selected proximity sensor.
1–10 bar Operating Pressure
The specified operating-pressure range is 1 to 10 bar, with theoretical forces of 188 N advancing and 141 N retracting at 6 bar.
Flexible Mounting
The compact cylinder can be installed in any mounting position using through-holes or suitable mounting accessories.
Applications
- Short-stroke pneumatic actuation
- Automated positioning mechanisms
- Industrial clamping equipment
- Assembly machine actuation
- Packaging machinery
- Material handling equipment
- Pneumatic pushing mechanisms
- Industrial automation systems
Purchase Information
We support online purchase of the FESTO ADVU-20-10-P-A Compact Pneumatic Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the FESTO ADVU-20-10-P-A?
It is an ADVU series compact pneumatic cylinder with a 20 mm piston diameter, 10 mm stroke and double-acting operation.
What is the FESTO part number?
The part number for ADVU-20-10-P-A is 156515.
What are the bore and stroke dimensions?
The cylinder has a 20 mm bore and a 10 mm stroke.
Is ADVU-20-10-P-A single-acting or double-acting?
It is a double-acting pneumatic cylinder.
What is its operating-pressure range?
The specified operating pressure is 1 to 10 bar.
What type of cushioning does it use?
It uses elastic cushioning rings at both ends.
Does the cylinder support position sensing?
Yes. Position detection is supported using a suitable proximity sensor.
What is the pneumatic connection size?
The pneumatic connection is M5.
What is the piston rod thread?
The piston rod has an M5 internal thread.
What forces does the cylinder produce at 6 bar?
The theoretical advancing force is 188 N and the theoretical retracting force is 141 N.
What is the ambient operating-temperature range?
The specified ambient temperature range is -20°C to +80°C.
What should be checked before ordering?
Confirm model ADVU-20-10-P-A, part number 156515, 20 mm bore, 10 mm stroke, M5 connections, operating pressure, mounting requirements and the required position-sensing arrangement.
