5/2-Way Monostable Function
The documented valve function is 5/2-way, monostable for pneumatic directional control.

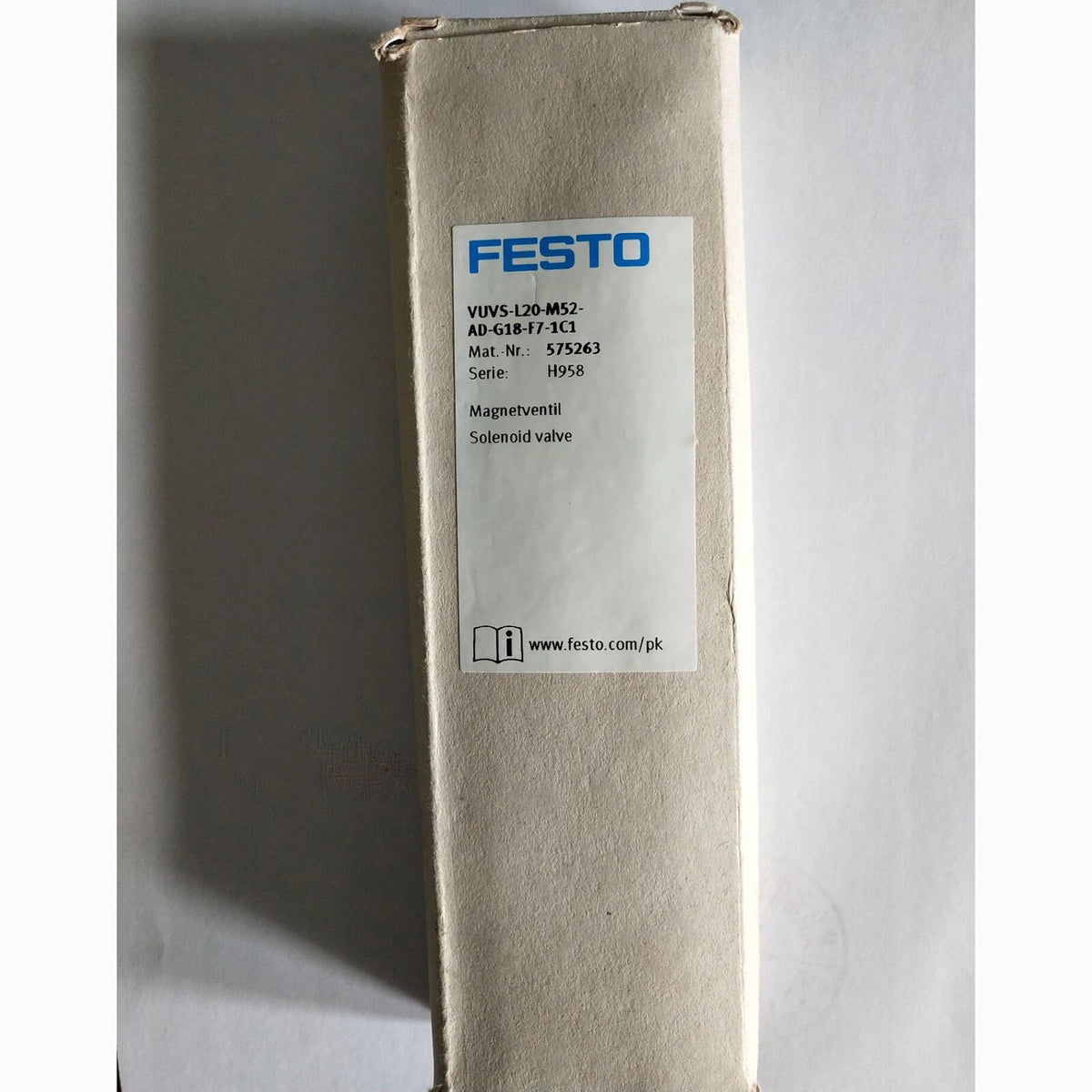

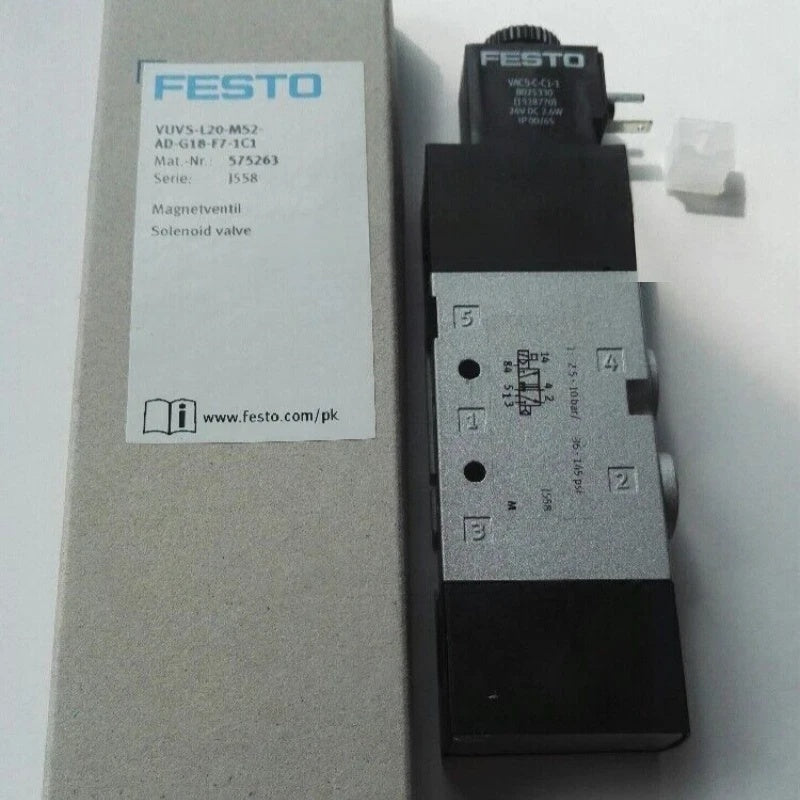

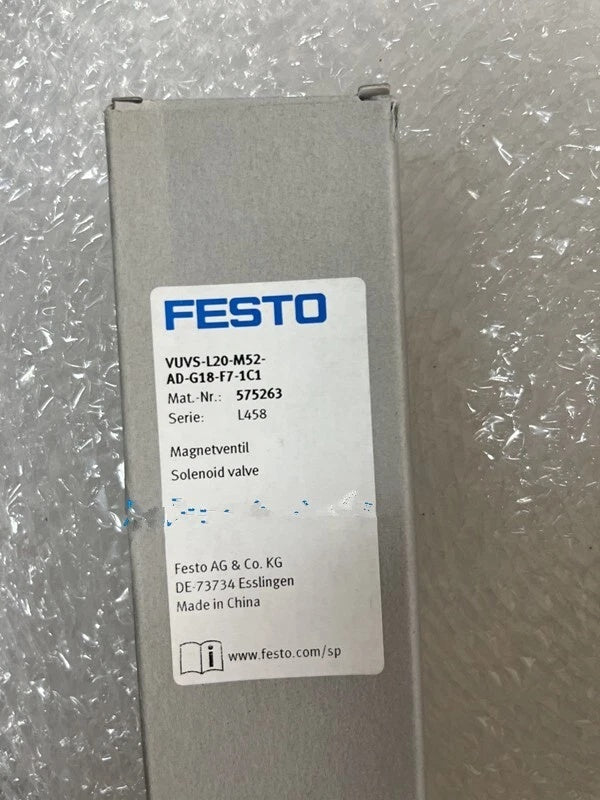

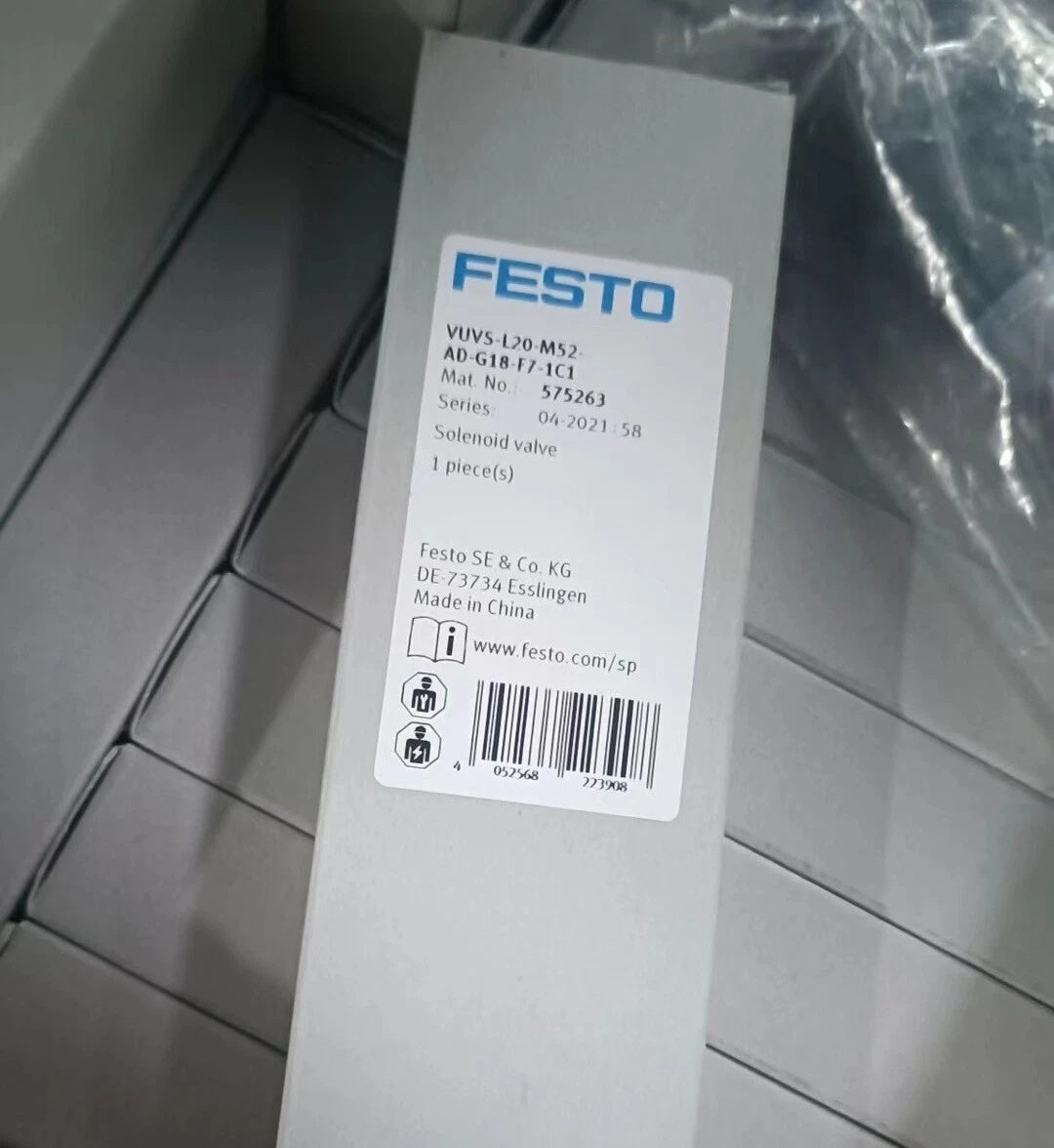

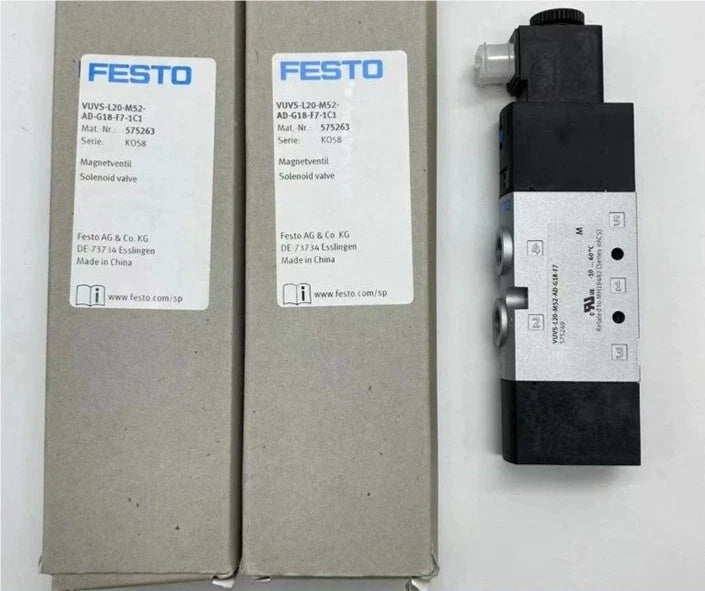

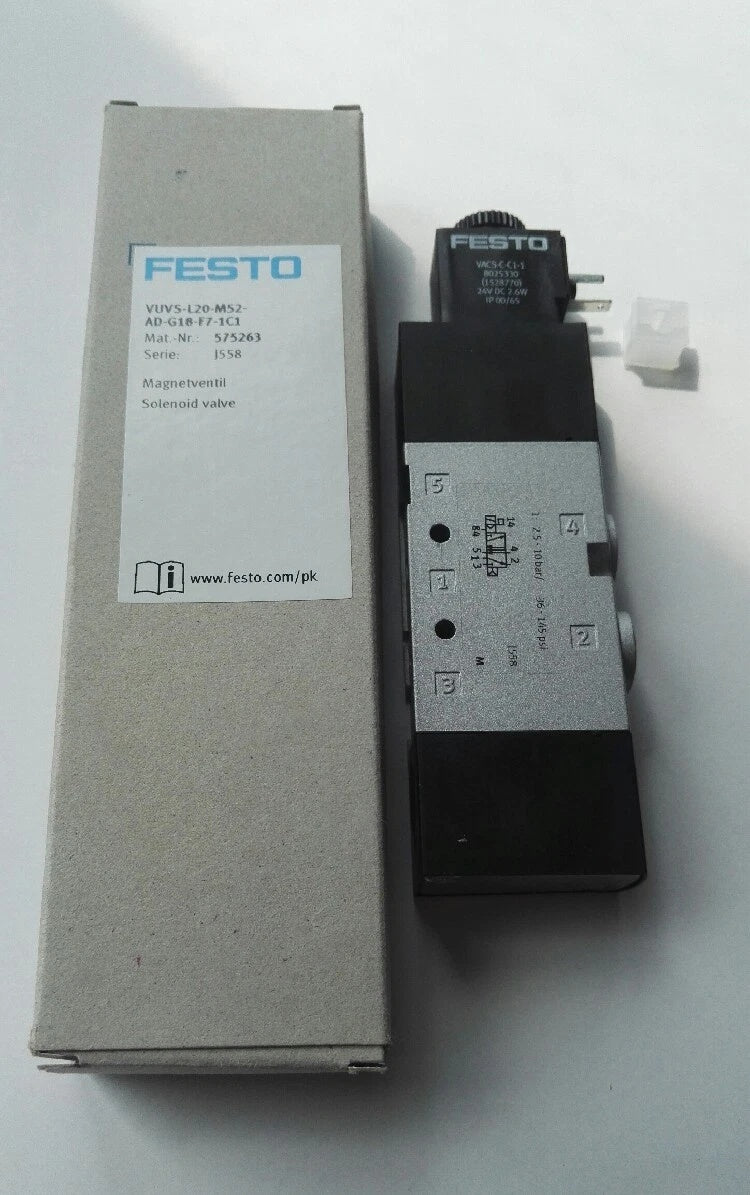

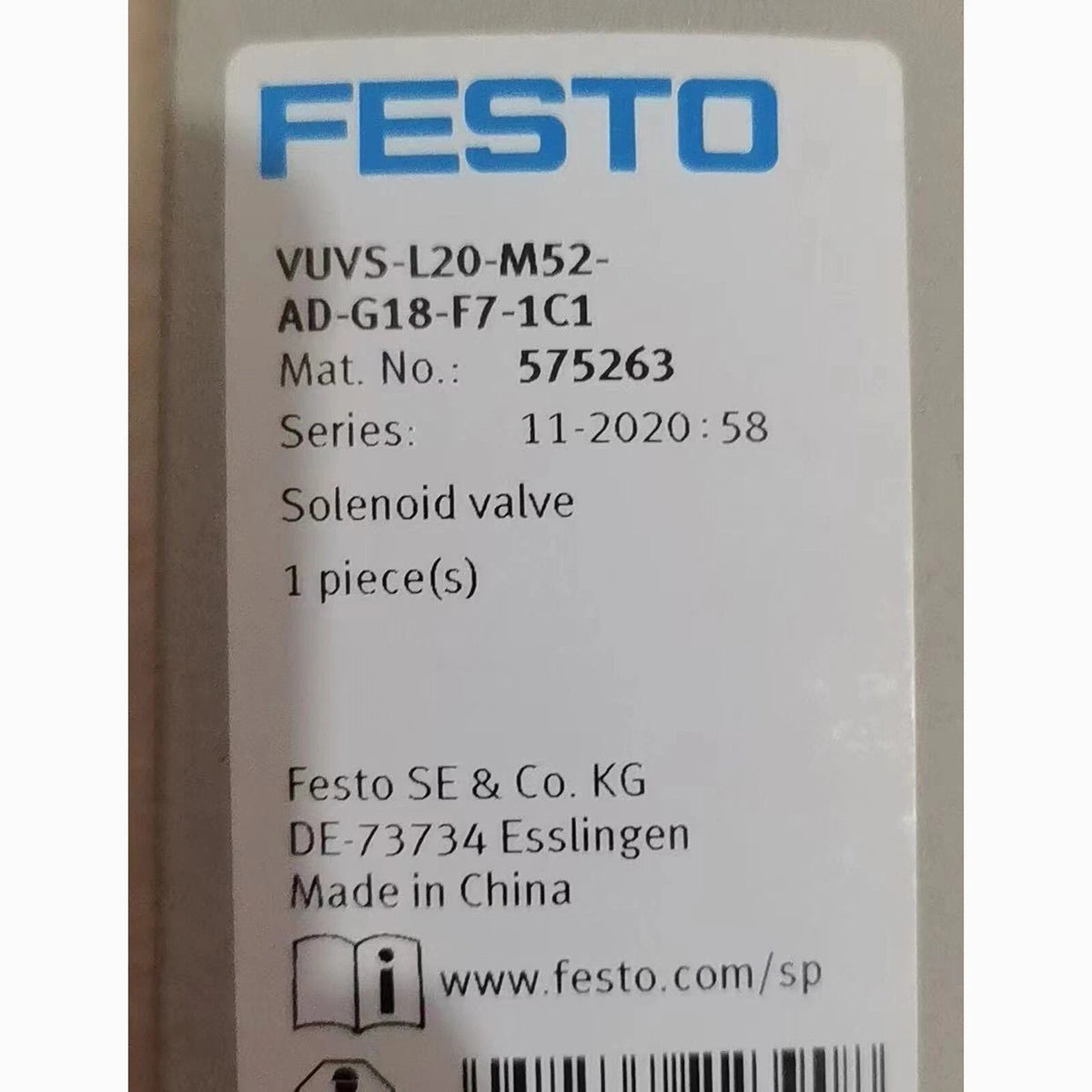

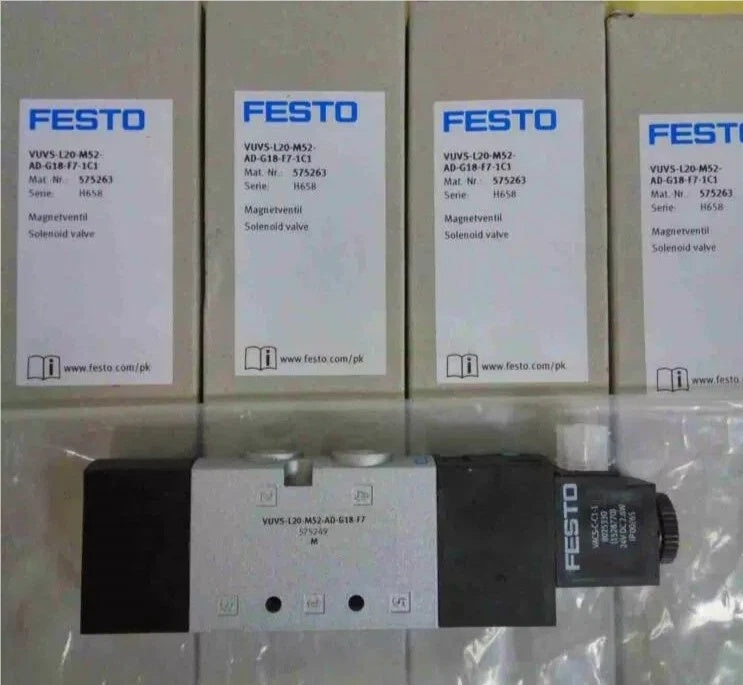

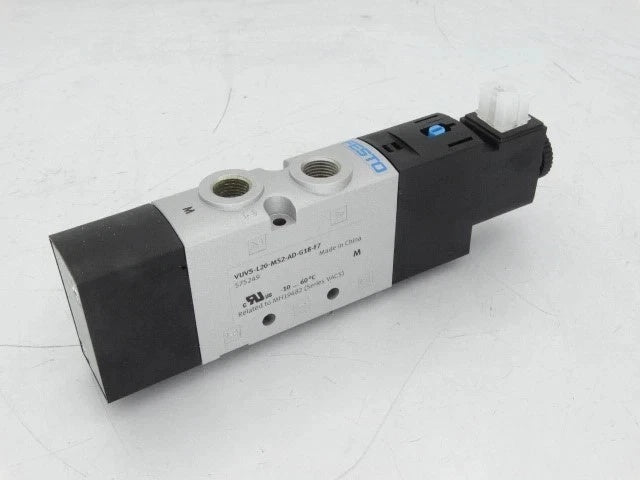

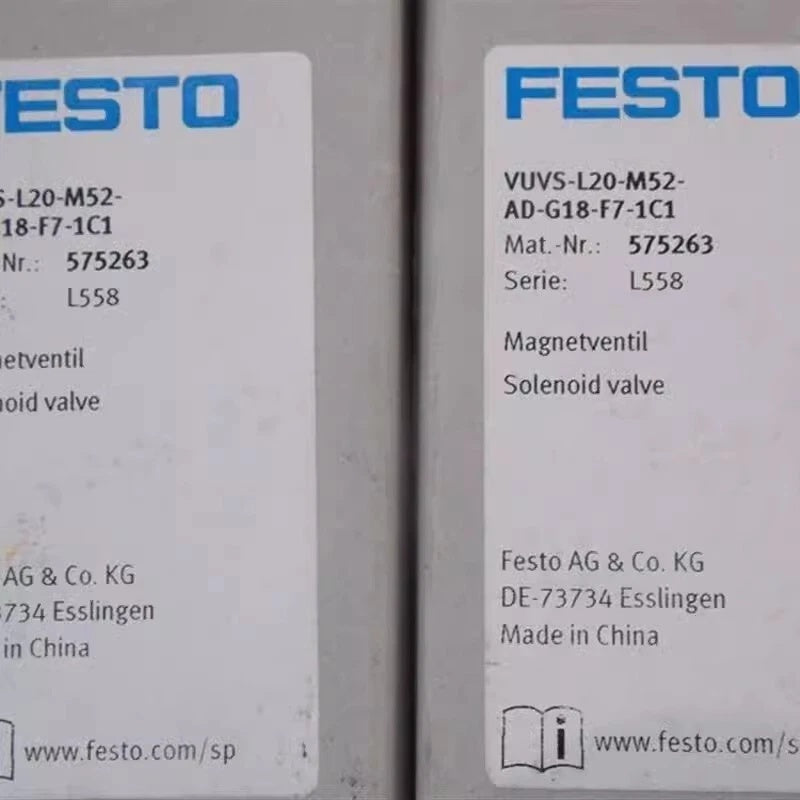

FESTO VUVS-L20-M52-AD-G18-F7-1C1 Solenoid Valve 24VDC 700 l/min
Available in stock (400)
Regular price
$52.26
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | VUVS-L20-M52-AD-G18-F7-1C1 |
| Product Category | Solenoid Valve |
| Part Number | 575263 |
| Valve Function | 5/2-way, monostable |
| Actuation Type | Electrical |
| Valve Size | 21 mm |
| Normal Nominal Flow Rate | 700 l/min |
| Pneumatic Working Port | G1/8 |
| Operating Voltage | 24 VDC |
| Operating Pressure | 2.5-10 bar |
| Structural Design | Piston gate valve |
| Reset Method | Pneumatic spring |
| Degree of Protection | IP65 with plug socket |
| Nominal Width | 5.7 mm |
| Type of Control | Piloted |
| Pilot Air Supply Port | Internal |
| Flow Direction | Non-reversible |
| Coil Power | 2.6 W |
| Operating Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Key Features
24 VDC Electrical Actuation
The valve uses electrical actuation with a documented operating voltage of 24 VDC.
700 l/min Nominal Flow
The normal nominal flow rate is specified as 700 l/min under the manufacturer data.
G1/8 Working Port
The pneumatic working port is specified as G1/8.
Pneumatic Spring Reset
The valve uses a pneumatic spring reset with internal pilot air supply.
2.5-10 bar Operating Pressure
The documented operating pressure range is 2.5 to 10 bar.
Applications
- Pneumatic directional control systems
- Industrial automation pneumatic circuits
- Machine automation air control
- Actuator control circuits
- Pneumatic cylinder control
- Equipment air distribution systems
- Automated production machinery
- Pneumatic system maintenance projects
Purchase Information
We support online purchase of the FESTO VUVS-L20-M52-AD-G18-F7-1C1 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO VUVS-L20-M52-AD-G18-F7-1C1?
It is an electrically actuated 5/2-way monostable solenoid valve with part number 575263.
What valve function does VUVS-L20-M52-AD-G18-F7-1C1 use?
The documented valve function is 5/2-way, monostable.
What operating voltage does this solenoid valve use?
The specified operating voltage is 24 VDC.
What is the nominal flow rate?
The normal nominal flow rate is specified as 700 l/min.
What pneumatic working port is specified?
The pneumatic working port is G1/8.
What is the operating pressure range?
The documented operating pressure range is 2.5 to 10 bar.
How does the valve reset?
The documented reset method is pneumatic spring.
What pilot air supply is used?
The valve uses an internal pilot air supply.
What is the documented degree of protection?
The manufacturer specifies IP65 with plug socket, as per IEC 60529.
What operating medium is specified?
The documented operating medium is compressed air as per ISO 8573-1:2010 [7:4:4].
Can this valve be considered for an existing pneumatic system?
It can be considered after the complete model number, valve function, operating voltage, pressure range, port requirements and pneumatic system requirements have been checked.
What should be checked before ordering?
Check the complete model number, 24 VDC operating voltage, 5/2-way monostable function, G1/8 working port, 2.5-10 bar pressure range and installation requirements against the intended system.
