230 VAC Operation
Rated for 230 VAC at 50/60 Hz, suitable for standard industrial AC power systems.

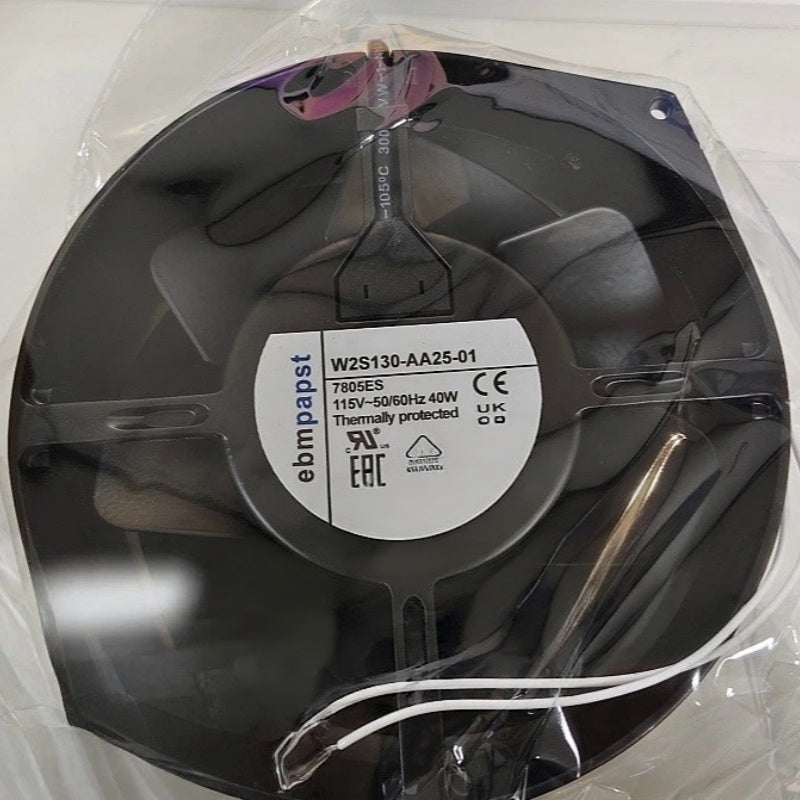

Ebmpapst W2S130-AA25-01 AC Axial Fan 230VAC 130mm
Available in stock (200)
Regular price
$41.68
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2S130-AA25-01 |
| Product Category | AC Axial Fan |
| Rated Voltage | 230 VAC |
| Rated Frequency | 50/60 Hz |
| Power Input | 42 W |
| Speed | 2700 RPM |
| Air Flow | 160 CFM |
| Diameter | 130 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP20 |
Key Features
130 mm Diameter
Compact 130 mm frame size designed for equipment cooling and ventilation applications.
160 CFM Air Flow
Delivers 160 CFM airflow at 2700 RPM for effective thermal management.
Ball Bearing Design
Equipped with ball bearings for extended mechanical durability in continuous operation.
IP20 Protection
IP20 rated housing provides protection against solid objects larger than 12.5 mm.
Wide Temperature Range
Operating temperature range of -20°C to +70°C supports varied industrial environments.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- HVAC system air circulation
- Control cabinet thermal management
- Industrial machinery ventilation
- Power supply cooling
- Automation panel cooling
- General industrial air movement
Purchase Information
We support online purchase of the Ebmpapst W2S130-AA25-01 AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst W2S130-AA25-01?
Ebmpapst W2S130-AA25-01 is an AC axial fan designed for industrial cooling and ventilation applications.
What voltage does W2S130-AA25-01 operate on?
The fan is rated for 230 VAC at 50/60 Hz.
What is the diameter of W2S130-AA25-01?
The fan has a 130 mm diameter frame size.
What airflow does W2S130-AA25-01 provide?
It delivers 160 CFM airflow at 2700 RPM.
What bearing type is used in W2S130-AA25-01?
The fan uses ball bearings.
What is the protection rating of W2S130-AA25-01?
The fan has an IP20 protection rating.
What is the operating temperature range?
The specified operating temperature range is -20°C to +70°C.
What applications can W2S130-AA25-01 be used for?
It can be used for cooling industrial equipment, electrical cabinets, control panels, and general industrial ventilation.
What should be checked before ordering W2S130-AA25-01?
Verify the voltage, frequency, mounting dimensions, airflow requirements, and operating environment against the existing system.
What should be verified before using W2S130-AA25-01 in an existing system?
Electrical, mechanical, and installation requirements should be checked against the system specifications.
