130 mm Axial Design

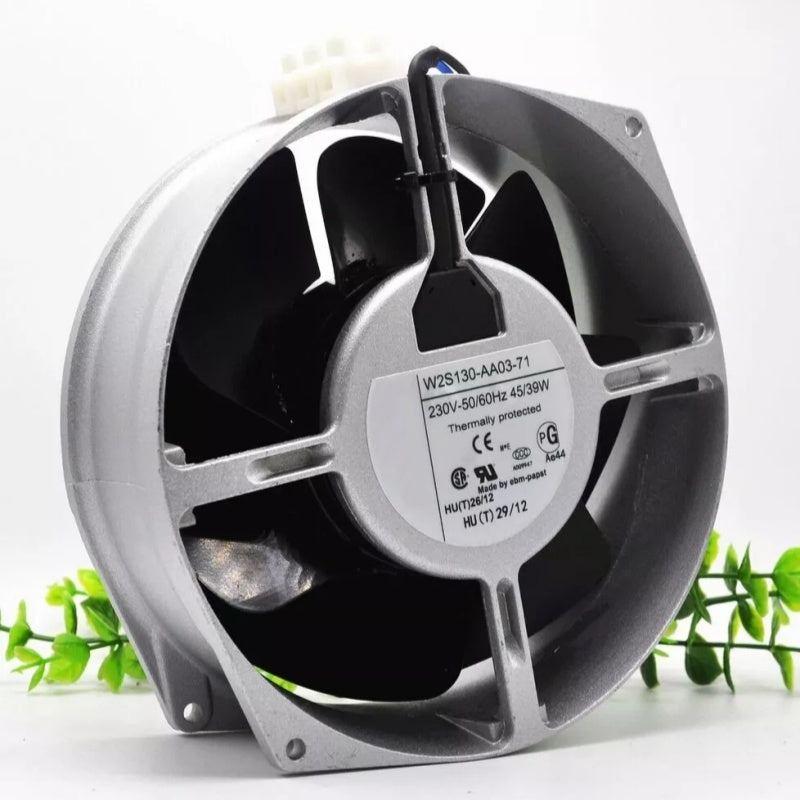

The W2S130-AA03-71 is an AC axial fan with a nominal size of 130 mm and overall dimensions of 172 x 150 x 55 mm.
Ebmpapst W2S130-AA03-71 Fan 230 V 45/39 W 2800/3250 RPM
Available in stock (200)
Regular price
$57.63
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2S130-AA03-71 |
| Product Category | Axial Fan |
| Fan Type | AC Axial Fan |
| Motor Model | M2S052-CA |
| Nominal Size | 130 mm |
| Dimensions | 172 x 150 x 55 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 45 W at 50 Hz / 39 W at 60 Hz |
| Current Draw | 0.31 A at 50 Hz / 0.25 A at 60 Hz |
| Speed | 2800 RPM at 50 Hz / 3250 RPM at 60 Hz |
| Air Flow | 340 m³/h at 50 Hz / 390 m³/h at 60 Hz |
| Impeller | 7 Blades |
| Impeller Material | Painted Sheet Steel |
| Housing Material | Die-Cast Aluminum |
| Airflow Direction | V |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Degree of Protection | IP20 |
| Insulation Class | Class B |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protection |
| Mounting Position | Any |
| Weight | Approx. 1.1 kg |
Key Features
230 VAC Operation
The single-phase M2S052-CA motor is rated for 230 VAC operation with documented ratings for both 50 Hz and 60 Hz.
45/39 W Power Input
The documented power input is 45 W at 50 Hz and 39 W at 60 Hz.
2800/3250 RPM Speed
The documented rotational speed is 2800 RPM at 50 Hz and 3250 RPM at 60 Hz.
340/390 m³/h Airflow
Published technical data specifies free-air performance of 340 m³/h at 50 Hz and 390 m³/h at 60 Hz.
Metal Construction
The seven-blade impeller is made from painted sheet steel and is combined with a die-cast aluminum housing and ball bearings.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial machinery cooling
- Equipment air circulation
- Industrial ventilation systems
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst W2S130-AA03-71 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst W2S130-AA03-71?
It is a single-phase AC axial fan with a nominal fan size of 130 mm.
What voltage does W2S130-AA03-71 use?
The documented nominal supply voltage is 230 VAC.
What frequency does W2S130-AA03-71 support?
The documented electrical ratings cover 50 Hz and 60 Hz operation.
What is the power input?
The documented power input is 45 W at 50 Hz and 39 W at 60 Hz.
What is the current draw?
The documented current draw is 0.31 A at 50 Hz and 0.25 A at 60 Hz.
What is the fan speed?
The documented speed is 2800 RPM at 50 Hz and 3250 RPM at 60 Hz.
What is the airflow?
Published technical data specifies 340 m³/h at 50 Hz and 390 m³/h at 60 Hz.
What are the fan dimensions?
The documented overall dimensions are 172 x 150 x 55 mm with a nominal fan size of 130 mm.
What materials are used?
The seven-blade impeller is made from painted sheet steel and the housing is die-cast aluminum.
What is the protection rating?
The documented degree of protection is IP20 with Class B insulation.
What bearing type is used?
The documented motor configuration uses ball bearings.
What should be checked before ordering W2S130-AA03-71?
Check the complete model number, 230 VAC single-phase supply, 50/60 Hz frequency, dimensions, power and current ratings, airflow requirement, electrical connection and mounting arrangement before purchasing.
