230 VAC Operation
Designed for 230 VAC input voltage, suitable for industrial and commercial AC power systems.

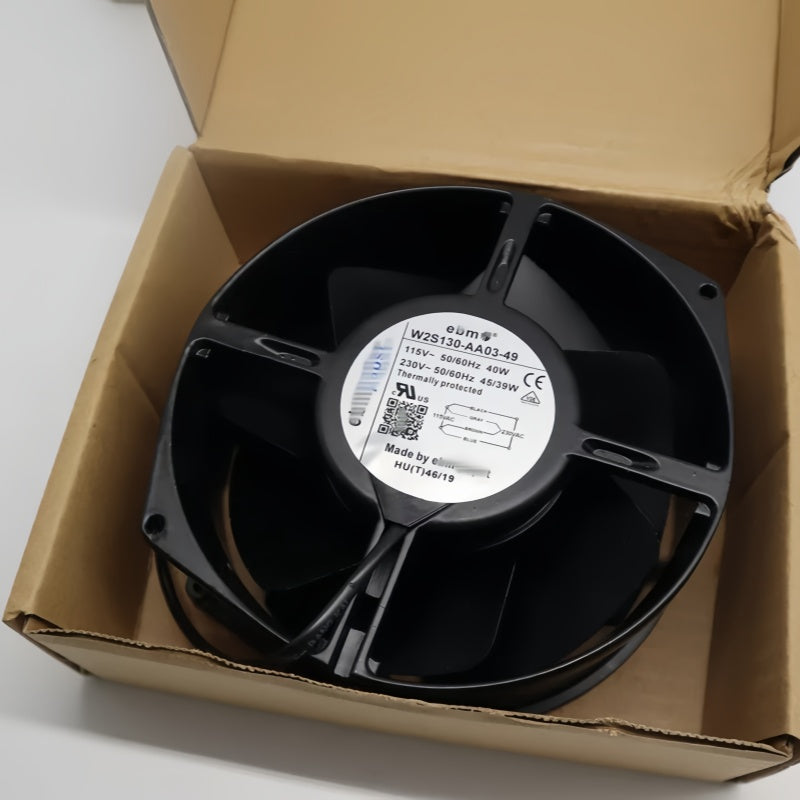

Ebmpapst W2S130-AA03-49 AC Axial Fan 230VAC 130mm 41W
Available in stock (200)
Regular price
$65.75
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2S130-AA03-49 |
| Product Category | AC Axial Fan |
| Fan Type | Axial Fan |
| Rated Voltage | 230 VAC |
| Power Input | 41 W |
| Rated Frequency | 50/60 Hz |
| Speed | 2700 RPM |
| Air Flow | 300 m³/h |
| Diameter | 130 mm |
| Dimensions | 130 mm x 130 mm x 38 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP20 |
Key Features
130 mm Frame
Standard 130 mm x 130 mm frame size with 38 mm depth, compatible with common mounting configurations.
Ball Bearing
Ball bearing construction supports reliable operation across the documented temperature range.
2700 RPM Speed
Rated speed of 2700 RPM provides consistent airflow for equipment cooling and ventilation applications.
300 m³/h Airflow
Capable of delivering up to 300 m³/h airflow, suitable for a variety of forced-air cooling requirements.
50/60 Hz Compatibility
Operates on both 50 Hz and 60 Hz mains frequency, offering flexibility for different regional power grids.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- HVAC system components
- Industrial machinery cooling
- Power supply and converter cooling
- Automation system ventilation
- Enclosure air circulation
Purchase Information
We support online purchase of the Ebmpapst W2S130-AA03-49 AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst W2S130-AA03-49?
Ebmpapst W2S130-AA03-49 is a 130 mm AC axial fan designed for cooling and ventilation applications.
What type of fan is W2S130-AA03-49?
The W2S130-AA03-49 is an AC axial fan with a 130 mm x 130 mm frame and 38 mm depth.
What voltage does W2S130-AA03-49 operate on?
Documentation specifies 230 VAC input voltage for the W2S130-AA03-49.
What is the power consumption of W2S130-AA03-49?
The W2S130-AA03-49 has a rated power input of 41 W.
What is the speed of W2S130-AA03-49?
The rated speed is 2700 RPM.
What airflow does W2S130-AA03-49 provide?
The fan delivers approximately 300 m³/h of airflow under rated conditions.
What bearing type is used in W2S130-AA03-49?
Documentation identifies ball bearing construction for the W2S130-AA03-49.
What is the operating temperature range?
The specified operating temperature range is -20°C to +70°C.
What protection rating does W2S130-AA03-49 have?
The protection rating is IP20.
What frequency does W2S130-AA03-49 support?
The fan supports both 50 Hz and 60 Hz mains frequency.
What applications can W2S130-AA03-49 be used for?
The fan can be considered for industrial cooling, cabinet ventilation, control panel thermal management, and similar forced-air cooling applications after mechanical and electrical requirements have been verified.
What should be checked before ordering W2S130-AA03-49?
Before ordering, verify the complete catalog number, required voltage and frequency, mounting dimensions, airflow and pressure requirements, operating temperature range, and electrical connections against the existing installation.
