250 mm Axial Design

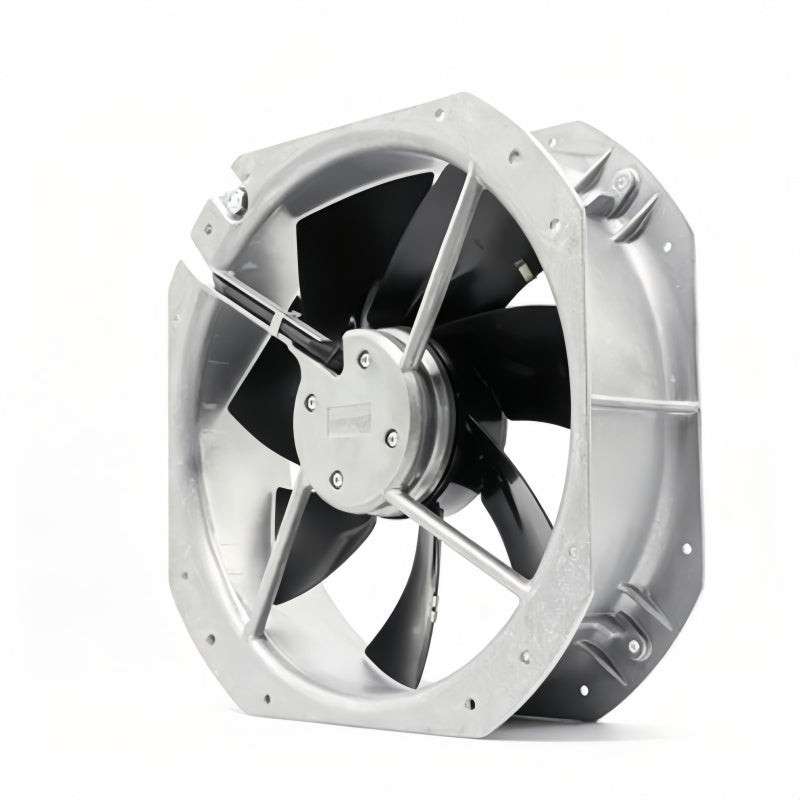

The W2E250-HL06-01 is an AC axial compact fan with a 250 mm impeller and seven sickle-shaped sheet-steel blades.
Ebmpapst W2E250-HL06-01 Axial Fan 230VAC 50/60Hz 127/180W
Available in stock (200)
Regular price
$104.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E250-HL06-01 |
| Product Category | Axial Fan |
| Series | W2E250 |
| Fan Type | AC Axial Compact Fan with Sickle-Shaped Blades |
| Motor Model | M2E068-CF |
| Fan Size | 250 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 127 W at 50 Hz / 180 W at 60 Hz |
| Current Draw | 0.56 A at 50 Hz / 0.79 A at 60 Hz |
| Speed | 2550 RPM at 50 Hz / 2700 RPM at 60 Hz |
| Motor Capacitor | 4 µF |
| Capacitor Voltage | 400 VDB |
| Maximum Back Pressure | 100 Pa |
| Air Flow at Optimum Efficiency | 1205 m³/h |
| Pressure at Optimum Efficiency | 115 Pa |
| Number of Blades | 7 |
| Blade Material | Sheet Steel, Painted Black |
| Fan Housing Material | Die-Cast Aluminum |
| Airflow Direction | V |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Degree of Protection | IP44 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector, Internally Connected |
| Electrical Connection | Terminal Strip, Capacitor Connected |
| Installation Position | Any |
| Weight | 2.8 kg |
Key Features
230 VAC Operation
The manufacturer nominal data specifies single-phase 230 VAC operation with ratings for both 50 Hz and 60 Hz.
127/180 W Power Input
The documented power input is 127 W at 50 Hz and 180 W at 60 Hz.
2550/2700 RPM Speed
The documented free-air rotational speed is 2550 RPM at 50 Hz and 2700 RPM at 60 Hz.
Metal Fan Construction
The fan combines seven painted sheet-steel blades with a die-cast aluminum housing.
IP44 Protection
The documented configuration specifies IP44 protection, Class F insulation, ball bearings and an internally connected thermal overload protector.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Refrigeration equipment ventilation
- HVAC equipment
- Industrial machinery cooling
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst W2E250-HL06-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst W2E250-HL06-01?
It is a single-phase AC axial compact fan with a 250 mm impeller and sickle-shaped blades.
What voltage does W2E250-HL06-01 use?
The manufacturer nominal data specifies 230 VAC.
What frequency does W2E250-HL06-01 support?
The manufacturer provides nominal ratings for both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 127 W at 50 Hz and 180 W at 60 Hz.
What is the current draw?
The documented current draw is 0.56 A at 50 Hz and 0.79 A at 60 Hz.
What is the fan speed?
The documented free-air speed is 2550 RPM at 50 Hz and 2700 RPM at 60 Hz.
What is the fan size?
The manufacturer technical description specifies a fan size of 250 mm.
What airflow is documented?
Manufacturer ErP data specifies 1205 m³/h at the optimum-efficiency operating point with a pressure increase of 115 Pa.
What capacitor is specified?
The manufacturer specifies a 4 µF motor capacitor rated at 400 VDB.
What is the protection rating?
The documented protection rating is IP44 with Class F insulation.
What bearing type is used?
The motor uses ball bearings.
What should be checked before ordering W2E250-HL06-01?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 250 mm fan size, electrical ratings, capacitor, airflow requirements and mounting arrangement before purchasing.
