225mm AC Axial Fan
Square 225 x 225 x 80 mm tubeaxial fan designed for AC-powered high-volume cooling.
1 / 1
Ebmpapst

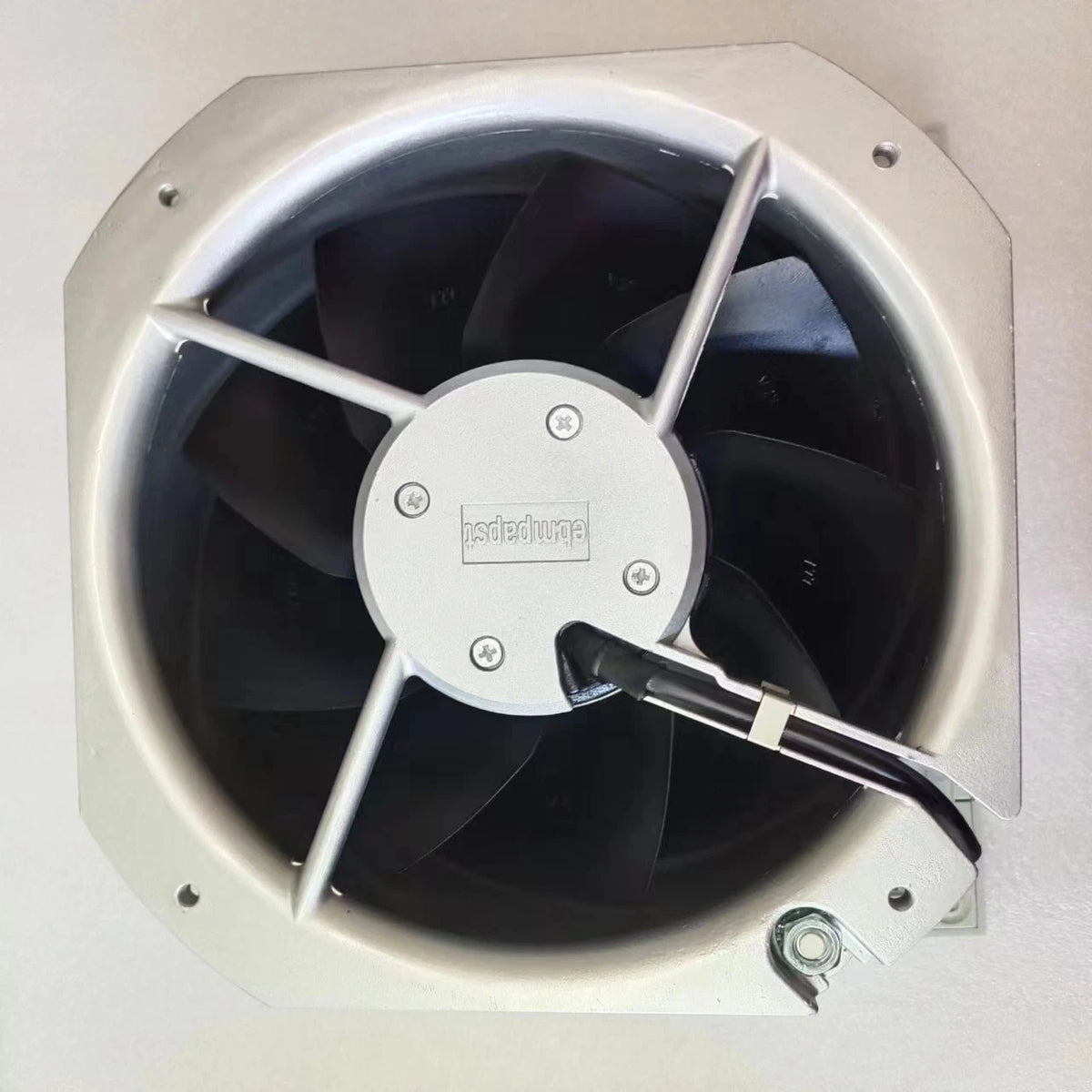

Ebmpapst W2E200-HH86-90 Axial Fan 230V 200mm 65W
PRODUCT PRICE
USD
$190.89
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E200-HH86-90 |
| Product Category | Axial Fan |
| Fan Type | AC Tubeaxial Fan |
| Nominal Voltage | 115 VAC |
| Power Rating | 80 W |
| Current Rating | 700 mA |
| Speed | 2800 RPM |
| Air Flow | 600 to 607 CFM (17 m³/min) |
| Noise Level | 61 dBA |
| Frame Dimensions | 225 x 225 x 80 mm |
| Bearing Type | Ball Bearing |
| IP Rating | IP44 |
| Termination | Terminal Block, Wire Leads |
Key Features
600+ CFM Air Flow
Delivers approximately 600 to 607 CFM (17 m³/min) at 2800 RPM for large enclosure ventilation.
80 W AC Motor
Rated at 80 W with a 700 mA current draw on the referenced AC supply.
IP44 Protection
IP44-rated for protection against solid objects and splashing water in industrial environments.
Ball Bearing Construction
Ball bearing assembly for continuous-duty axial airflow within the published ratings.
Applications
- Industrial cabinet and enclosure cooling
- Heat exchanger air movement
- Power electronics ventilation
- HVAC and air handling units
- Large machinery cooling
- General purpose high-volume axial airflow
Purchase Information
We support online purchase of the Ebmpapst W2E200-HH86-90 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E200-HH86-90? The W2E200-HH86-90 is a 225 x 225 x 80 mm AC tubeaxial fan used for high-volume air movement in industrial and HVAC equipment.
What is the voltage of the W2E200-HH86-90? The nominal voltage is 115 VAC.
What is the air flow of the W2E200-HH86-90? Air flow is rated at approximately 600 to 607 CFM (17 m³/min).
What is the power rating of the W2E200-HH86-90? The fan is rated at 80 W with a current rating of 700 mA.
What is the speed of the W2E200-HH86-90? The rated speed is 2800 RPM.
What is the noise level of the W2E200-HH86-90? The published noise level is 61 dBA.
What is the IP rating of the W2E200-HH86-90? The fan has an IP44 rating.
What bearing type does the W2E200-HH86-90 use? It uses ball bearings.
How is the W2E200-HH86-90 terminated? It uses a terminal block with wire leads.
What should be checked before ordering the W2E200-HH86-90? Confirm the 115 VAC supply, the 225 x 225 mm frame opening, the IP44 installation environment, the terminal-block connection, and the ambient temperature at the fan location.
